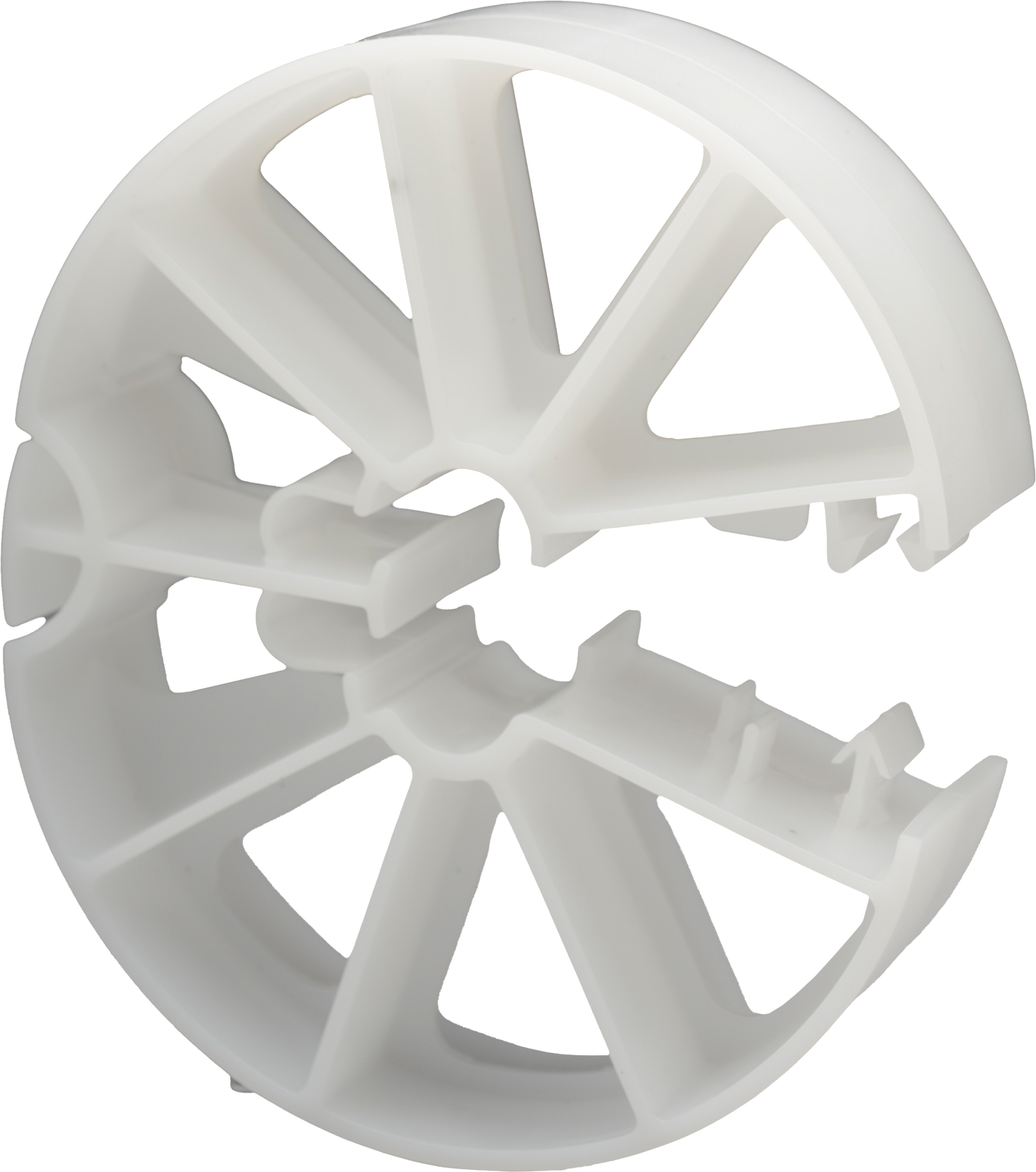

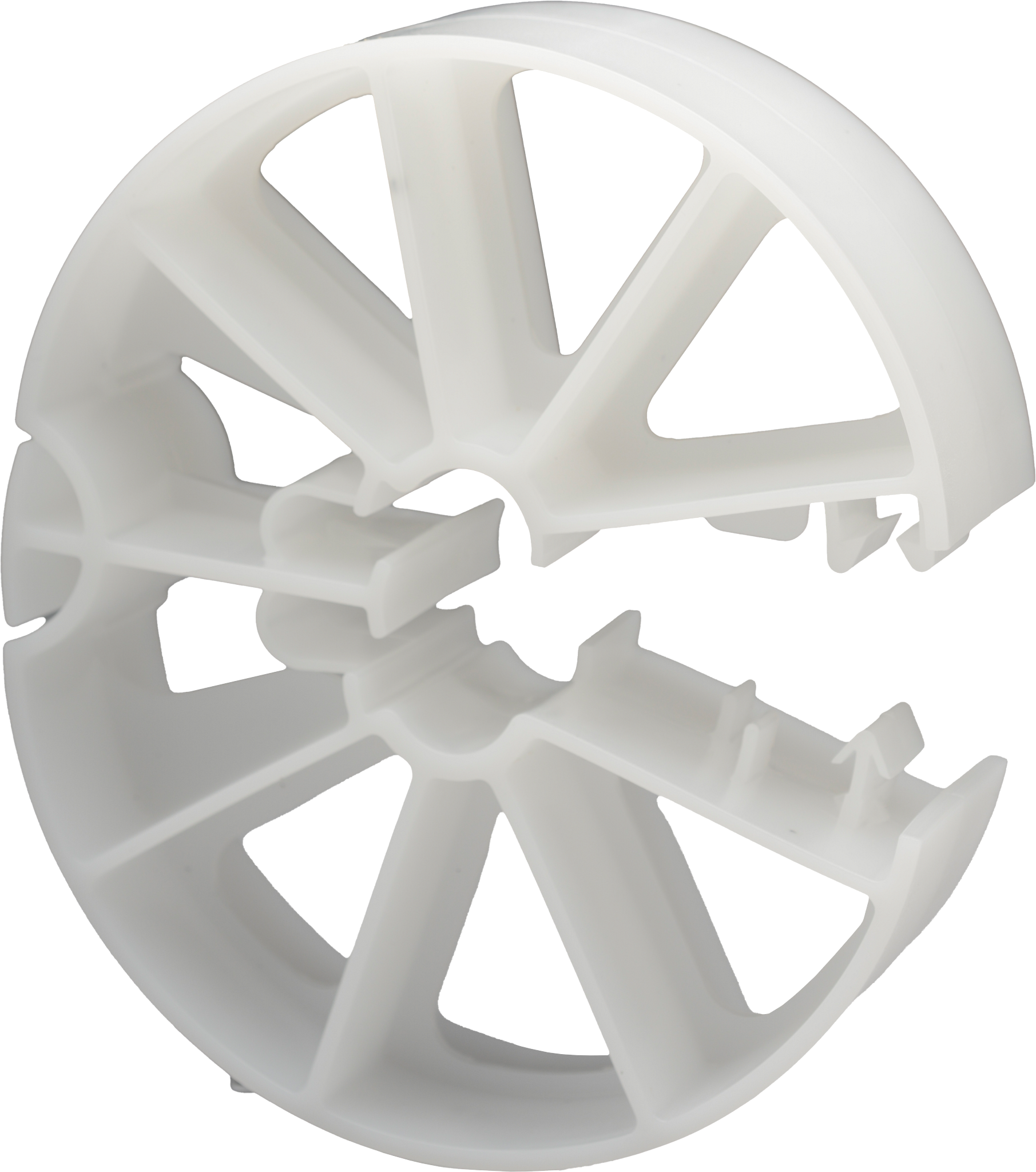

Simpson Strong-Tie 12QLHD Quick-Lock HD® Pier Wheel — 10-3/4-in. O.D., 4-7/8 Cover, #3–#7 Rebar Size (16-Qty)

Simpson Strong-Tie® Quick-Lock HD® pier wheels are designed to properly position a reinforcing steel cage in a drilled shaft, or other heavy-duty applications where concrete cover must be maintained. Our unique one-piece design installs in a snap! All our Quick-Lock HD pier wheel products are made of durable, noncorrosive plastic and fit rebar sizes #3 through #7.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• One-piece design
• Quick and easy installation; no tools required
• Snaps over the rebar
• Made in the USA with global materials
• Material: High-density polyethylene
• Cover: 4-7/8 inches
• Outer diameter: 10-3/4 inches
• Rebar size: #3–#7
• Quantity: 16 per package

Specifications

• ERP Part Number: 12QLHD
• UPC: 707392024088
• GTIN: 707392024088
• Feature 01: One-piece design
• Feature 02: Quick and easy installation; no tools required
• Feature 03: Snaps over the rebar
• Feature 04: Made in the USA with global materials
• Feature 05: Material: High-density polyethylene
• Feature 06: Cover: 4-7/8 inches
• Feature 07: Outer diameter: 10-3/4 inches
• Feature 08: Rebar size: #3–#7
• Feature 09: Quantity: 16 per package
• Assembled Depth - Imperial: 1.97
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 10.4061
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 11.688
• Assembled Width UOM - Imperial: in.
• Base Product ID: QLHD_Wheel
• Base Product Name: Quick-Lock HD® Pier Wheel
• Bolt/Rod Diameter (in.): #3 – #7
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Reinforcement Alignment > > Pier Wheel
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• GUID: 211080542011086119289289863382880009908
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 24
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 11.25
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 15.5
• Package Width UOM - Imperial: in.
• Packaging Quantity: 16
• Packaging Type: Box
• Product Class: Pier Wheel
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 20.8
• Short Product Name: HD PR WHL 4-7/8 CVR #3-#7 10-3/4 OD 16pc
