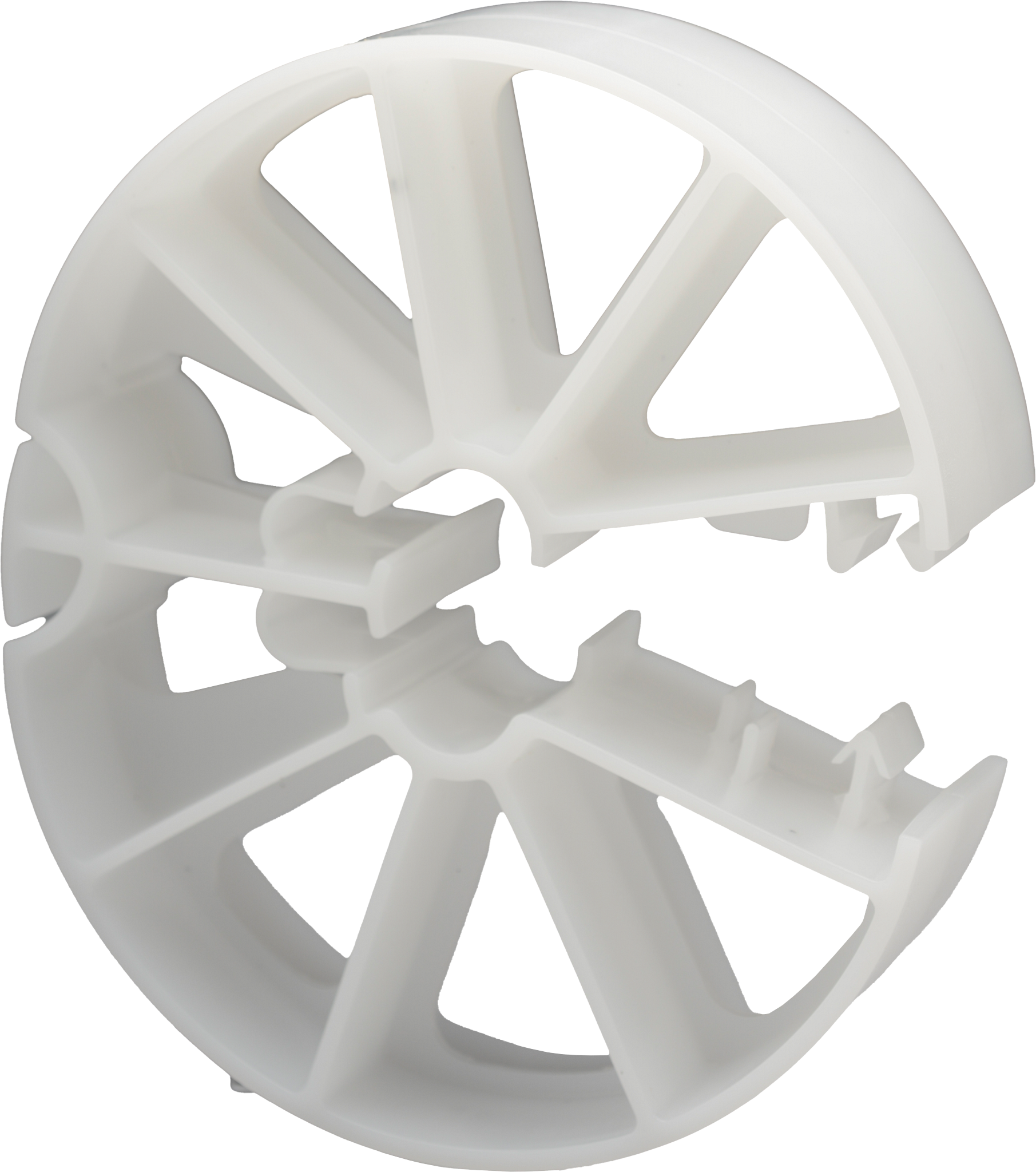

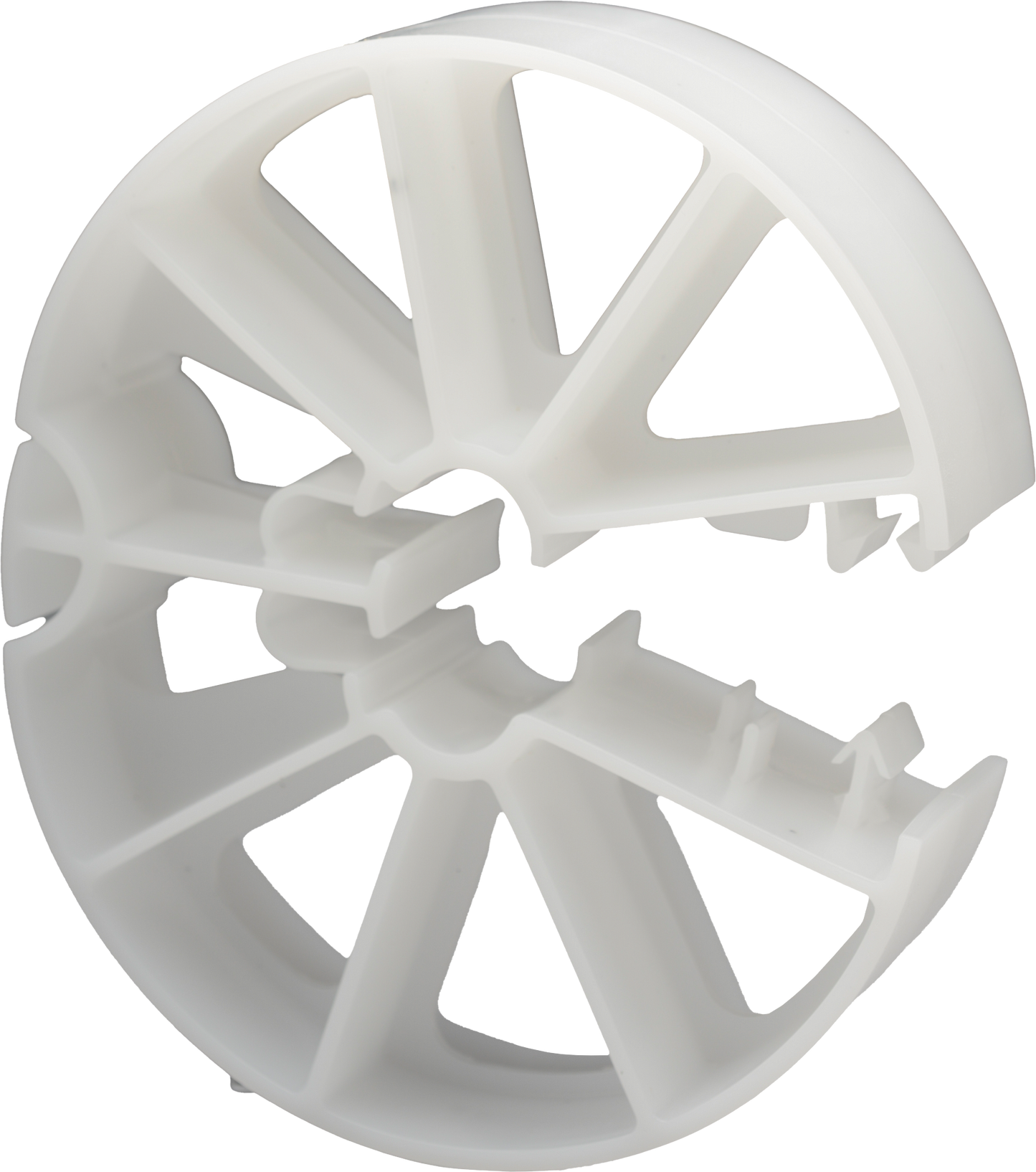

Simpson Strong-Tie 4QLHD Quick-Lock HD® Pier Wheel — 5-in. O.D., 2-in. Cover, #3–#7 Rebar Size (80-Qty) (Pack of 25)

Simpson Strong-Tie® Quick-Lock HD® pier wheels are designed to properly position a reinforcing steel cage in a drilled shaft, or other heavy-duty applications where concrete cover must be maintained. Our unique one-piece design installs in a snap! All our Quick-Lock HD pier wheel products are made of durable, noncorrosive plastic and fit rebar sizes #3 through #7.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• One-piece design
• Quick and easy installation; no tools required
• Snaps over the rebar
• Made in the USA with global materials
• Material: High-density polyethylene
• Cover: 2 inches
• Outer diameter: 5 inches
• Rebar size: #3–#7
• Quantity: 80 per package

Specifications

• ERP Part Number: 4QLHD
• UPC: 60707392024035
• GTIN: 60707392024035
• Feature 01: One-piece design
• Feature 02: Quick and easy installation; no tools required
• Feature 03: Snaps over the rebar
• Feature 04: Made in the USA with global materials
• Feature 05: Material: High-density polyethylene
• Feature 06: Cover: 2 inches
• Feature 07: Outer diameter: 5 inches
• Feature 08: Rebar size: #3–#7
• Feature 09: Quantity: 80 per package
• Assembled Depth - Imperial: 1.855
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 4.8362
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 5.455
• Assembled Width UOM - Imperial: in.
• Base Product ID: QLHD_Wheel
• Base Product Name: Quick-Lock HD® Pier Wheel
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Reinforcement Alignment > > Pier Wheel
• Country of Origin: US
• Customer Unit: No
• Display Unit/Measure: PAL
• GUID: 191145159664731971701826086180447752688
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: Pallet
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Product Class: Pier Wheel
• Prop 65 Warning: No
• Quantity: 25
• Shipping Weight: 680
• Short Product Name: HD PIER WHL 2" CVR #3-#7 BAR 5" OD 80pcs
• Strongtie.com URL: https://www.strongtie.com/reinforcementalignment/qlhd_wheel/p/quick-lock-hd-pier-wheel
• Subcategory: Reinforcement Alignment
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• EA Reference: 707392024033
