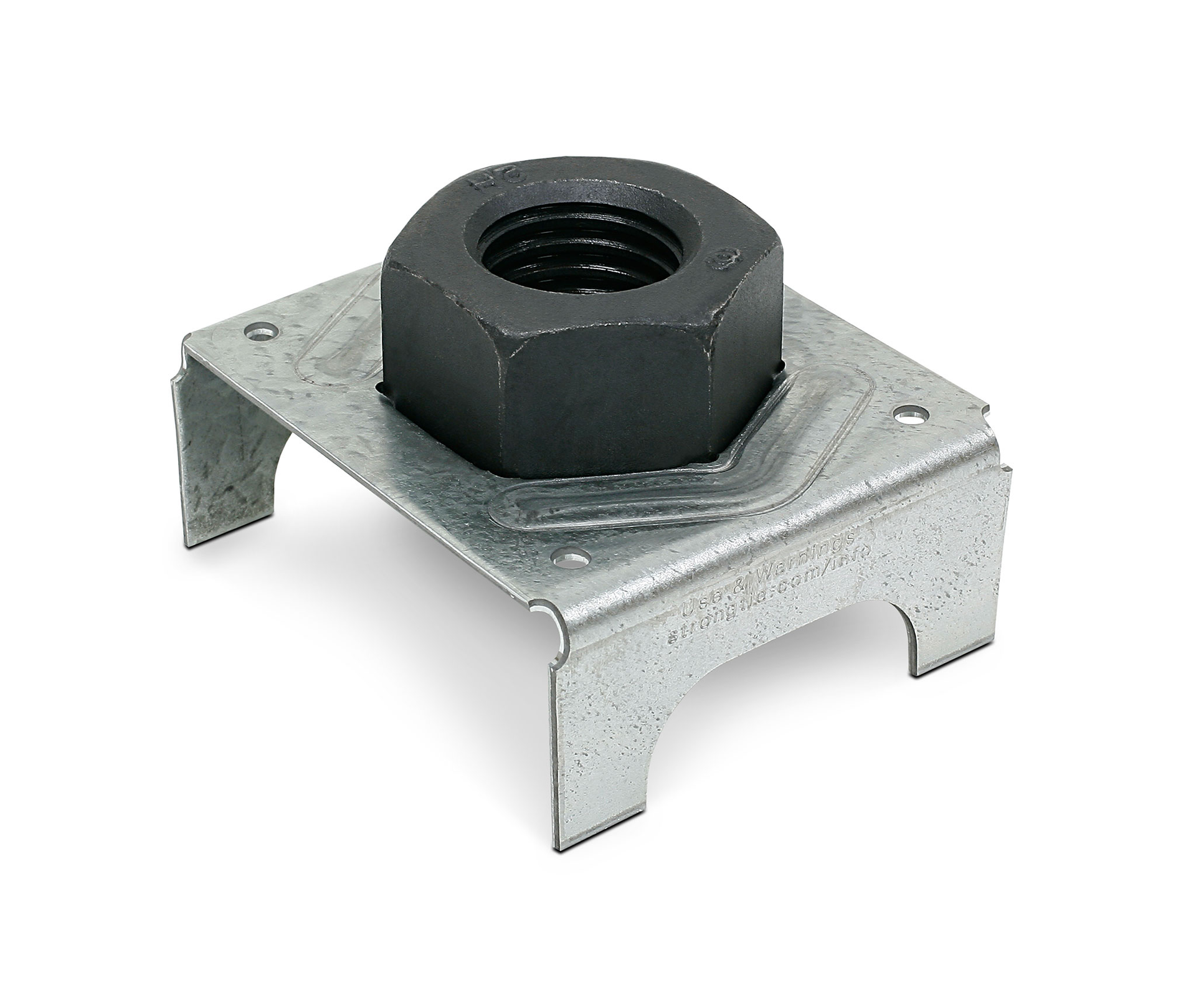

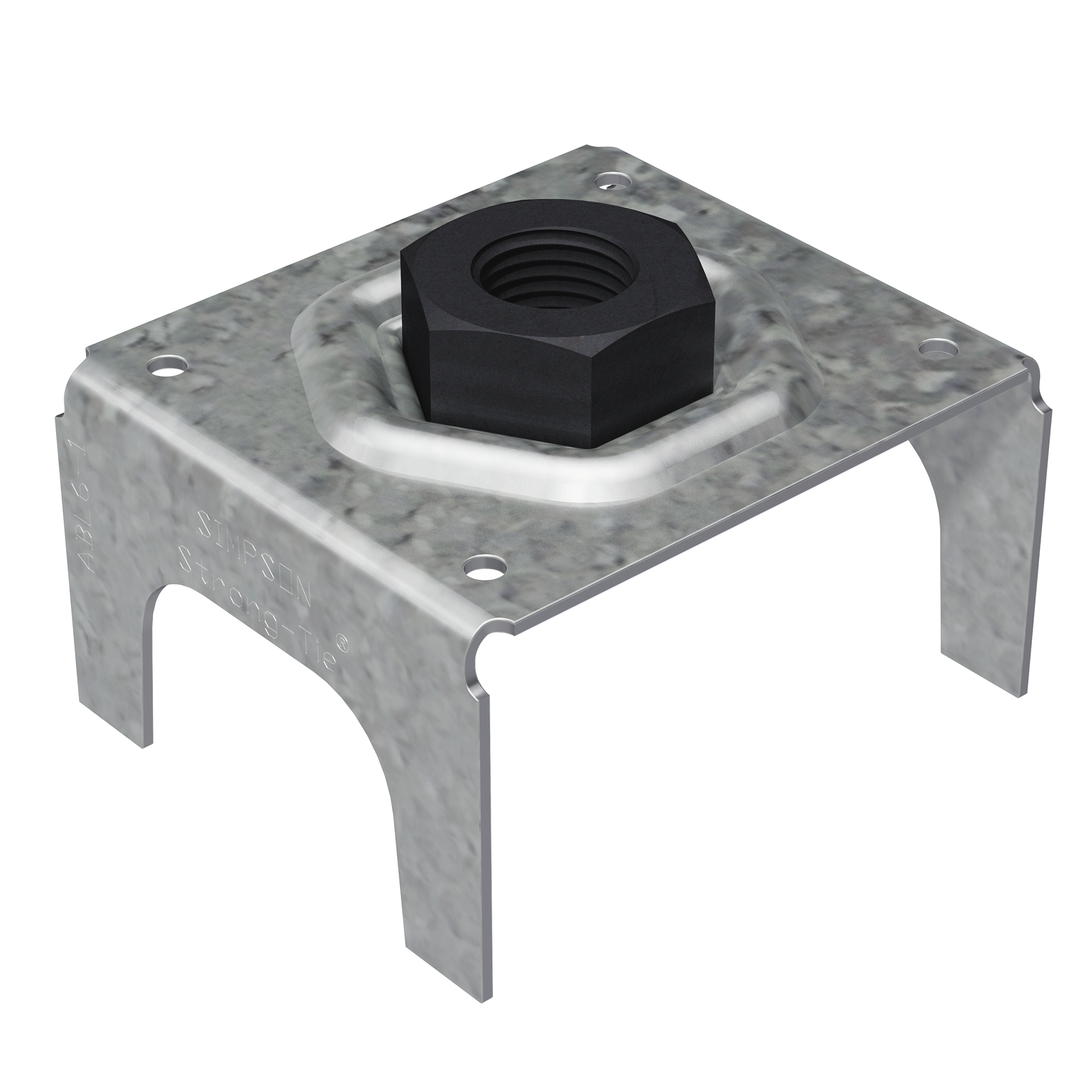

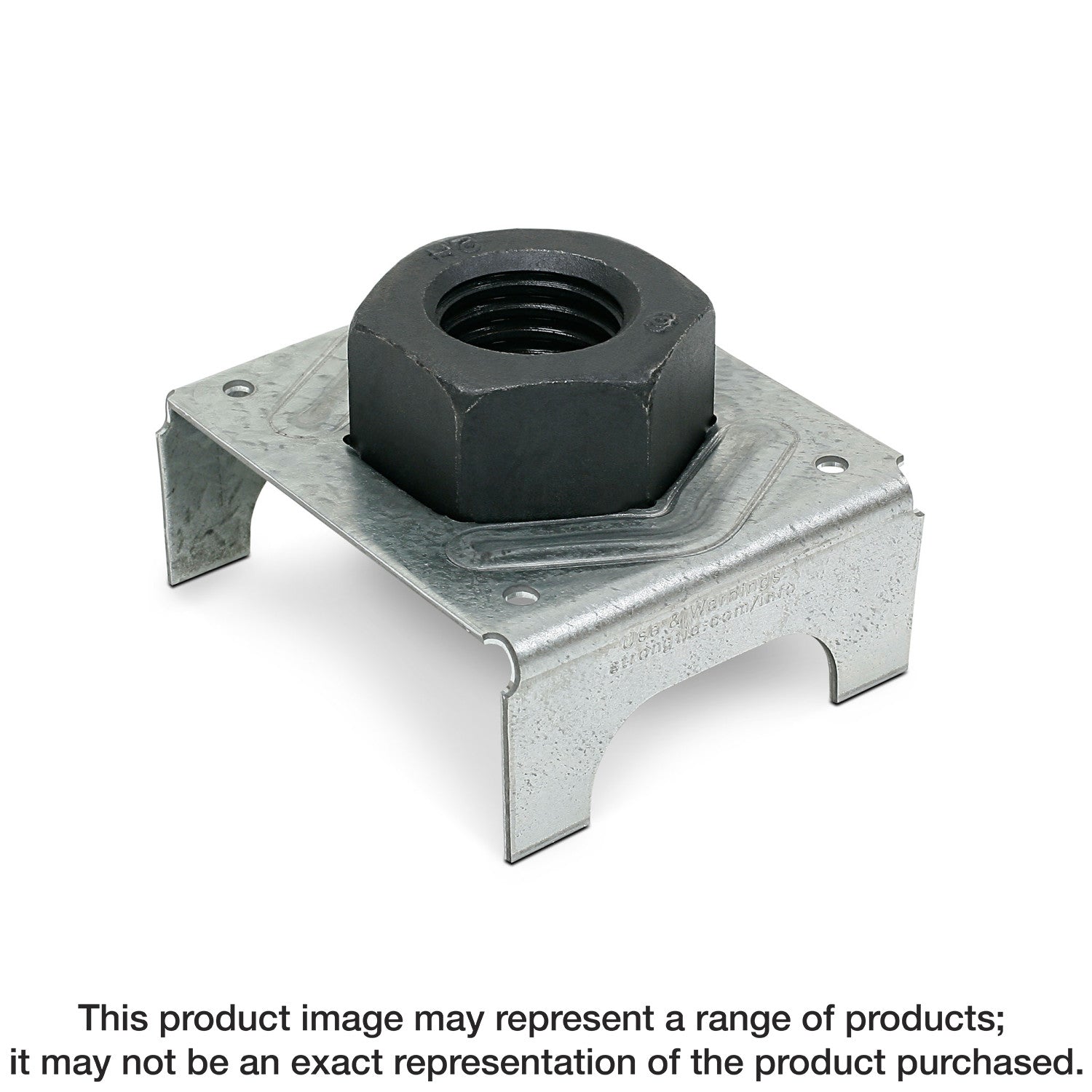

Simpson Strong-Tie ABL6-1 ABL Anchor Bolt Locator with 3/4 in. Nut

The ABL enables the accurate and secure placement of anchor bolts on concrete-deck forms prior to concrete placement. The structural heavy-hex nut is attached to a pre-formed steel "chair," which eliminates the need for an additional nut on the bottom of the anchor bolt. Electro-galvanized versions available for HDG anchor bolts.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Designed for optimum concrete flow
• Installed with nails or screws
• Provides 1-in. standoff (clear cover) for anchor bolts
• Available for anchor rod diameters from 1/2 in. to 1-1/4 in.
• Anchor bolt diameter: 3/4 in.
• Heavy hex nut made from uncoated steel
• Chair: Galvanized (G90)

Specifications

• ERP Part Number: ABL6-1
• UPC: 707392665403
• GTIN: 707392665403
• Feature 01: Designed for optimum concrete flow
• Feature 02: Installed with nails or screws
• Feature 03: Provides 1-in. standoff (clear cover) for anchor bolts
• Feature 04: Available for anchor rod diameters from 1/2 in. to 1-1/4 in.
• Feature 05: Anchor bolt diameter: 3/4 in.
• Feature 06: Heavy hex nut made from uncoated steel
• Feature 07: Chair: Galvanized (G90)
• Install With: Installs with (2) nails or (2) screws
• Assembled Depth - Imperial: 1.9375
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 3.34375
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 2.875
• Assembled Width UOM - Imperial: in.
• Base Product ID: ABL_Stand
• Base Product Name: ABL
• Bolt/Rod Diameter (in.): 3/4
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Strong-Rod® Systems > Anchor Tiedown System Components > Locator Stand
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• GUID: 279828273995350243373691628382864439679
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Locator Stand
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 0.44
• Short Product Name: ANCHOR BOLT STAND 1" HIGH WITH 3/4" NUT
• Strongtie.com URL: https://www.strongtie.com/atscomponents_anchortiedownsystem/abl_stand/p/abl
• Subcategory: Strong-Rod® Systems
• Subcategory 2: Anchor Tiedown System Components
• US Patents: 8,381,482
• US Patents.1: 8,621,816
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10707392665400
