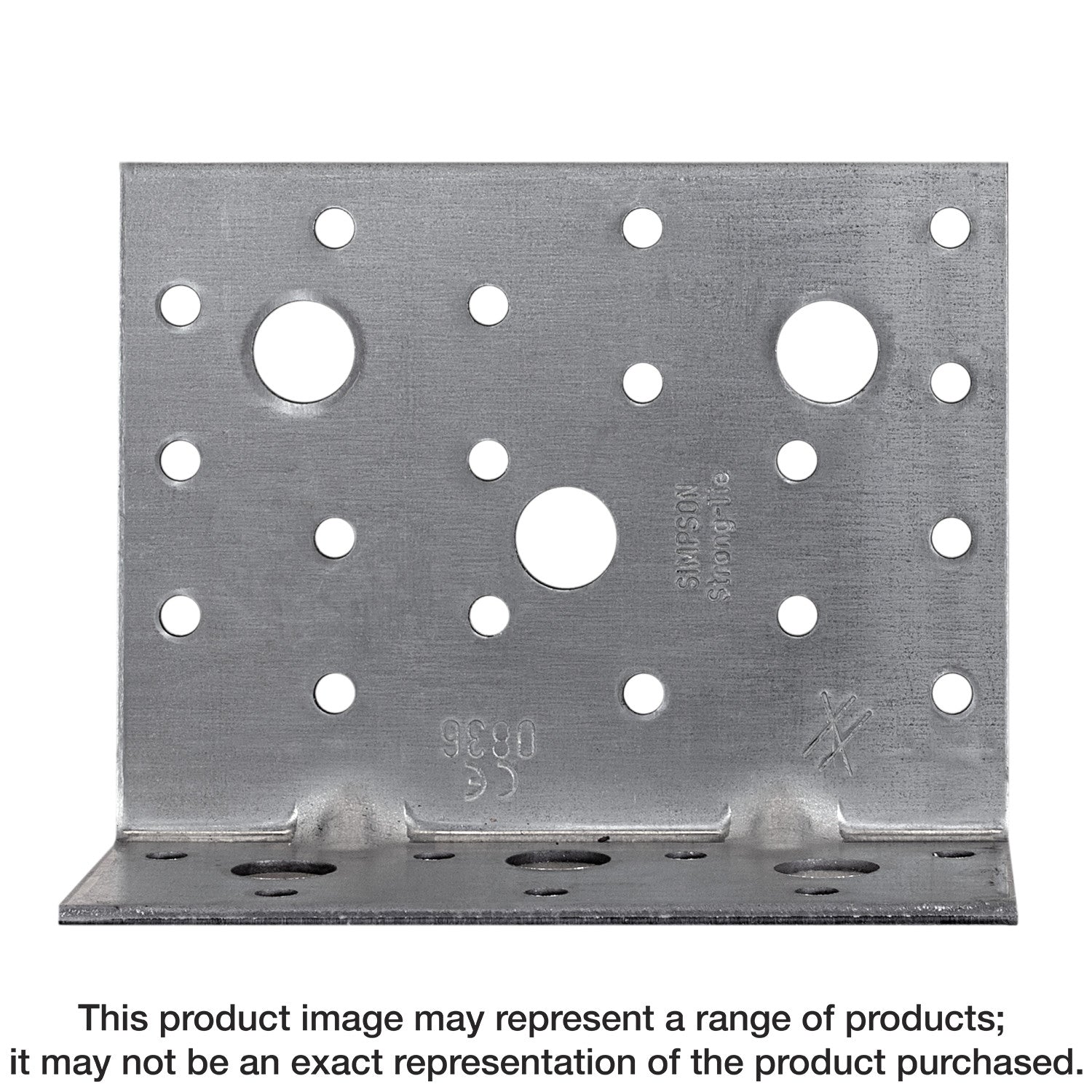

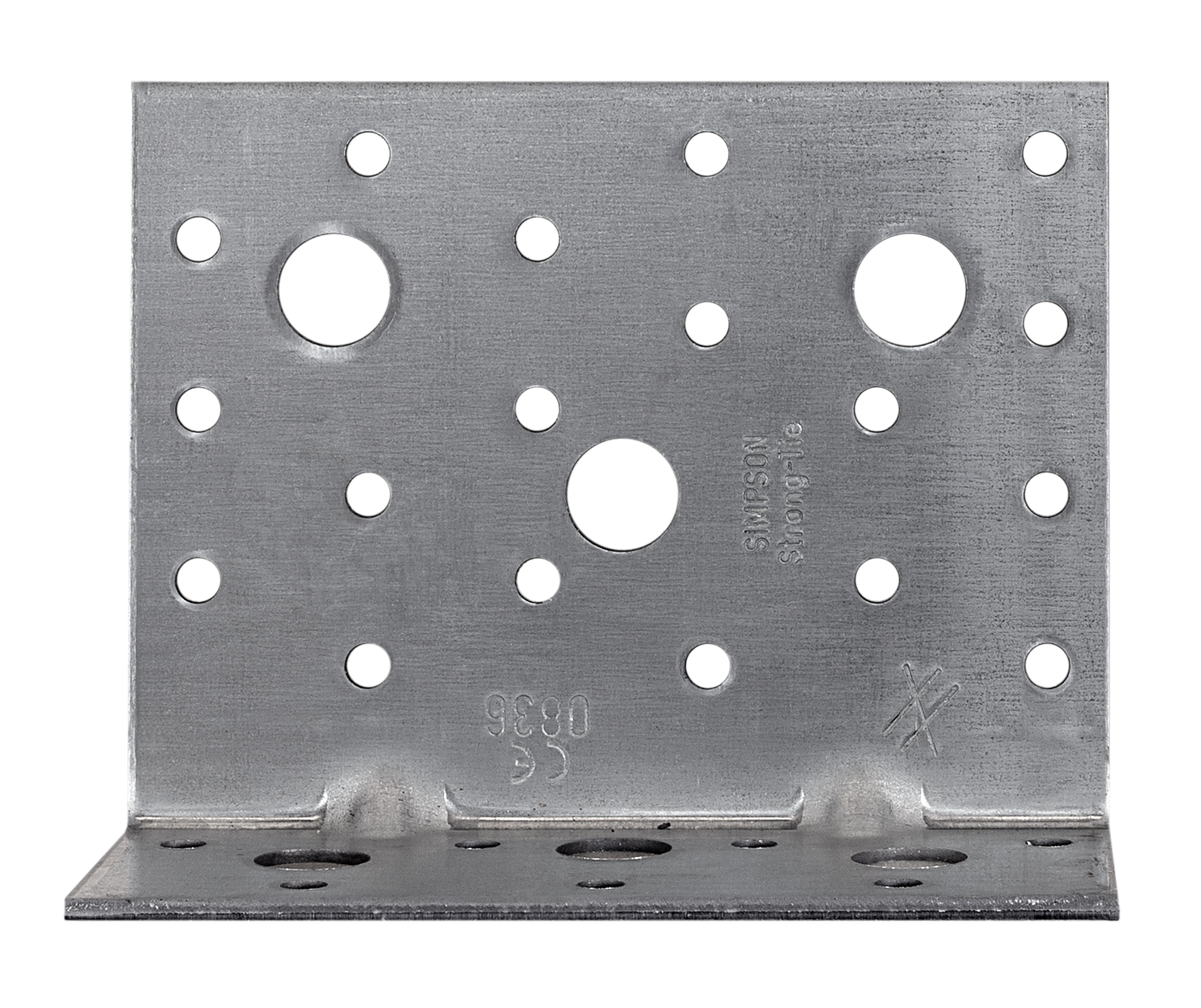

Simpson Strong-Tie AE116 AE 3-9/16 in. x 4-9/16 in. Angle Bracket for Cross-Laminated Timber (Pack of 2400)

AE angle brackets are used to connect cross-laminated timber (CLT) wall panels to CLT floors or concrete slabs. A wide variety of fastener and anchor options are available depending on the required loads and application.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Loads provided for screws or power-actuated nails
• All load directions addressed
• Heavy gauge provides high load capacity
• Anchorage to either CLT or concrete
• Made from 11-gauge steel
• Galvanized for extra corrosion resistance
• Height: 3-9/16 in.
• Depth: 1-7/8 in.
• Width: 4-9/16 in.

Specifications

• ERP Part Number: AE116
• UPC: 5701953515263
• GTIN: 5701953515263
• Feature 01: Loads provided for screws or power-actuated nails
• Feature 02: All load directions addressed
• Feature 03: Heavy gauge provides high load capacity
• Feature 04: Anchorage to either CLT or concrete
• Feature 05: Made from 11-gauge steel
• Feature 06: Galvanized for extra corrosion resistance
• Feature 07: Height: 3-9/16 in.
• Feature 08: Depth: 1-7/8 in.
• Feature 09: Width: 4-9/16 in.
• Assembled Depth - Imperial: 1.875
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 3.5625
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 4.5625
• Assembled Width UOM - Imperial: in.
• Base Product ID: AE_Angle
• Base Product Name: AE
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Holdowns and Tension Ties > Angle Bracket
• Country of Origin: DK
• Customer Unit: No
• Display Unit/Measure: PAL
• GUID: 210641228612746823935684578668949209360
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: Pallet
• MFG Name: Simpson Strong-Tie®
• Number Category Description: Manufacturer
• Product Class: Angle Bracket
• Prop 65 Warning: No
• Quantity: 2400
• Shipping Weight: 1798.974
• Short Product Name: ANGLE 90X48X3,0X116 3X
• Strongtie.com URL: https://www.strongtie.com/miscconnectorsforengineeredwood_engineeredwood/ae_angle/p/ae
• Subcategory: Wood Construction Connectors
• Subcategory 2: Holdowns and Tension Ties
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 5701953360597
• PC Reference: 5701953351168
