Description

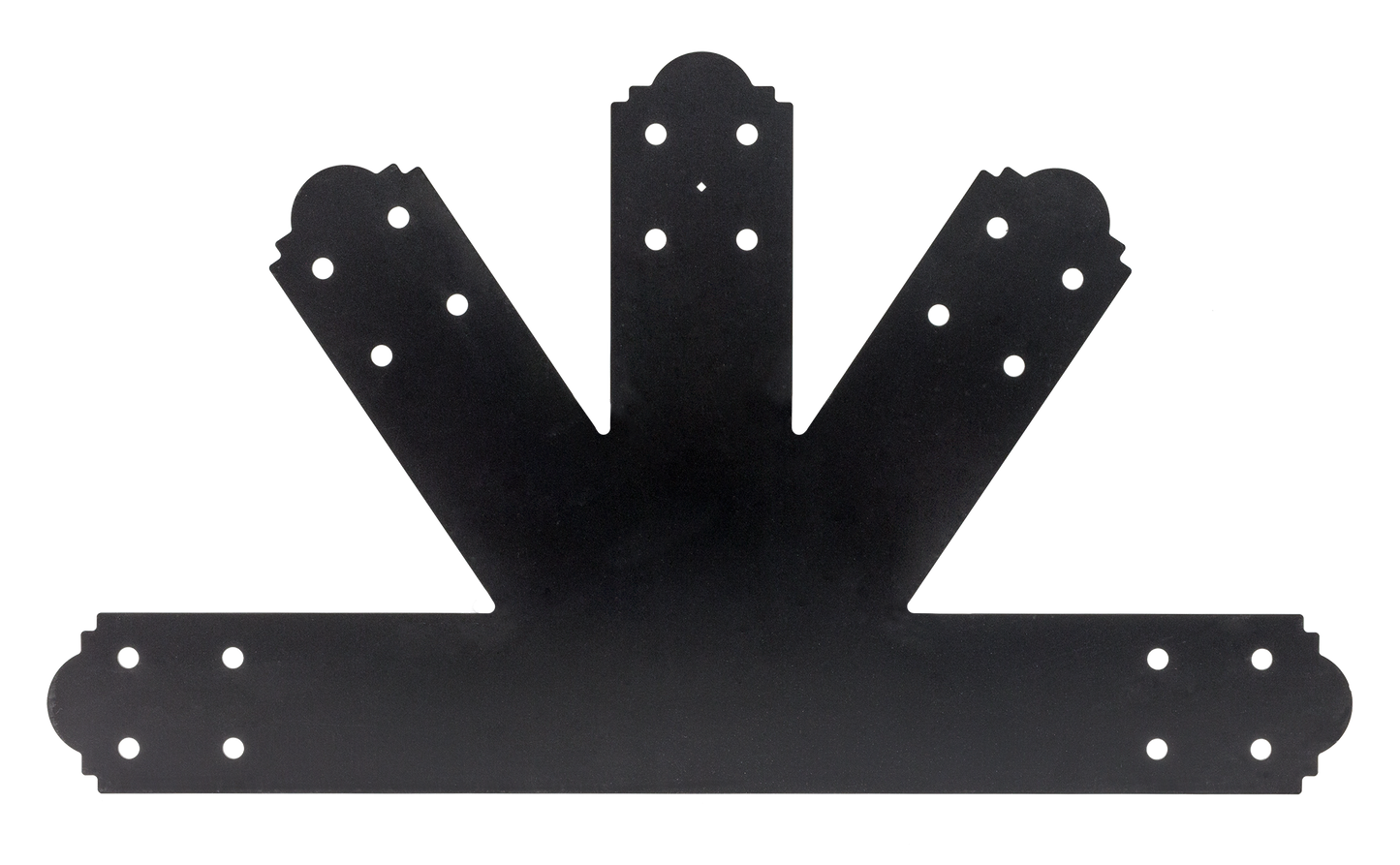

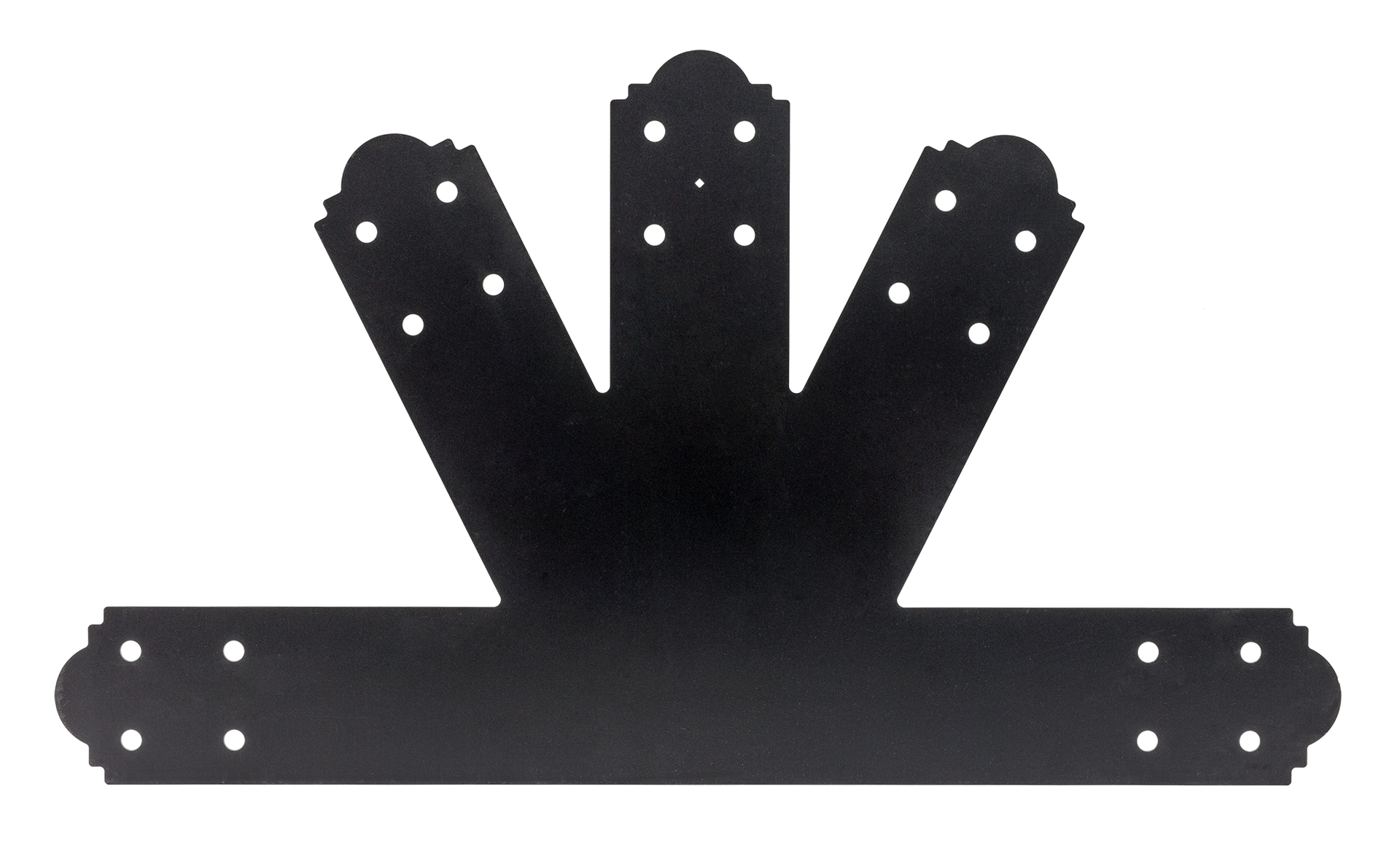

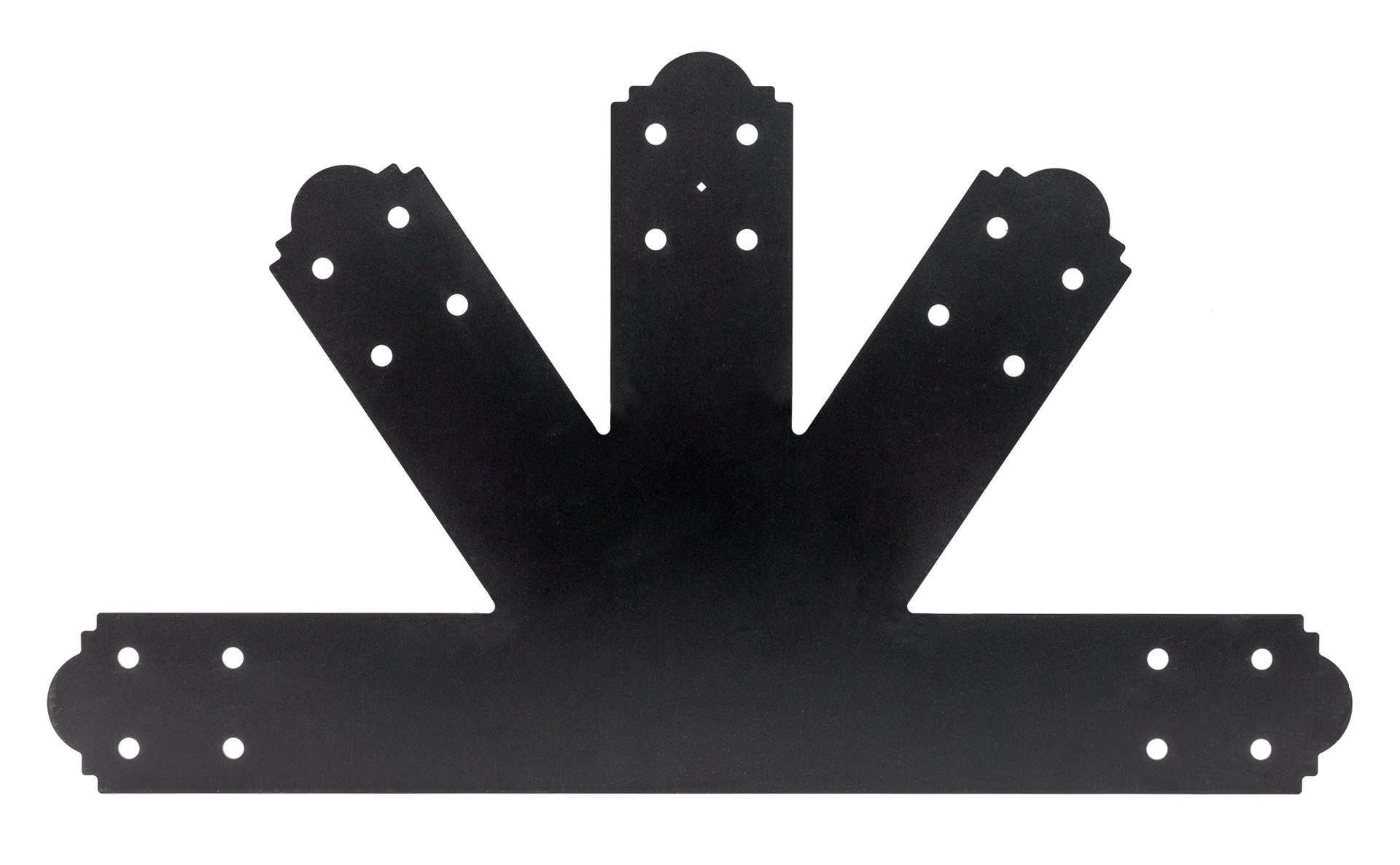

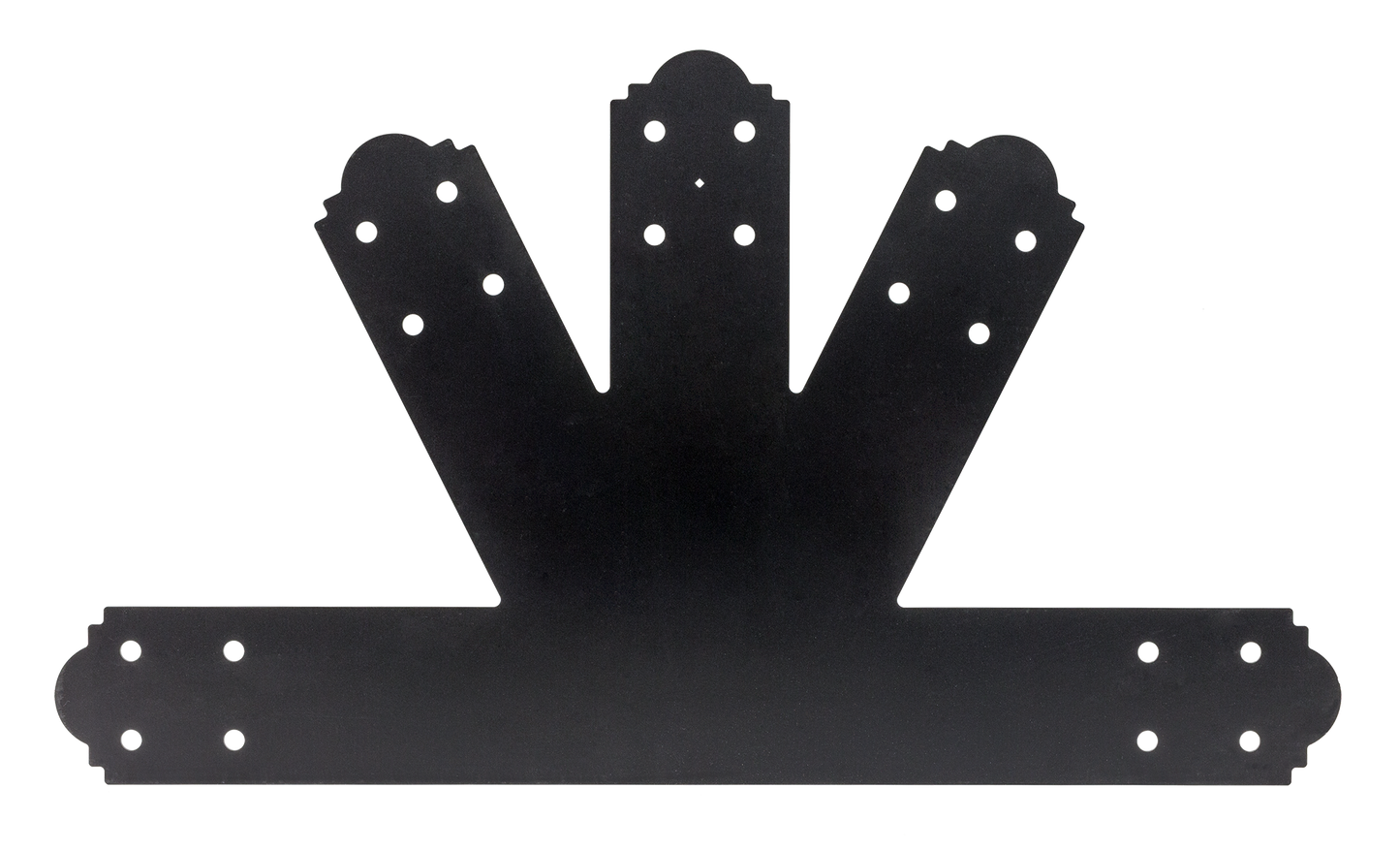

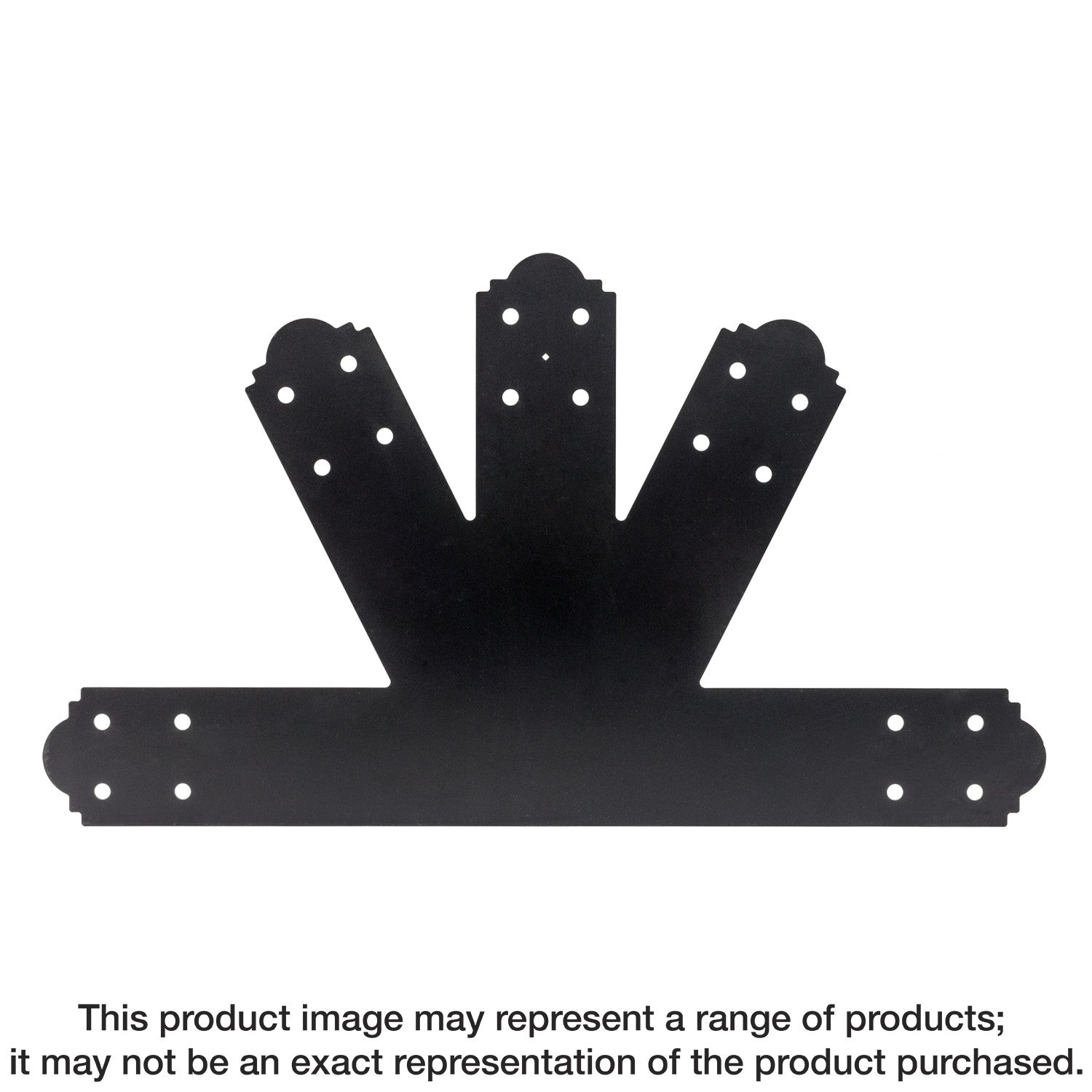

Simpson Strong-Tie APGP812 Outdoor Accents® Mission Collection® 8:12 Pitch ZMAX®, Black Powder-Coated Gable Plate
The Simpson Strong-Tie® Outdoor Accents line of decorative hardware features connectors and fasteners that bring beauty and strength to custom outdoor living structures. The Mission Collection adds a hint of Southwestern flair. These gable plates provide reinforcement for a connection from a wood beam to three angled wood braces. Three sizes are available: 6:12 pitch, 8:12 pitch and 12:12 pitch.
This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.
Features
- Gable plates are easily installed with Outdoor Accents structural screws and hex-head washers
- Connectors must be installed in pairs for published load values; for single part installations, use half the listed values
- 8:12 pitch
- Made from 12-gauge steel
- ZMAX galvanization with a black powder coat offers extra corrosion resistance for exterior and treated-wood applications
Specifications
- ERP Part Number: APGP812
- UPC: 707392942825
- GTIN: 707392942825
- Feature 01: Gable plates are easily installed with Outdoor Accents structural screws and hex-head washers
- Feature 02: Connectors must be installed in pairs for published load values; for single part installations, use half the listed values
- Feature 03: 8:12 pitch
- Feature 04: Made from 12-gauge steel
- Feature 05: ZMAX galvanization with a black powder coat offers extra corrosion resistance for exterior and treated-wood applications
- Install With: Install with (20) STN22 Outdoor Accents hex-head washers and (20) SDWS22312DBB Outdoor Accents structural wood screws
- Assembled Depth - Imperial: 0.101
- Assembled Depth UOM - Imperial: in.
- Assembled Height - Imperial: 20.5
- Assembled Height UOM - Imperial: in.
- Assembled Width - Imperial: 36
- Assembled Width UOM - Imperial: in.
- Base Product ID: APGP_Plate
- Base Product Name: APGP
- Brand Name: Simpson Strong-Tie®
- Category Tree (Computed): Wood Construction Connectors > Angles and Plates > Plate
- Coating: ZMAX®
- Coating.1: Powder Coating, Black
- Color: Black
- Country of Origin: US
- Customer Unit: Yes
- Display Unit/Measure: EA
- EAN category: UC
- Fasteners Included: No
- Finish: ZMAX® Galvanized with Black Powder Coat
- Gauge: 12
- GUID: 289362405204549044190985466248994614404
- Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
- Measurement Unit Text: each
- Member Size: 6x or larger
- MFG Name: Simpson Strong-Tie®
- Number Category Description: UPC
- Package Depth - Imperial: 1
- Package Depth UOM - Imperial: in.
- Package Height - Imperial: 36.5
- Package Height UOM - Imperial: in.
- Package Width - Imperial: 22
- Package Width UOM - Imperial: in.
- Packaging Quantity: 1
- Packaging Type: Carton
- Product Class: Plate
- Prop 65 Warning: No
- Quantity: 1
- Shipping Weight: 11.08
- Short Product Name: ARCH GABLE PLATE 8:12
- Strongtie.com URL: https://www.strongtie.com/missioncollection_outdooraccents/apgp_plate/p/apgp
- Subcategory: Wood Construction Connectors
- Subcategory 2: Angles and Plates
- Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
- Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
- CAR Reference: 10707392942822
- PAL Reference: 50707392942820
- Lumber Size Infographic: https://images.salsify.com/image/upload/s--4j6m7m95--/of77l1vzb2adrmtseor4.png
