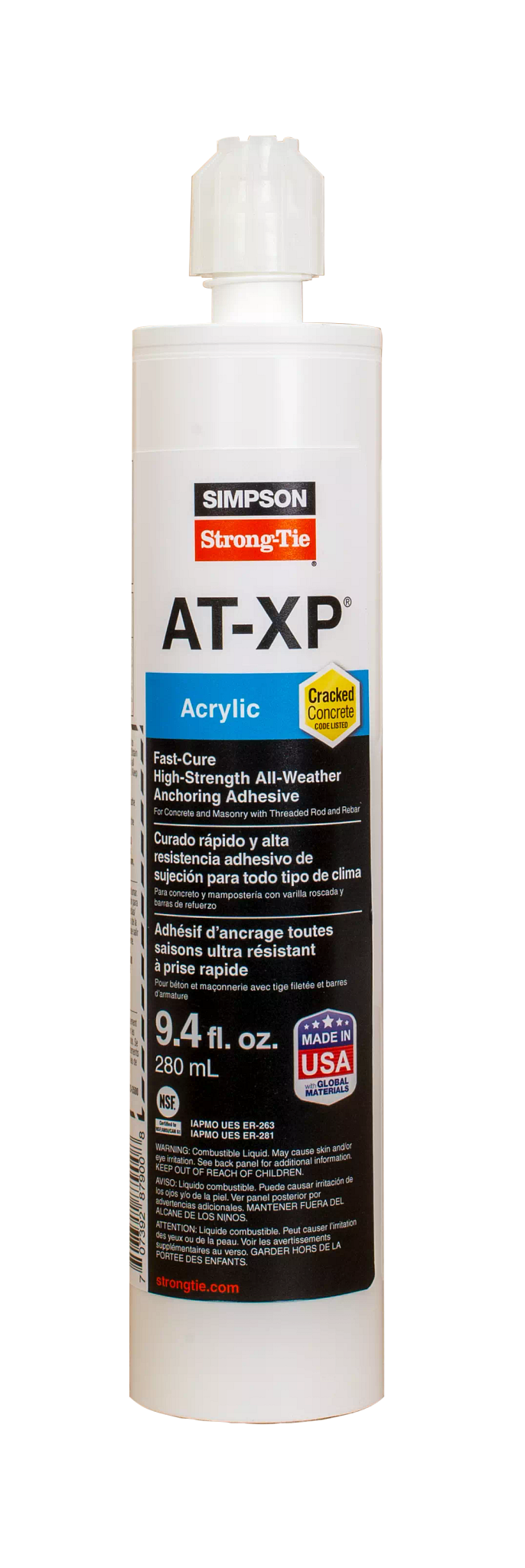

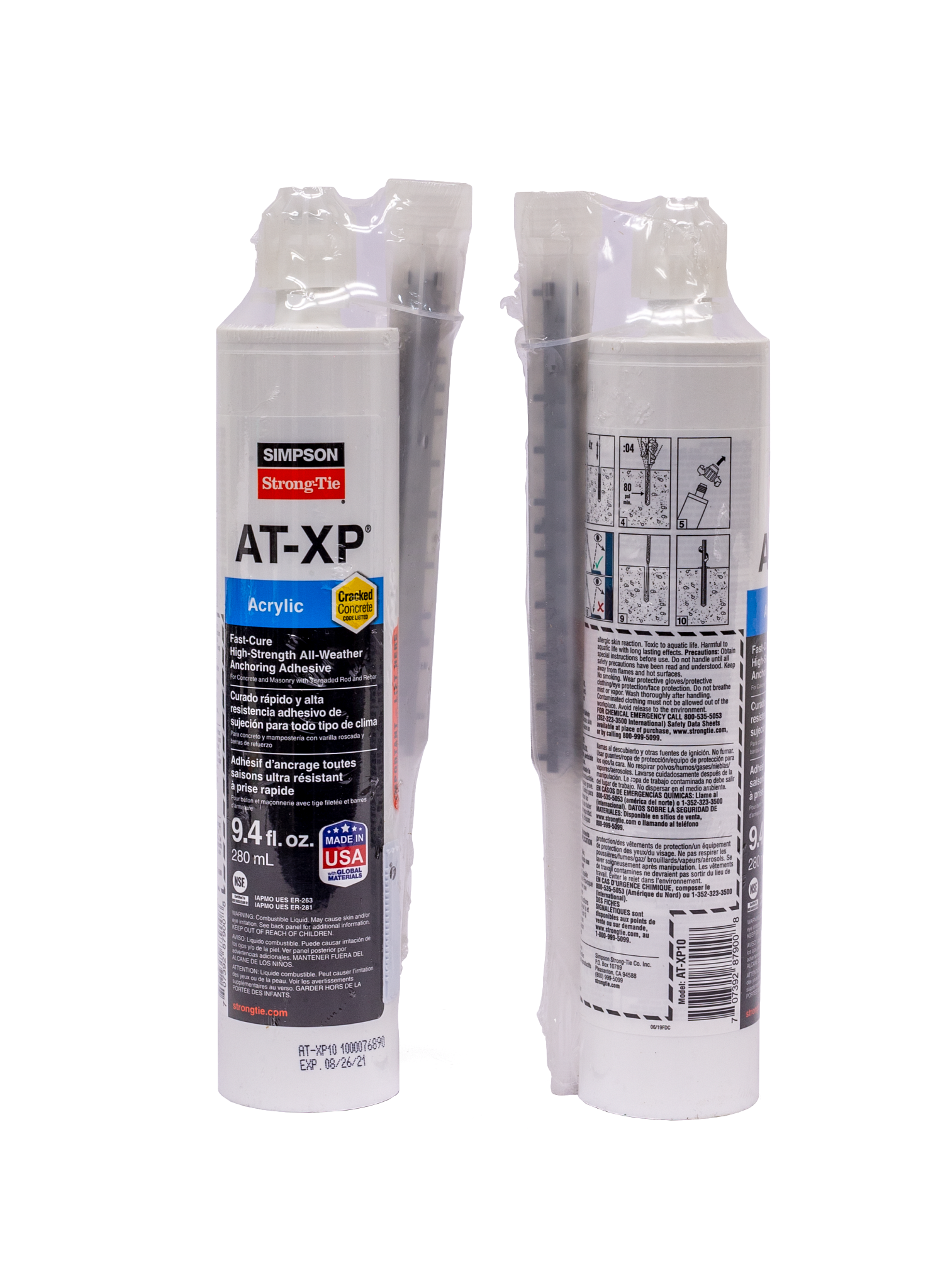

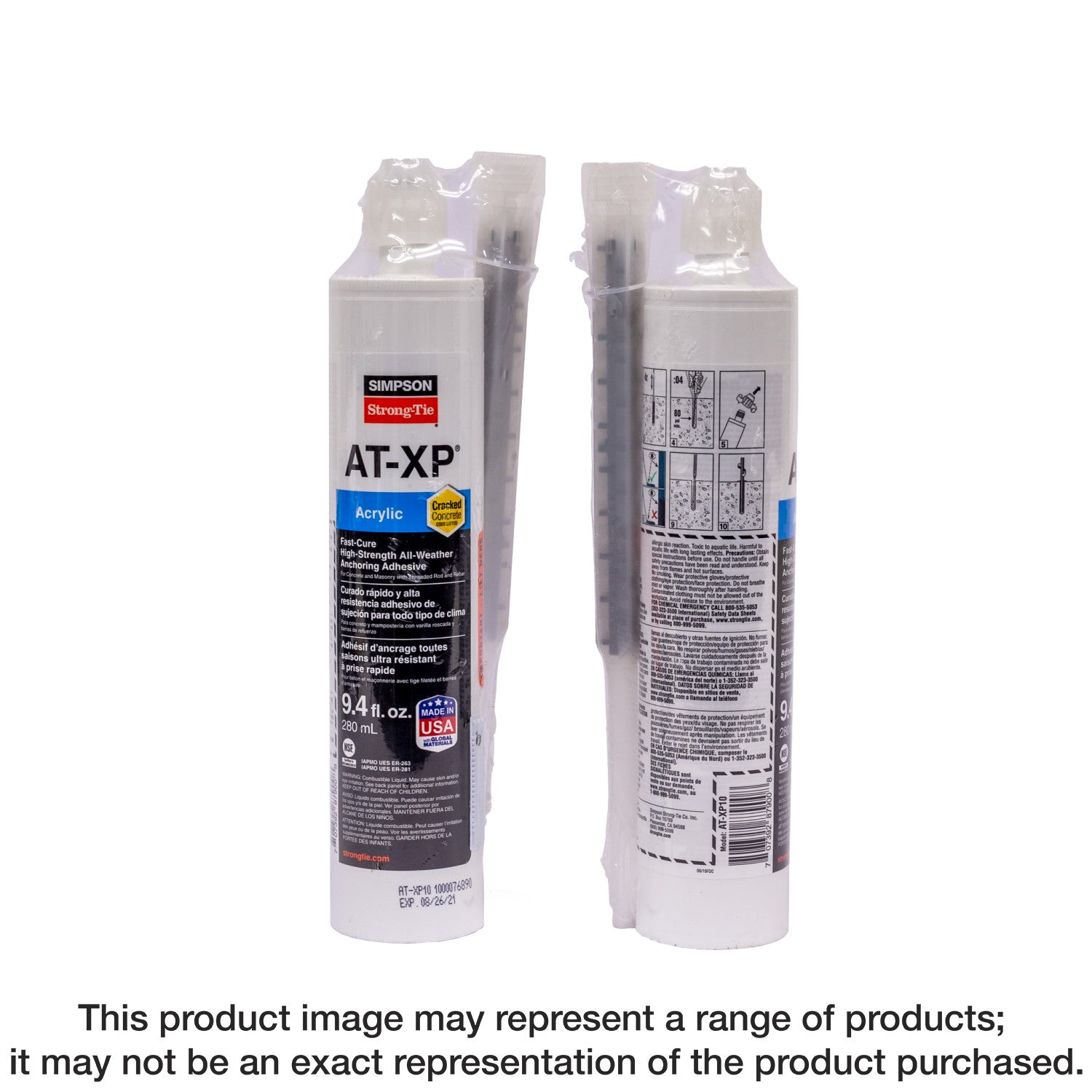

Simpson Strong-Tie AT-XP10 AT-XP® 9.4-oz. High-Strength Acrylic Anchoring Adhesive Cartridge w/ Nozzle

Simpson Strong-Tie® AT-XP is an acrylic-based high-strength anchoring adhesive. AT-XP is a 10:1 ratio, two-component, anchoring adhesive formulated for anchoring threaded rod and rebar into concrete (cracked and uncracked) and masonry (uncracked) under a wide range of conditions. AT-XP adhesive dispenses easily in cold or warm environments and in below-freezing temperatures with no need to warm the cartridge. When mixed properly, AT-XP is a teal color and has a substrate installation temperature range from 14°F (–10°C) to 100°F (38°C).

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Excellent for use in cold weather conditions or applications where fast cure is required
• Design flexibility — superior sustained load performance at elevated temperature
• Jobsite versatility — can be specified for dry and damp conditions when in-service temperatures range from –40°F (–40°C) to 180°F (82°C)
• Suitable for use under static and seismic loading conditions in cracked and uncracked concrete as well as masonry
• Manufactured in the USA using global materials
• 9.4-oz. coaxial cartridge
• Tested in accordance with ICC-ES AC308 (ER-263), AC58 (ER-281), ACI 355.4 and applicable ASTM test methods and compliant with NSF/ANSI Standard 61
• Approved for installation with vacuum-drill bit system without further hole cleaning; see Code Report (ER-263) for approved system

Specifications

• ERP Part Number: AT-XP10
• UPC: 707392879008
• GTIN: 707392879008
• Feature 01: Excellent for use in cold weather conditions or applications where fast cure is required
• Feature 02: Design flexibility — superior sustained load performance at elevated temperature
• Feature 03: Jobsite versatility — can be specified for dry and damp conditions when in-service temperatures range from –40°F (–40°C) to 180°F (82°C)
• Feature 04: Suitable for use under static and seismic loading conditions in cracked and uncracked concrete as well as masonry
• Feature 05: Manufactured in the USA using global materials
• Feature 06: 9.4-oz. coaxial cartridge
• Feature 07: Tested in accordance with ICC-ES AC308 (ER-263), AC58 (ER-281), ACI 355.4 and applicable ASTM test methods and compliant with NSF/ANSI Standard 61
• Feature 08: Approved for installation with vacuum-drill bit system without further hole cleaning; see Code Report (ER-263) for approved system

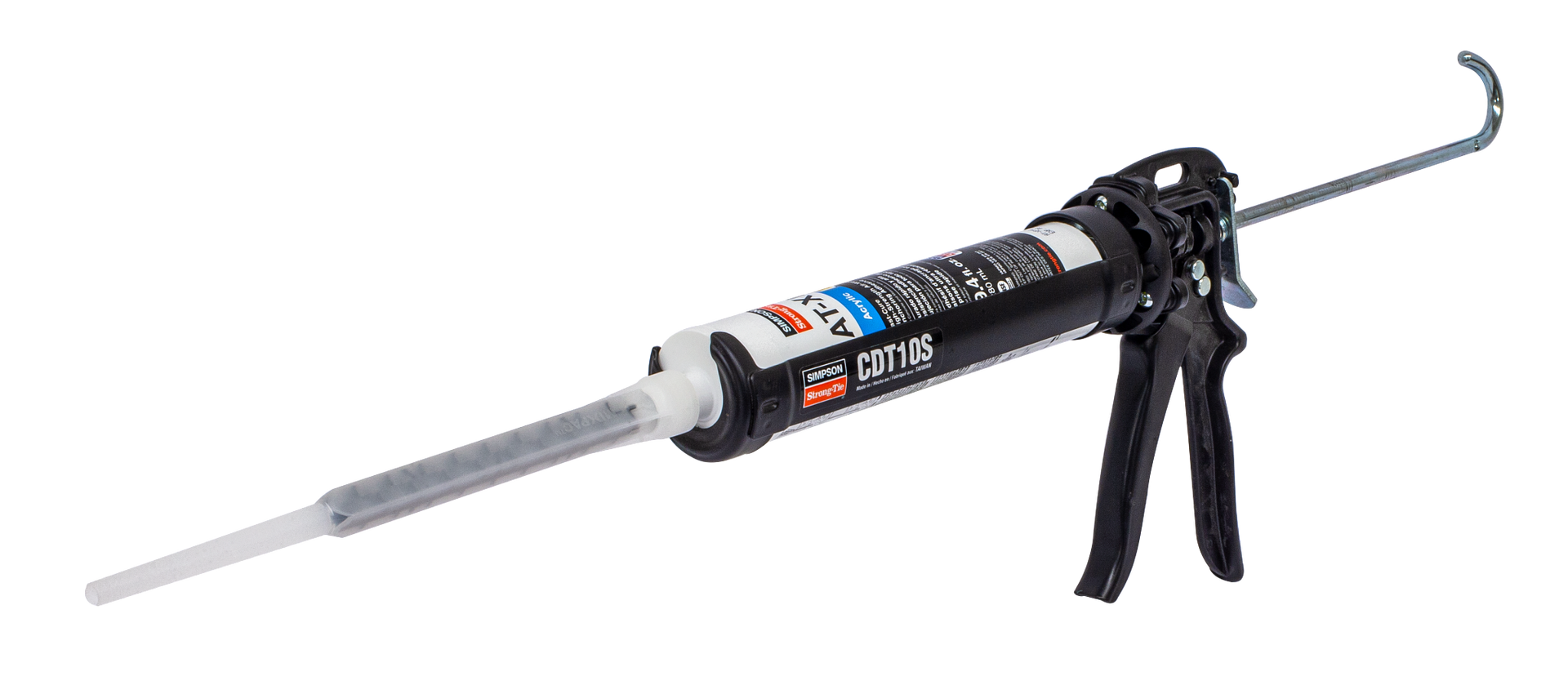

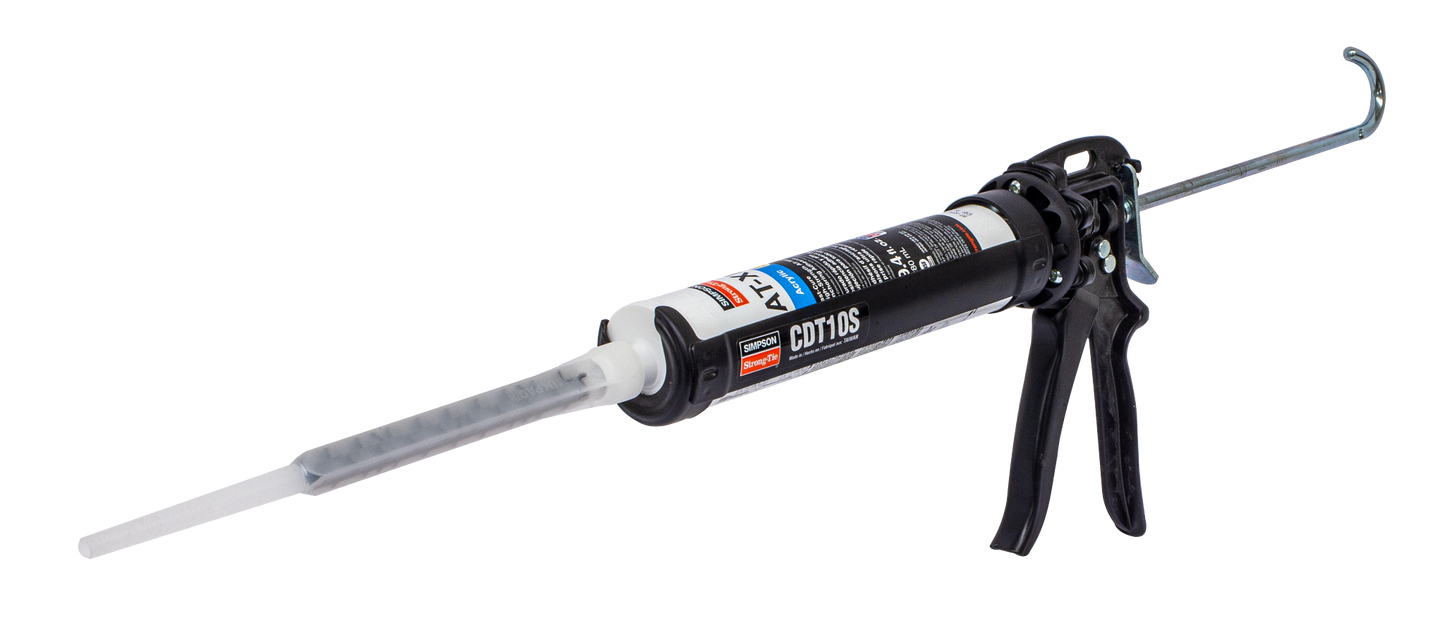

• Install With: Install using the Simpson Strong-Tie® CDT10S dispensing tool
• Assembled Depth - Imperial: 2
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 19
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 2
• Assembled Width UOM - Imperial: in.
• Base Product ID: AT-XP_Adhesive
• Base Product Name: AT-XP®
• Brand Name: Simpson Strong-Tie®
• Capacity: 9.4 oz. (16.9 cubic in.)
• Category Tree (Computed): Concrete Connectors and Anchors > Acrylic Anchoring Adhesives > Adhesive
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• GUID: 6201150675092055784723905233598140668
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Package Depth - Imperial: 2.375
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 10
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 2.25
• Package Width UOM - Imperial: in.
• Packaging Quantity: 1
• Packaging Type: Cartridge
• Product Class: Adhesive
• Product Includes: Includes AMN19Q mixing nozzle
• Prop 65 - Cancer: Crystalline Silica
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Shipping Weight: 1.365
• Short Product Name: 9.4 OZ AT-XP W/NOZZLE
• Strongtie.com URL: https://www.strongtie.com/acrylicanchoringadhesives_adhesives/at-xp_adhesive/p/at-xp
• Subcategory: Concrete Connectors and Anchors
• Subcategory 2: Acrylic Anchoring Adhesives
• US Patents: 8,334,346
• US Patents.1: 8,552,119
• US Patents.2: 9,416,300
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 20707392879002
• PAL Reference: 60707392879000
