Simpson Strong-Tie ATHC-R30 ATHC™ Attic Truss Heel Hinge Connector for 2-1/2 in. Wide I-Joist Flanges (30-Qty)

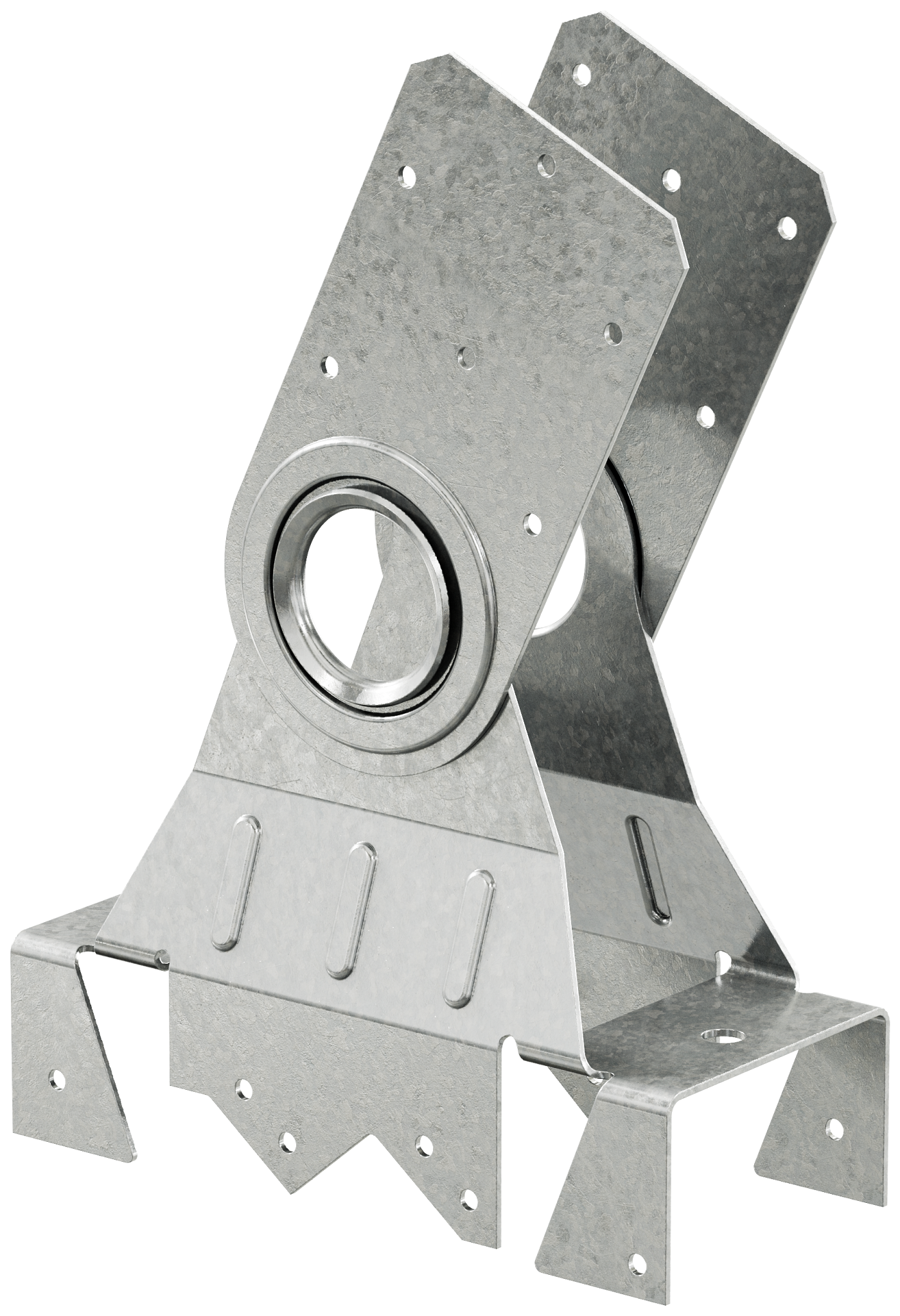

The Simpson Strong-Tie® ATHC double-hinge connector for truss heels gives builders a cost-effective option to construct factory-built truss components using EWP floor joists and 2x solid sawn roof rafters. The connector works with 2-1/2 in. wide OPENJOIST™ and I-joist floor joists that are commonly used for attic trusses. To enable folded components to ship flat for transportation, the ATHC heel height provides a 2-1/2 in. gap between the top and bottom truss chords that accommodates a 2x3 folded knee brace.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Works with 2-1/2 in. wide OPENJOIST and I-joist floor joists to reduce the need for intermediate truss webs
• Accommodates a range of roof pitches between 5:12 and 12:12
• A folded ATHC provides a space to accommodate a folded 2x3 knee brace so that components ship flat for transportation
• Eliminates the need for conventional metal-plate-connected trusses
• Made from 16-gauge steel
• Galvanized (G90) for corrosion resistance
• Quantity: 30 per package

Specifications

• ERP Part Number: ATHC-R30
• UPC: 707392031673
• GTIN: 707392031673
• Feature 01: Works with 2-1/2 in. wide OPENJOIST and I-joist floor joists to reduce the need for intermediate truss webs
• Feature 02: Accommodates a range of roof pitches between 5:12 and 12:12
• Feature 03: A folded ATHC provides a space to accommodate a folded 2x3 knee brace so that components ship flat for transportation
• Feature 04: Eliminates the need for conventional metal-plate-connected trusses
• Feature 05: Made from 16-gauge steel
• Feature 06: Galvanized (G90) for corrosion resistance
• Feature 07: Quantity: 30 per package
• Install With: Install with (12) 0.148 in. x 1-1/2 in. nails
• Assembled Depth - Imperial: 2.6765
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 8.4375
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 6
• Assembled Width UOM - Imperial: in.
• Base Product ID: ATHC_Connect
• Base Product Name: ATHC™
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Hinge Connectors > Rafter Tie
• Coating: Zinc Galvanized, G90
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• Finish: Zinc Galvanized, G90
• Gauge: 16
• GUID: 322349278557791237732067022672974555989
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• Member Size: 2x rafter; 3x floor joists
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 20.81
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 10.88
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 15.81
• Package Width UOM - Imperial: in.
• Packaging Quantity: 30
• Packaging Type: Box
• Product Class: Rafter Tie
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 31.2
• Short Product Name: ATTIC TRUSS HINGE 30-PAK
• Strongtie.com URL: https://www.strongtie.com/rafterties_factorybuiltstructures/athc_connect/p/athc
• Subcategory: Wood Construction Connectors
• Subcategory 2: Hinge Connectors
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• PAL Reference: 50707392031678
• Lumber Size Infographic: https://images.salsify.com/image/upload/s--4j6m7m95--/of77l1vzb2adrmtseor4.png
