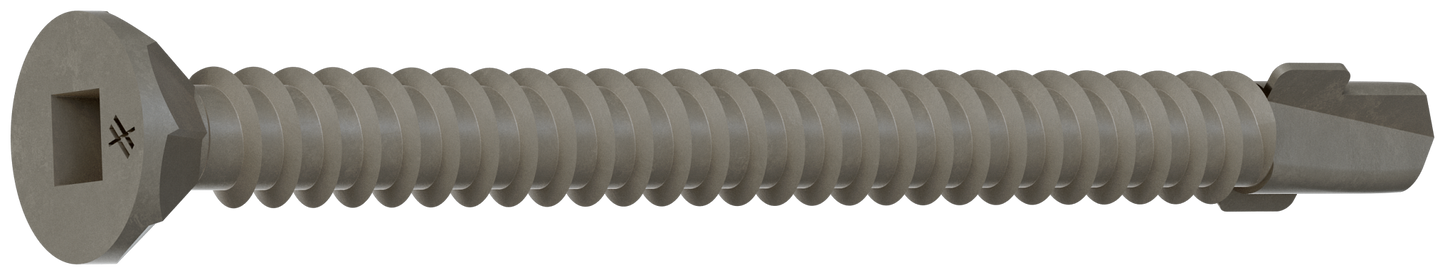

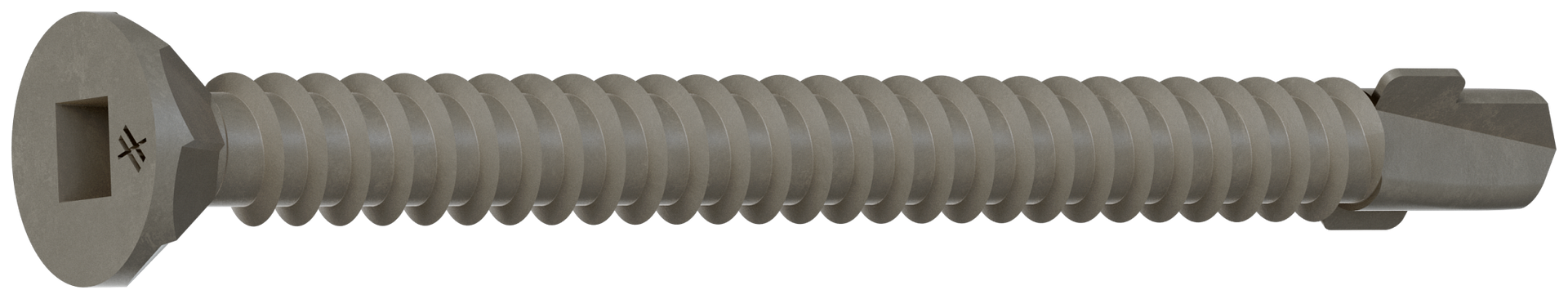

Simpson Strong-Tie CBSDQ214-2K CBSDQ Sheathing-to-CFS Screw — #10 x 2-1/4 in. #2 Square Undersized, Quik Guard® (2000-Qty)

The Simpson Strong-Tie® CBSDQ Sheathing-to-CFS screw securely fastens various sheathing materials to cold-formed-steel (CFS). Its self-drilling point drives into materials easily, and the flat head with nibs countersinks flush to surfaces. This screw is ideally suited for fastening sheathing to interior walls and floors (recommended thicknesses: 11–18 gauge).

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Ribbed flat head with nibs for easy countersinking and smooth finish
• #2 undersized square drive
• #2 drill point with wings prevents jacking
• CBSDQ screws may be used as prescribed by the codes for shearwalls and diaphragms as described in AISI S240, S400 and S214
• Driver bit included in each box; replacement bit: BIT2SU-2-RC3
• Length: 2-1/4 in.
• Quik Guard® coating for use in pressure-treated lumber and provides a level of corrosion resistance that is equivalent to hot-dip galvanization (ASTM A153, Class D) in some exposures
• Quantity: 2,000 per package

Application

• Fastening for Cold-Formed Steel
• Framing — Cold-Formed Steel
• Cold-Formed Steel

Specifications

• ERP Part Number: CBSDQ214-2K
• UPC: 707392033028
• GTIN: 707392033028
• Feature 01: Ribbed flat head with nibs for easy countersinking and smooth finish
• Feature 02: #2 undersized square drive
• Feature 03: #2 drill point with wings prevents jacking
• Feature 04: CBSDQ screws may be used as prescribed by the codes for shearwalls and diaphragms as described in AISI S240, S400 and S214
• Feature 05: Driver bit included in each box; replacement bit: BIT2SU-2-RC3
• Feature 06: Length: 2-1/4 in.
• Feature 07: Quik Guard® coating for use in pressure-treated lumber and provides a level of corrosion resistance that is equivalent to hot-dip galvanization (ASTM A153, Class D) in some exposures
• Feature 08: Quantity: 2,000 per package
• Applications List: Fastening for Cold-Formed Steel
• Applications List.1: Framing — Cold-Formed Steel
• Applications List.2: Cold-Formed Steel
• Assembled Depth - Imperial: 0.322
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 2.25
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 0.322
• Assembled Width UOM - Imperial: in.
• Base Product ID: CBSDQ_Screw
• Base Product Name: CBSDQ Sheathing-to-CFS Screw
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Fasteners > Metal Screws > Hand-Drive Screw
• Coating: Quik Guard® Coating
• Country of Origin: TW
• Customer Unit: Yes
• Display Unit/Measure: EA
• Drive Type: #2 Square, Undersized
• Finish: Quik Guard® Coating
• GUID: 8368867441734811008714967045310192650
• Head Diameter (in.): 0.322
• Head Type: Ribbed Flat Head
• Length (in.): 2 1/4
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Max. Grip Length (in.): 1.7
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 9.1
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 6
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 9.1
• Package Width UOM - Imperial: in.
• Packaging Quantity: 2000
• Packaging Type: Box
• Point Size: 2
• Point Type: Drill Point with Wings
• Product Class: Hand-Drive Screw
• Product Includes: Includes driver bit BIT2SU-2-RC3
• Prop 65 - Cancer: Wood Dust
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Screw Size: #10
• Shipping Weight: 12
• Short Product Name: #10X2-1/4 QKGRD WING DRIL #2SQ 2000qty
• Strongtie.com URL: https://www.strongtie.com/metalscrews_screwsandnails/cbsdq_screw/p/cbsdq-sheathing-to-cfs-screw
• Subcategory: Fasteners
• Subcategory 2: Metal Screws
• TPI: 16
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• PAL Reference: 50707392033023
