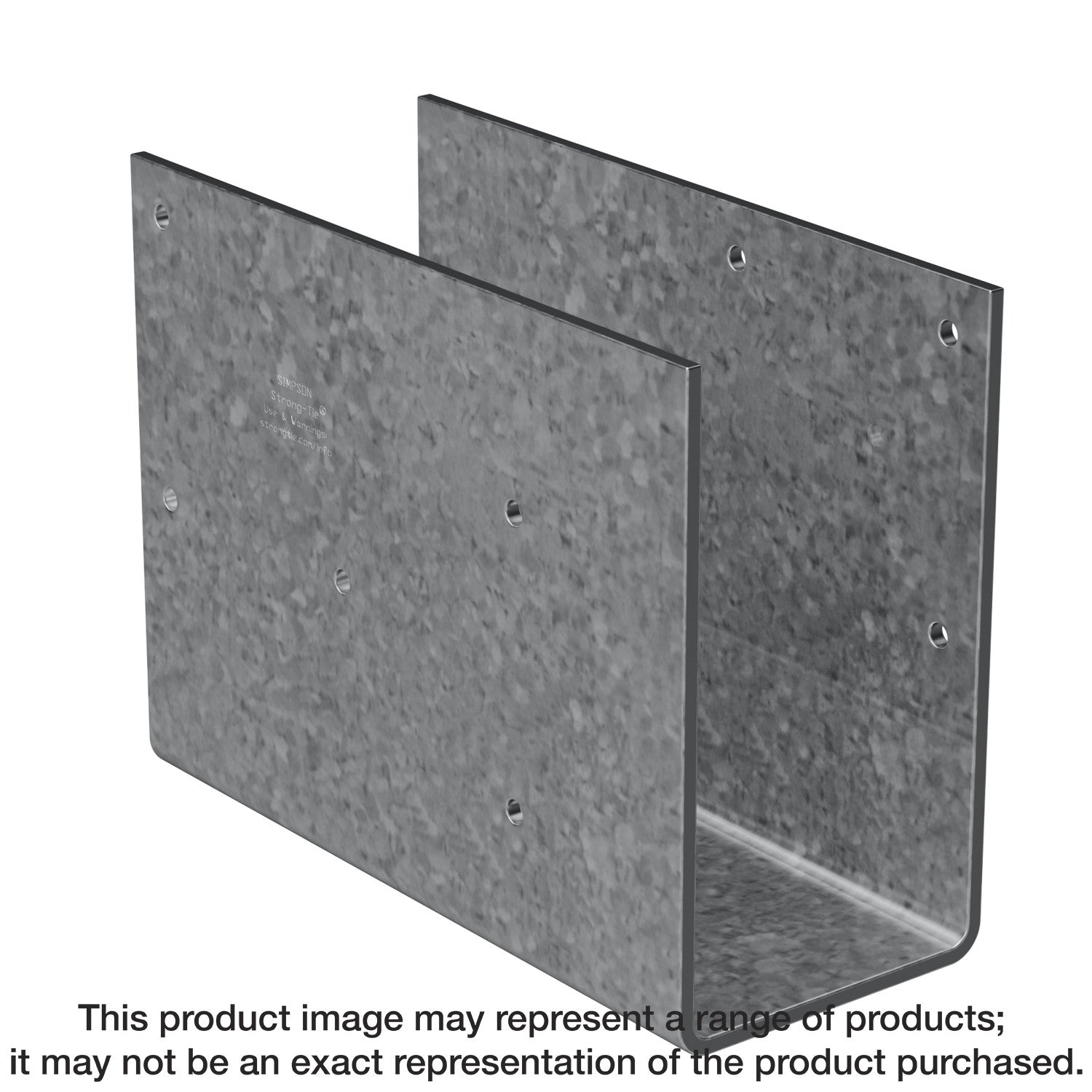

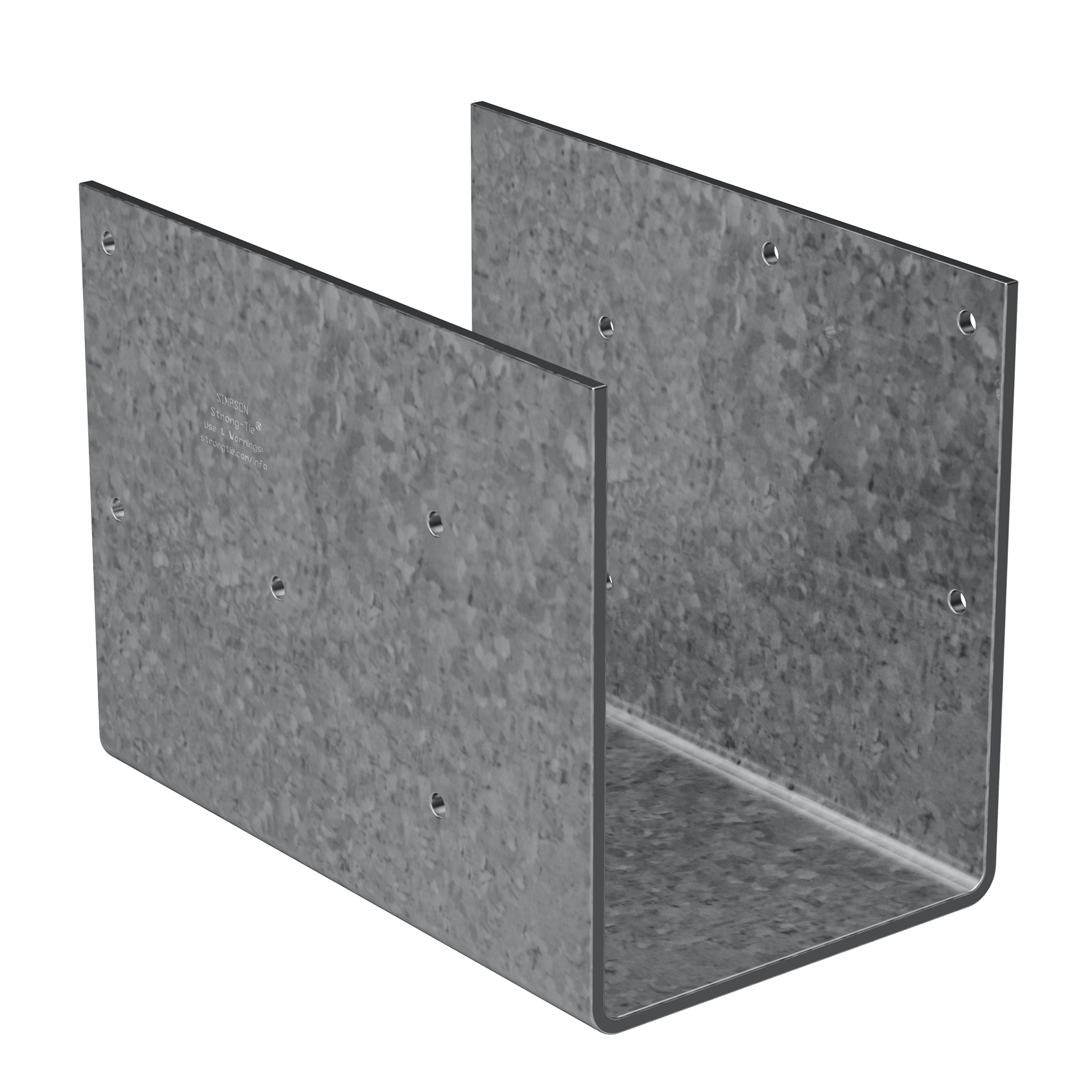

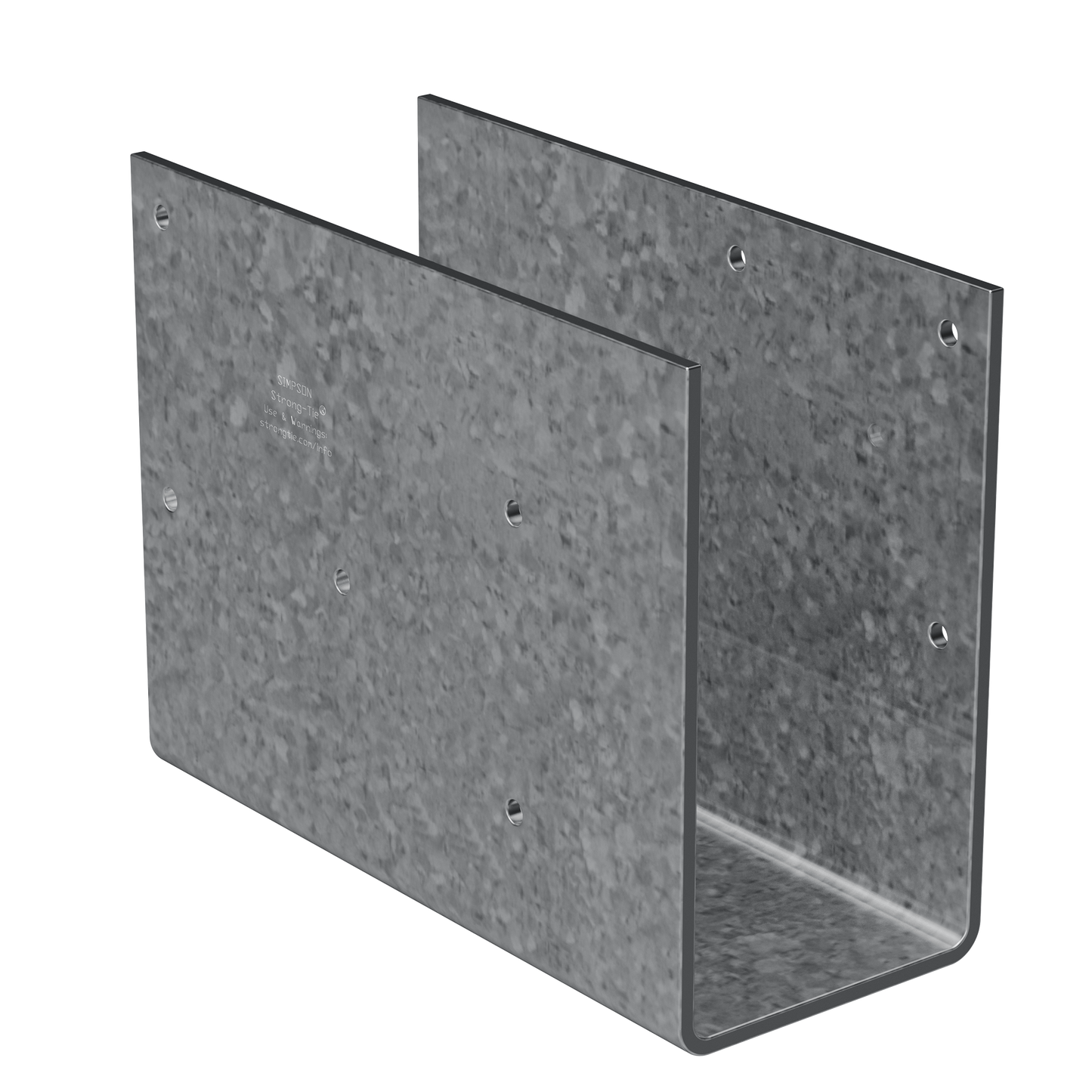

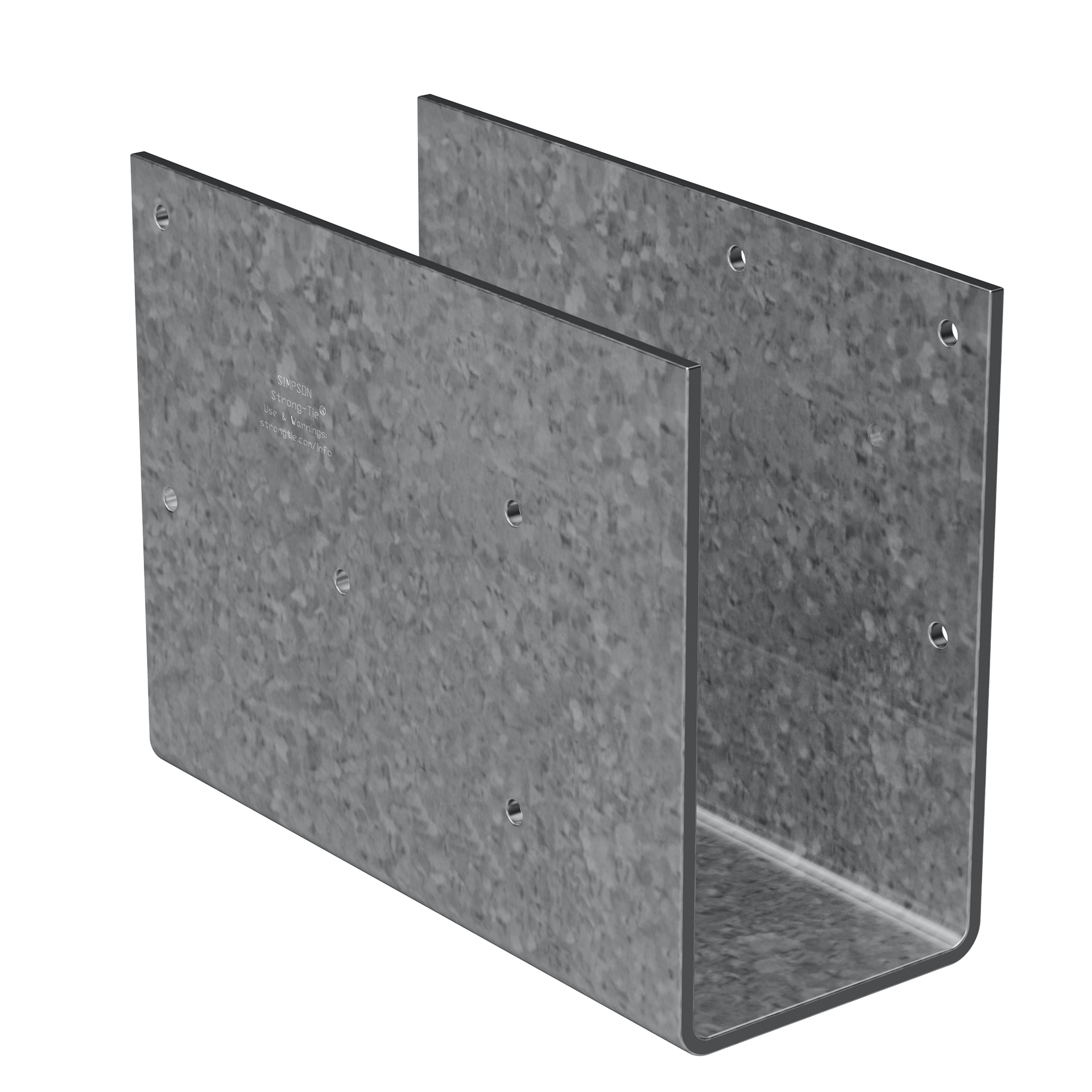

Simpson Strong-Tie CCOS4.62 CCOS Column Cap Only (No Straps) for Triple 2x10/12

The Simpson Strong-Tie® CCOS steel-column cap provides a high-capacity connection for column-to-beam combinations. This design without the column straps was created specifically for field welding to a steel column. For faster installation, the CCOS requires that self-tapping screws (included) be used to attach the column cap to the column cap plate.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Provides adequate bearing length for larger girder reactions
• Sizes available for both solid sawn lumber and engineered wood products
• Self-tapping screws included
• Seat width: 4-5/8 in.
• Beam width: Triple 2x10, triple 2x12
• Made from 7-gauge steel
• Galvanized (G90) for corrosion resistance

Specifications

• ERP Part Number: CCOS4.62
• UPC: 707392196709
• GTIN: 707392196709
• Feature 01: Provides adequate bearing length for larger girder reactions
• Feature 02: Sizes available for both solid sawn lumber and engineered wood products
• Feature 03: Self-tapping screws included
• Feature 04: Seat width: 4-5/8 in.
• Feature 05: Beam width: Triple 2x10, triple 2x12
• Feature 06: Made from 7-gauge steel
• Feature 07: Galvanized (G90) for corrosion resistance
• Install With: Attach steel column cap to column end plate with (4) self-tapping screws (included) and 5/16 in. hex driver; attach to girder with 0.148 in. x 3 in. nails
• Assembled Depth - Imperial: 8
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 6.186
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 4.997
• Assembled Width UOM - Imperial: in.
• Base Product ID: CCOS_Cap
• Base Product Name: CCOS
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Caps > Column Cap
• Coating: Zinc Galvanized, G90
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Finish: Zinc Galvanized, G90
• Gauge: 7
• GUID: 40569015889116943234536013321068322740
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• Member Size: Triple 2x10, triple 2x12
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Column Cap
• Product Includes: (4) self-tapping screws
• Prop 65 - Cancer: Wood Dust
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Shipping Weight: 6.78
• Short Product Name: COLUMN CAP
• Strongtie.com URL: https://www.strongtie.com/lallysteelcolumncaps_columncaps/ccos_cap/p/ccos
• Subcategory: Wood Construction Connectors
• Subcategory 2: Caps
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10707392196706
• Lumber Size Infographic: https://images.salsify.com/image/upload/s--4j6m7m95--/of77l1vzb2adrmtseor4.png
