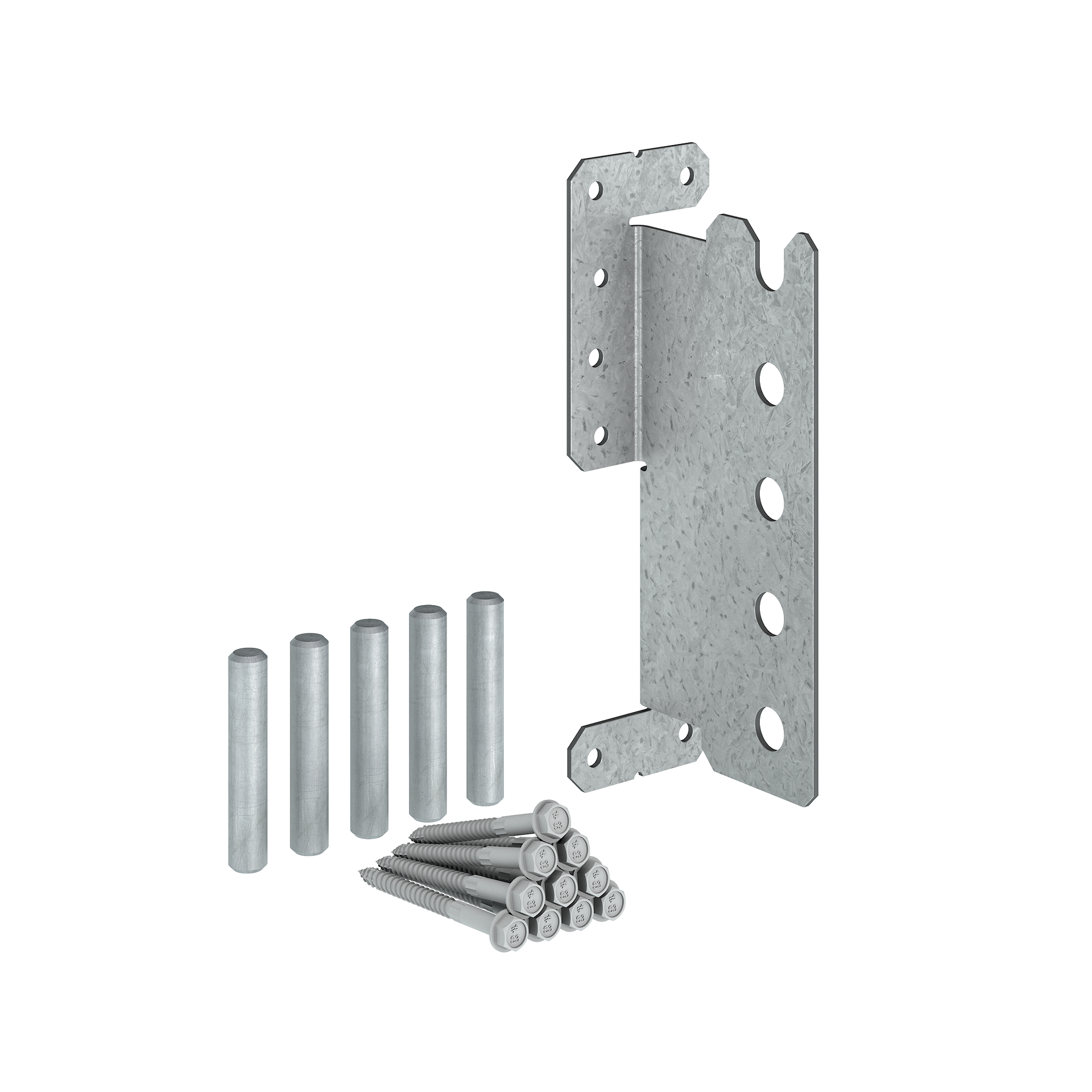

Simpson Strong-Tie CJT5ZS CJTZ® 12-Gauge ZMAX® Galvanized Concealed Joist Tie with (5) Short Pins (Pack of 4)

The CJTZ® is a concealed connector. It can be installed three ways: with no routing of header/post or beam, a routed header/post or a routed beam. It is part of a concealed connector system that includes the CPTZ and CBTZ.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Center dowel in beam
• Dowels aligned across the grain may cause splitting if the wood shrinks excessively
• Install only in glulam, composite lumber (PSL, LSL and LVL) or well dried lumber
• Short dowel (1/2 in. x 2-3/4 in.) for use with 3-1/8 in. glulam beam, 4x sawn lumber or 3-1/2 in.-wide PSL
• Made from 12-gauge steel
• ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications

Specifications

• ERP Part Number: CJT5ZS
• UPC: 10707392443947
• GTIN: 10707392443947
• Feature 01: Center dowel in beam
• Feature 02: Dowels aligned across the grain may cause splitting if the wood shrinks excessively
• Feature 03: Install only in glulam, composite lumber (PSL, LSL and LVL) or well dried lumber
• Feature 04: Short dowel (1/2 in. x 2-3/4 in.) for use with 3-1/8 in. glulam beam, 4x sawn lumber or 3-1/2 in.-wide PSL
• Feature 05: Made from 12-gauge steel
• Feature 06: ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
• Assembled Depth - Imperial: 3.56975
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 8.50
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 2.46875
• Assembled Width UOM - Imperial: in.
• Base Product ID: CJT_Tie
• Base Product Name: CJTZ®
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Joist Hangers > Hanger
• Country of Origin: US
• Customer Unit: No
• Display Unit/Measure: CV
• GUID: 105793351810570037780490644264088538610
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: Case
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Product Class: Hanger
• Prop 65 - Cancer: Wood Dust
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 4
• Shipping Weight: 10.28
• Short Product Name: CONCEALED JOIST TIE W/SHORT PIN - ZMAX
• Strongtie.com URL: https://www.strongtie.com/specialtycollection_architecturalproductsgroup/cjt_tie/p/cjtz
• Subcategory: Wood Construction Connectors
• Subcategory 2: Joist Hangers
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• EA Reference: 707392443940
• PAL Reference: 60707392443942
• Lumber Size Infographic: https://images.salsify.com/image/upload/s--4j6m7m95--/of77l1vzb2adrmtseor4.png
