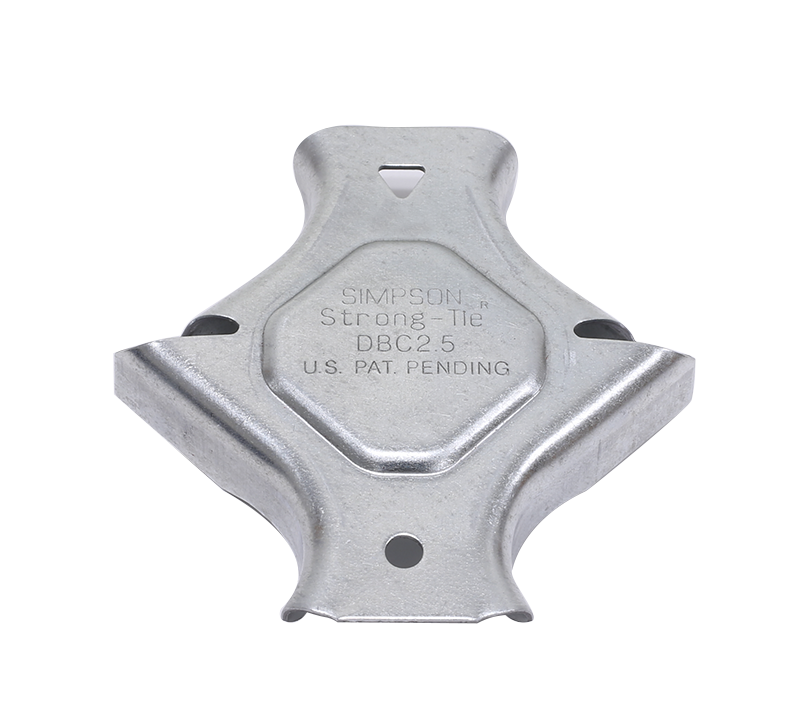

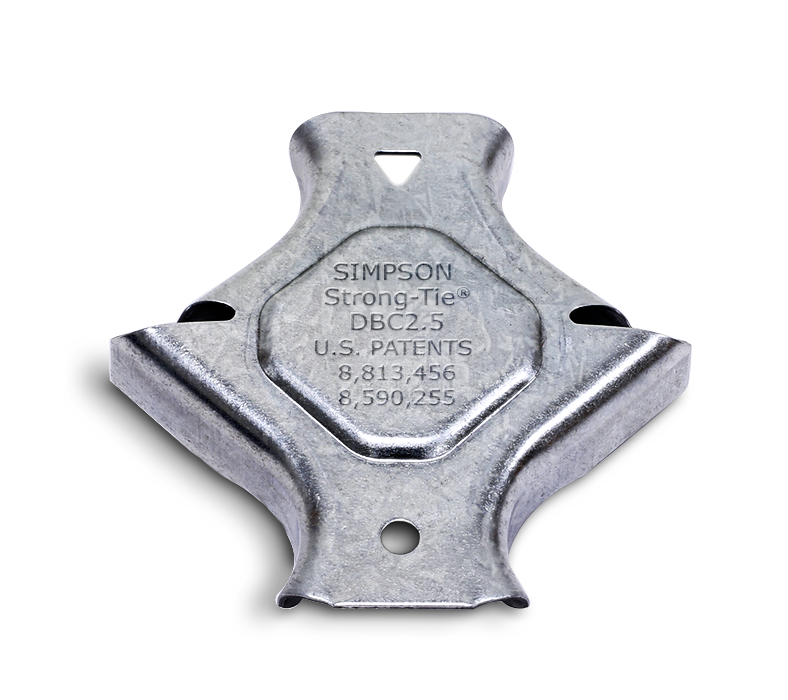

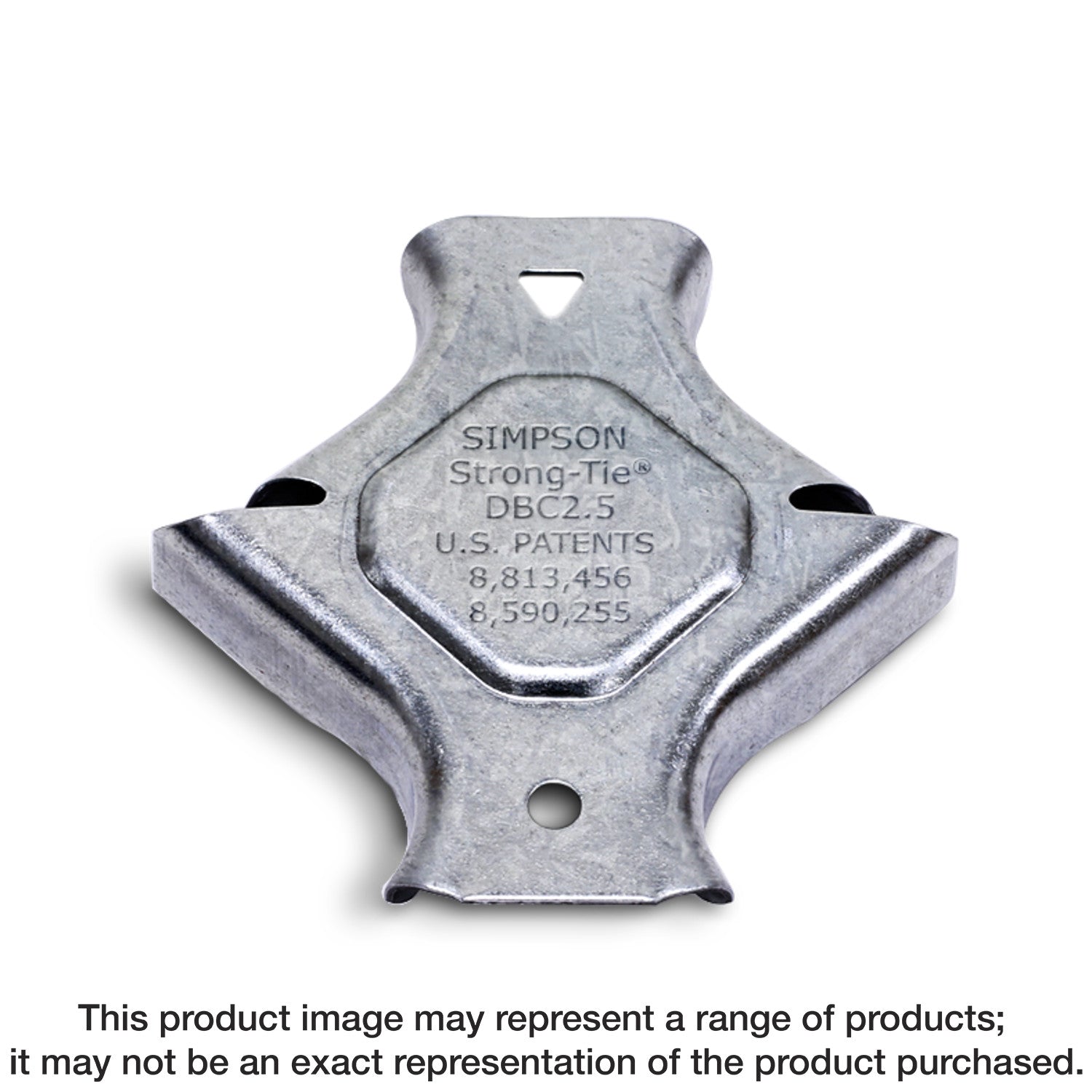

Simpson Strong-Tie DBC2.5-R200 DBC Drywall Bridging Connector (Qty-200)

Simpson Strong-Tie® cold-formed steel connectors are designed to provide the strength and performance required in every cold-formed steel application. The DBC's patented design allows for one- or two-screw installation, significantly reducing labor and material cost. Load rated for 3/4 in. u-channel, the DBC joins the SUBH line of bridging connectors tested as a system, ensuring that published design capacities capture the influence of stud web depth and thickness.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Most applications require only a single screw
• Designed for 3/4 in. u-channel to fit smaller web knockouts common to drywall studs
• Compatible with drywall stud depths of 3-5/8 in. and 6 in. with 1-1/2 in. wide knockouts
• Made from 33 mil (20 ga.) carbon steel
• Galvanized (G90) for corrosion resistance

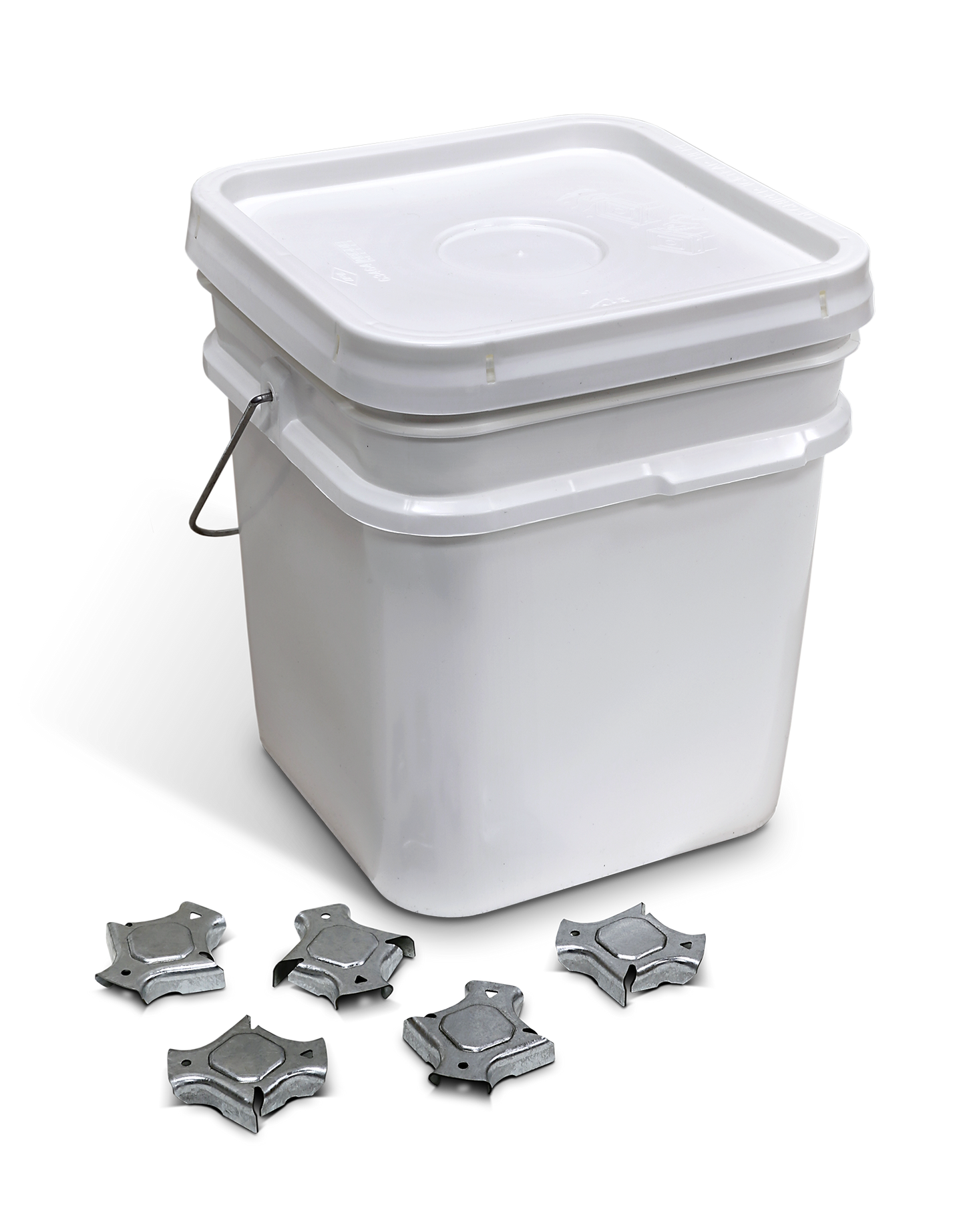

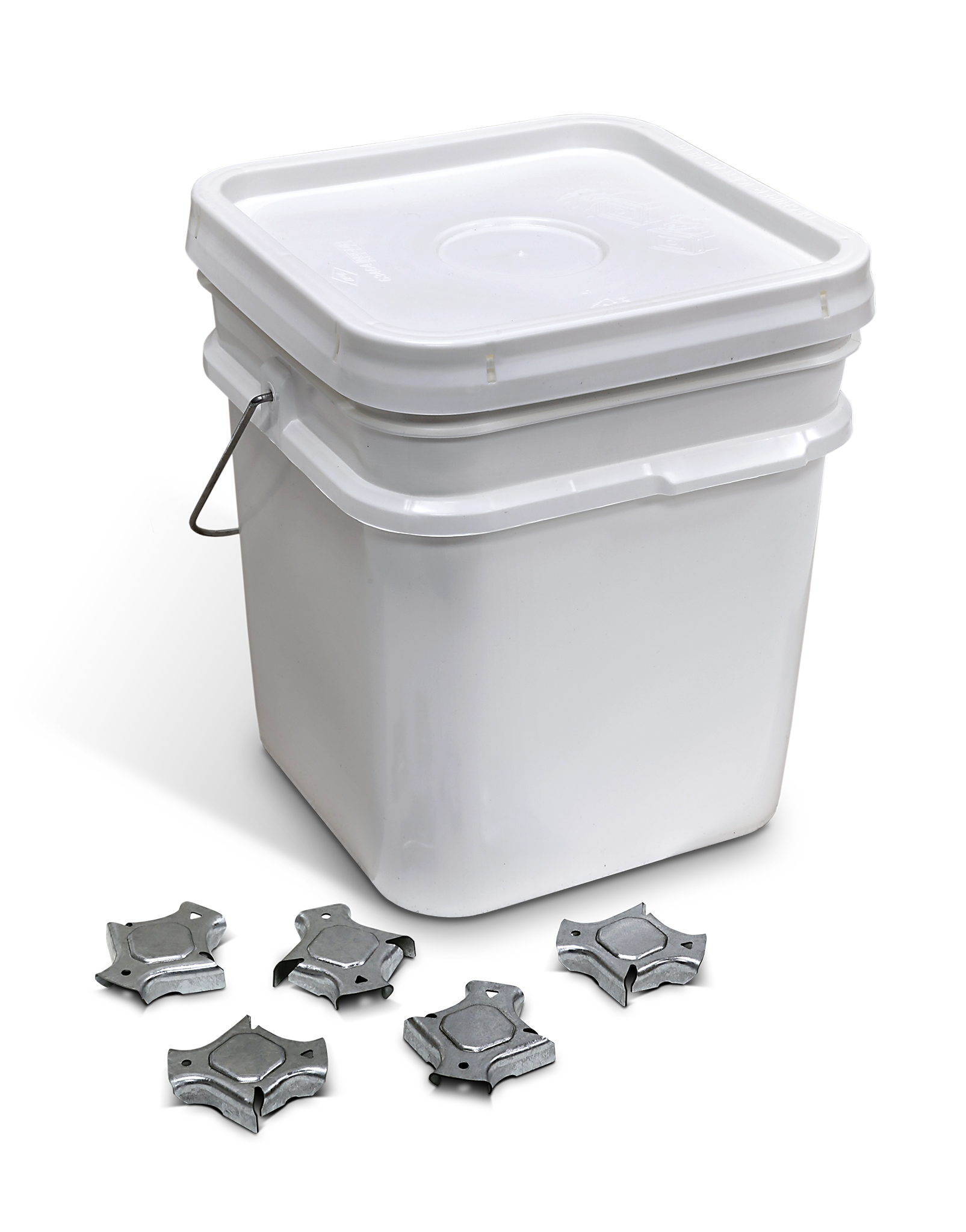

• Quantity: 200 per package

Application

• Cold-Formed Steel
• Wall Bracing
• Bridging / Bracing

Specifications

• ERP Part Number: DBC2.5-R200
• UPC: 707392393702
• GTIN: 707392393702
• Feature 01: Most applications require only a single screw
• Feature 02: Designed for 3/4 in. u-channel to fit smaller web knockouts common to drywall studs
• Feature 03: Compatible with drywall stud depths of 3-5/8 in. and 6 in. with 1-1/2 in. wide knockouts
• Feature 04: Made from 33 mil (20 ga.) carbon steel
• Feature 05: Galvanized (G90) for corrosion resistance
• Feature 06: Quantity: 200 per package
• Install With: Install with (1) or (2) #8 screws; quantity varies by application — refer to Simpson Strong-Tie® catalog or strongtie.com
• Applications List: Cold-Formed Steel
• Applications List.1: Wall Bracing
• Applications List.2: Bridging / Bracing
• Assembled Depth - Imperial: 0.55
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 2.5625
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 2.5625
• Assembled Width UOM - Imperial: in.
• Base Product ID: DBC_Connector
• Base Product Name: DBC
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Cold-Formed Steel Connectors > Bridging and Bracing Connectors > Connector
• Coating: Zinc Galvanized, G90
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• Finish: Zinc Galvanized, G90
• Gauge: 20
• GUID: 42011333821902806668724031545953377431
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 0.55
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 2.56
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 2.56
• Package Width UOM - Imperial: in.
• Packaging Quantity: 200
• Product Class: Connector
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 12.7
• Short Product Name: DRYWALL STUD BRIDGING CONNECTOR
• Strongtie.com URL: https://www.strongtie.com/bridgingandbracingconnectors_coldformedsteelconstruction/dbc_connector/p/dbc
• Subcategory: Cold-Formed Steel Connectors
• Subcategory 2: Bridging and Bracing Connectors
• US Patents: 8,590,255
• US Patents.1: 8,813,456
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• PAL Reference: 50707392393707
