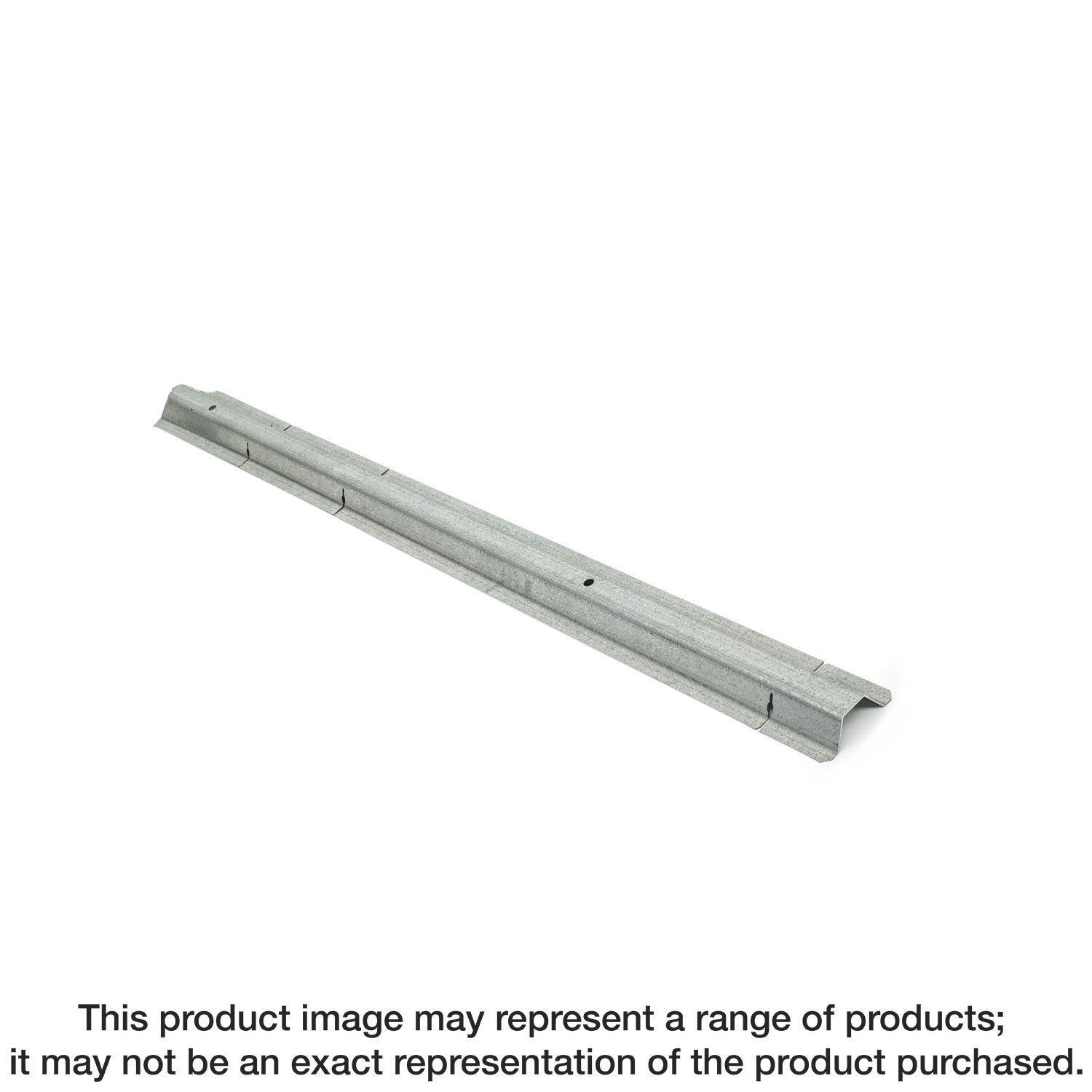

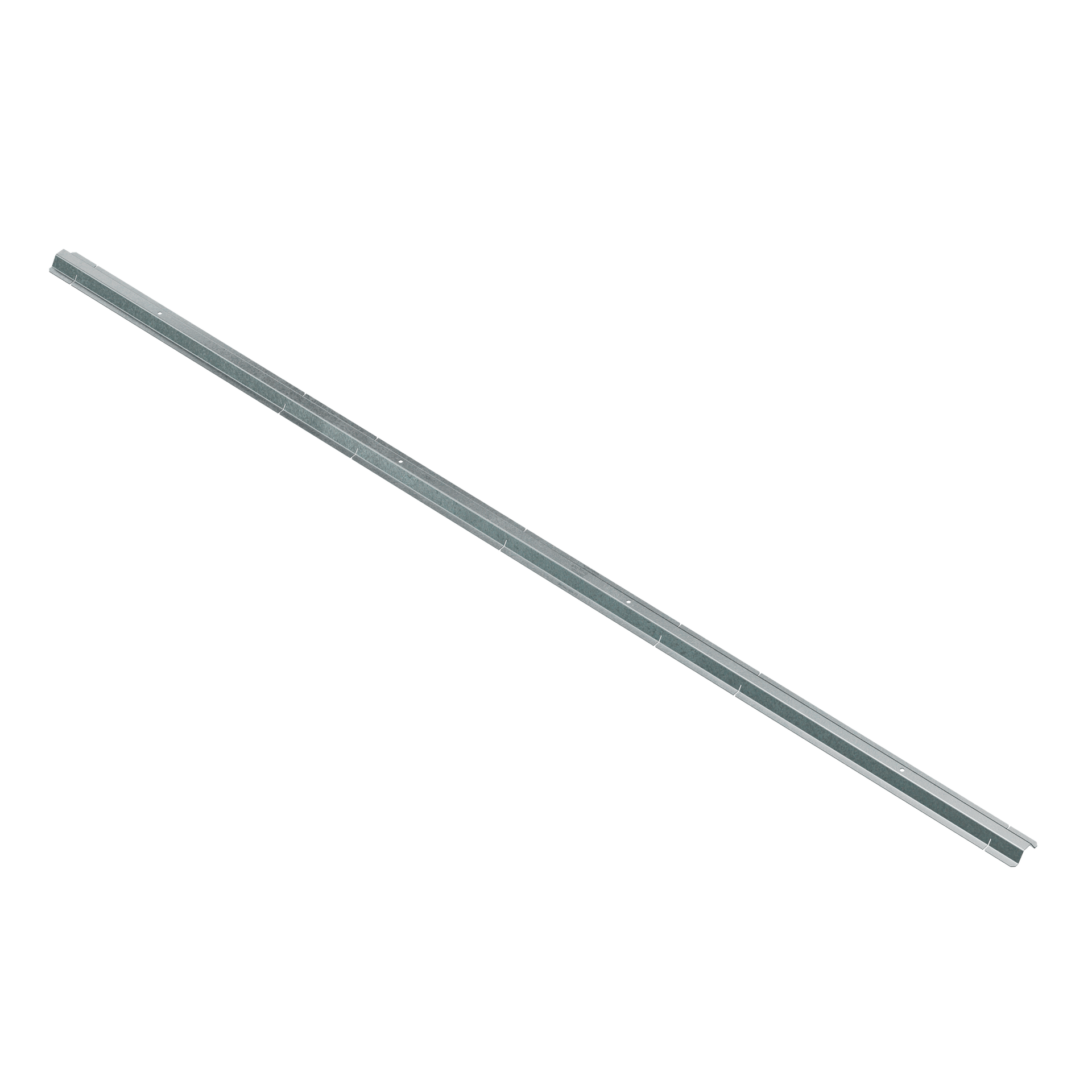

Simpson Strong-Tie DBR/30-R20 DBR 22-Gauge Galvanized Drywall Spacer Bracer (20-Qty) (Pack of 68)

Simpson Strong-Tie spacer bracers reduce the installed cost of cold-formed steel stud walls by enabling faster stud layout while minimizing the need for bridging clips. The DBR is used for interior walls to eliminate stud bow and allow for quicker drywall attachment, while the SBR is designed for structural exterior walls. Both products provide bracing along the length of the stud, and for head-of-wall slip conditions. The SBR and DBR feature prepunched slots that eliminate the need to use bridging clips with on-module studs. The SBR and DBR spacer bracers come with bracing load data based on assembly testing, thus mitigating risk for designers and maximizing confidence in design specs.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• SBR and DBR have patent-pending precision-engineered prepunched slots strategically located to enable 12 in., 16 in. and 24 in. on-center stud spacing and can be used to space the studs without having to mark the top track for layout
• The DBR will accommodate 2-1/2 in., 3-5/8 in. and 6 in. studs in thicknesses of 15 mil (25 ga. EQ) through 33 mil (20 ga.)

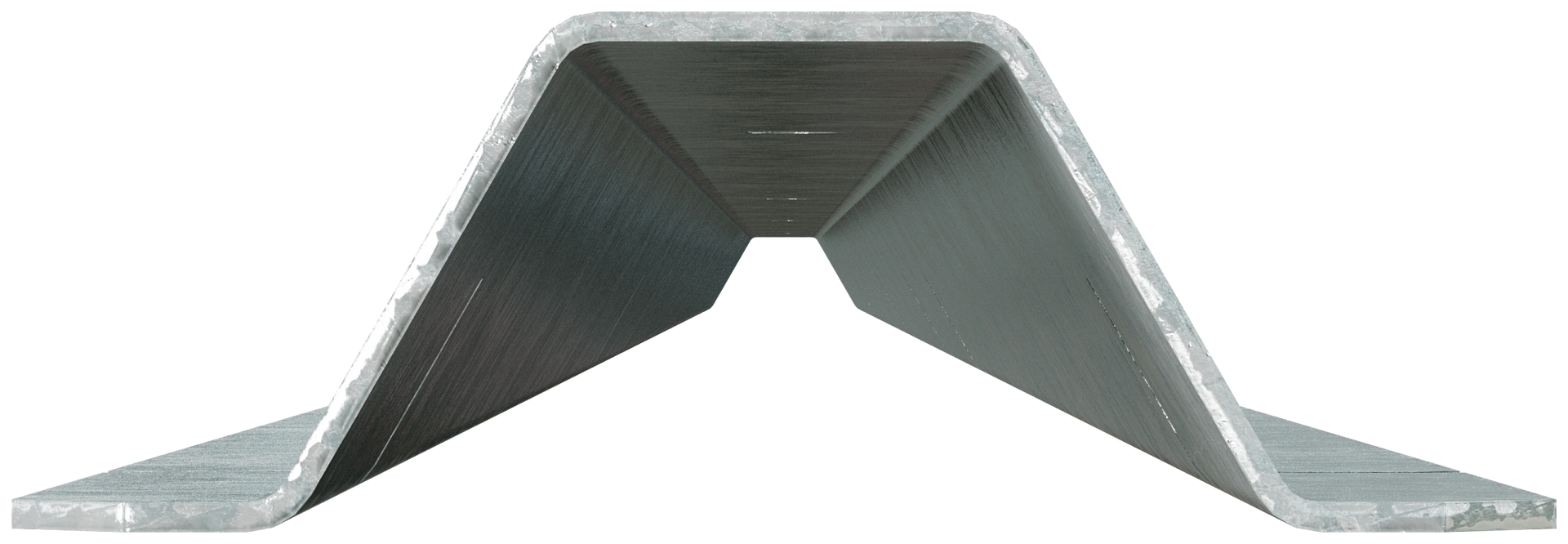

• In off-layout or end-of run conditions, the hat-section profiles enable clip attachments to the stud with Simpson Strong-Tie LSSC or RCA connectors
• Galvanized (G90) for extra corrosion resistance
• Made from 22-gauge (27 mil) steel
• Quantity: 20

Specifications

• ERP Part Number: DBR/30-R20
• UPC: 50707392784659
• GTIN: 50707392784659
• Feature 01: SBR and DBR have patent-pending precision-engineered prepunched slots strategically located to enable 12 in., 16 in. and 24 in. on-center stud spacing and can be used to space the studs without having to mark the top track for layout
• Feature 02: The DBR will accommodate 2-1/2 in., 3-5/8 in. and 6 in. studs in thicknesses of 15 mil (25 ga. EQ) through 33 mil (20 ga.)
• Feature 03: In off-layout or end-of run conditions, the hat-section profiles enable clip attachments to the stud with Simpson Strong-Tie LSSC or RCA connectors
• Feature 04: Galvanized (G90) for extra corrosion resistance
• Feature 05: Made from 22-gauge (27 mil) steel
• Feature 06: Quantity: 20
• Assembled Depth - Imperial: 0.50
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 50.75
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 1.625
• Assembled Width UOM - Imperial: in.
• Base Product ID: DBR_Bracer
• Base Product Name: DBR
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Cold-Formed Steel Connectors > Bridging and Bracing Connectors > Bridging
• Country of Origin: US
• Customer Unit: No
• Display Unit/Measure: PAL
• EAN category: IC
• GUID: 324294145803499152629736525907335149149
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: Pallet
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Product Class: Bridging
• Prop 65 Warning: No
• Quantity: 68
• Shipping Weight: 1251.2
• Short Product Name: DRYWALL SPACER-BRACER 22GA 20 PAK
• Strongtie.com URL: https://www.strongtie.com/bridgingandbracingconnectors_coldformedsteelconstruction/dbr_bracer/p/dbr
• Subcategory: Cold-Formed Steel Connectors
• Subcategory 2: Bridging and Bracing Connectors
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• PAC Reference: 707392784654
