Simpson Strong-Tie DETAL20 DETAL Galvanized High-Capacity Embedded Truss Anchor (Pack of 16)

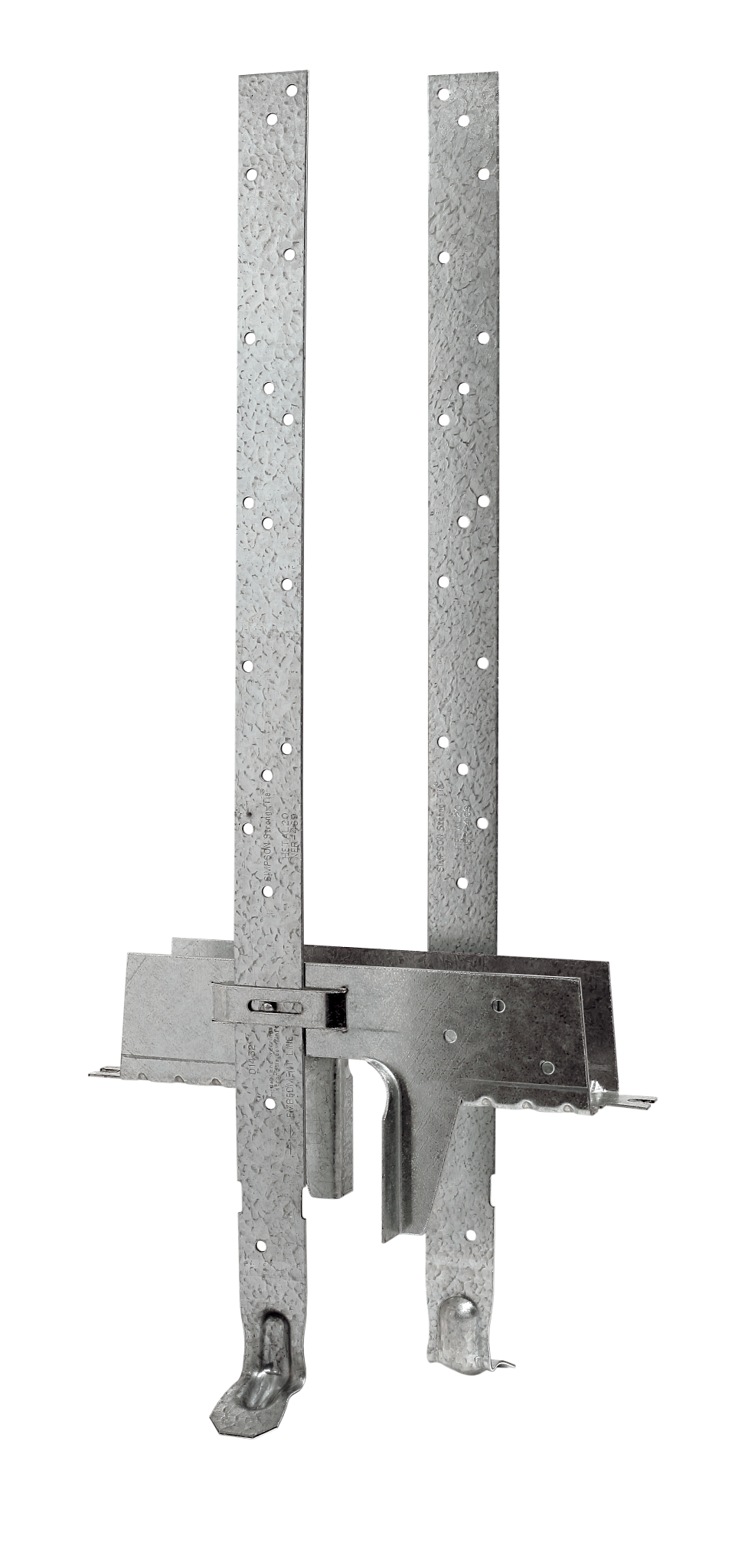

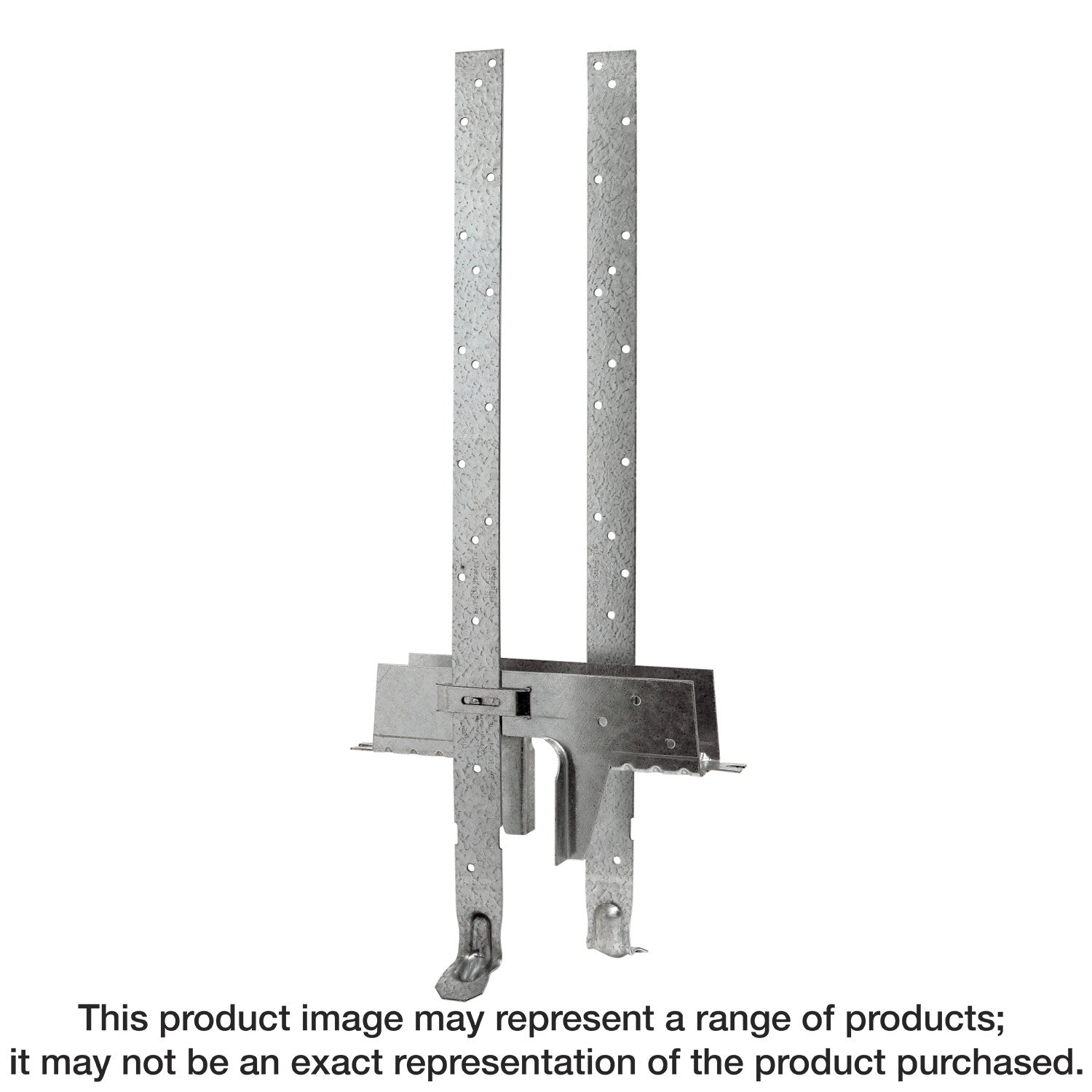

The DETAL20 is a high-capacity embedded truss anchor for attachment of single-ply trusses to concrete and masonry walls. It combines dual embedded anchors with a structural moisture-barrier seat that is partially embedded in the concrete or grout. This seat serves to protect the truss and also provides additional lateral and uplift capacity. The embedded anchors are pre-attached to the moisture barrier through slots that allow for a slight amount of adjustability, providing flexibility during installation to avoid rebar. The moisture-barrier seat includes tabs at each end for optional attachment to the form board in concrete tie-beam applications.
This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.
Features
- Embed 4-1/2 in. into a poured concrete bond beam or grouted block wall
- Staggered nail pattern for enhanced uplift resistance
- Embossed angle for added rigidity
- Steel gauge: 16 ga., barrier 18 ga.
- Galvanized (G90) for extra corrosion resistance
Specifications
- ERP Part Number: DETAL20
- UPC: 10707392516009
- GTIN: 10707392516009
- Feature 01: Embed 4-1/2 in. into a poured concrete bond beam or grouted block wall
- Feature 02: Staggered nail pattern for enhanced uplift resistance
- Feature 03: Embossed angle for added rigidity
- Feature 04: Steel gauge: 16 ga., barrier 18 ga.
- Feature 05: Galvanized (G90) for extra corrosion resistance
- Assembled Depth - Imperial: 8.875
- Assembled Depth UOM - Imperial: in.
- Assembled Height - Imperial: 20.307
- Assembled Height UOM - Imperial: in.
- Assembled Width - Imperial: 4.581
- Assembled Width UOM - Imperial: in.
- Base Product ID: DETAL_Anchor
- Base Product Name: DETAL
- Brand Name: Simpson Strong-Tie®
- Category Tree (Computed): Wood Construction Connectors > Truss Tiedowns for Masonry > Truss Anchor
- Country of Origin: US
- Customer Unit: No
- Display Unit/Measure: CAR
- EAN category: IC
- GUID: 113725973664333968773712569078024070676
- Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
- Measurement Unit Text: Carton
- MFG Name: Simpson Strong-Tie®
- Number Category Description: UPC
- Package Depth - Imperial: 20.625
- Package Depth UOM - Imperial: in.
- Package Height - Imperial: 11
- Package Height UOM - Imperial: in.
- Package Width - Imperial: 16
- Package Width UOM - Imperial: in.
- Product Class: Truss Anchor
- Prop 65 Warning: No
- Quantity: 16
- Shipping Weight: 23.008
- Short Product Name: HIGH CAPACITY EMBEDDED TRUSS ANCHOR
- Strongtie.com URL: https://www.strongtie.com/trusstowallconnections_lateralloadtransfer/detal_anchor/p/detal
- Subcategory: Wood Construction Connectors
- Subcategory 2: Truss Tiedowns for Masonry
- US Patents: 7,987,636
- Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
- Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
- EA Reference: 707392516002
- PAL Reference: 50707392516007
