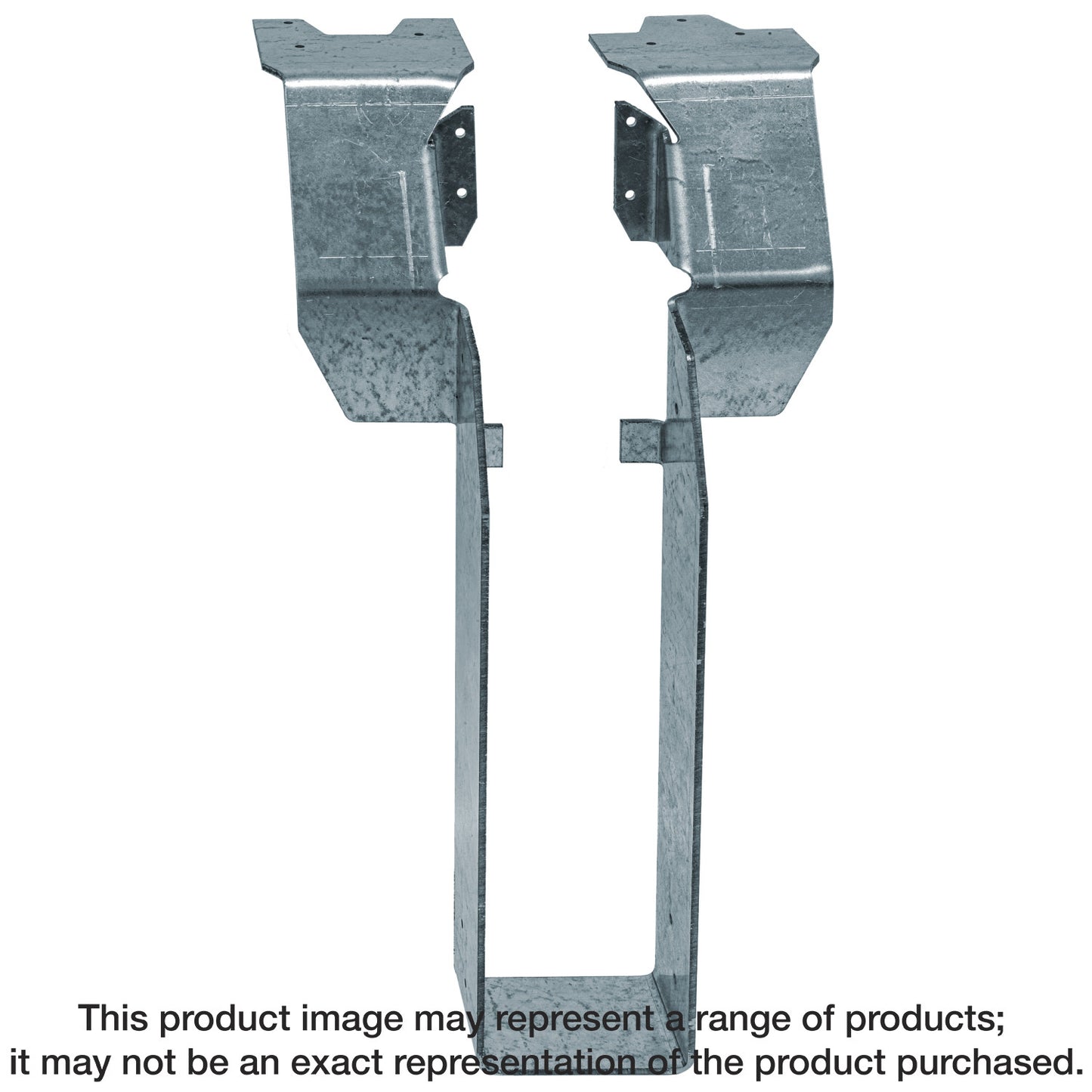

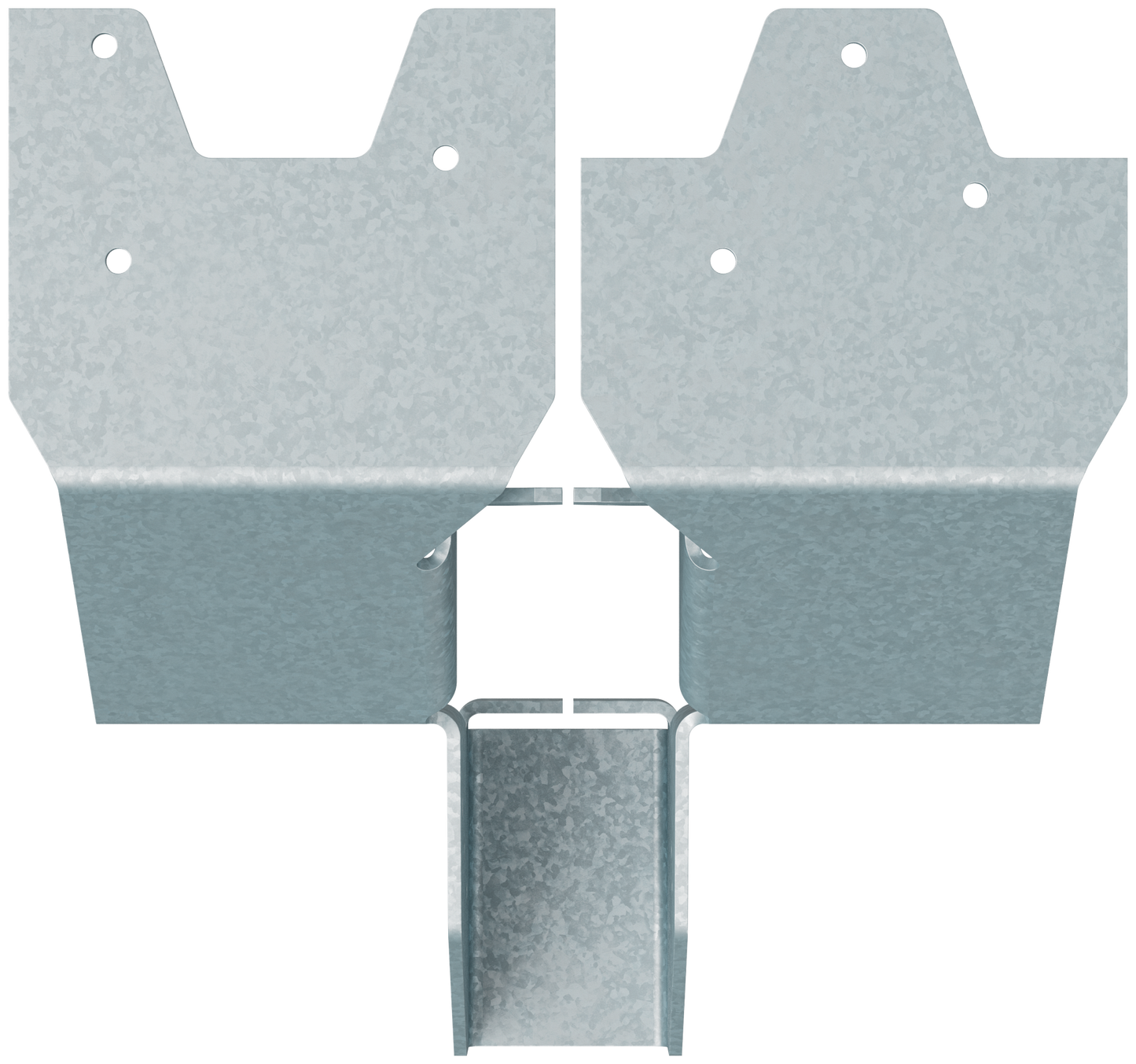

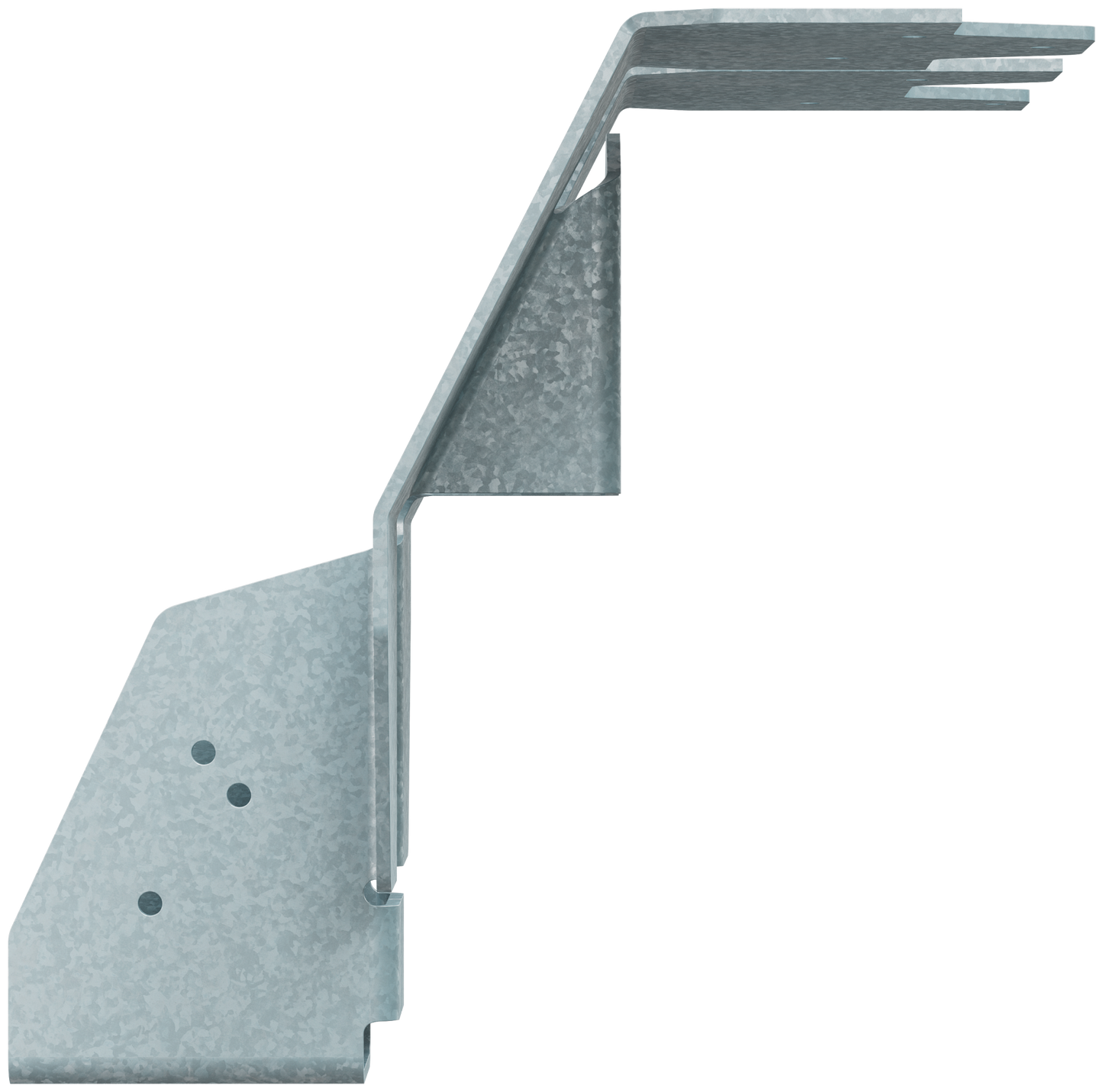

Simpson Strong-Tie DGT28 DGT™ Top-Flange Fire Wall Hanger for 2x8 (Pack of 288)

Ideal for multifamily, multilevel Type III residential construction, the patent-pending Simpson Strong-Tie® DGT™ fire wall hanger is load tested and fire rated. It's the first fire wall hanger designed to install with a power nailer, saving time before hanging drywall, which helps keep construction projects on schedule. The DGT model is offered in a wide range of sizes, making it simple to select and use. This top-flange hanger provides space for two layers of 5/8-in. gypsum board (drywall) to be slipped into place after the framing is complete. The DGT has been tested according to ASTM E814 and is fire rated for use on both sides of the wall. The DGT fire wall hangers are made in the US, widely available, and backed by our expert service and technical support.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Loads tested and code listed for 1-1/2 in. and 2 -1/2 in. power-driven or hand-installed nails
• Two-hour fire rating applies to 2x4 or thicker walls
• Innovative top-flange design for back-to-back installation on 2x6 (min.) walls
• Space for two layers of 5/8-in. drywall after framing
• Two-hour Fire-Resistant rating Intertek Design No. SST/WPCF 120-01
• Nominal joist size: 2x8
• Seat width: 1-9/16 in.
• Made from 12-gauge steel
• Galvanized (G90) for corrosion resistance

Specifications

• ERP Part Number: DGT28
• UPC: 50707392021921
• GTIN: 50707392021921
• Feature 01: Loads tested and code listed for 1-1/2 in. and 2 -1/2 in. power-driven or hand-installed nails
• Feature 02: Two-hour fire rating applies to 2x4 or thicker walls
• Feature 03: Innovative top-flange design for back-to-back installation on 2x6 (min.) walls
• Feature 04: Space for two layers of 5/8-in. drywall after framing
• Feature 05: Two-hour Fire-Resistant rating Intertek Design No. SST/WPCF 120-01
• Feature 06: Nominal joist size: 2x8
• Feature 07: Seat width: 1-9/16 in.
• Feature 08: Made from 12-gauge steel
• Feature 09: Galvanized (G90) for corrosion resistance
• Assembled Depth - Imperial: 7.47925
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 7.323
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 7.823
• Assembled Width UOM - Imperial: in.
• Base Product ID: DGT_Hanger
• Base Product Name: DGT™
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Joist Hangers > Hanger
• Country of Origin: US
• Customer Unit: No
• Display Unit/Measure: PAL
• GUID: 298912880133316240052293356718560653813
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: Pallet
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Product Class: Hanger
• Prop 65 Warning: No
• Quantity: 288
• Shipping Weight: 921.6
• Short Product Name: TOP FLANGE FIRE WALL HANGER 2X8
• Strongtie.com URL: https://www.strongtie.com/firewallhangers_solidsawnlumberconnectors/dgt_hanger/p/dgt
• Subcategory: Wood Construction Connectors
• Subcategory 2: Joist Hangers
• US Patents: 11,920,339
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10707392021923
• EA Reference: 707392021926
• Lumber Size Infographic: https://images.salsify.com/image/upload/s--4j6m7m95--/of77l1vzb2adrmtseor4.png
