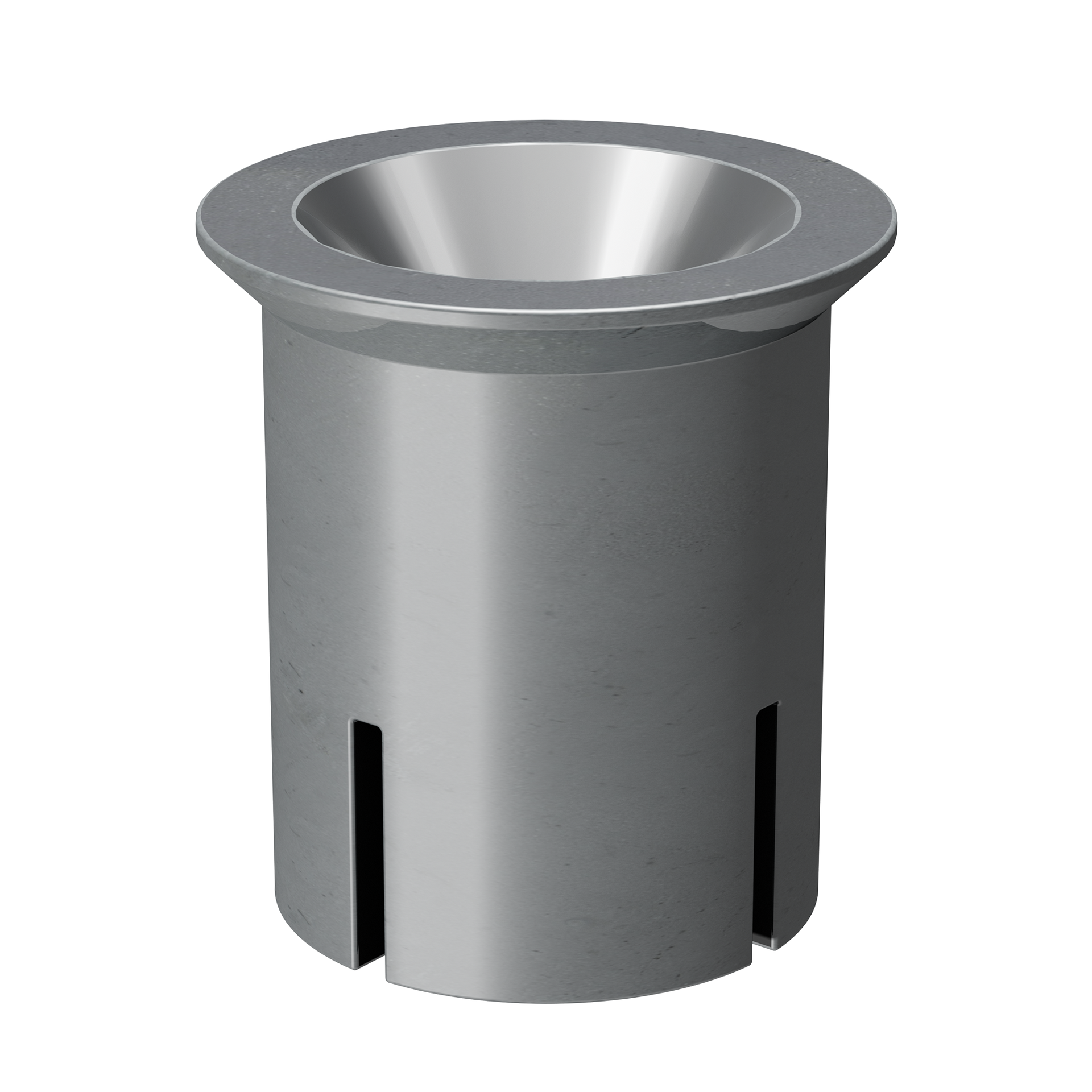

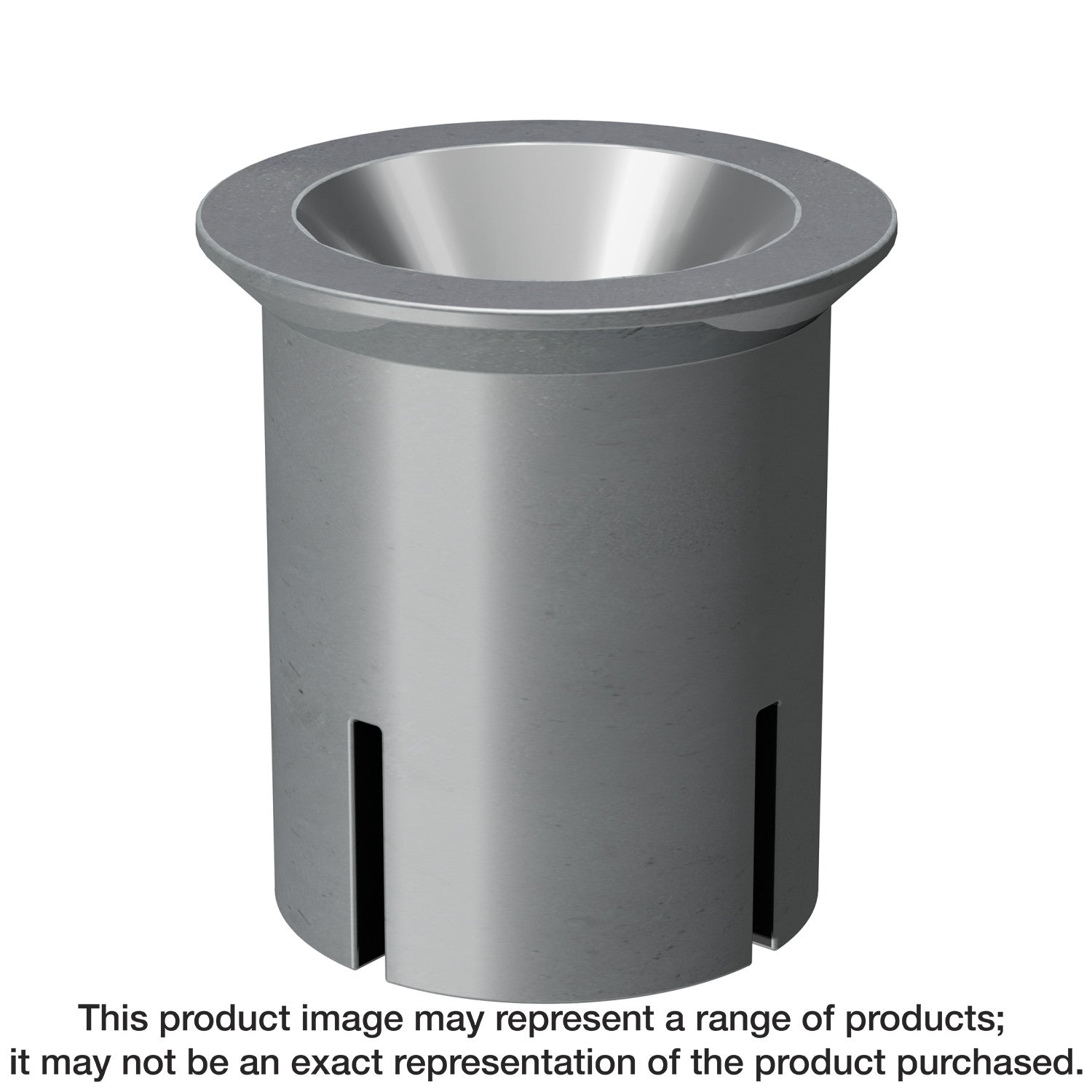

Simpson Strong-Tie DIA37S DIAS Short Drop-In Internally Threaded Anchor for 3/8-in. Rod (100-Qty)

Drop-In anchors are internally threaded drop-in expansion anchors for use in flush-mount applications in solid base materials. Available in stainless steel (DIA) or short (DIAS) versions. Minimum thread engagement should be equal to the nominal diameter of the threaded insert.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Flush-mount expansion anchor for concrete applications
• Lipped edge of DIAS eliminates need for precisely drilled hole depth
• Short length of DIAS enables shallow embedment to help avoid drilling into rebar or pre-stressed/post-tensioned cables
• Short drop-in anchors include a setting tool compatible with the anchor to ensure consistent installation
• Rod size: 3/8 in.
• Drill bit diameter: 1/2 in.
• Length: 3/4 in.
• Caution: Oversized holes will make it difficult to set the anchor and will reduce the anchor's load capacity
• Quantity: 100

Specifications

• ERP Part Number: DIA37S
• UPC: 44315497018
• GTIN: 44315497018
• Feature 01: Flush-mount expansion anchor for concrete applications
• Feature 02: Lipped edge of DIAS eliminates need for precisely drilled hole depth
• Feature 03: Short length of DIAS enables shallow embedment to help avoid drilling into rebar or pre-stressed/post-tensioned cables
• Feature 04: Short drop-in anchors include a setting tool compatible with the anchor to ensure consistent installation
• Feature 05: Rod size: 3/8 in.
• Feature 06: Drill bit diameter: 1/2 in.
• Feature 07: Length: 3/4 in.
• Feature 08: Caution: Oversized holes will make it difficult to set the anchor and will reduce the anchor's load capacity
• Feature 09: Quantity: 100
• Assembled Depth - Imperial: 0.629
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 0.819
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 0.629
• Assembled Width UOM - Imperial: in.
• Base Product ID: DIA-S_Anchor
• Base Product Name: Drop-In (DIAS)
• Bolt/Rod Diameter (in.): 3/8
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Concrete Connectors and Anchors > Mechanical Anchors > Drop-In Anchor
• Coating: Zinc Plated
• Country of Origin: TW
• Customer Unit: Yes
• Display Unit/Measure: PAC
• Drill Bit Diameter (in.): 1/2
• EAN category: UC
• Finish: Zinc Plated
• GUID: 280239542184602216234136732166781753455
• Length (in.): 3/4
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Material: Carbon Steel
• Measurement Unit Text: Pack
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 6.30
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 1.77
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 3.54
• Package Width UOM - Imperial: in.
• Packaging Quantity: 100
• Packaging Type: Box
• Product Class: Drop-In Anchor
• Prop 65 - Cancer: Crystalline Silica
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including crystalline silica which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Shipping Weight: 3.7
• Short Product Name: DROP-IN ANCHOR 3/8 SHORT
• Strongtie.com URL: https://www.strongtie.com/mechanicalanchors_mechanicalanchoringproducts/dia-s_anchor/p/drop-in-dias
• Subcategory: Concrete Connectors and Anchors
• Subcategory 2: Mechanical Anchors
• Thread Length (in.): 1/4
• TPI: 16
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 20044315497005
• PAL Reference: 50044315497006
