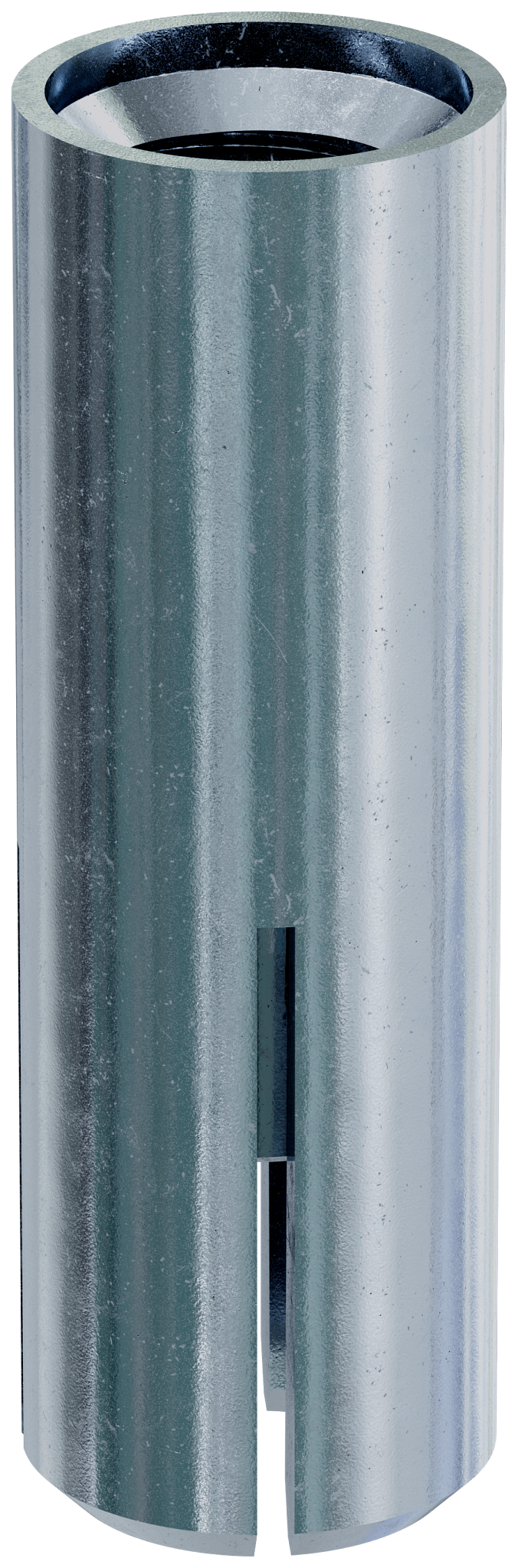

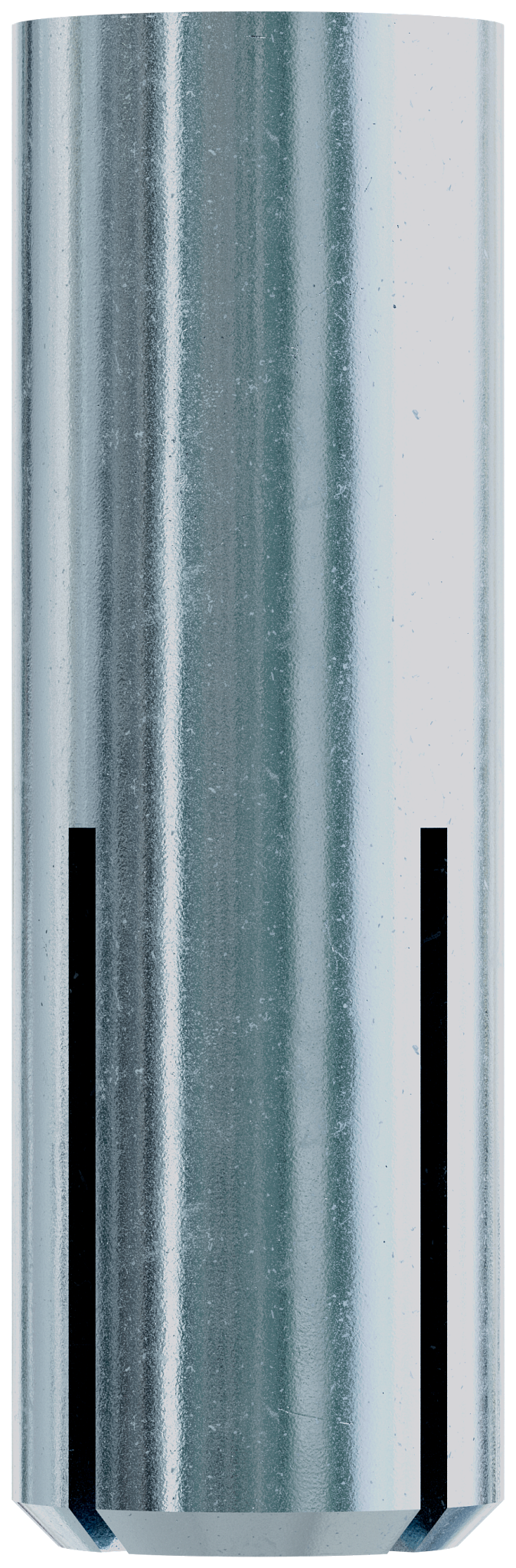

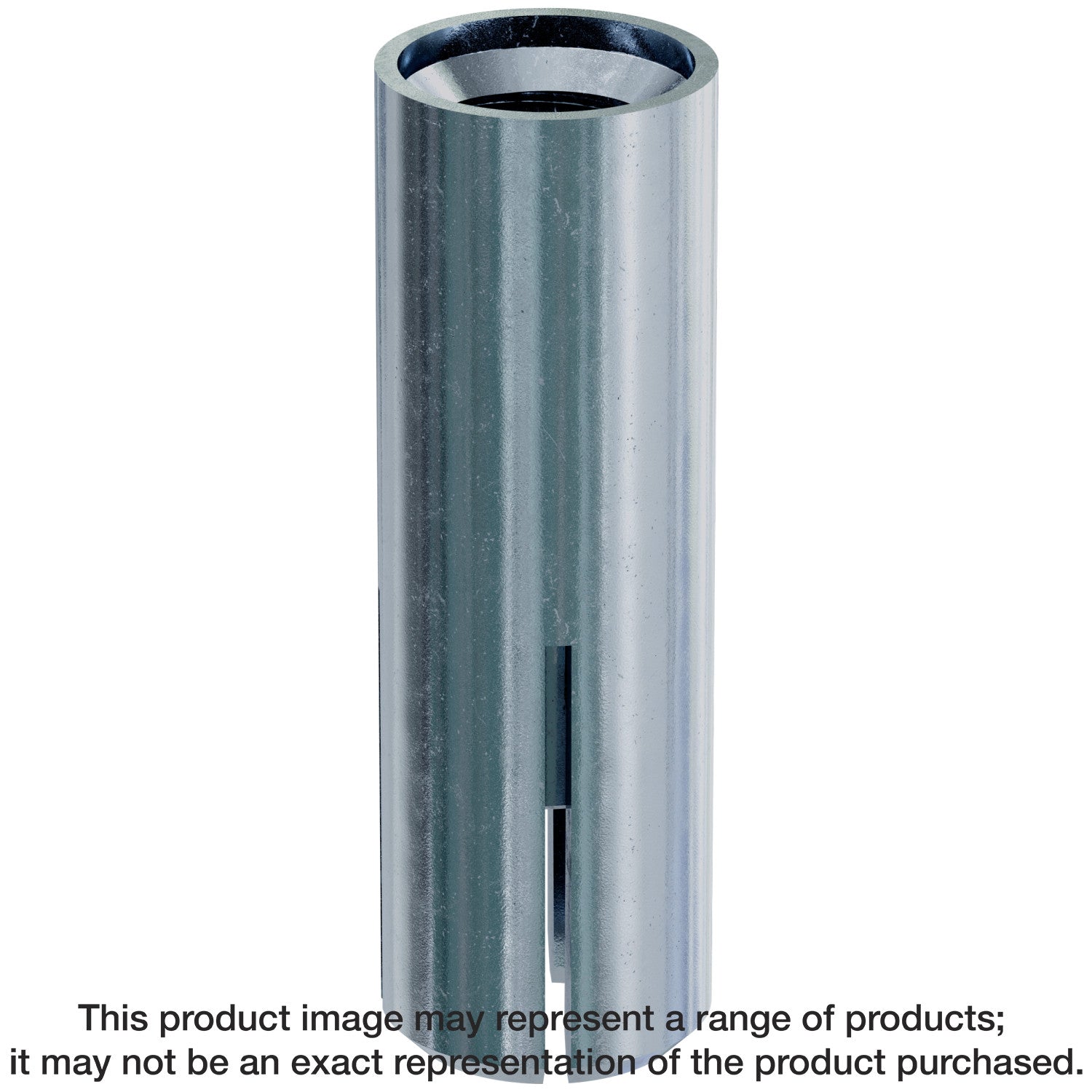

Simpson Strong-Tie DIAB37 DIAB Drop-In Internally Threaded Anchor for 3/8-in. Rod (50-Qty)

The Simpson Strong-Tie® DIAB features improved geometry for smooth and accurate installation into base materials. This displacement-controlled expansion anchor is easily set and features an indication marker to confirm proper placement. The enhanced setting capability of this internally threaded drop-in anchor requires minimum effort for quick and economical installation.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Faster installation than previous drop-in anchor design — sets with 40% fewer hammer hits

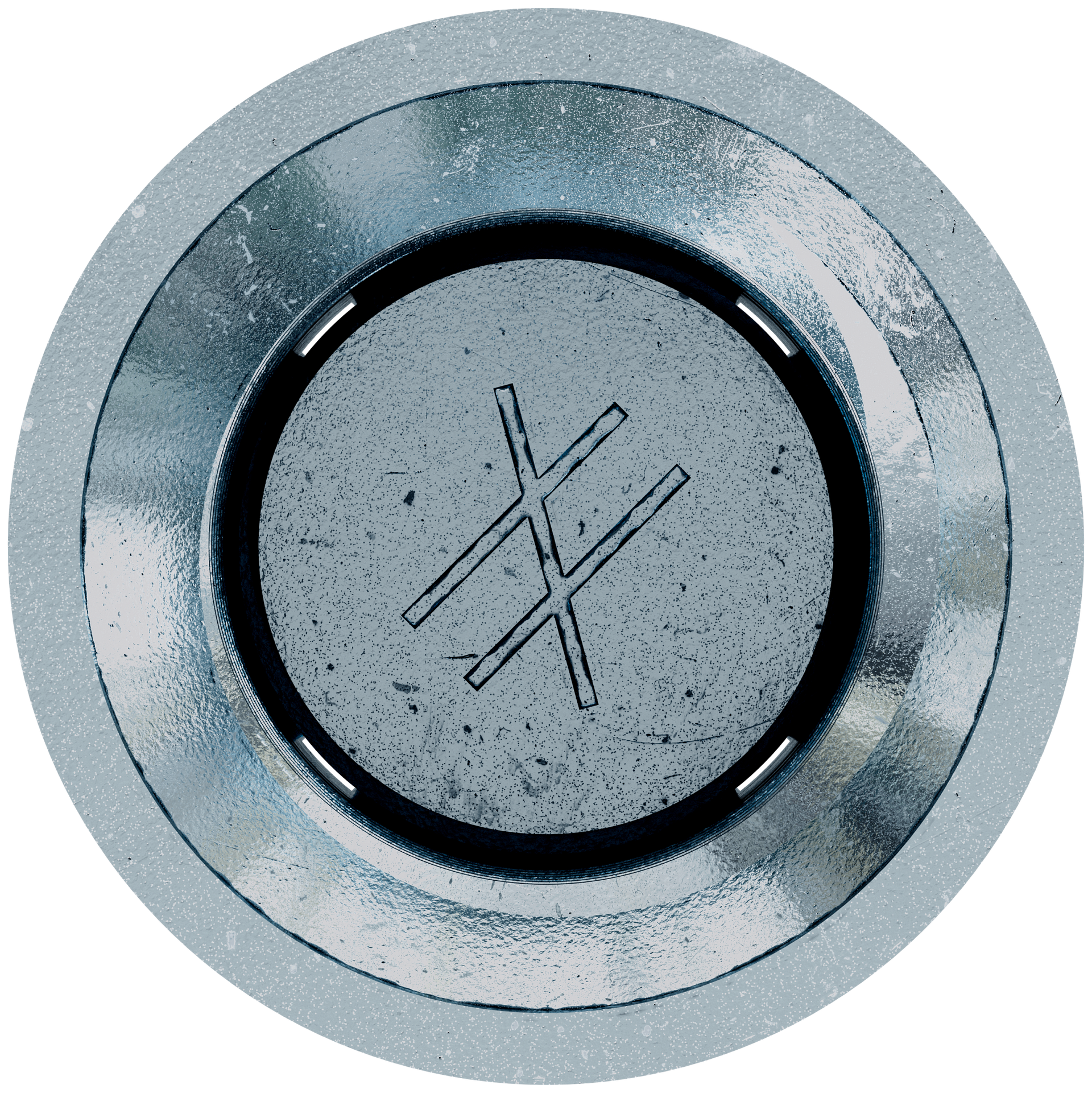

• Positive-set marking system indicates when anchor is properly set
• Zinc-plated carbon steel
• Length: 1-9/16 in.
• Drill bit diameter: 1/2 in.
• Rod diameter: 3/8 in.
• Quantity: 50

Specifications

• ERP Part Number: DIAB37
• UPC: 707392638599
• GTIN: 707392638599
• Feature 01: Faster installation than previous drop-in anchor design — sets with 40% fewer hammer hits
• Feature 02: Positive-set marking system indicates when anchor is properly set
• Feature 03: Zinc-plated carbon steel
• Feature 04: Length: 1-9/16 in.
• Feature 05: Drill bit diameter: 1/2 in.
• Feature 06: Rod diameter: 3/8 in.
• Feature 07: Quantity: 50
• Install With: Installs with DIABST hand-setting tool model DIABST37 or power-setting tool model DIABST37-SDS.
• Assembled Depth - Imperial: 0.506
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 1.57
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 0.506
• Assembled Width UOM - Imperial: in.
• Base Product ID: DIAB_Anchors
• Base Product Name: Drop-In (DIAB)
• Bolt/Rod Diameter (in.): 3/8
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Concrete Connectors and Anchors > Mechanical Anchors > Drop-In Anchor
• Coating: Zinc Plated
• Country of Origin: CN
• Customer Unit: Yes
• Display Unit/Measure: PAC
• Drill Bit Diameter (in.): 1/2
• EAN category: UC
• Finish: Zinc Plated
• GUID: 240559800088044214863947882913044394718
• Length (in.): 1 9/16
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Material: Carbon Steel
• Measurement Unit Text: Pack
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 6.30
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 1.77
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 3.54
• Package Width UOM - Imperial: in.
• Packaging Quantity: 50
• Product Class: Drop-In Anchor
• Prop 65 - Cancer: Crystalline Silica
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including crystalline silica which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Shipping Weight: 3
• Short Product Name: DROP-IN ANCHOR 3/8
• Strongtie.com URL: https://www.strongtie.com/mechanicalanchors_mechanicalanchoringproducts/diab_anchors/p/drop-in-diab
• Subcategory: Concrete Connectors and Anchors
• Subcategory 2: Mechanical Anchors
• Thread Length (in.): 5/8
• TPI: 16
