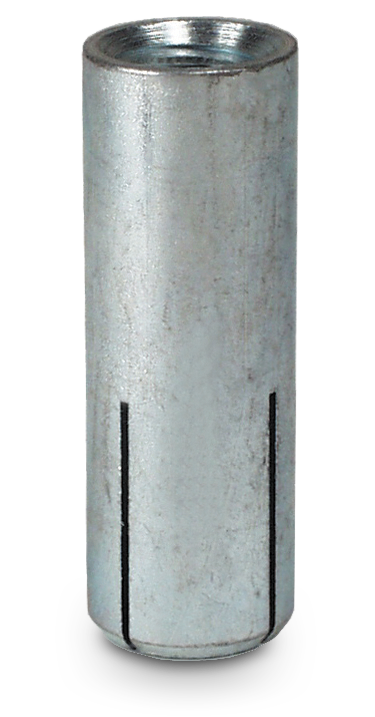

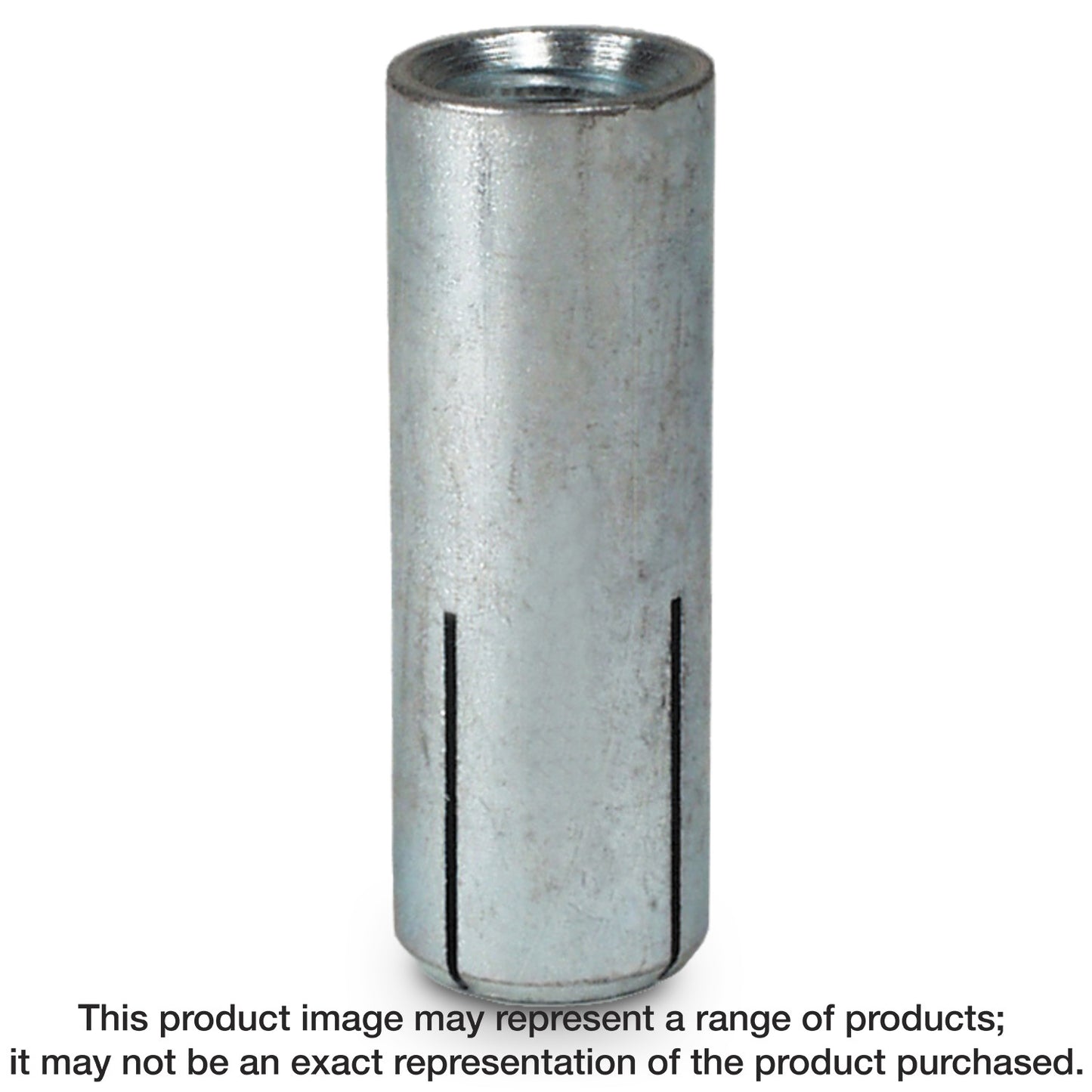

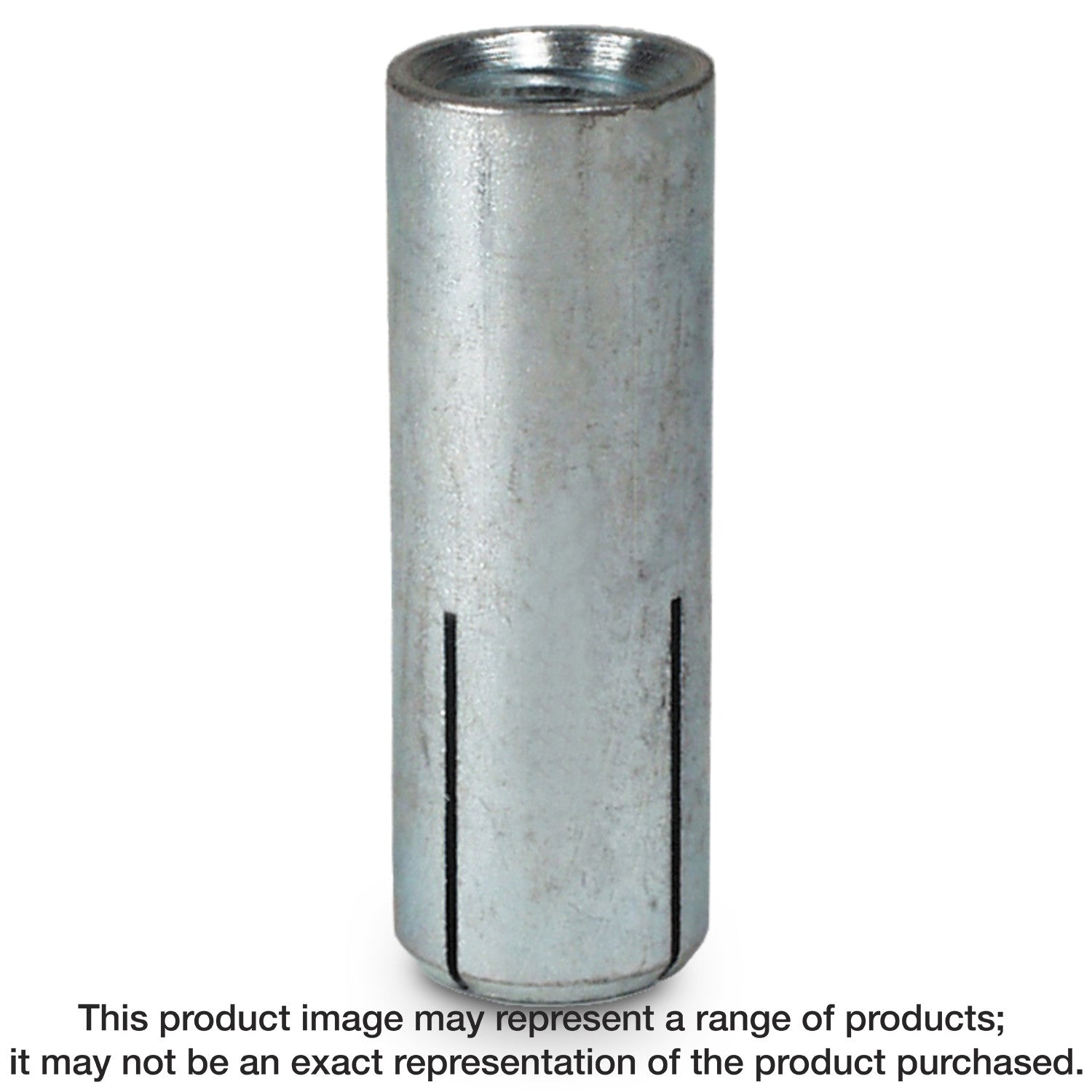

Simpson Strong-Tie DIAB62 DIAB Drop-In Internally Threaded Anchor for 5/8-in. Rod (25-Qty) (Pack of 4)

The Simpson Strong-Tie® DIAB features improved geometry for smooth and accurate installation into base materials. This displacement-controlled expansion anchor is easily set and features an indication marker to confirm proper placement. The enhanced setting capability of this internally threaded drop-in anchor requires minimum effort for quick and economical installation.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Faster installation than previous drop-in anchor design — sets with 40% fewer hammer hits
• Positive-set marking system indicates when anchor is properly set
• Zinc-plated carbon steel
• Length: 2-1/2 in.
• Drill bit diameter: 7/8 in.
• Rod diameter: 5/8 in.
• Quantity: 25

Specifications

• ERP Part Number: DIAB62
• UPC: 10707392931789
• GTIN: 10707392931789
• Feature 01: Faster installation than previous drop-in anchor design — sets with 40% fewer hammer hits
• Feature 02: Positive-set marking system indicates when anchor is properly set
• Feature 03: Zinc-plated carbon steel
• Feature 04: Length: 2-1/2 in.
• Feature 05: Drill bit diameter: 7/8 in.
• Feature 06: Rod diameter: 5/8 in.
• Feature 07: Quantity: 25
• Assembled Depth - Imperial: 0.880
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 2.55
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 0.880
• Assembled Width UOM - Imperial: in.
• Base Product ID: DIAB_Anchors
• Base Product Name: Drop-In (DIAB)
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Concrete Connectors and Anchors > Mechanical Anchors > Drop-In Anchor
• Country of Origin: CN
• Customer Unit: No
• Display Unit/Measure: CAR
• EAN category: IC
• GUID: 263925658542092466037169442509539247748
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: Carton
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 15.19
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 4
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 8
• Package Width UOM - Imperial: in.
• Product Class: Drop-In Anchor
• Prop 65 - Cancer: Crystalline Silica
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including crystalline silica which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 4
• Shipping Weight: 33
• Short Product Name: DROP-IN ANCHOR 5/8
• Strongtie.com URL: https://www.strongtie.com/mechanicalanchors_mechanicalanchoringproducts/diab_anchors/p/drop-in-diab
• Subcategory: Concrete Connectors and Anchors
• Subcategory 2: Mechanical Anchors
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• PAC Reference: 707392756545
