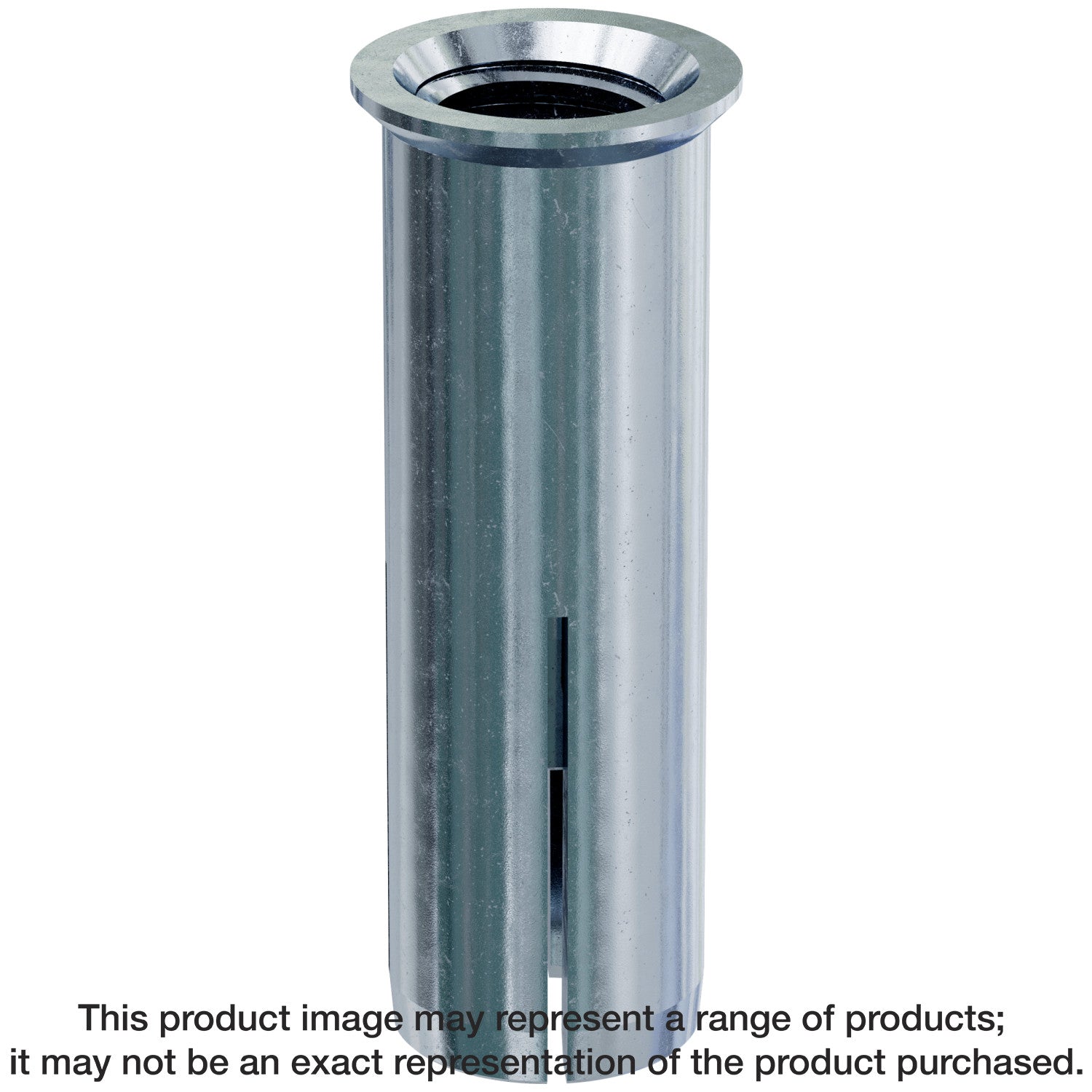

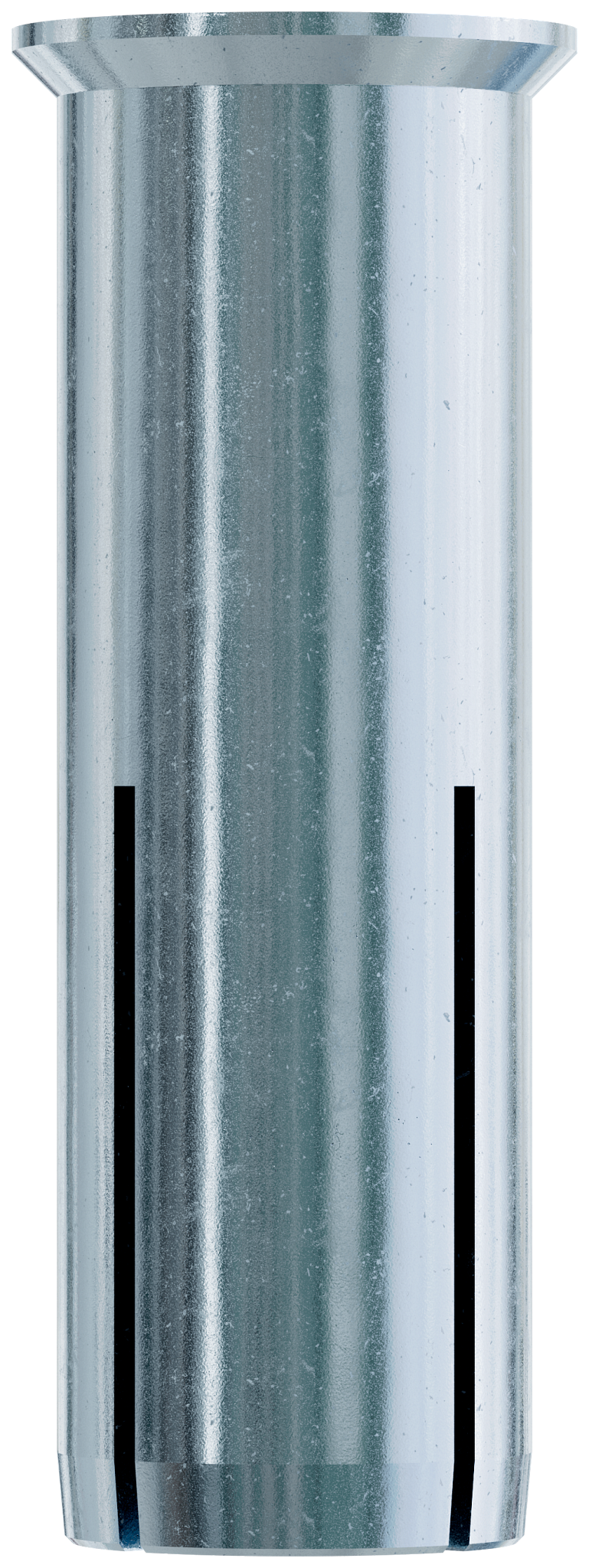

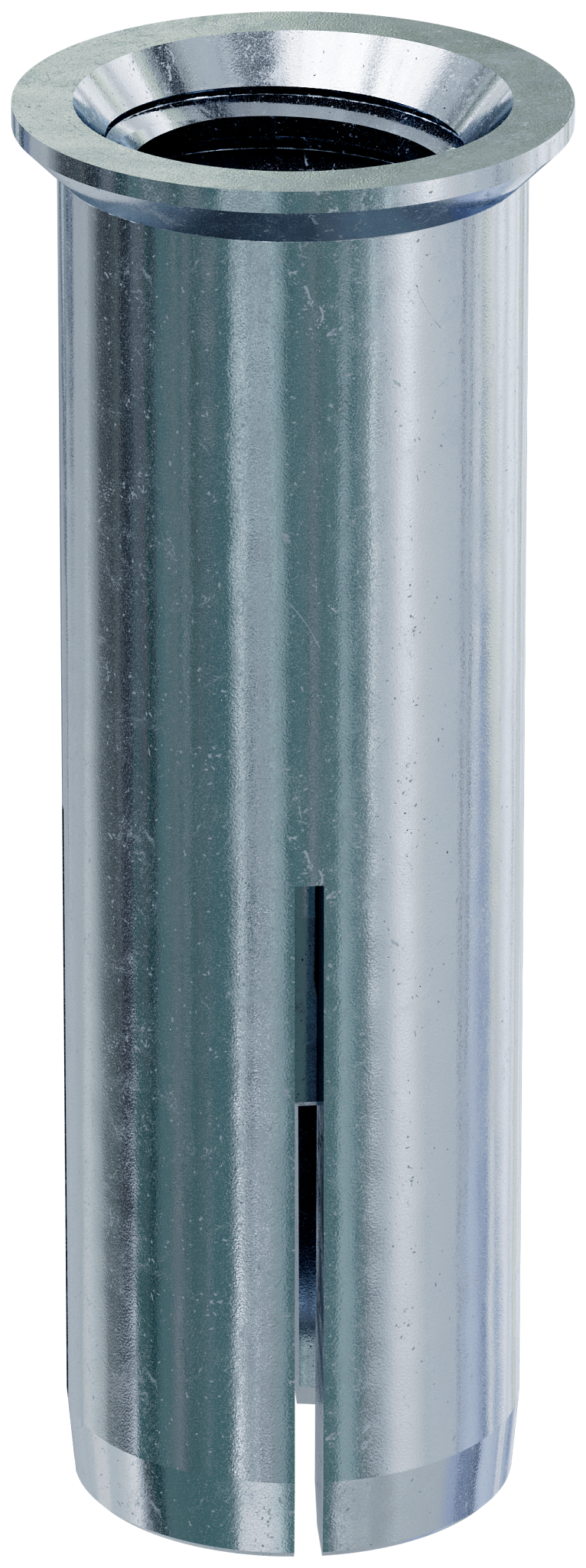

Simpson Strong-Tie DIABL50 DIAB Lipped Drop-In Internally Threaded Anchor for 1/2-in. Rod (50-Qty) (Pack of 400)

The Simpson Strong-Tie® DIAB features improved geometry for smooth and accurate installation into base materials. This displacement-controlled expansion anchor is easily set and features an indication marker to confirm proper placement. The enhanced setting capability of this internally threaded drop-in anchor requires minimum effort for quick and economical installation.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Faster installation than previous drop-in anchor design — sets with 40% fewer hammer hits

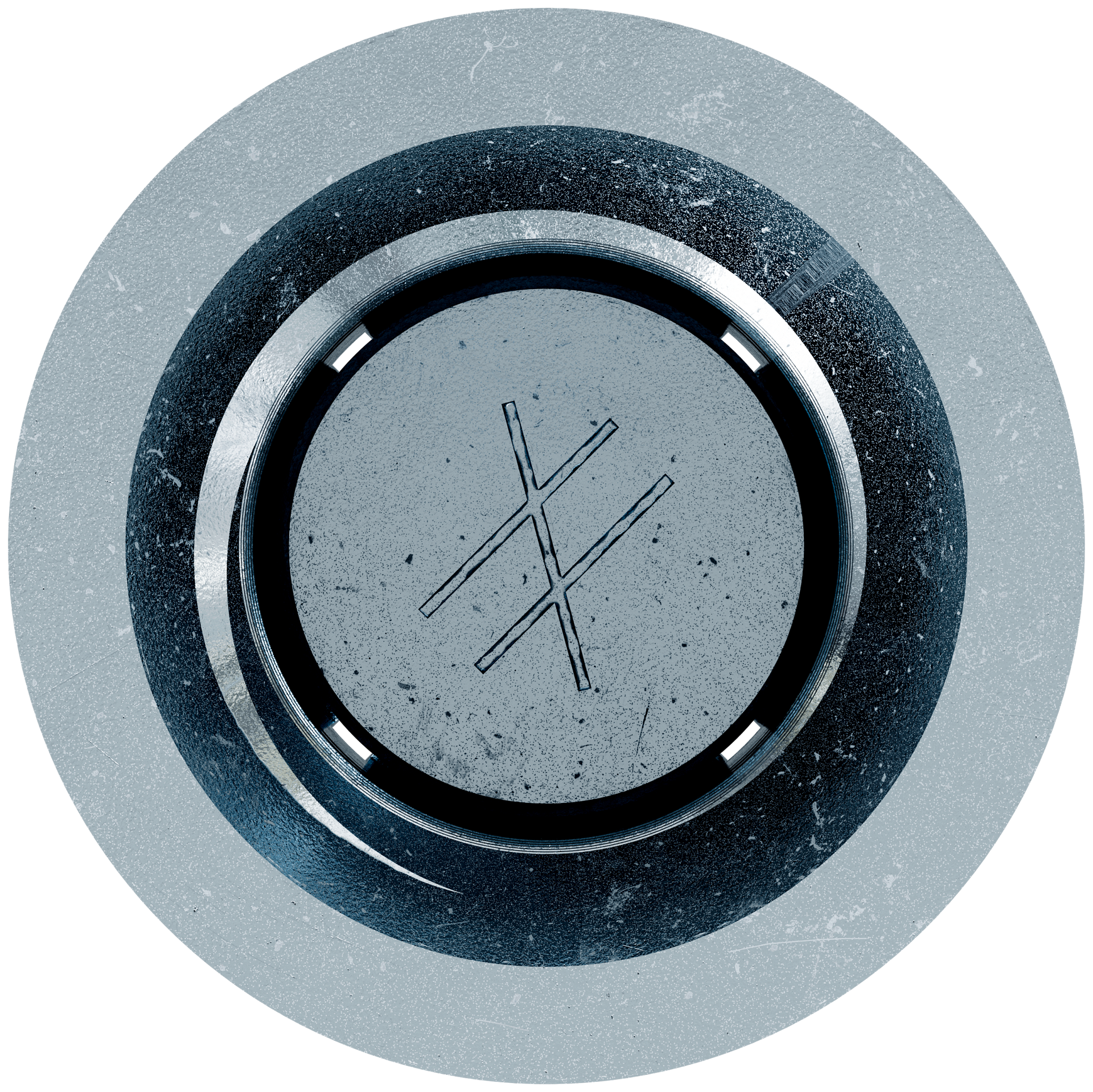

• Positive-set marking system indicates when anchor is properly set
• Lipped for flush installation
• Zinc-plated carbon steel
• Length: 2 in.
• Drill bit diameter: 5/8 in.
• Rod diameter: 1/2 in.
• Quantity: 50

Specifications

• ERP Part Number: DIABL50
• UPC: 50707392673847
• GTIN: 50707392673847
• Feature 01: Faster installation than previous drop-in anchor design — sets with 40% fewer hammer hits
• Feature 02: Positive-set marking system indicates when anchor is properly set
• Feature 03: Lipped for flush installation
• Feature 04: Zinc-plated carbon steel
• Feature 05: Length: 2 in.
• Feature 06: Drill bit diameter: 5/8 in.
• Feature 07: Rod diameter: 1/2 in.
• Feature 08: Quantity: 50
• Assembled Depth - Imperial: 0.71
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 2.02
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 0.71
• Assembled Width UOM - Imperial: in.
• Base Product ID: DIAB_Anchors
• Base Product Name: Drop-In (DIAB)
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Concrete Connectors and Anchors > Mechanical Anchors > Drop-In Anchor
• Country of Origin: CN
• Customer Unit: No
• Display Unit/Measure: PAL
• EAN category: IC
• GUID: 201396941965914002163869230568700435105
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: Pallet
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Product Class: Drop-In Anchor
• Prop 65 - Cancer: Crystalline Silica
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including crystalline silica which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 400
• Shipping Weight: 2400
• Short Product Name: DROP-IN ANCHOR LIPPED 1/2
• Strongtie.com URL: https://www.strongtie.com/mechanicalanchors_mechanicalanchoringproducts/diab_anchors/p/drop-in-diab
• Subcategory: Concrete Connectors and Anchors
• Subcategory 2: Mechanical Anchors
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10707392673849
• PAC Reference: 707392899822
