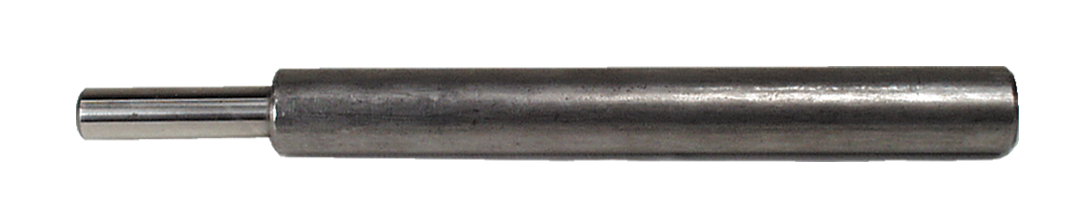

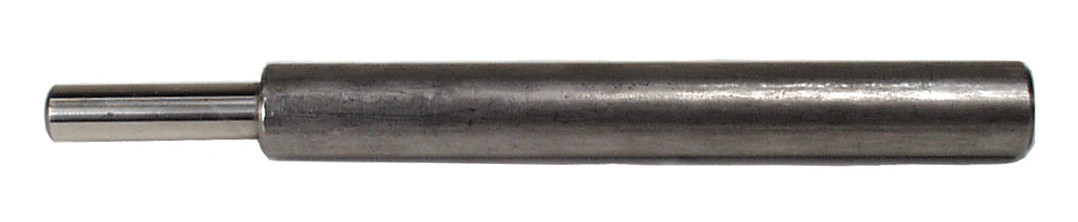

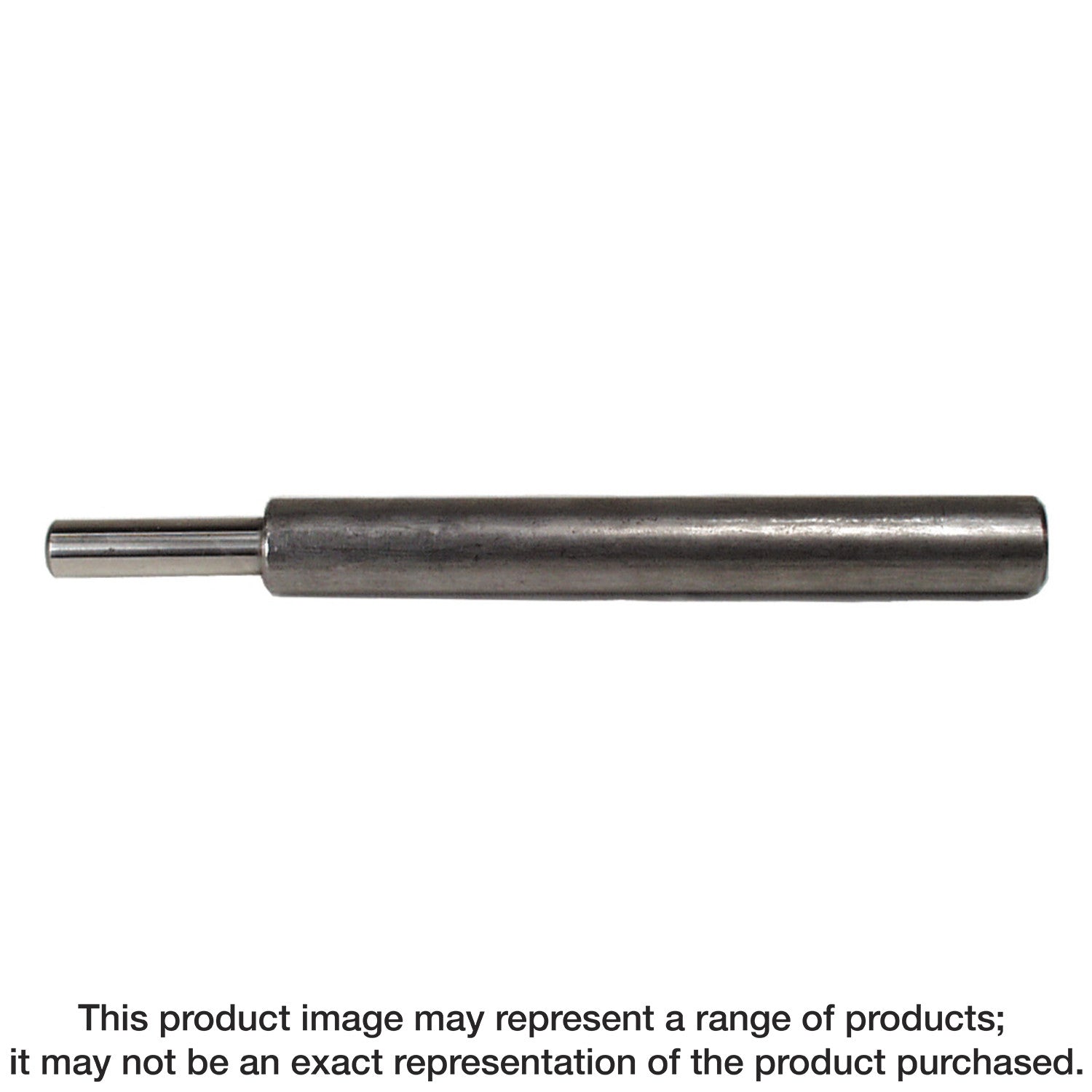

Simpson Strong-Tie DIAST25 Setting Tool for 1/4 in. Rod DIA Drop-In Anchor (Pack of 4480)

The drop-in anchor setting tool is designed for properly and consistently installing Simpson Strong-Tie® Drop-In internally threaded anchors. Using the setting tool, drop-ins are installed by driving the expander plug toward the bottom of the anchor until the shoulder of the setting tool makes contact with the top of the anchor. Using a fixed-depth drill bit prevents overdrilling, which saves time and prolongs bit life.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Setting tool for DIA anchors
• For use with Simpson Strong-Tie Drop-In models DIA25SS and DIA256SS
• Sets drop-ins for overhead applications
• Drop-in anchors are sold separately
• Made from carbon steel
• Caution: Oversized holes will make it difficult to set the anchor and will reduce the anchor’s load capacity

Specifications

• ERP Part Number: DIAST25
• UPC: 60044315137008
• GTIN: 60044315137008
• Feature 01: Setting tool for DIA anchors
• Feature 02: For use with Simpson Strong-Tie Drop-In models DIA25SS and DIA256SS
• Feature 03: Sets drop-ins for overhead applications
• Feature 04: Drop-in anchors are sold separately
• Feature 05: Made from carbon steel
• Feature 06: Caution: Oversized holes will make it difficult to set the anchor and will reduce the anchor’s load capacity
• Assembled Depth - Imperial: 0.385
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 5.600
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 0.385
• Assembled Width UOM - Imperial: in.
• Base Product ID: DIAST_Tool
• Base Product Name: DIAST
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Concrete Connectors and Anchors > Mechanical Anchoring Accessories > Installation Tool
• Country of Origin: TW
• Customer Unit: No
• Display Unit/Measure: PAL
• GUID: 31362238070332243208602765238430102917
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: Pallet
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Product Class: Installation Tool
• Prop 65 - Cancer: Crystalline Silica
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 4480
• Shipping Weight: 739.2
• Short Product Name: SETTING TOOL 1/4
• Strongtie.com URL: https://www.strongtie.com/mechanicalanchoringaccessories_mechanicalanchoringproducts/diast_tool/p/diast
• Subcategory: Concrete Connectors and Anchors
• Subcategory 2: Mechanical Anchoring Accessories
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 20044315137000
• EA Reference: 44315137006
• PAC Reference: 44315137013
