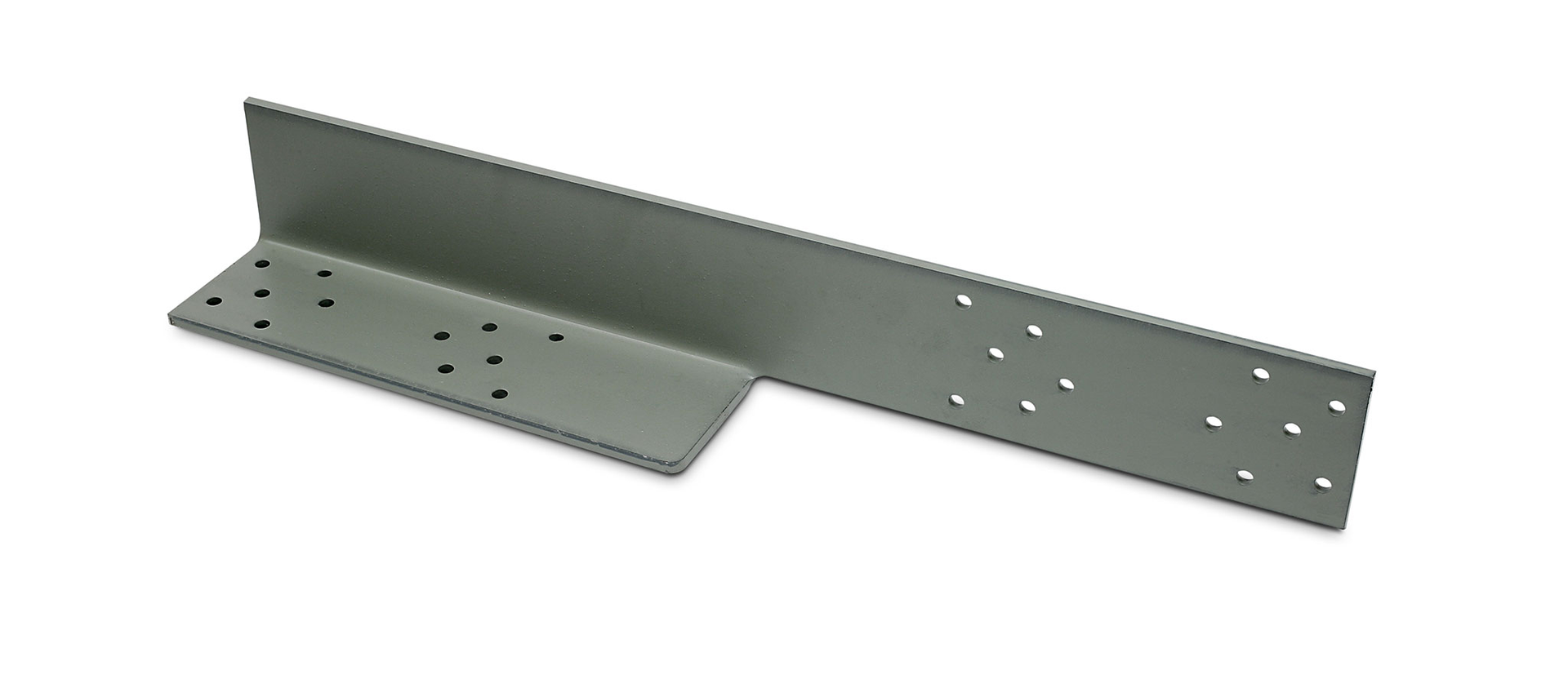

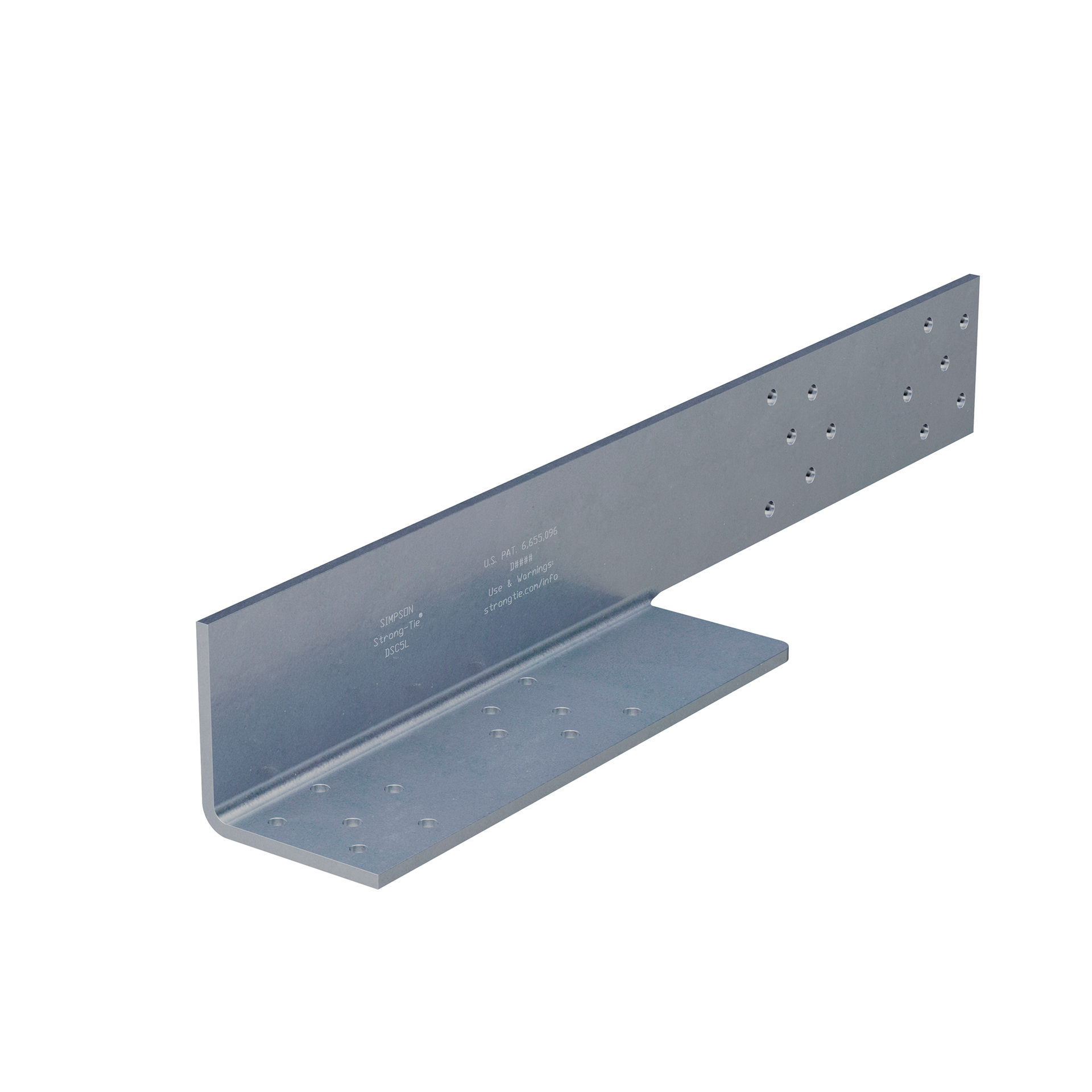

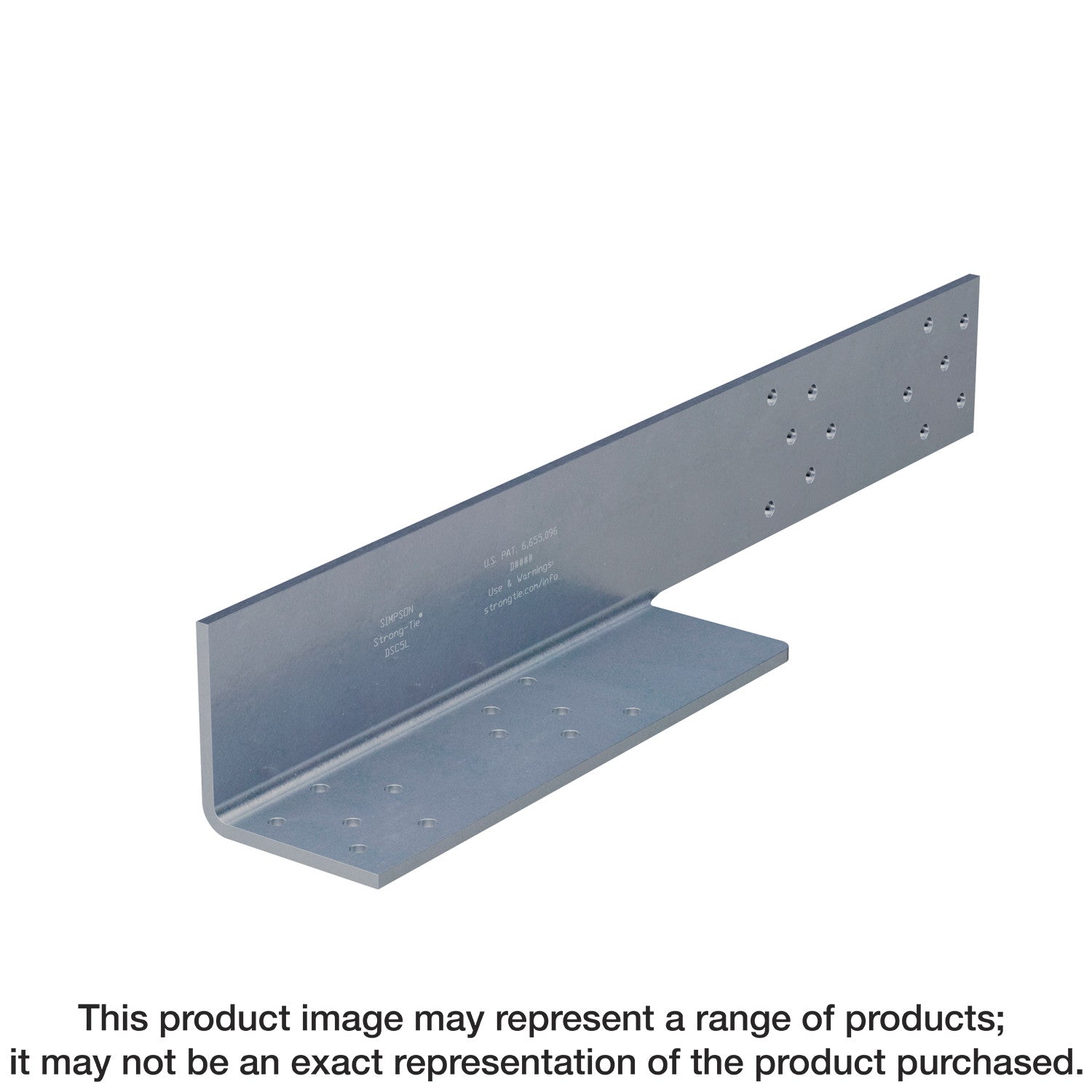

Simpson Strong-Tie DSC5L-SDS3 DSC 21 in. Drag-Strut Connector with Strong-Drive® SDS Screws, Skewed Left

The DSC drag-strut connector transfers diaphragm shear forces from a girder truss or beam to shearwalls. The DSC5 has been designed to optimize fastener location. The DSC2 is a smaller, lighter version that installs with fewer fasteners.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Left-hand and right-hand versions available
• Skewed left; for right-hand version order DSC5R-SDS3
• Length: 21 in.
• Made from 3-gauge steel
• Simpson Strong-Tie gray paint finish

Specifications

• ERP Part Number: DSC5L-SDS3
• UPC: 707392594307
• GTIN: 707392594307
• Feature 01: Left-hand and right-hand versions available
• Feature 02: Skewed left; for right-hand version order DSC5R-SDS3
• Feature 03: Length: 21 in.
• Feature 04: Made from 3-gauge steel
• Feature 05: Simpson Strong-Tie gray paint finish
• Install With: Install with 1/4 in. x 3 in. Strong-Drive® SDS Heavy-Duty Connector screws (included)
• Assembled Depth - Imperial: 3.25
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 3.25
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 21
• Assembled Width UOM - Imperial: in.
• Base Product ID: DSC_Connect
• Base Product Name: DSC
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Truss Connectors > Truss Tie
• Coating: Simpson Strong-Tie Gray Paint
• Color: Gray
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Fasteners Included: Yes
• Finish: Simpson Strong-Tie Gray Paint
• Gauge: 3
• GUID: 202402727179003278526867386616142220018
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Truss Tie
• Product Includes: (24) 1/4 in. x 3 in. Strong-Drive® SDS Heavy-Duty Connector screws
• Prop 65 - Cancer: Wood Dust
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Shipping Weight: 7.5
• Short Product Name: 21IN DRAG STRUT LEFT W/24 SDS1/4X3 SCREW
• Strongtie.com URL: https://www.strongtie.com/trusstowallconnections_lateralloadtransfer/dsc_connect/p/dsc
• Subcategory: Wood Construction Connectors
• Subcategory 2: Truss Connectors
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
