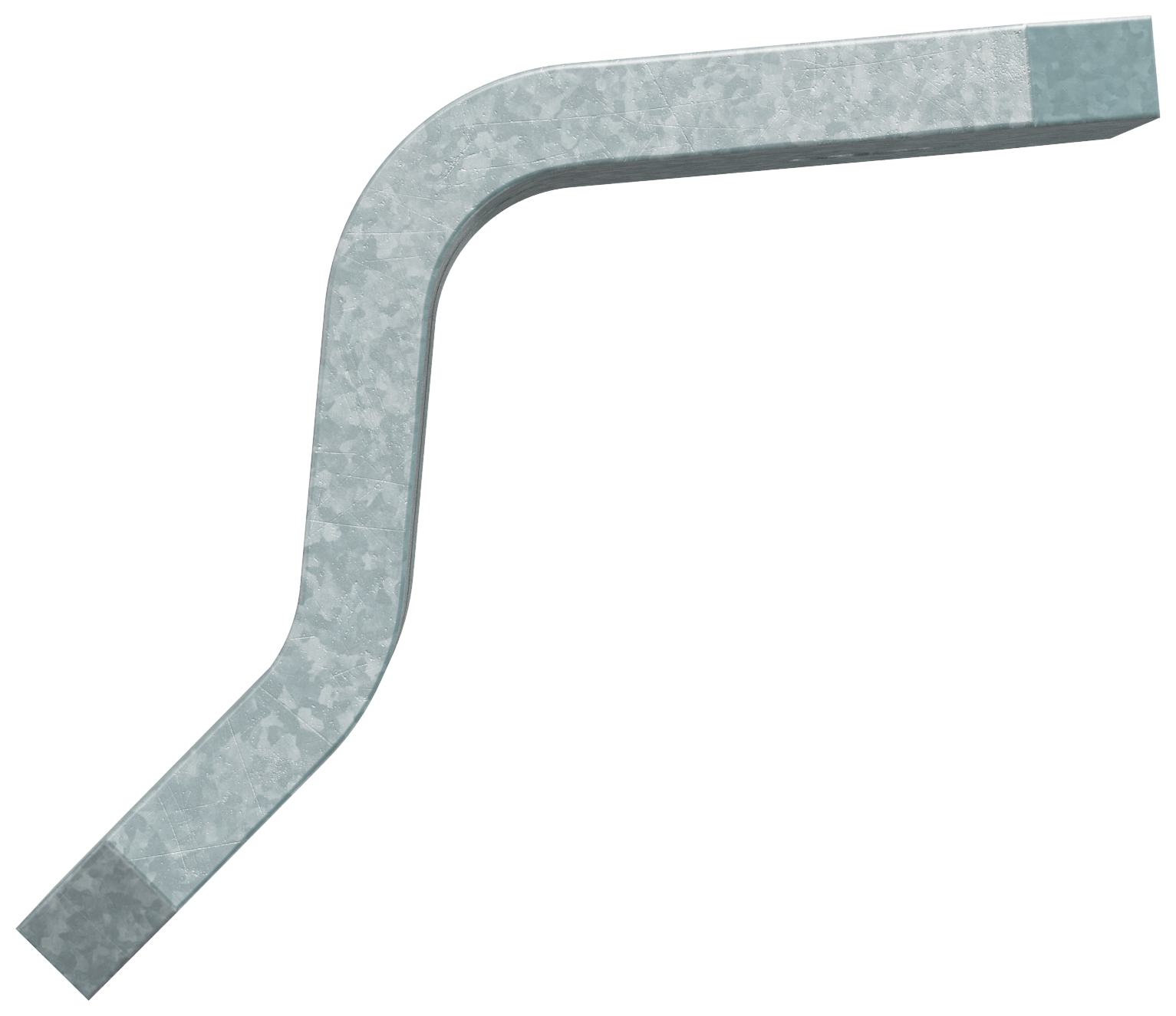

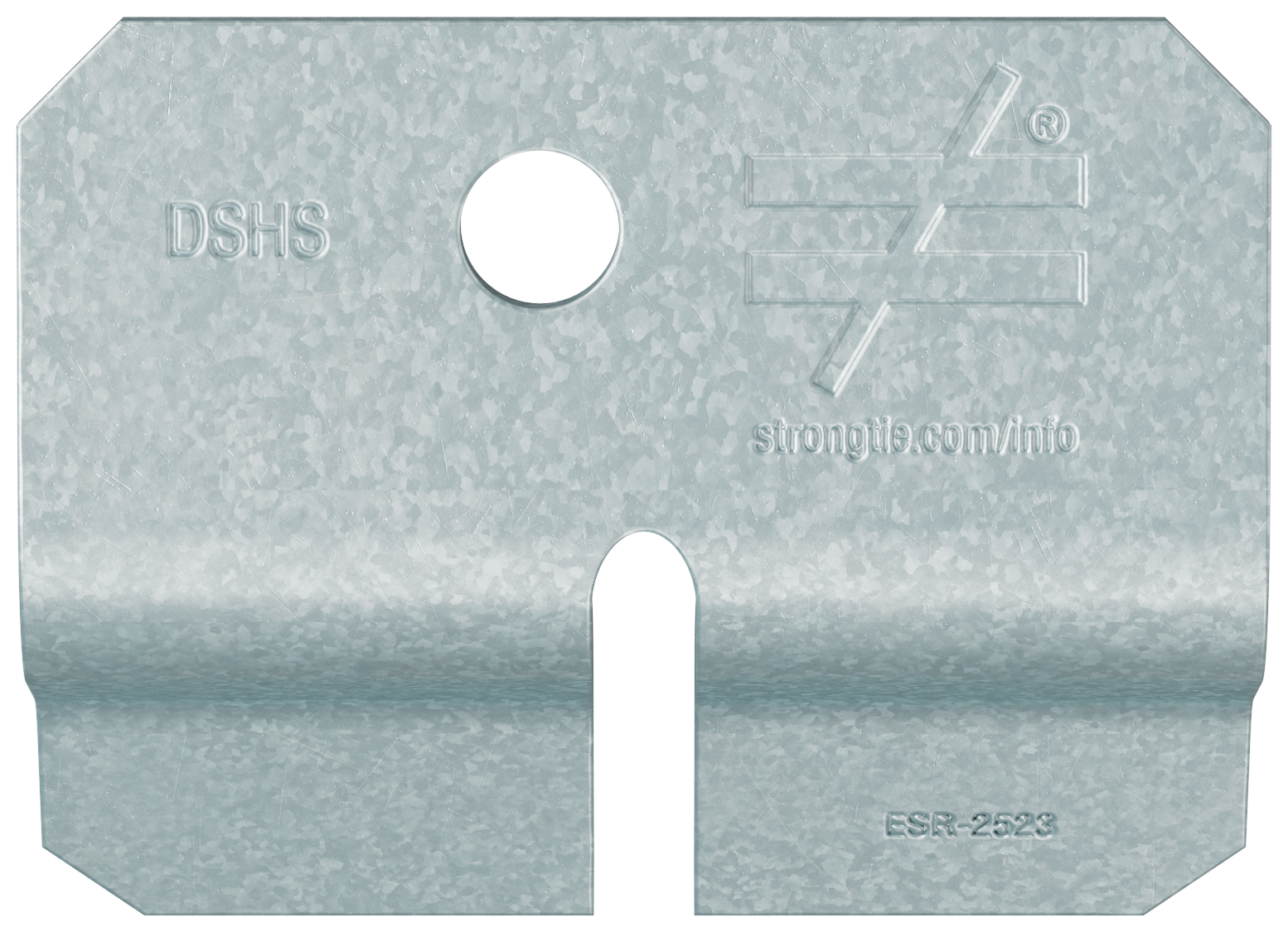

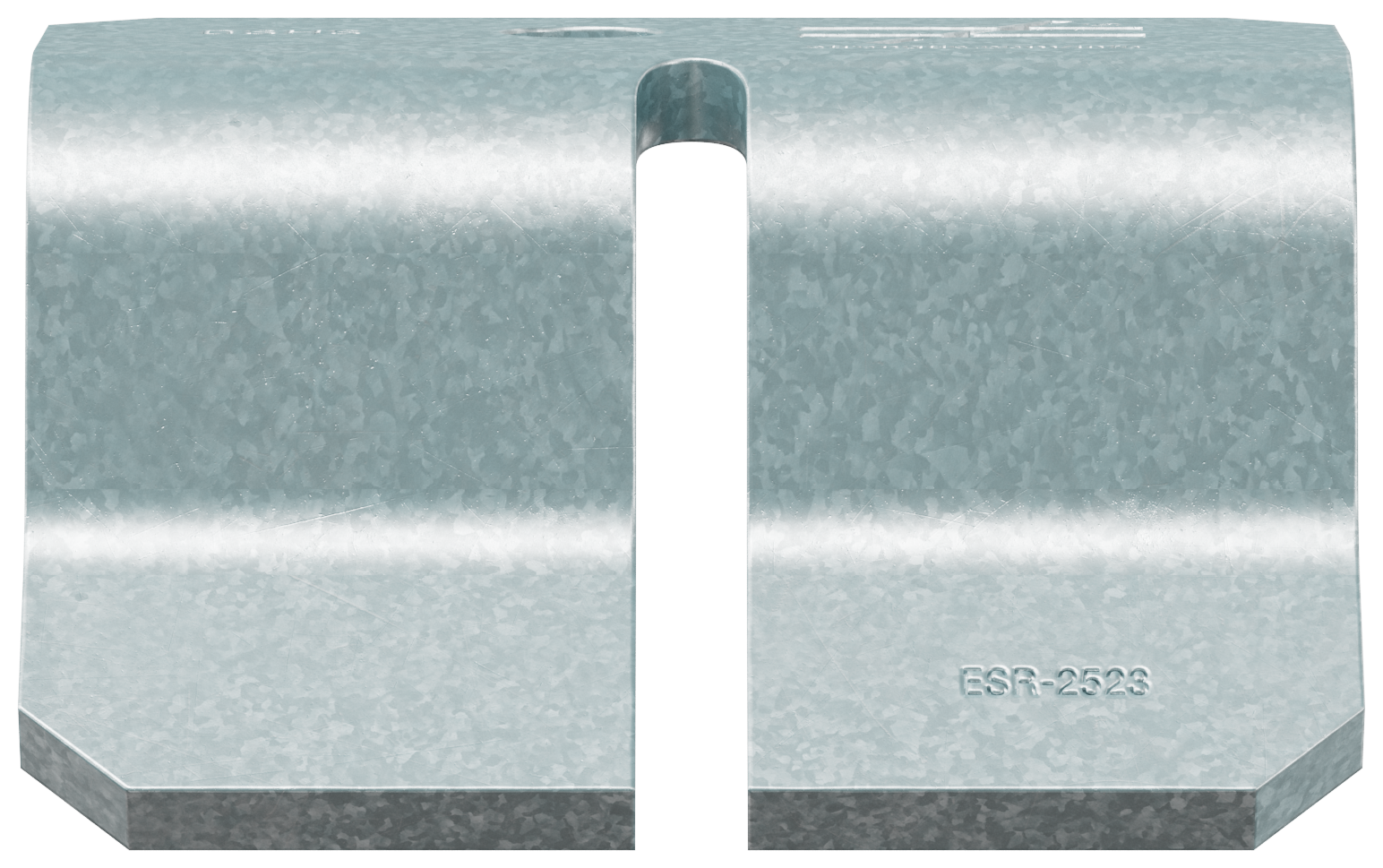

Simpson Strong-Tie DSHS-R100 DSHS Drift Stopper (100-Qty)
The Simpson Strong-Tie® DSHS drift stopper is an optional clip designed to prevent horizontal movement in the Simpson Strong-Tie® DSSCB drift strut connector when anchoring cold-formed steel bypass framing to the edge of a floor slab. The DSHS is ideal for panelized construction because it allows the DSSCB to slide into place with no predetermination of the exact clip location. To fix horizontally after the clip is slid into place, the DSHS connects to the DSSCB by a slotted attachment and is fastened to the strut channel with (1) #10-16 screw.
This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.
Features
- Provides clip alignment flexibility
- Works with the DSSCB drift strut connector (sold separately)
- The stopper is compatible for all DSSCB clip gauges and lengths
- Works with 7/8-inch and 1-5/8-inch strut channels
- Struts are not supplied by Simpson Strong-Tie
- Tabulated design values are based on assembly testing to mitigate risk for designers, engineers and architects
- Made from 97-mil (12-ga.) steel, 50 ksi
- Galvanized (G90) for corrosion resistance
- Quantity: 100 per package
Specifications
- ERP Part Number: DSHS-R100
- UPC: 707392440710
- GTIN: 707392440710
- Feature 01: Provides clip alignment flexibility
- Feature 02: Works with the DSSCB drift strut connector (sold separately)
- Feature 03: The stopper is compatible for all DSSCB clip gauges and lengths
- Feature 04: Works with 7/8-inch and 1-5/8-inch strut channels
- Feature 05: Struts are not supplied by Simpson Strong-Tie
- Feature 06: Tabulated design values are based on assembly testing to mitigate risk for designers, engineers and architects
- Feature 07: Made from 97-mil (12-ga.) steel, 50 ksi
- Feature 08: Galvanized (G90) for corrosion resistance
- Feature 09: Quantity: 100 per package
- Install With: Install with DSSCB drift strut connector and (1) #10-16 screw
- Assembled Depth - Imperial: 1.15625
- Assembled Depth UOM - Imperial: in.
- Assembled Height - Imperial: 0.857088
- Assembled Height UOM - Imperial: in.
- Assembled Width - Imperial: 1.50
- Assembled Width UOM - Imperial: in.
- Base Product ID: DSHS_Connector
- Base Product Name: DSHS
- Brand Name: Simpson Strong-Tie®
- Category Tree (Computed): Cold-Formed Steel Connectors > Drift Connectors > Clip
- Coating: Zinc Galvanized, G90
- Country of Origin: US
- Customer Unit: Yes
- Display Unit/Measure: EA
- Finish: Zinc Galvanized, G90
- Gauge: 12
- GUID: 238917966980356464237599593026697170051
- Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
- Measurement Unit Text: each
- MFG Name: Simpson Strong-Tie®
- Number Category Description: UPC
- Packaging Quantity: 100
- Product Class: Clip
- Prop 65 Warning: No
- Quantity: 1
- Shipping Weight: 5
- Short Product Name: DRIFT STRUT HORIZONTAL STOP
- Strongtie.com URL: https://www.strongtie.com/deflectionconnectors_coldformedsteelconstruction/dshs_connector/p/dshs
- Subcategory: Cold-Formed Steel Connectors
- Subcategory 2: Drift Connectors
- Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
- Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
