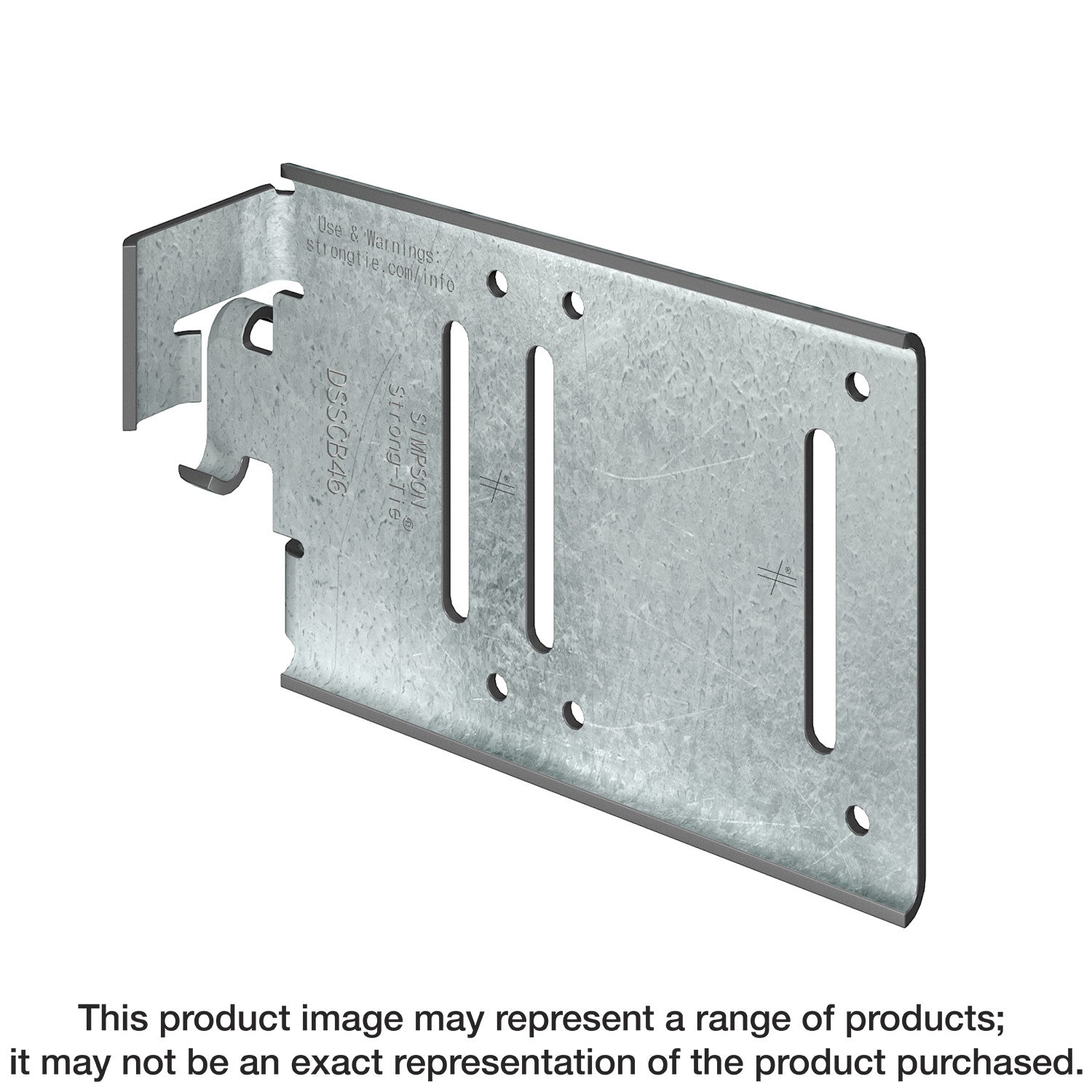

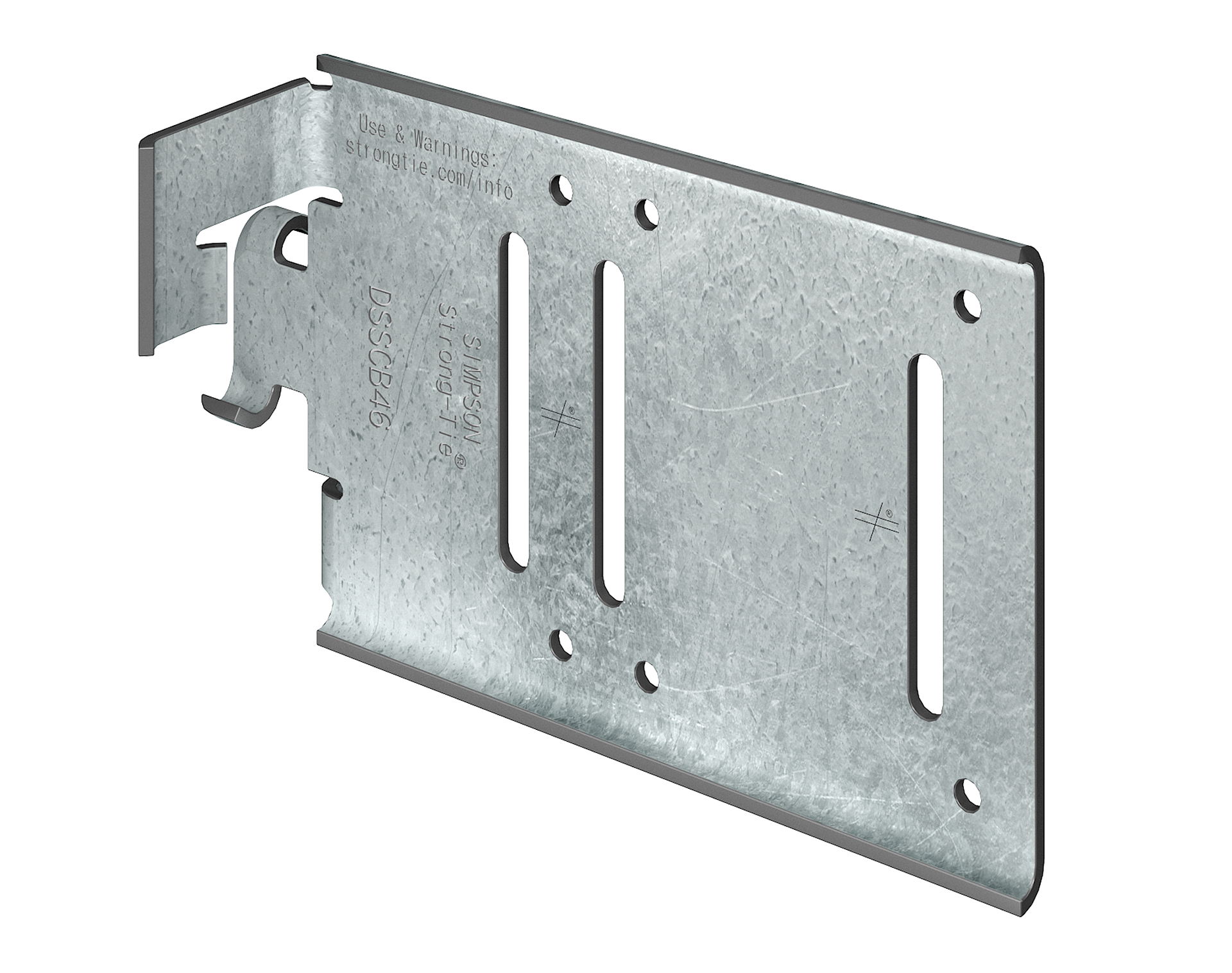

Simpson Strong-Tie DSSCB48-KT25 DSSCB 4 in. x 8 in. Bypass Framing Drift Strut Connector w/ Screws (25-Qty) (Pack of 48)

The Simpson Strong-Tie® DSSCB is used to anchor cold-formed steel bypass framing to the edge of a floor slab in order to accommodate horizontal building drift. The DSSCB simplifies installation by allowing installers for panelized construction to install finished panels while working off the top of the slab without the need to predrill or preinstall anchors for each clip. It also eliminates the coordination difficulties associated with pre-anchorage of standard bypass clips. With prepunched slots and round holes, the DSSCB is a dual-function connector that can be used for slide-clip and fixed-clip applications.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Prepunched slots provide a full 1 in. of both upward and downward deflection
• Precision-manufactured shouldered screws, provided with DSSCB connectors, are designed to prevent overdriving and to ensure the clip functions properly
• Works with 7/8-in. and 1-5/8-in. strut channels; common manufactured brands are Unistrut®, PHD and B-Line; struts are not supplied by Simpson Strong-Tie
• The maximum slide-clip standoff distance is 3-1/8 in. for 7/8-in. struts, 3-7/8 in. for 1-5/8-in. struts and 2-1/4 in. for concrete inserts
• Depending on the application and the designer’s specifications, struts can be either mechanically anchored, welded or cast in place
• Tabulated design values are based on assembly testing to mitigate risk for designers, engineers and architects
• Made from 97 mil (12 ga.), 50 ksi steel
• Galvanized (G90) for corrosion resistance
• Quantity: 25 per box

Specifications

• ERP Part Number: DSSCB48-KT25
• UPC: 50707392920644
• GTIN: 50707392920644
• Feature 01: Prepunched slots provide a full 1 in. of both upward and downward deflection
• Feature 02: Precision-manufactured shouldered screws, provided with DSSCB connectors, are designed to prevent overdriving and to ensure the clip functions properly
• Feature 03: Works with 7/8-in. and 1-5/8-in. strut channels; common manufactured brands are Unistrut®, PHD and B-Line; struts are not supplied by Simpson Strong-Tie
• Feature 04: The maximum slide-clip standoff distance is 3-1/8 in. for 7/8-in. struts, 3-7/8 in. for 1-5/8-in. struts and 2-1/4 in. for concrete inserts
• Feature 05: Depending on the application and the designer’s specifications, struts can be either mechanically anchored, welded or cast in place
• Feature 06: Tabulated design values are based on assembly testing to mitigate risk for designers, engineers and architects
• Feature 07: Made from 97 mil (12 ga.), 50 ksi steel
• Feature 08: Galvanized (G90) for corrosion resistance
• Feature 09: Quantity: 25 per box
• Assembled Depth - Imperial: 3.5
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 4
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 8
• Assembled Width UOM - Imperial: in.
• Base Product ID: DSSCB_Clip
• Base Product Name: DSSCB
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Cold-Formed Steel Connectors > Drift Connectors > Clip
• Country of Origin: US
• Customer Unit: No
• Display Unit/Measure: PAL
• GUID: 176442484218771406369824167247610999151
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: Pallet
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Product Class: Clip
• Prop 65 - Cancer: Wood Dust
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 48
• Shipping Weight: 1272
• Short Product Name: DRIFT STRUT BYPASS SLIDE CLIP 4 X 8
• Strongtie.com URL: https://www.strongtie.com/driftconnectors_coldformedsteelconstruction/dsscb_clip/p/dsscb
• Subcategory: Cold-Formed Steel Connectors
• Subcategory 2: Drift Connectors
• US Patents: 10,961,704
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• EA Reference: 707392920649
