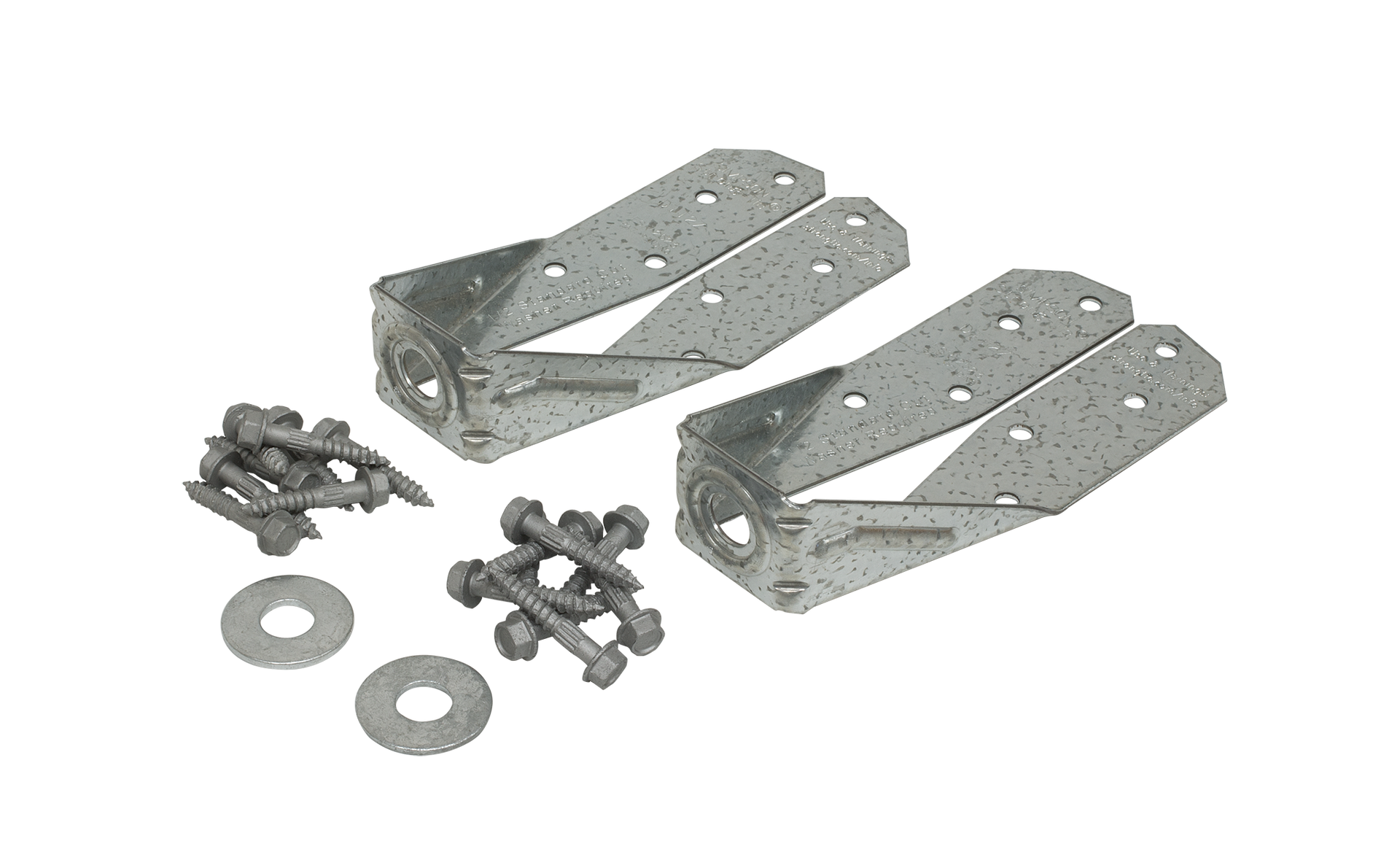

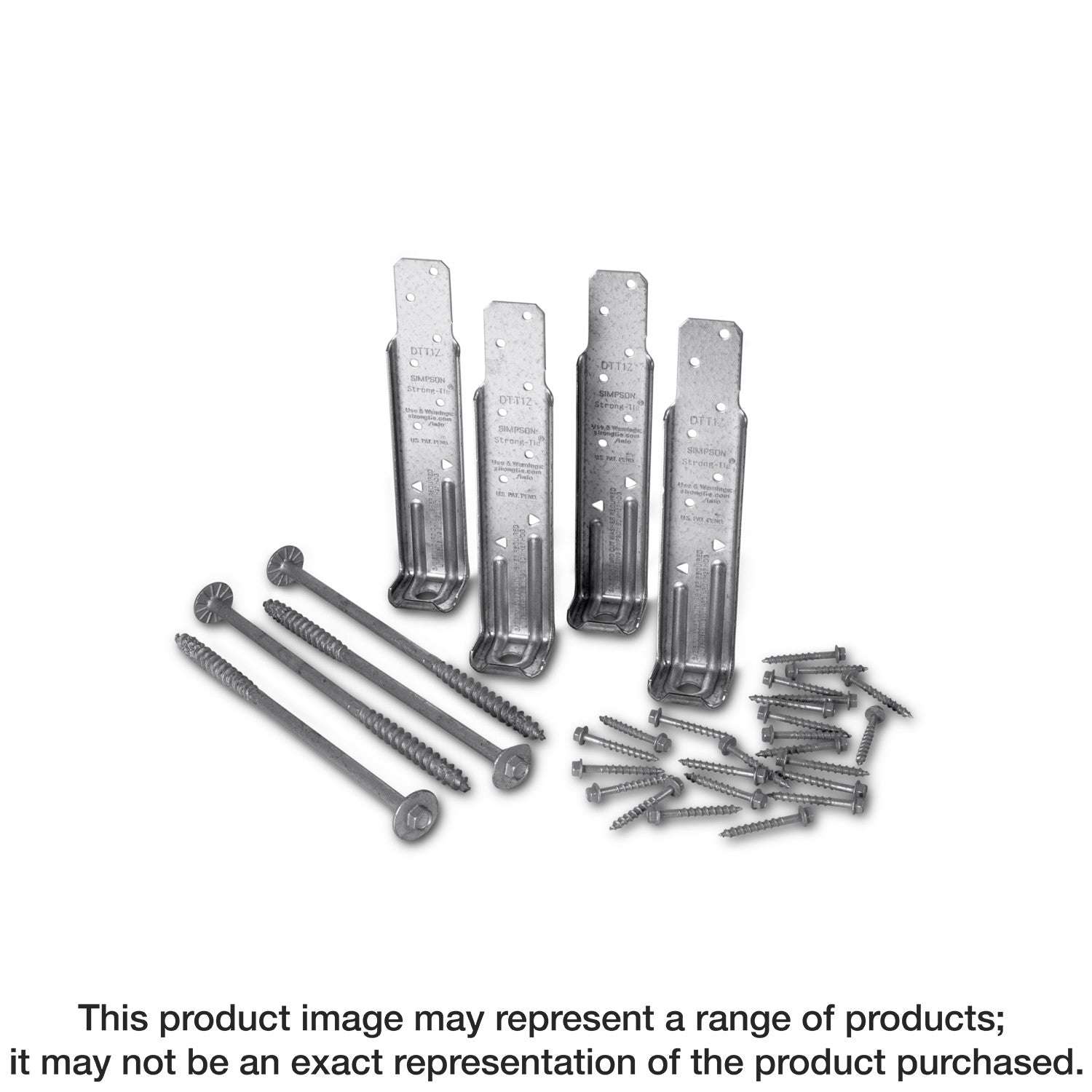

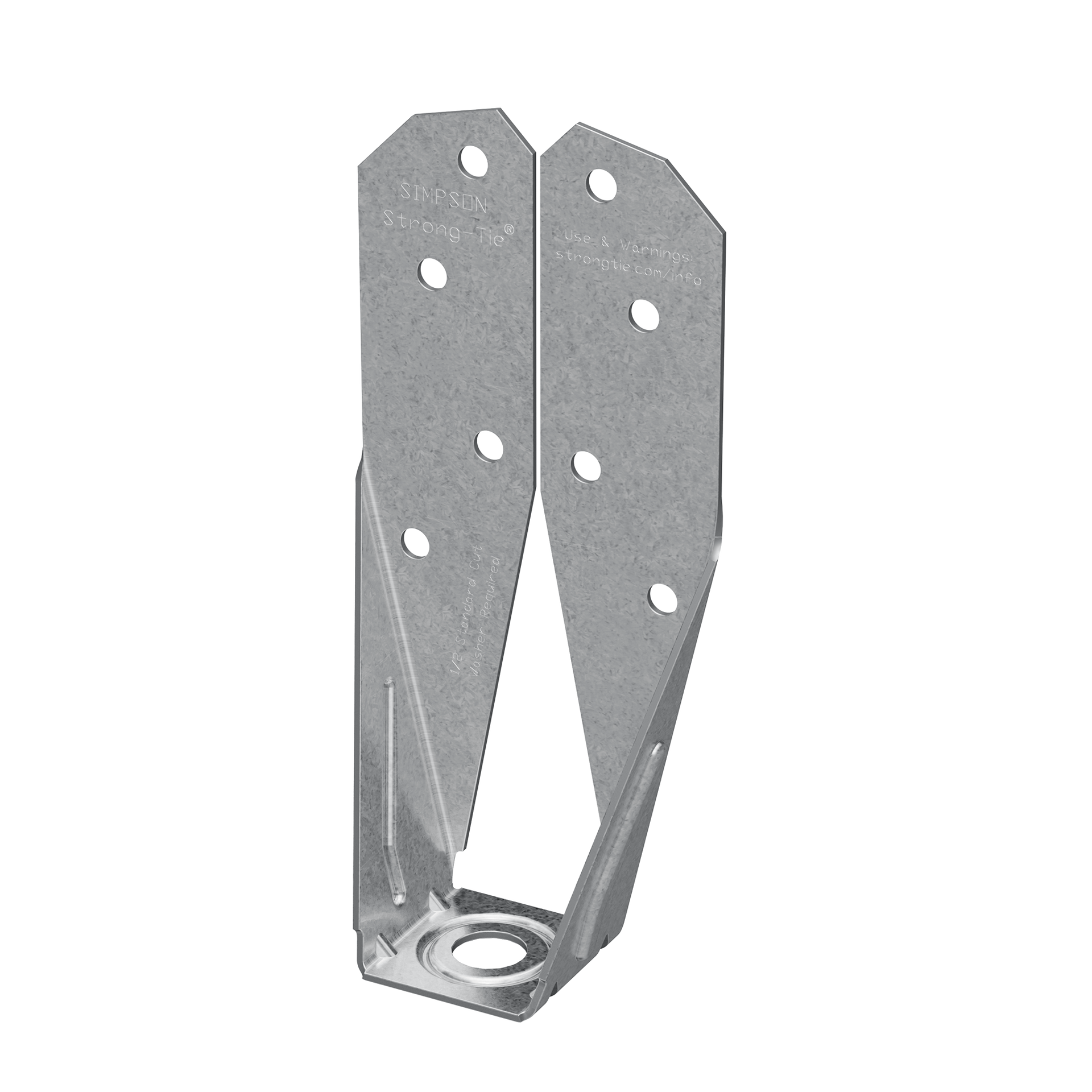

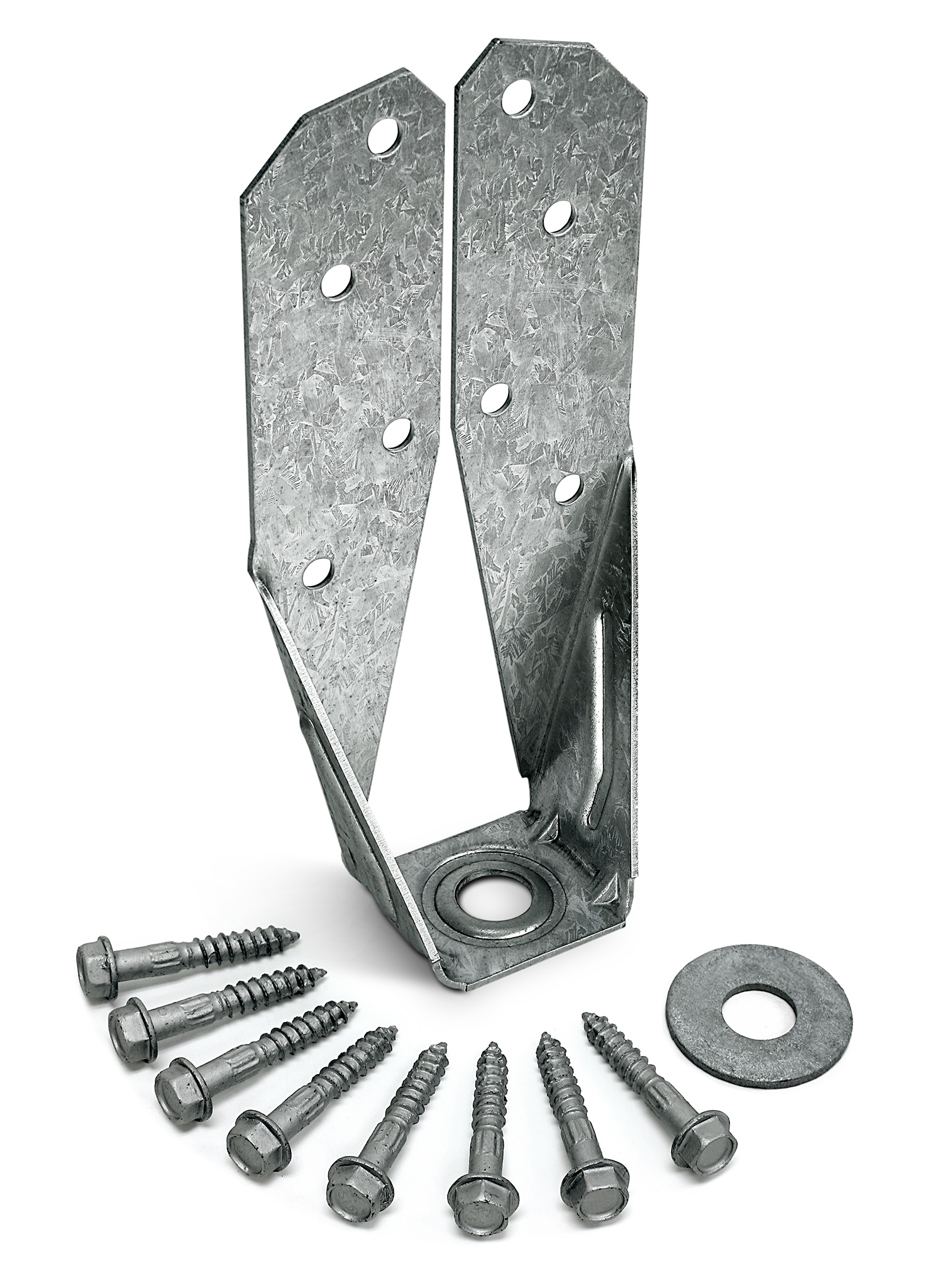

Simpson Strong-Tie DTT2Z-SDS2.5 DTT2Z® ZMAX® Galvanized Deck Tension Tie for 2x with 2-1/2 in. SDS Screws

The Simpson Strong-Tie® DTT2Z® tension tie is a safe, cost-effective way to attach deck-railing posts to the deck framing for stronger, safer railings. Because the post is tied back into the deck joists, rather than to the rim joist alone, the connection is stronger than typical through-bolt installations. The DTT2Z is also ideal for guardrail-post connections and lateral-load connections between the deck and house.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Suitable for lighter duty holdown applications on single or double 2x posts
• Ties the guardrail post into deck framing
• Stronger and safer than nails, lag screws or bolts
• Ties the deck into the house for a stronger, safer ledger connection
• Helps prevent a common type of deck failure
• Installs easily with Strong-Drive® Heavy-Duty Connector screws (included)
• Made from 14-gauge steel
• ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications

Specifications

• ERP Part Number: DTT2Z-SDS2.5
• UPC: 707392175100
• GTIN: 707392175100
• Feature 01: Suitable for lighter duty holdown applications on single or double 2x posts
• Feature 02: Ties the guardrail post into deck framing
• Feature 03: Stronger and safer than nails, lag screws or bolts
• Feature 04: Ties the deck into the house for a stronger, safer ledger connection
• Feature 05: Helps prevent a common type of deck failure
• Feature 06: Installs easily with Strong-Drive® Heavy-Duty Connector screws (included)
• Feature 07: Made from 14-gauge steel
• Feature 08: ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
• Install With: Install with 1/4 in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws (included) and 1/2 in. machine or anchor bolt
• Assembled Depth - Imperial: 1.697
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 7.05025
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 3.394
• Assembled Width UOM - Imperial: in.
• Base Product ID: DTT2_Tie
• Base Product Name: DTT2
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Decking/Fencing Connectors > Deck Tie
• Coating: ZMAX®
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Fasteners Included: Yes
• Finish: ZMAX®
• Gauge: 14
• GUID: 48194659080522942294964247315077400435
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• Member Size: Single or double 2x
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Deck Tie
• Product Includes: Includes 1/4 in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws
• Prop 65 - Cancer: Wood Dust
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Shipping Weight: 0.75
• Short Product Name: DECK TENSION TIE ZMAX WITH 2.5IN SCREWS
• Strongtie.com URL: https://www.strongtie.com/decks_decksandfences/dtt2_tie/p/dtt2
• Subcategory: Wood Construction Connectors
• Subcategory 2: Decking/Fencing Connectors
• US Patents: 8,555,580
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10707392175107
• PAL Reference: 50707392175105
• Lumber Size Infographic: https://images.salsify.com/image/upload/s--4j6m7m95--/of77l1vzb2adrmtseor4.png
