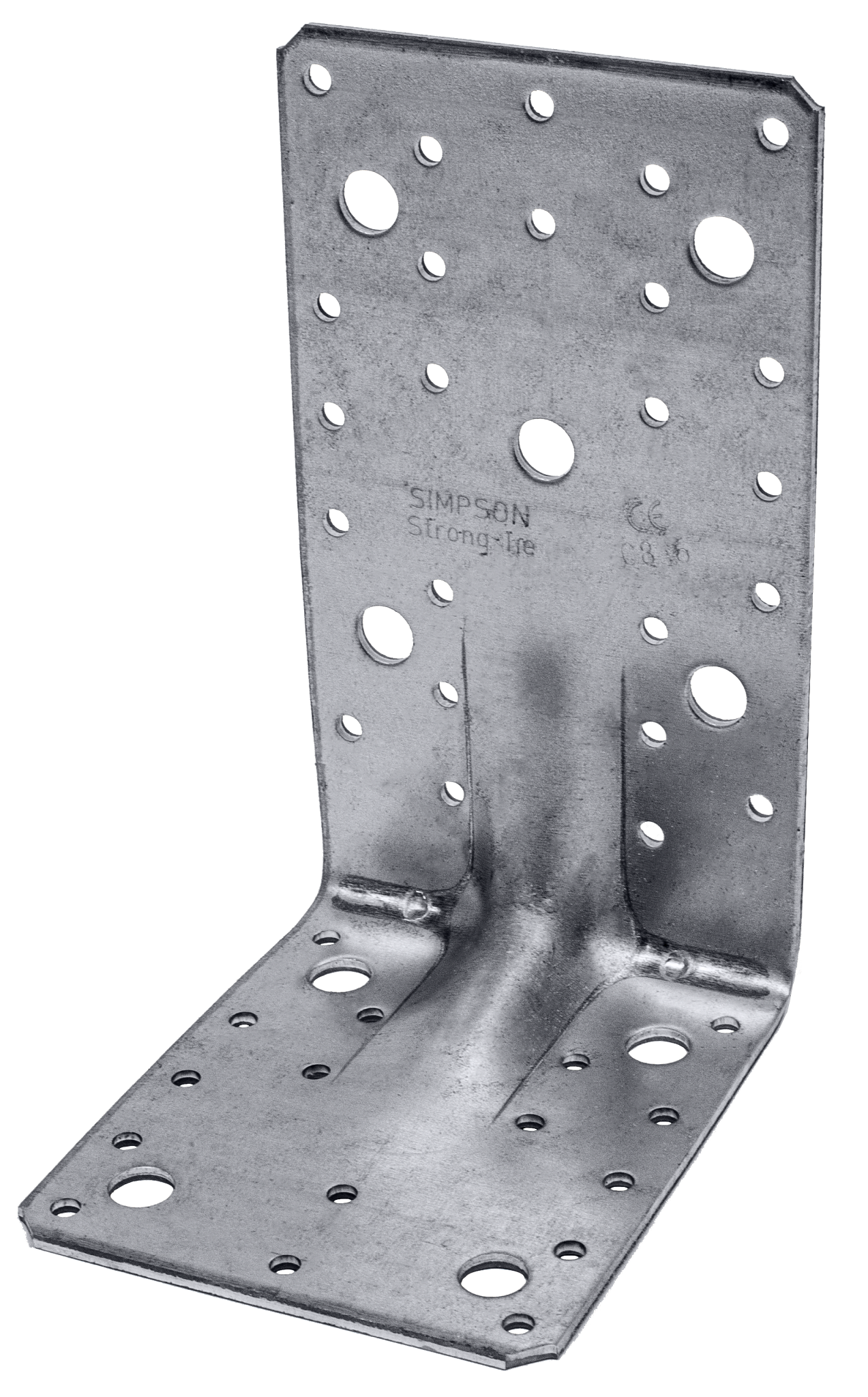

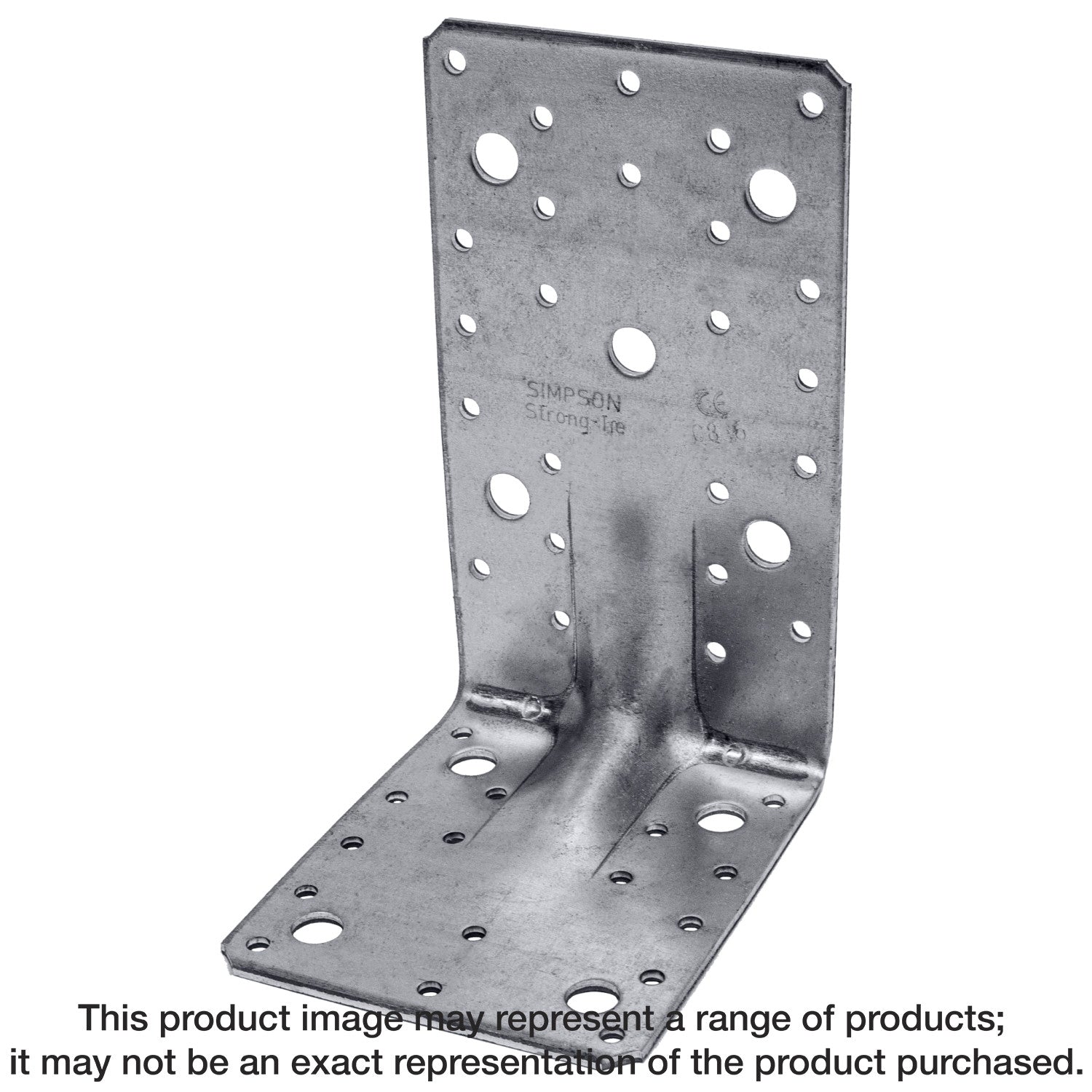

Simpson Strong-Tie E20/3 E 6-3/4 in. x 3-3/4 in. Angle Bracket for Cross-Laminated Timber

Simpson Strong-Tie® E angle brackets are used to connect cross-laminated timber (CLT) wall panels to concrete slabs. A wide variety of fastener and anchor options are available depending on the required loads and application. The E20/3 angle bracket has been load-rated with up to a 2-inch gap between the bottom of the CLT wall and the top of concrete slab. This gap allows the wall to be separated with a pressure-treated sill plate, concrete curb, grout pad, or other specified material.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Heavy gauge provides high load capacity
• Anchorage to concrete
• Load-rated with up to a 2-inch base-of-wall gap
• Made from 11-gauge steel
• Galvanized for extra corrosion resistance
• Height: 6-3/4 in.
• Depth: 4-1/2 in.
• Width: 3-3/4 in.

Specifications

• ERP Part Number: E20/3
• UPC: 3523140887906
• GTIN: 3523140887906
• Feature 01: Heavy gauge provides high load capacity
• Feature 02: Anchorage to concrete
• Feature 03: Load-rated with up to a 2-inch base-of-wall gap
• Feature 04: Made from 11-gauge steel
• Feature 05: Galvanized for extra corrosion resistance
• Feature 06: Height: 6-3/4 in.
• Feature 07: Depth: 4-1/2 in.
• Feature 08: Width: 3-3/4 in.
• Install With: Install with (18) #10 x 2-1/2 in. Strong–Drive® SD Connector screws and (2) 3/8 in. anchor bolts [OR] (18) 0.162 in. x 2-1/2 in. nails and (2) 3/8 in. anchor bolts [OR] (3) SDHR27400 0.275 in. x 4 in. Strong-Drive SDHR Combo-Head screws and (2) 3/8 in. anchor bolts
• Assembled Depth - Imperial: 4.5
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 6.75
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 3.75
• Assembled Width UOM - Imperial: in.
• Base Product ID: E_Angle
• Base Product Name: E
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Angles and Plates > Angle Bracket
• Coating: Zinc Galvanized, G90
• Country of Origin: FR
• Customer Unit: Yes
• Display Unit/Measure: EA
• Finish: Zinc Galvanized, G90
• Gauge: 11
• GUID: 193703213870088944793747763280004887722
