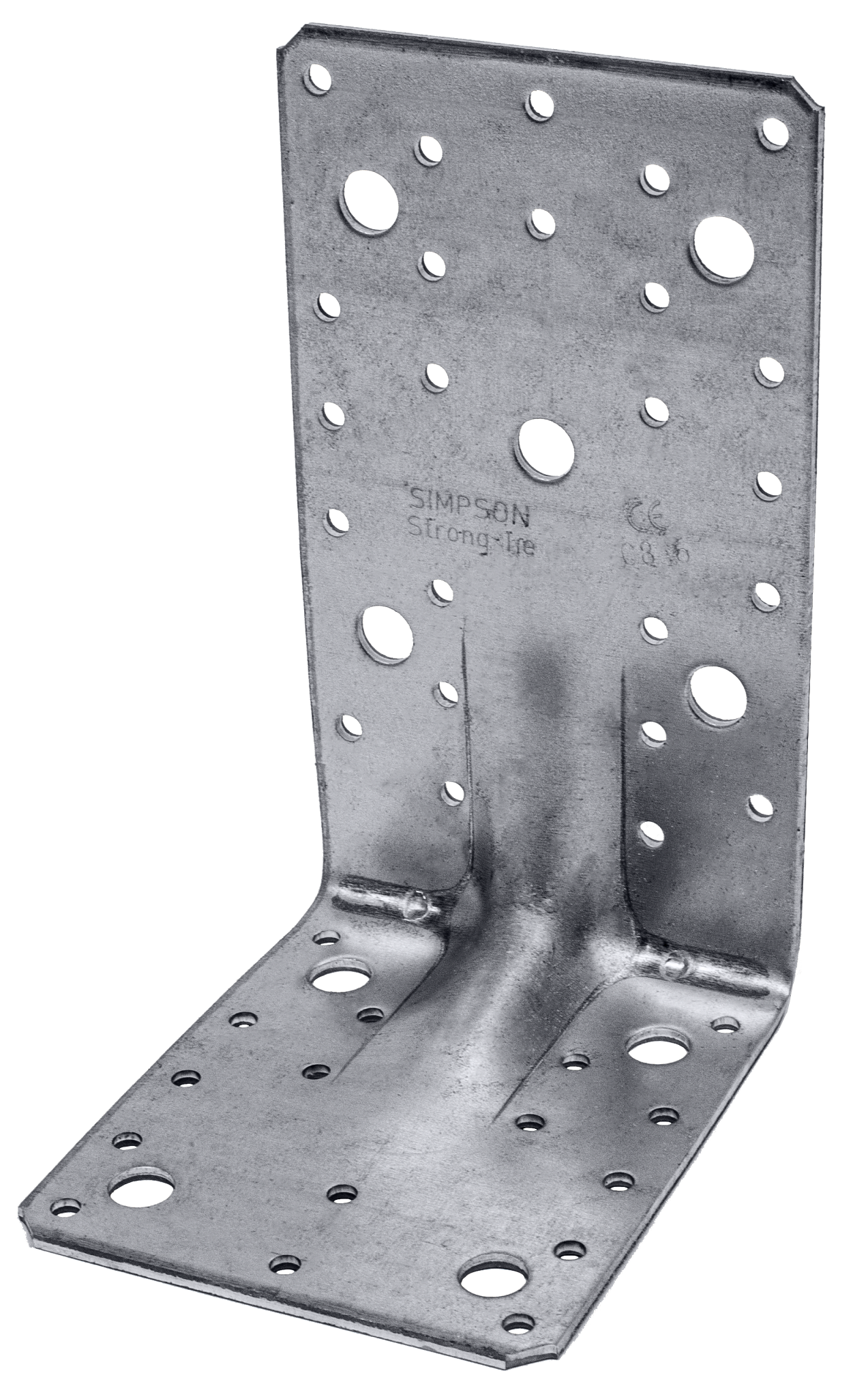

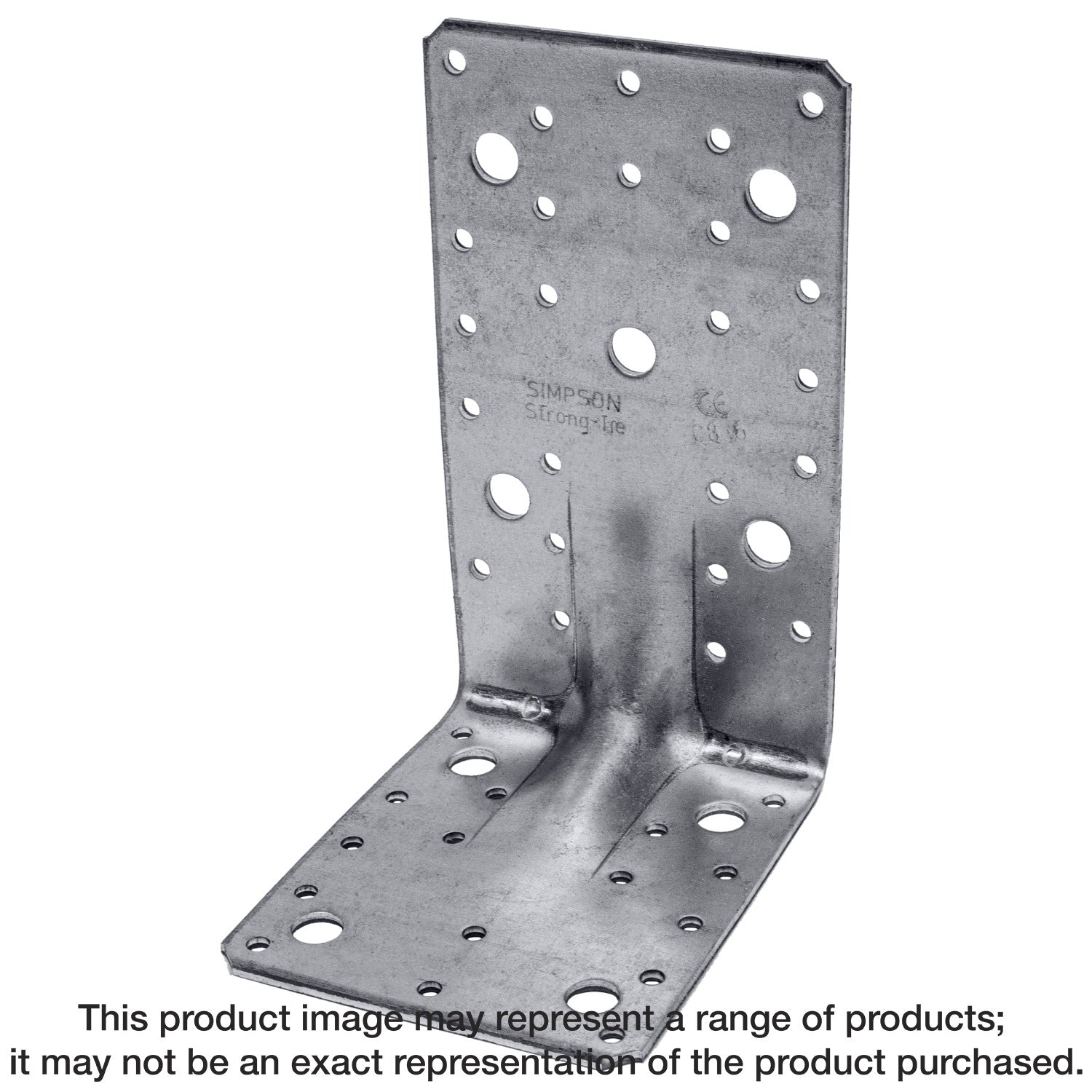

Simpson Strong-Tie E20/3 E 6-3/4 in. x 3-3/4 in. Angle Bracket for Cross-Laminated Timber (Pack of 25)

Simpson Strong-Tie® E angle brackets are used to connect cross-laminated timber (CLT) wall panels to concrete slabs. A wide variety of fastener and anchor options are available depending on the required loads and application. The E20/3 angle bracket has been load-rated with up to a 2-inch gap between the bottom of the CLT wall and the top of concrete slab. This gap allows the wall to be separated with a pressure-treated sill plate, concrete curb, grout pad, or other specified material.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Heavy gauge provides high load capacity
• Anchorage to concrete
• Load-rated with up to a 2-inch base-of-wall gap
• Made from 11-gauge steel
• Galvanized for extra corrosion resistance
• Height: 6-3/4 in.
• Depth: 4-1/2 in.
• Width: 3-3/4 in.

Specifications

• ERP Part Number: E20/3
• UPC: 3523140715506
• GTIN: 3523140715506
• Feature 01: Heavy gauge provides high load capacity
• Feature 02: Anchorage to concrete
• Feature 03: Load-rated with up to a 2-inch base-of-wall gap
• Feature 04: Made from 11-gauge steel
• Feature 05: Galvanized for extra corrosion resistance
• Feature 06: Height: 6-3/4 in.
• Feature 07: Depth: 4-1/2 in.
• Feature 08: Width: 3-3/4 in.
• Assembled Depth - Imperial: 4.5
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 6.75
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 3.75
• Assembled Width UOM - Imperial: in.
• Base Product ID: E_Angle
• Base Product Name: E
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Angles and Plates > Angle Bracket
• Country of Origin: FR
• Customer Unit: No
• Display Unit/Measure: CAR
• GUID: 193703213870088944793747763280004887722
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: Carton
• MFG Name: Simpson Strong-Tie®
• Number Category Description: Manufacturer
• Product Class: Angle Bracket
• Prop 65 Warning: No
• Quantity: 25
• Shipping Weight: 32.125
• Short Product Name: ANGLE REINF 170/110/95/3
• Strongtie.com URL: https://www.strongtie.com/miscconnectorsforengineeredwood_engineeredwood/e_angle/p/e
• Subcategory: Wood Construction Connectors
• Subcategory 2: Angles and Plates
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• EA Reference: 3523140887906
• PAL Reference: 3523140956473
