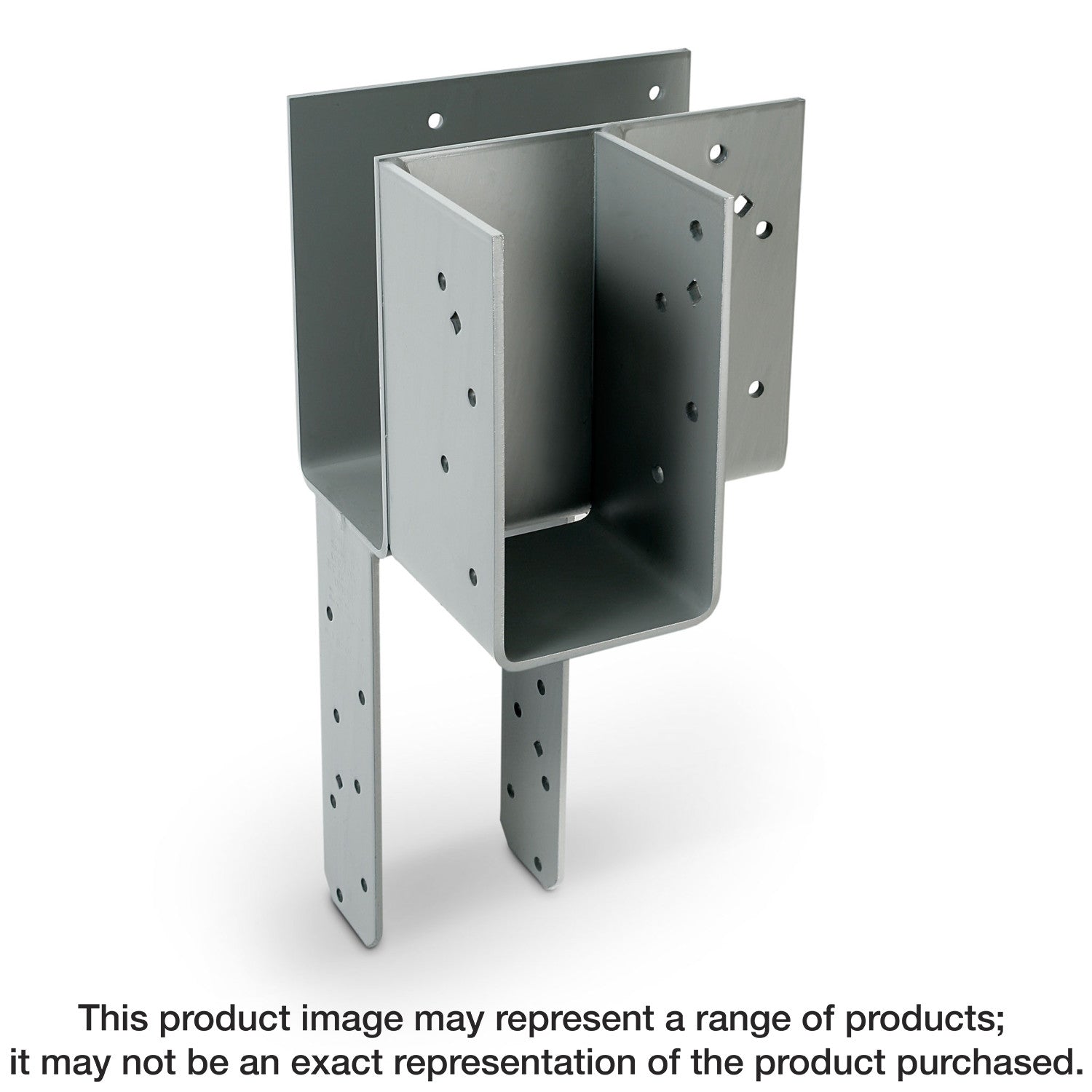

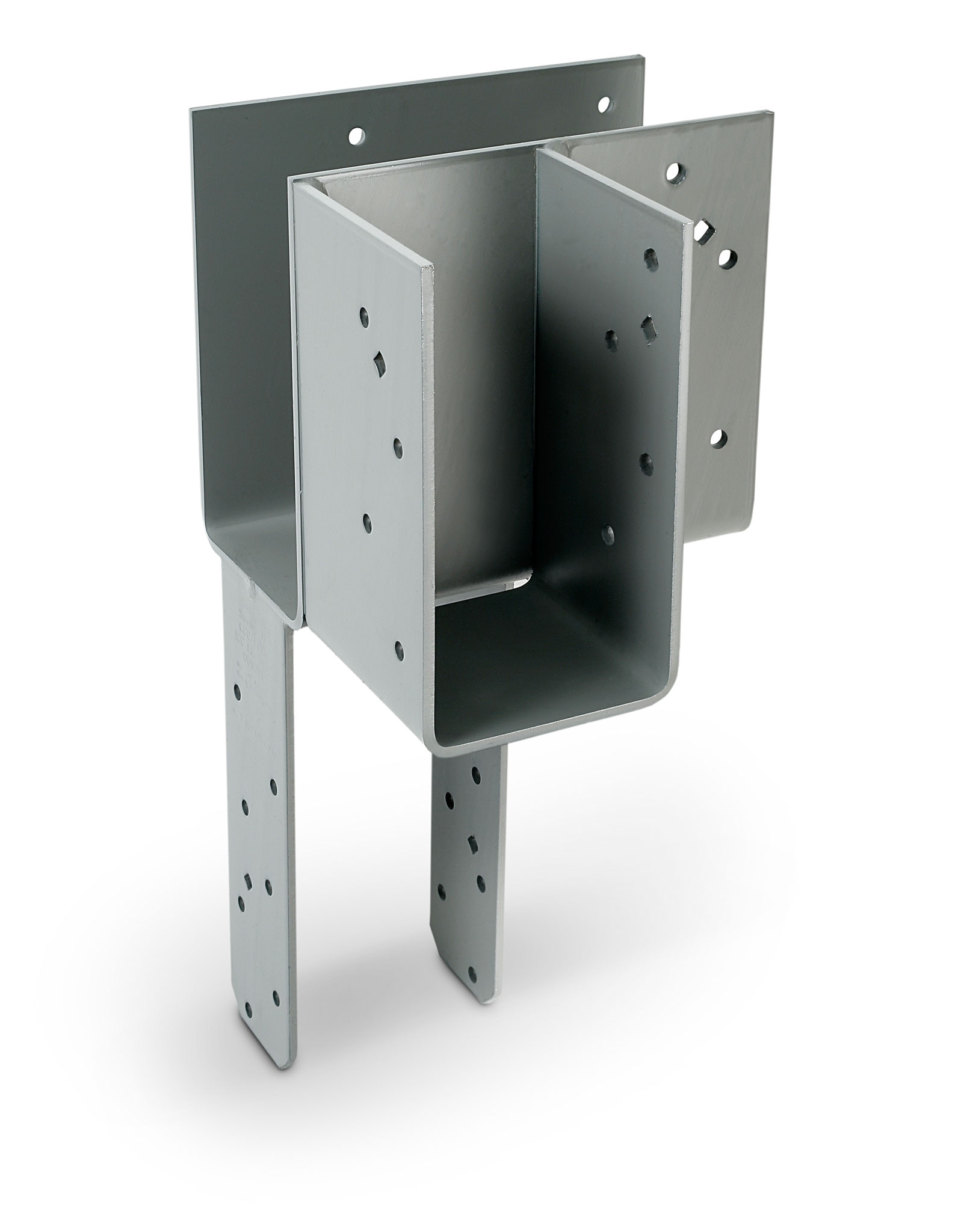

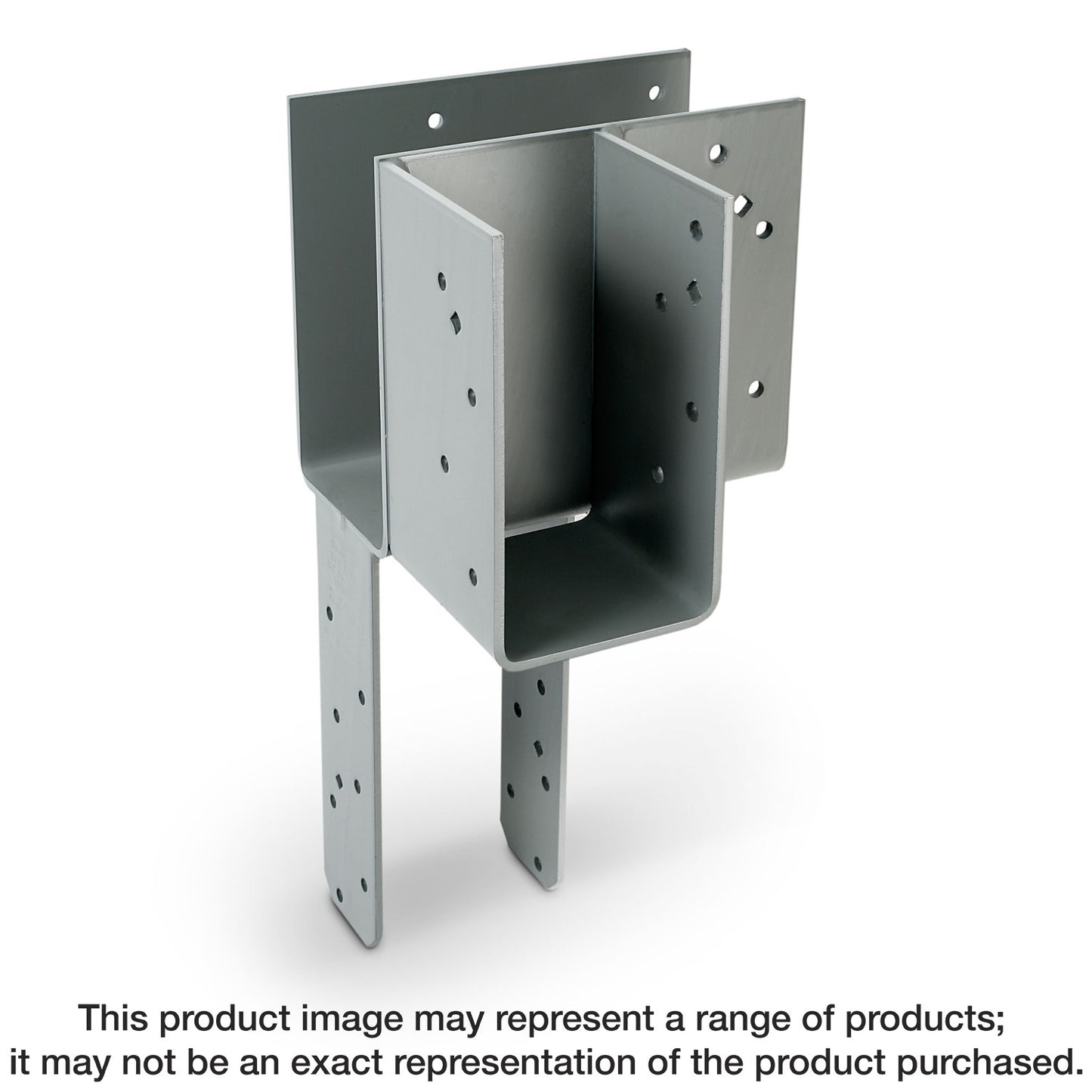

Simpson Strong-Tie ECCLLQ3.25-4SDS ECCLLQ L-Shape End Column Cap for 3-1/4 in. Beams, 4x Post w/ SDS Screws, Skewed Left

Simpson Strong-Tie® column caps come in a variety of sizes to accommodate any project, generally eliminating the need for additional brackets or braces. The ECCLQ is designed to provide strong column-beam connections in end-of-beam applications when two beams intersect in an “L” formation on top of a column. When properly installed, this column cap helps to distribute the load from the beams and provides support for the connection. The ECCLQ uses Strong-Drive® SDS Heavy-Duty Connector screws to provide faster installation and a lower profile than standard through bolts. The ECCLQ is available in left- or right-side beam orientations.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Screws are configured to provide high uplift design values
• Certified welds for confidence in strength and loading
• Diamond holes to provide temporary fastening
• Side beam oriented left; order ECCLRQ model for side beam oriented right
• Member sizes: 3-1/4 in. main beam, nominal 4x post, 3-1/4 in. side beam
• Made from 7-gauge steel
• Simpson Strong-Tie gray paint finish

Specifications

• ERP Part Number: ECCLLQ3.25-4SDS
• UPC: 707392003878
• GTIN: 707392003878
• Feature 01: Screws are configured to provide high uplift design values
• Feature 02: Certified welds for confidence in strength and loading
• Feature 03: Diamond holes to provide temporary fastening
• Feature 04: Side beam oriented left; order ECCLRQ model for side beam oriented right
• Feature 05: Member sizes: 3-1/4 in. main beam, nominal 4x post, 3-1/4 in. side beam
• Feature 06: Made from 7-gauge steel
• Feature 07: Simpson Strong-Tie gray paint finish
• Install With: Install with 1/4 in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws (Model: SDS25212 included)
• Assembled Depth - Imperial: 7.592
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 15.671
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 8.5
• Assembled Width UOM - Imperial: in.
• Base Product ID: ECCLQ_Cap
• Base Product Name: ECCLQ
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Caps > Column Cap
• Coating: Simpson Strong-Tie Gray Paint
• Color: Gray
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• Finish: Simpson Strong-Tie Gray Paint
• Gauge: 7
• GUID: 261945042029378980068671049958829399241
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• Member Size: 3-1/4 in. main beam, 4x post, 3-1/4 in. side beam
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Column Cap
• Product Includes: Includes 1/4 in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws
• Prop 65 - Cancer: Wood Dust
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Shipping Weight: 14.5
• Short Product Name: L End Column Cap Left with screws
• Strongtie.com URL: https://www.strongtie.com/sdsscrewcolumncaps_columncaps/ecclq_cap/p/ecclq
• Subcategory: Wood Construction Connectors
• Subcategory 2: Caps
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• Lumber Size Infographic: https://images.salsify.com/image/upload/s--4j6m7m95--/of77l1vzb2adrmtseor4.png
