Simpson Strong-Tie ECCLQM5.50G-KT ECCLQM™ 5-1/2 in. L-Shape End Column Cap for Masonry w/ SDS Screws

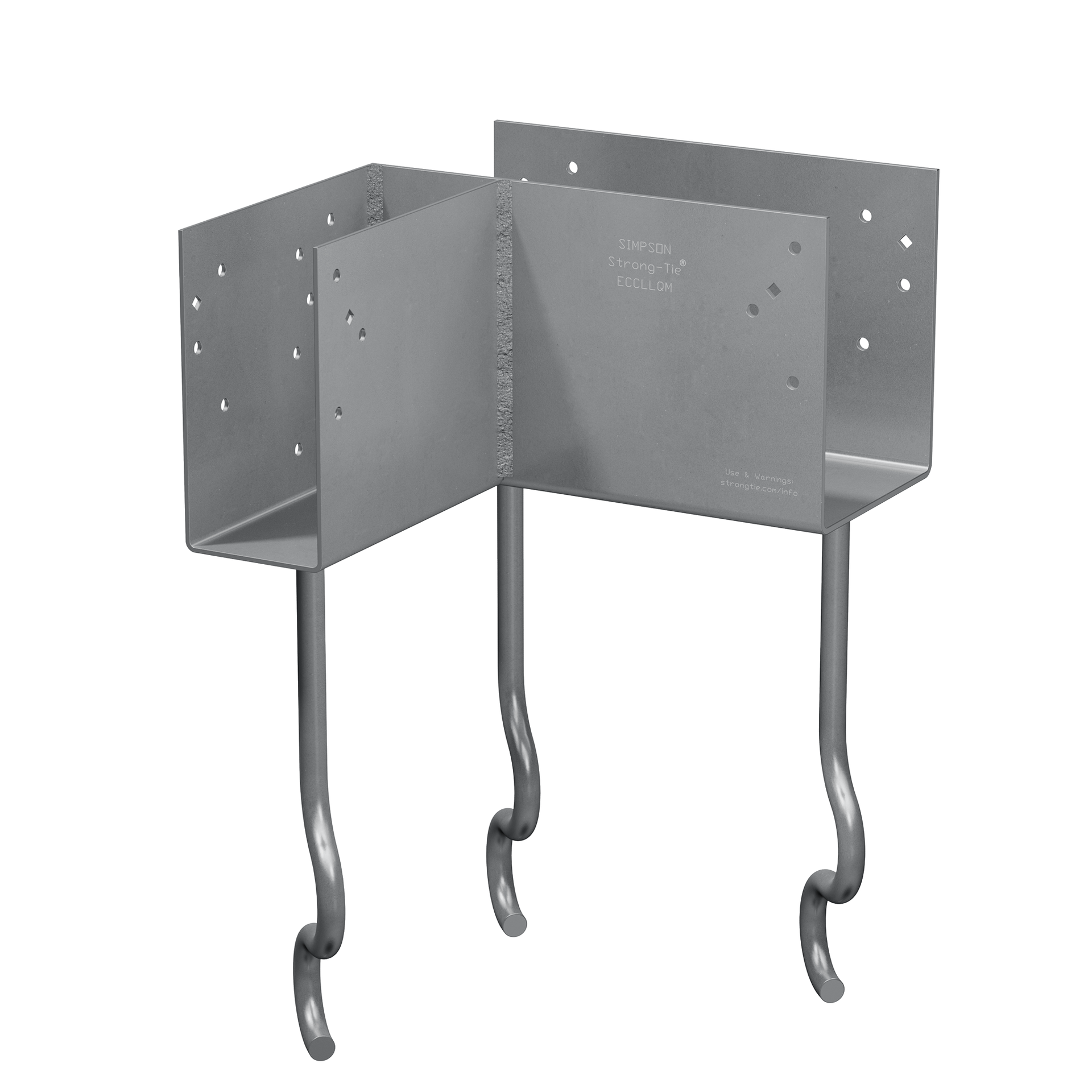

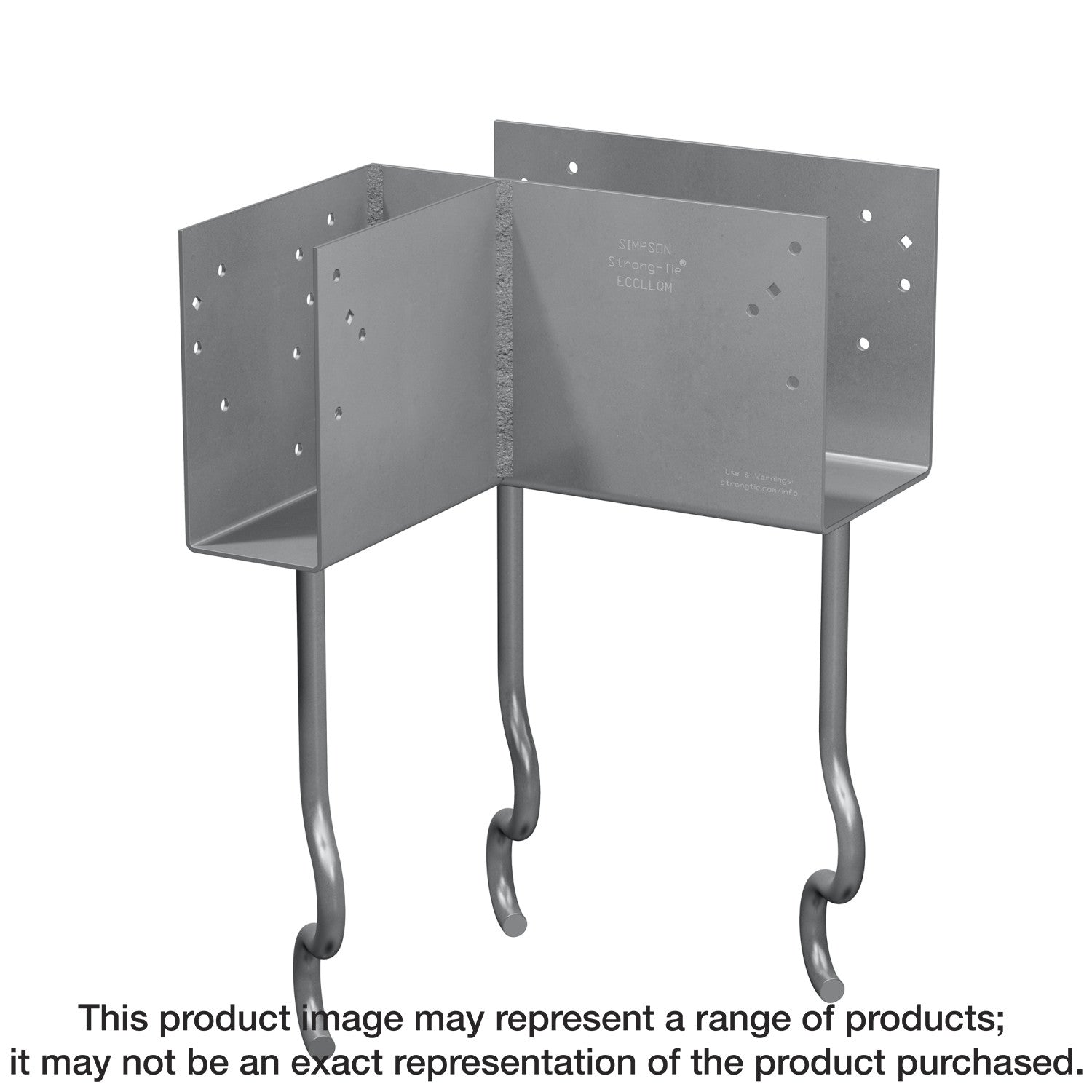

The ECCLQM embedded column cap is designed for use in raised pier foundations and applications where heavy timbers rest on concrete or concrete block columns. The heavy-gauge beam seat and unique Simpson Strong-Tie® SSTB® anchor bolts provide the high uplift and lateral resistance needed to help resist high-wind events. The ECCLQM-KT is intended for use at the building corners.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• MSTQM straps to make the connection from the ECCLQM to the wall framing
• Screws are configured to provide high uplift design values
• Certified welds for confidence in strength and loading
• SSTB offset allows flush installation to edge of pier
• SSTBs spaced to fit in standard CMU cells
• 5-1/2 in. main channel and side stirrup widths
• Main channel length: 11-1/2 in.
• Hot-dip galvanization (HDG) offers extra corrosion resistance for exterior and treated-wood applications
• Fasten with Simpson Strong-Tie Strong-Drive® SDS Heavy-Duty Connector screws (included), which install with no pre-drilling and feature a corrosion resistant double-barrier coating

Specifications

• ERP Part Number: ECCLQM5.50G-KT
• UPC: 707392237006
• GTIN: 707392237006
• Feature 01: MSTQM straps to make the connection from the ECCLQM to the wall framing
• Feature 02: Screws are configured to provide high uplift design values
• Feature 03: Certified welds for confidence in strength and loading
• Feature 04: SSTB offset allows flush installation to edge of pier
• Feature 05: SSTBs spaced to fit in standard CMU cells
• Feature 06: 5-1/2 in. main channel and side stirrup widths
• Feature 07: Main channel length: 11-1/2 in.
• Feature 08: Hot-dip galvanization (HDG) offers extra corrosion resistance for exterior and treated-wood applications
• Feature 09: Fasten with Simpson Strong-Tie Strong-Drive® SDS Heavy-Duty Connector screws (included), which install with no pre-drilling and feature a corrosion resistant double-barrier coating
• Install With: (32) 1/4 in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws
• Assembled Depth - Imperial: 13.5625
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 19.125
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 11.5
• Assembled Width UOM - Imperial: in.
• Base Product ID: ECCLQM_Cap
• Base Product Name: ECCLQM™
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Caps > Column Cap
• Coating: Hot-Dip Galvanized
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Fasteners Included: No
• Finish: Hot-Dip Galvanized
• Gauge: 7
• GUID: 158060620134148419742280064111833289267
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 20.50
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 12.50
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 16.00
• Package Width UOM - Imperial: in.
• Packaging Quantity: 1
• Packaging Type: Box
• Product Class: Column Cap
• Product Includes: (32) 1/4 in. x 2-1/2 in. Strong-Drive SDS Heavy-Duty Connector screws and (2) 12 ga., 3 in. x 48 in. MSTQM straps
• Prop 65 - Cancer: Wood Dust
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Shipping Weight: 33
• Short Product Name: 5.50" MASONRY ECC L-SHAPE SDS HDG
• Strongtie.com URL: https://www.strongtie.com/columncapsforcmuandconcretepiers_masonryconnectors/ecclqm_cap/p/ecclqm
• Subcategory: Wood Construction Connectors
• Subcategory 2: Caps
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• Lumber Size Infographic: https://images.salsify.com/image/upload/s--4j6m7m95--/of77l1vzb2adrmtseor4.png
