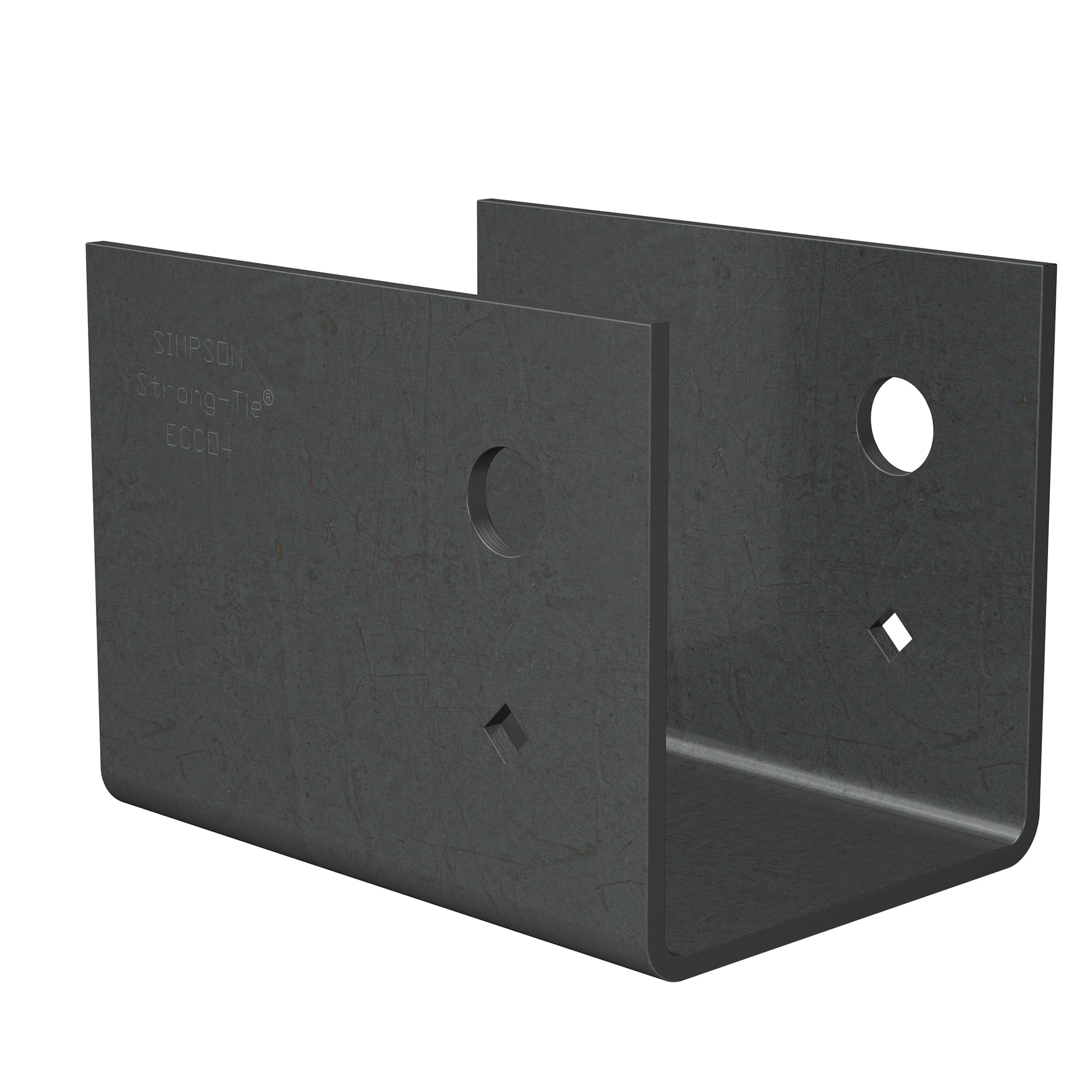

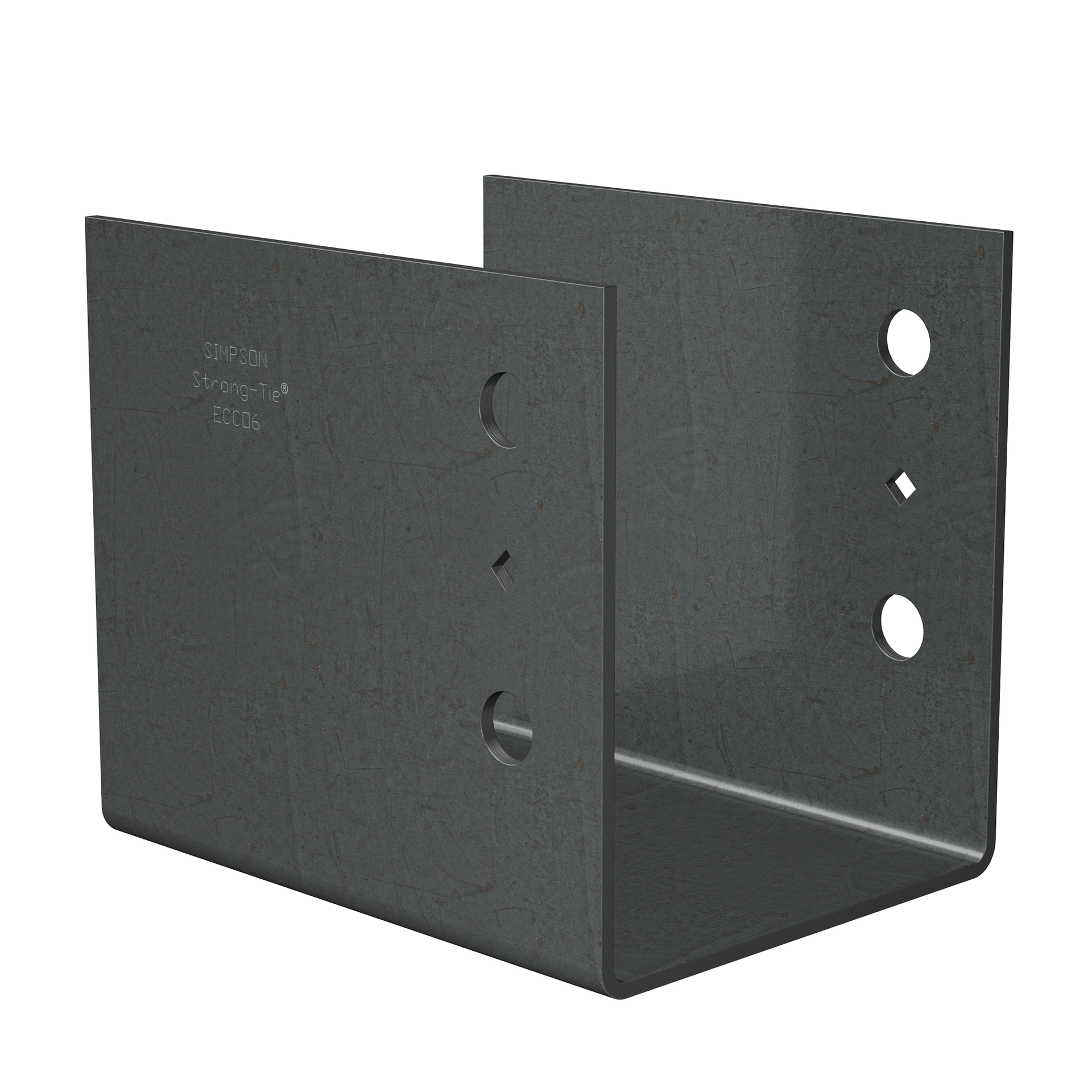

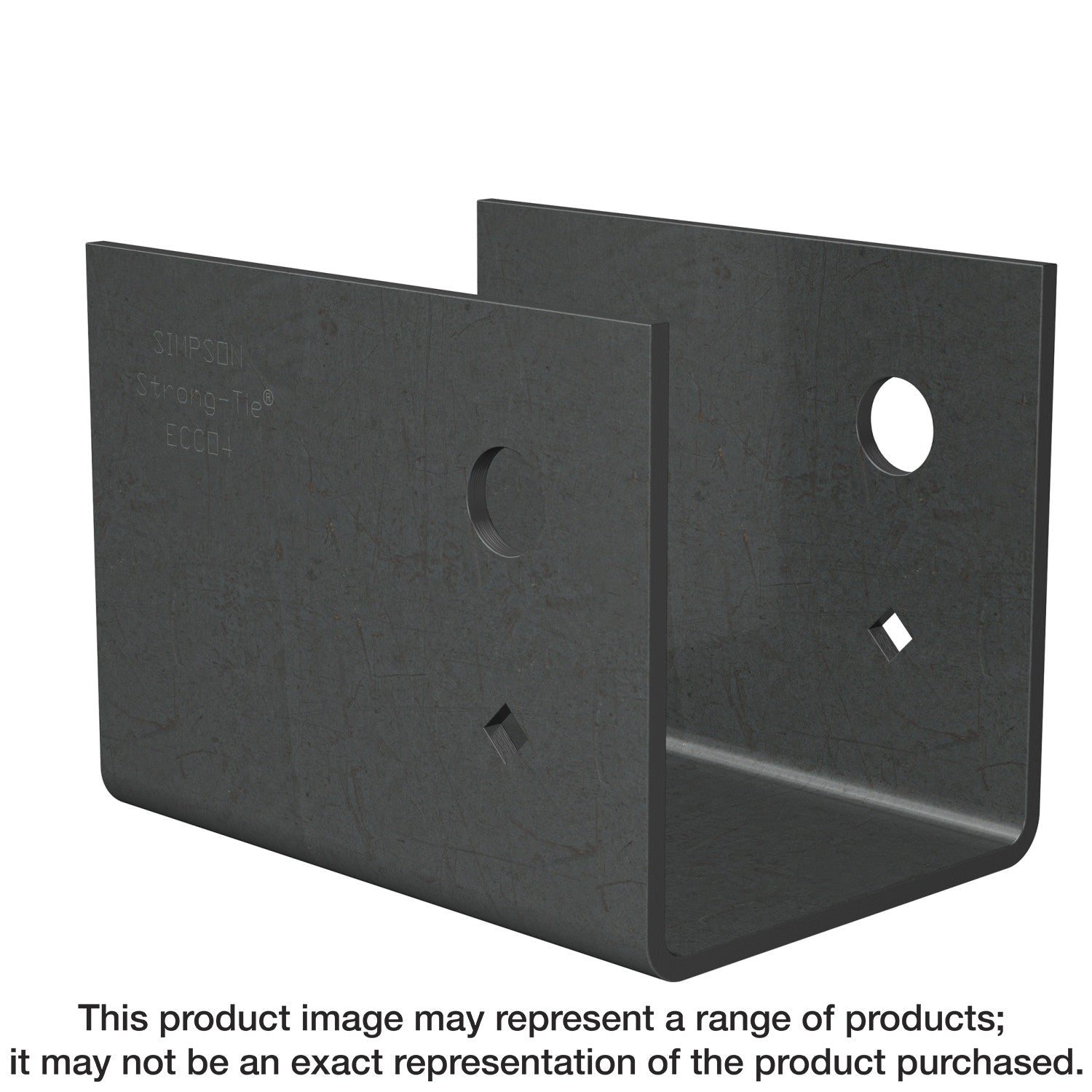

Simpson Strong-Tie ECCO6 ECCO End Column Cap (No Legs) for 6x Beam, 6-1/2 in. Height

Simpson Strong-Tie® column caps come in a variety of sizes to accommodate any project, generally eliminating the need for additional brackets or braces. The ECCO is designed to provide strong column-beam connections in end-of-beam applications on top of steel members. The column cap features a design without legs enabling a field-welded attachment to steel columns and beams. The seat of the column cap provides additional surface area for bearing that extends beyond the one side of the column. This helps to distribute the load from the beam and provide support for the connection.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Uplift loads increased for earthquake or wind loading
• Bolt spacing that meets NDS code requirements to ensure optimal performance
• Diamond holes to provide temporary fastening
• For nominal 6x, 5-1/4 in. or 5-1/2 in. beam width
• Cap height of 6-1/2 in.
• Made from uncoated 7-gauge steel

Specifications

• ERP Part Number: ECCO6
• UPC: 44315200403
• GTIN: 44315200403
• Feature 01: Uplift loads increased for earthquake or wind loading
• Feature 02: Bolt spacing that meets NDS code requirements to ensure optimal performance
• Feature 03: Diamond holes to provide temporary fastening
• Feature 04: For nominal 6x, 5-1/4 in. or 5-1/2 in. beam width
• Feature 05: Cap height of 6-1/2 in.
• Feature 06: Made from uncoated 7-gauge steel
• Install With: Install with (2) 5/8 in. diameter machine bolt
• Assembled Depth - Imperial: 5.842
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 6.671
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 7.50
• Assembled Width UOM - Imperial: in.
• Base Product ID: ECCO_Cap
• Base Product Name: ECCO
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Caps > Column Cap
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• Finish: Uncoated Steel
• Gauge: 7
• GUID: 83004483943353684071735790474326000457
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• Member Size: 6x, 5-1/4 in., 5-1/2 in.
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Column Cap
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 7.04
• Short Product Name: 6X BEAM L= 7.5 END CAP ONLY
