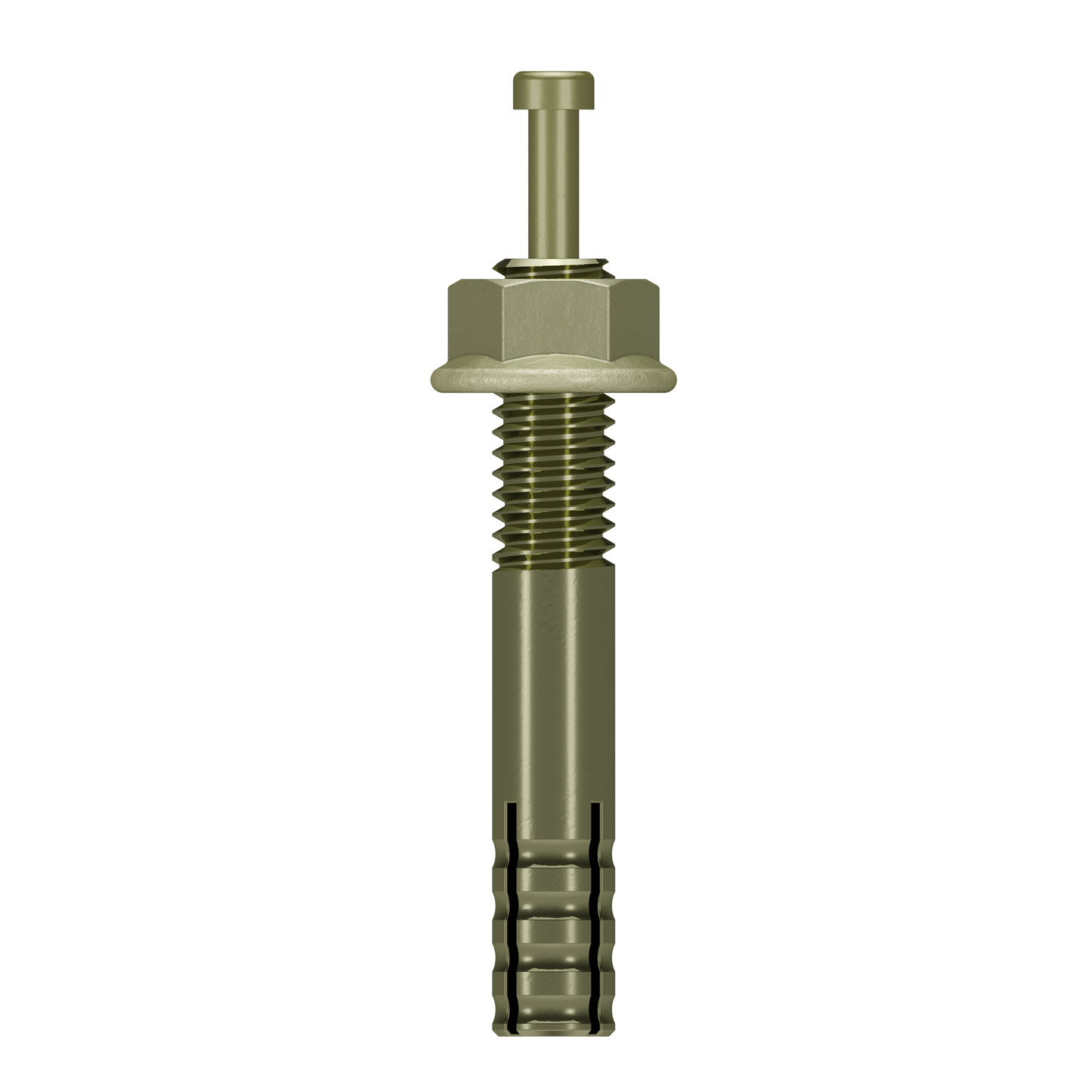

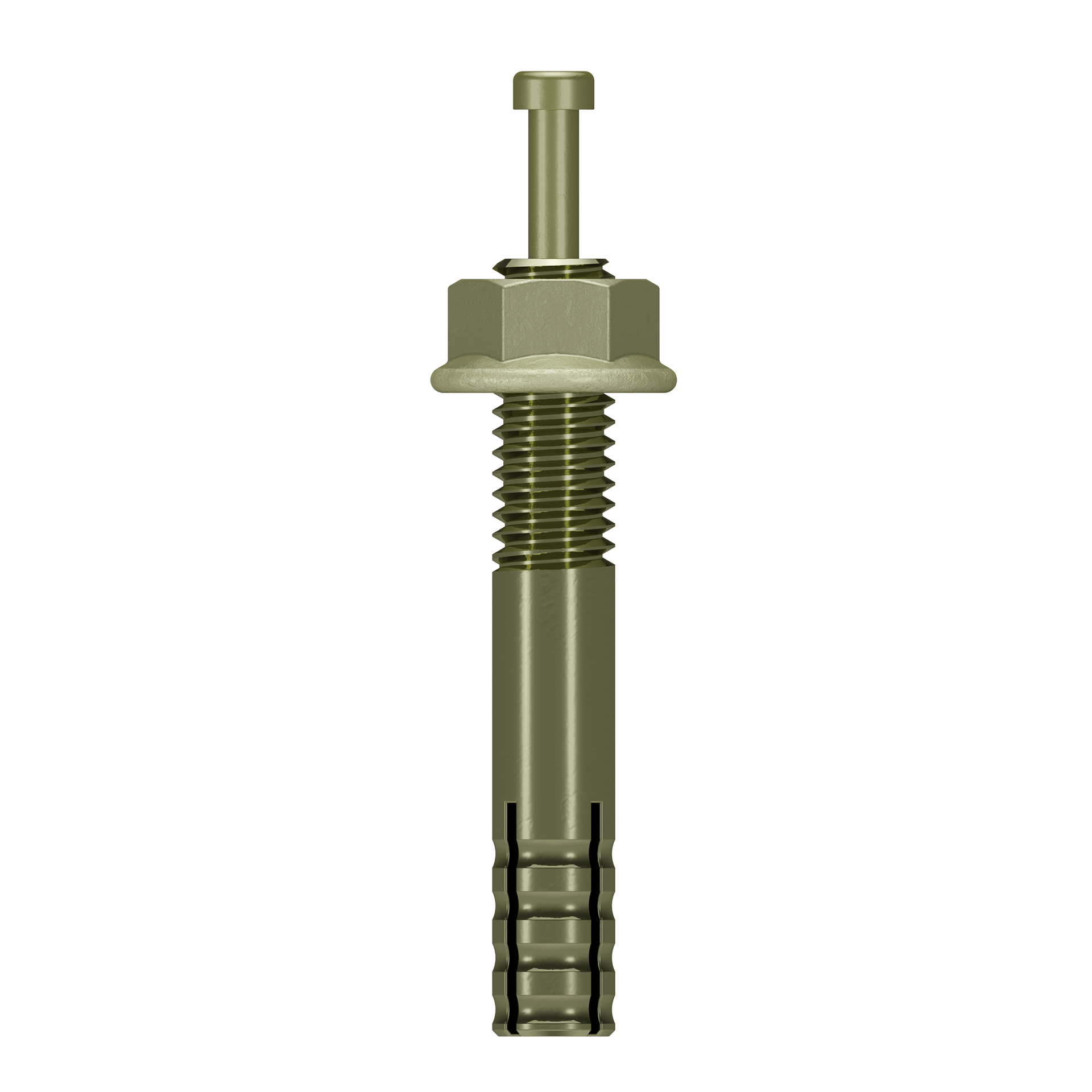

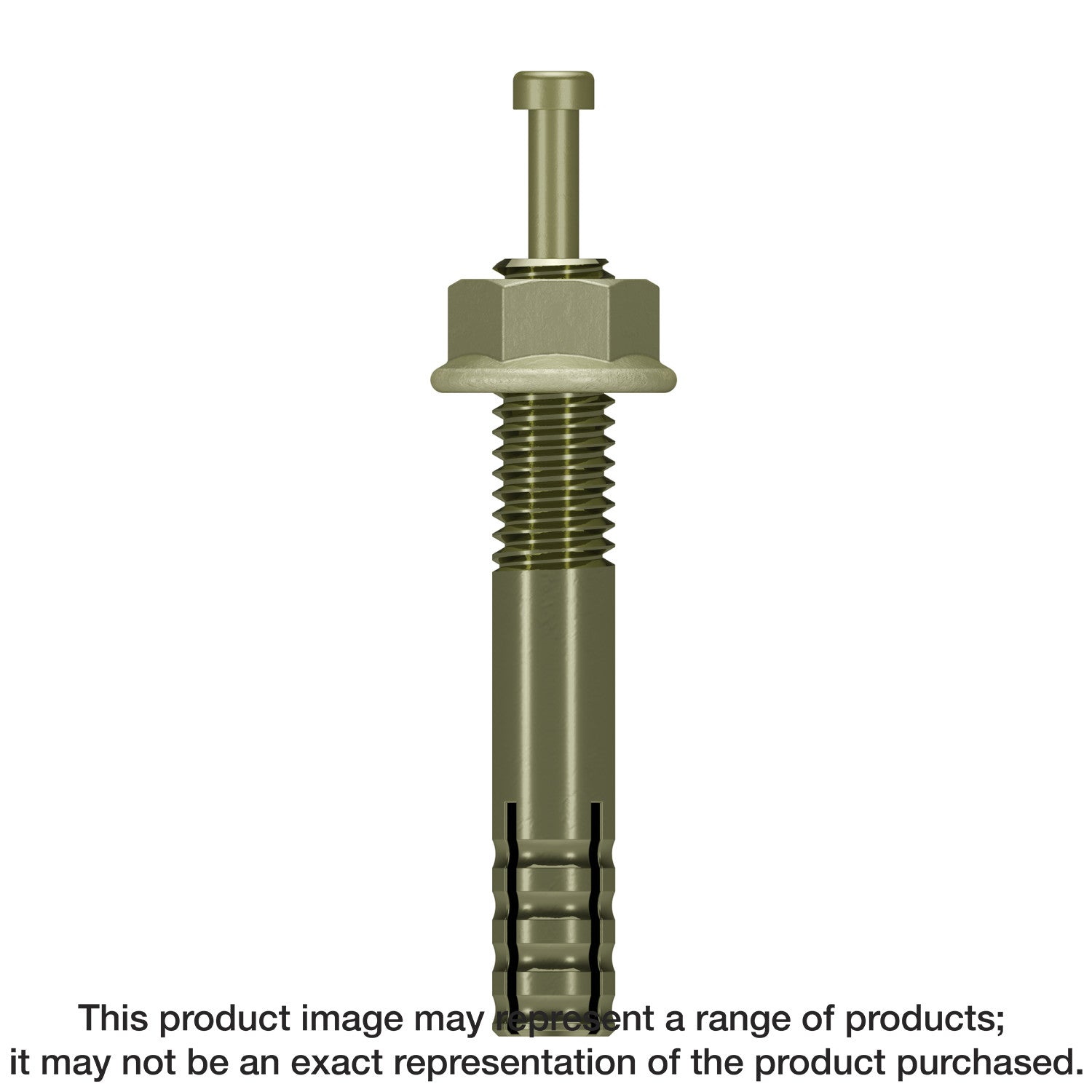

Simpson Strong-Tie EZAC62400 Easy-Set 5/8 in. x 4 in. Pin-Drive Expansion Anchor (15-Qty)

The Simpson Strong-Tie® EZAC easy-set anchor is a pin-drive expansion anchor for medium- and heavy-duty fastening applications into concrete. The EZAC anchor provides holding power in concrete base materials including both concrete masonry unit (CMU) and brick. The anchor includes an integrated nut and washer for easy installation.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Integrated nut and washer to help keep track of parts
• Provides a strong connection of elements to concrete through expansion
• Increases overall strength of masonry projects
• Size: 5/8 in. x 4 in.
• Drill bit diameter: 5/8 in.
• Min fixture hole: 11/16 in.
• Wrench size: 15/16 in.
• Quantity: 15
• Caution: Oversized holes in the base material will make it difficult to set the anchor and will reduce the anchor's load capacity

Specifications

• ERP Part Number: EZAC62400
• UPC: 707392788713
• GTIN: 707392788713
• Feature 01: Integrated nut and washer to help keep track of parts
• Feature 02: Provides a strong connection of elements to concrete through expansion
• Feature 03: Increases overall strength of masonry projects
• Feature 04: Size: 5/8 in. x 4 in.
• Feature 05: Drill bit diameter: 5/8 in.
• Feature 06: Min fixture hole: 11/16 in.
• Feature 07: Wrench size: 15/16 in.
• Feature 08: Quantity: 15
• Feature 09: Caution: Oversized holes in the base material will make it difficult to set the anchor and will reduce the anchor's load capacity
• Assembled Depth - Imperial: 1.76
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 4.489
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 1.76
• Assembled Width UOM - Imperial: in.
• Base Product ID: EZAC_Anchor
• Base Product Name: Easy-Set
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Concrete Connectors and Anchors > Mechanical Anchors > Expansion Anchor
• Coating: Yellow-Zinc Dichromate Plated
• Country of Origin: CN
• Customer Unit: Yes
• Diameter (in.): 5/8
• Display Unit/Measure: PAC
• Drill Bit Diameter (in.): 5/8
• Finish: Yellow-Zinc Dichromate Plated
• GUID: 191812736246649983014080715717463043608
• Length (in.): 4
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Material: Carbon Steel
• Measurement Unit Text: Pack
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 7.87
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 3.54
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 3.54
• Package Width UOM - Imperial: in.
• Packaging Quantity: 15
• Packaging Type: Box
• Product Class: Expansion Anchor
• Prop 65 - Cancer: Crystalline Silica
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including crystalline silica which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Shipping Weight: 6.285
• Short Product Name: EASY-SET ANCHOR 5/8 X 4
• Strongtie.com URL: https://www.strongtie.com/mechanicalanchors_mechanicalanchoringproducts/ezac_anchor/p/easy-set
• Subcategory: Concrete Connectors and Anchors
• Subcategory 2: Mechanical Anchors
• Thread Length (in.): 1 5/8
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• Wrench Size (in.): 15/16
• CAR Reference: 10707392788703
