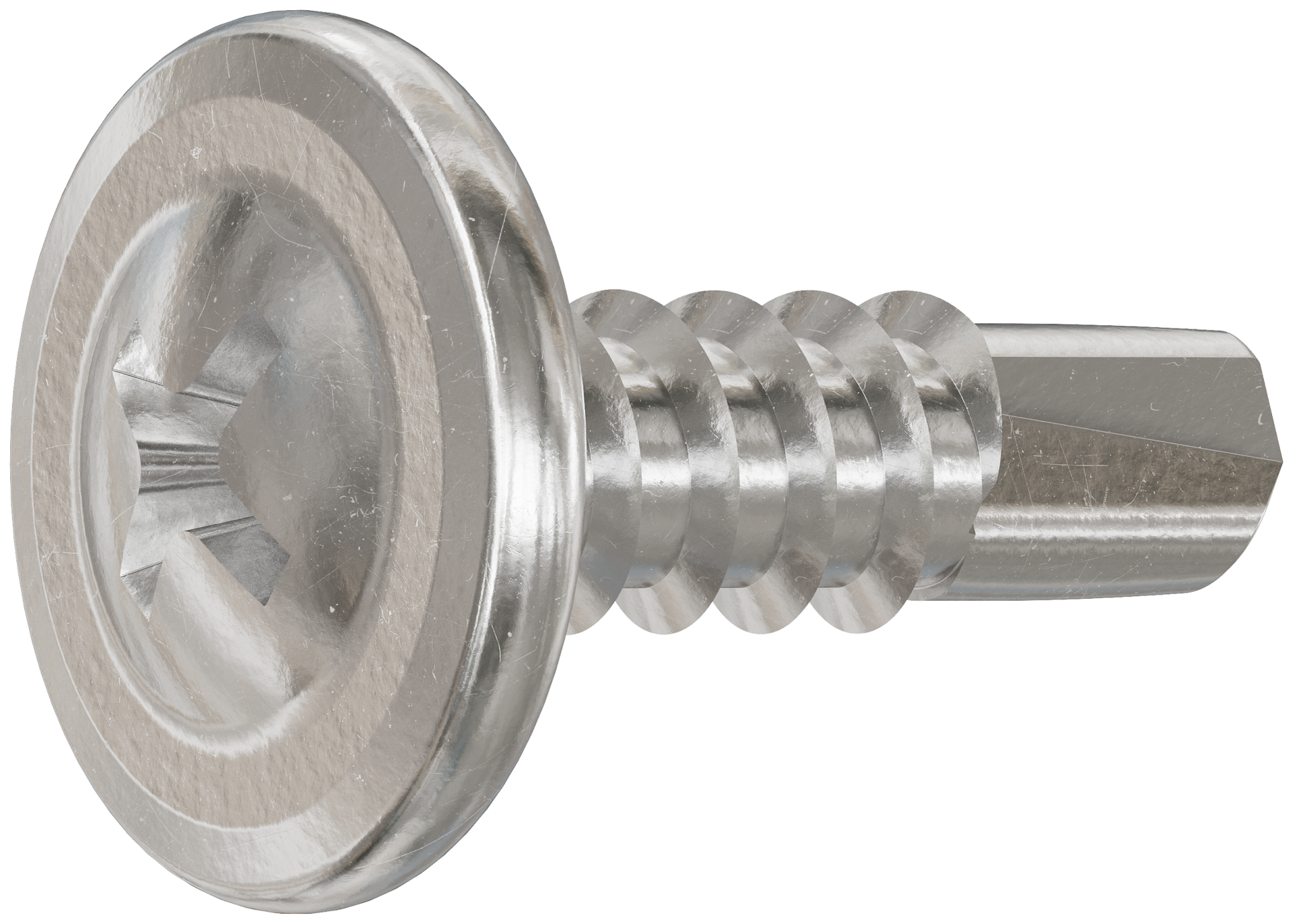

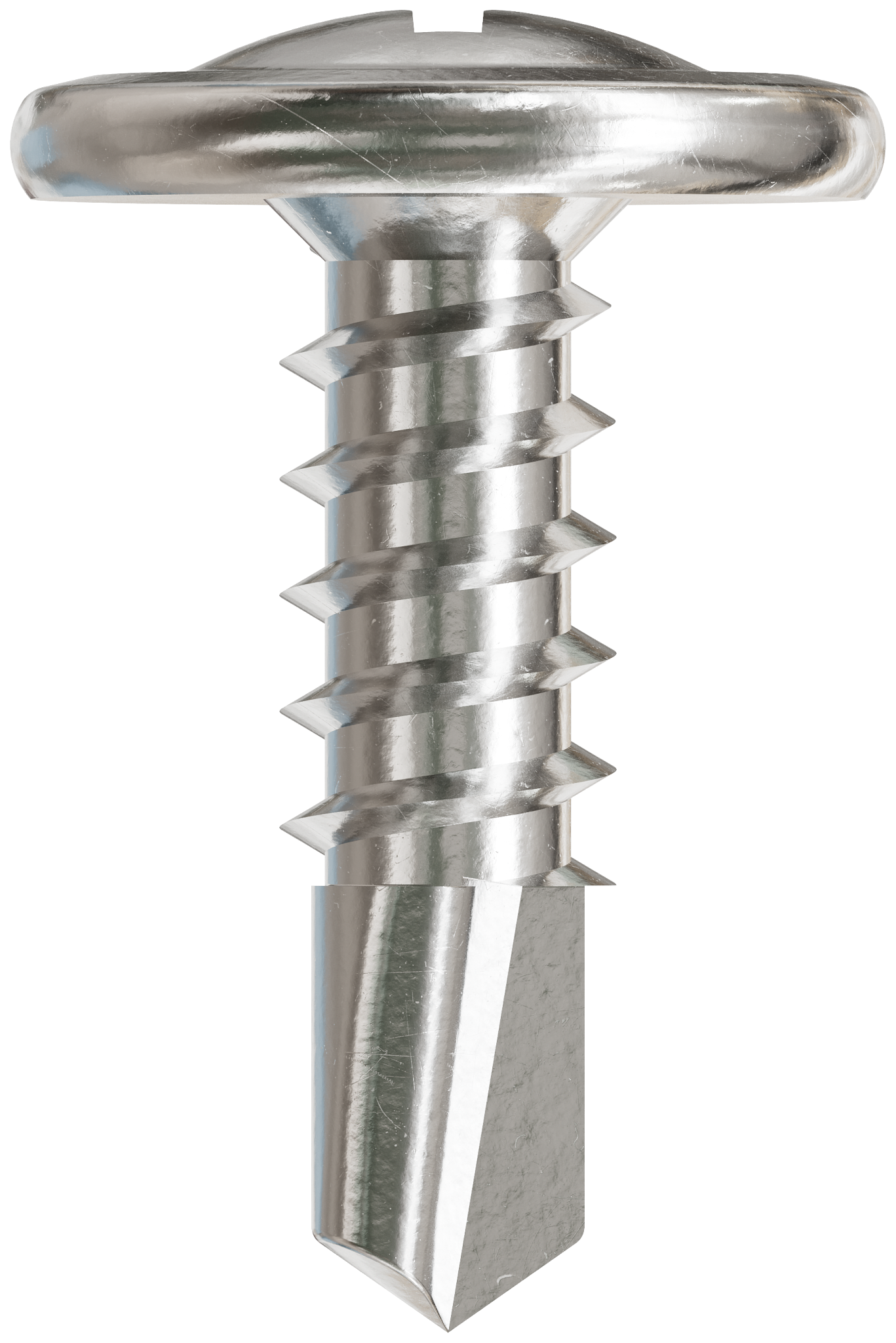

Simpson Strong-Tie F08T056KDB Self-Drilling Wire-Lath Modified Truss-Head Screw — #8 x 9/16 in. Type 410 (8000-Qty)

Simpson Strong-Tie® metal screws are designed to provide strength and superior performance in steel and other metal applications. With a variety of features, these fasteners meet the requirements for residential, agricultural and commercial projects. Applications for the Self-Drilling Wire-Lath Modified Truss-Head screw include fastening metal lath to studs and attaching corrugated siding panels to steel studs.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Fasten corrugated siding panels to steel stud without predrilling
• Securely fastens one to three panel thicknesses
• #2 Phillips drive
• #2 drill point for quick penetration of aluminum panels without “point walking"
• Type 410 stainless steel can be hardened through heat treatment, giving it the ability to drill through metal; it does not offer the same level of corrosion resistance of either Type 316 or 305 stainless steel
• Screw size: #8 x 9/16 in.
• Quantity: 8,000 per package

Application

• Wire Lath

Specifications

• ERP Part Number: F08T056KDB
• UPC: 744039611300
• GTIN: 744039611300
• Feature 01: Fasten corrugated siding panels to steel stud without predrilling
• Feature 02: Securely fastens one to three panel thicknesses
• Feature 03: #2 Phillips drive
• Feature 04: #2 drill point for quick penetration of aluminum panels without “point walking"
• Feature 05: Type 410 stainless steel can be hardened through heat treatment, giving it the ability to drill through metal; it does not offer the same level of corrosion resistance of either Type 316 or 305 stainless steel
• Feature 06: Screw size: #8 x 9/16 in.
• Feature 07: Quantity: 8,000 per package
• Applications List: Wire Lath
• Base Product ID: DPTSHLath_Screw
• Base Product Name: Self-Drilling Wire-Lath Modified Truss-Head Screw
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Fasteners > Metal Screws > Hand-Drive Screw
• Country of Origin: TW
• Customer Unit: Yes
• Display Unit/Measure: EA
• Drive Type: #2 Phillips
• GUID: 311695526363474576309378452115094409487
• Head Diameter (in.): 0.42
• Head Type: Modified Truss Head
• Length (in.): 9/16
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Material: Type 410 Stainless Steel
• Max. Grip Length (in.): 0.148
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 10.00
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 7.70
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 10.00
• Package Width UOM - Imperial: in.
• Packaging Quantity: 8000
• Point Type: Drill Point
• Product Class: Hand-Drive Screw
• Prop 65 - Cancer: Wood Dust
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Screw Size: #8
• Shipping Weight: 30
• Short Product Name: #8 9/16IN 410SS K-LATH SELF DRILL 8M
• Strongtie.com URL: https://www.strongtie.com/metalscrews_screwsandnails/dptshlath_screw/p/self-drilling-wire-lath-modified-truss-head-screw
• Subcategory: Fasteners
• Subcategory 2: Metal Screws
• Thread Type: Tapping Threads
• TPI: 18
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• PAL Reference: 50744039611305
