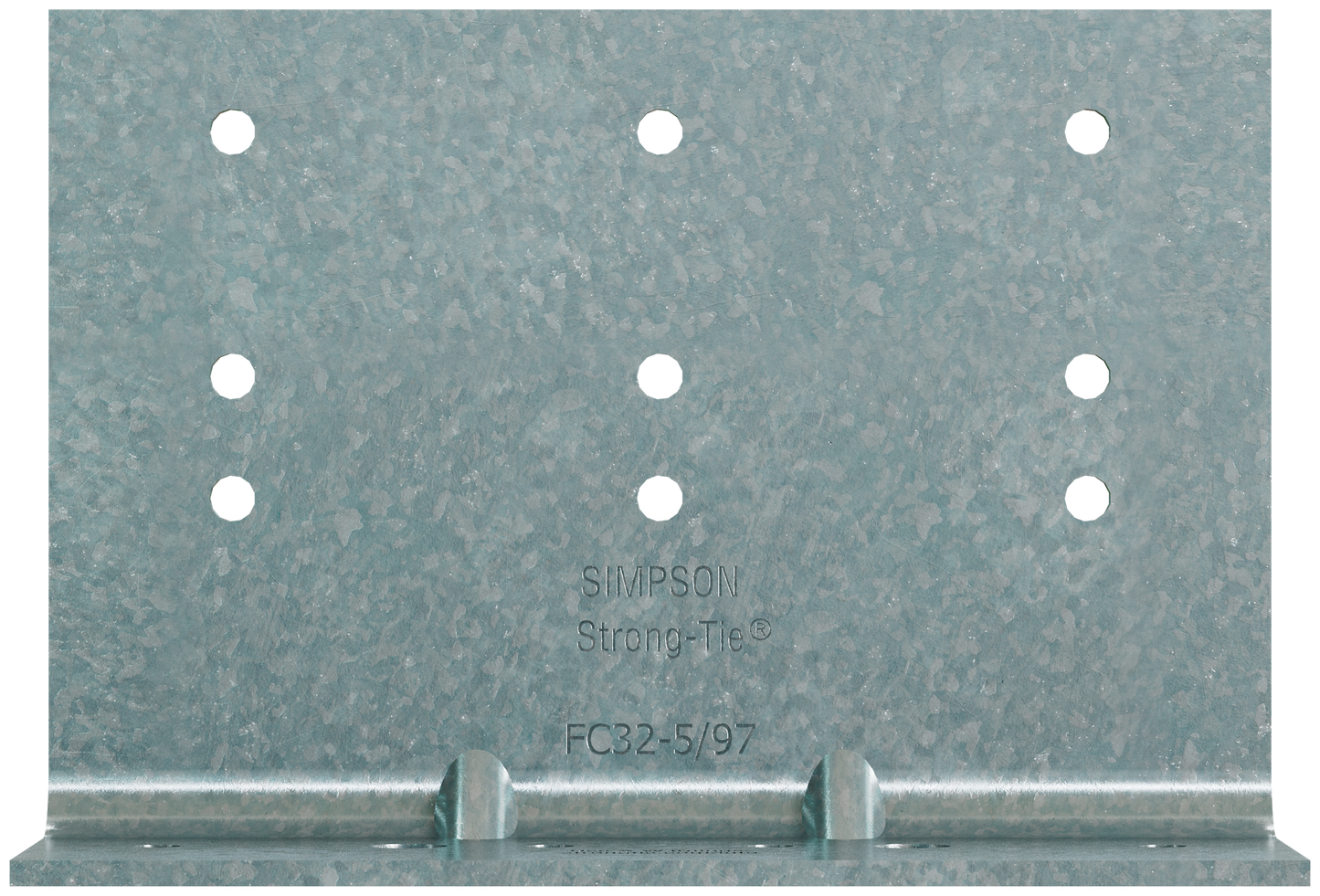

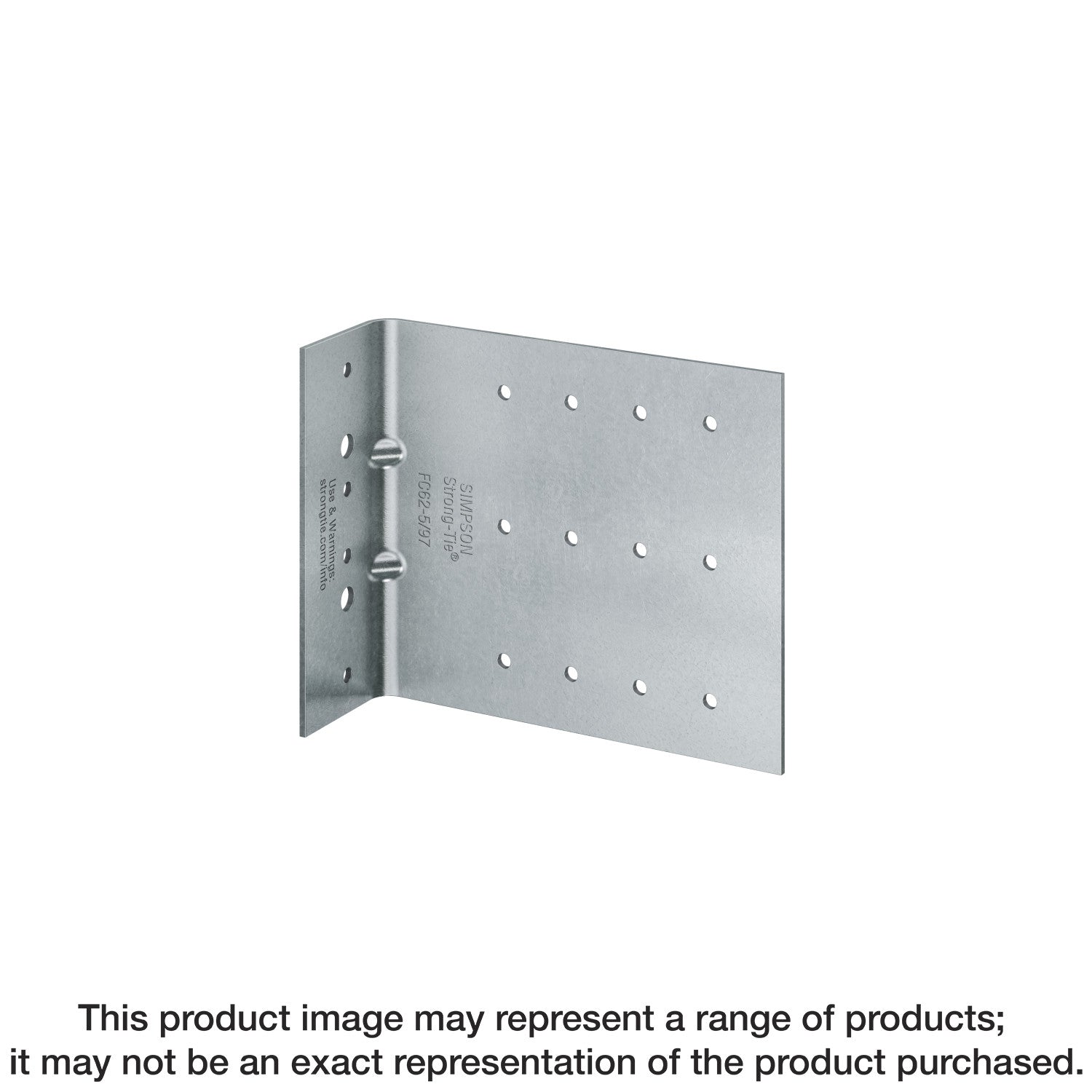

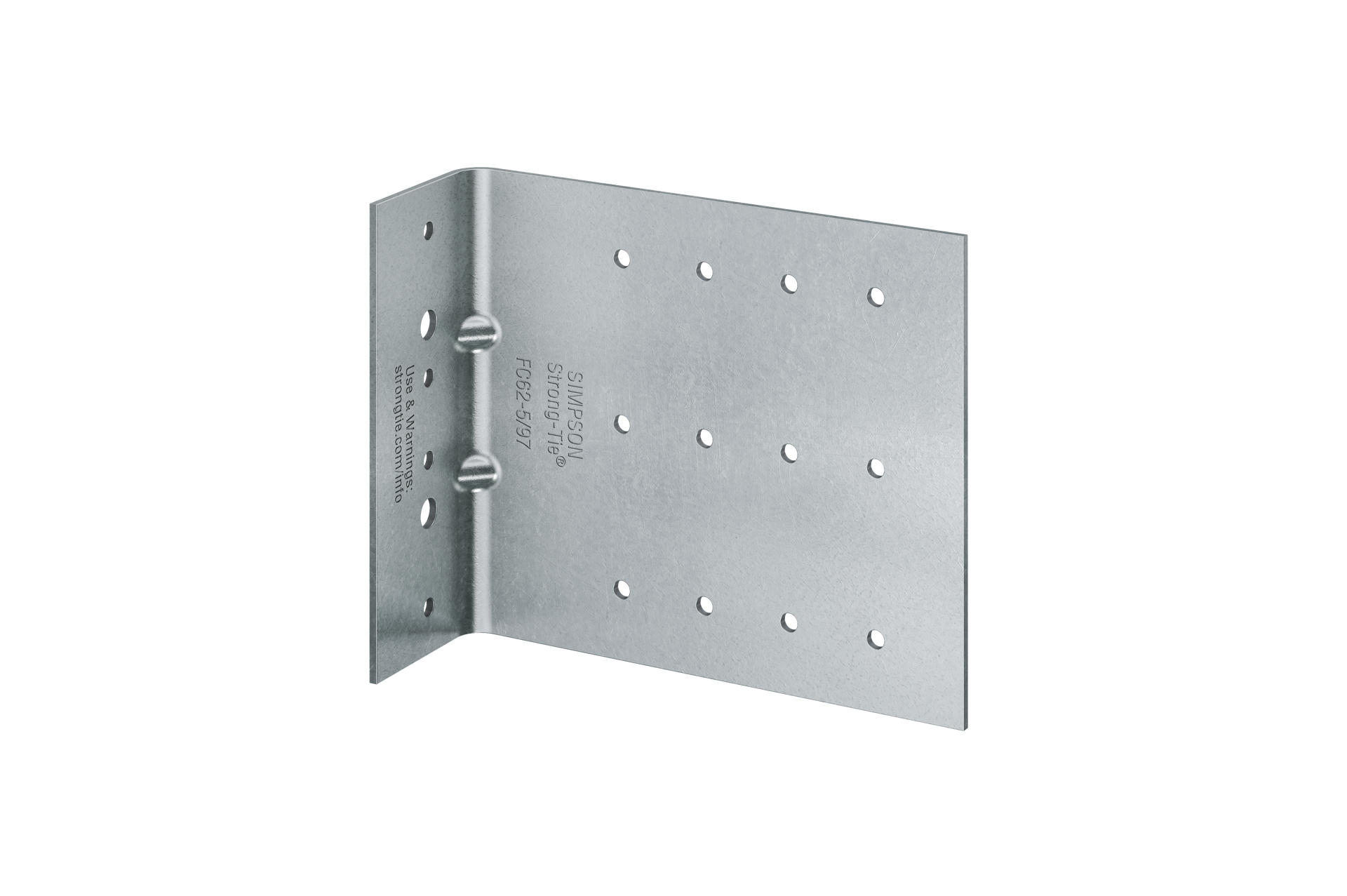

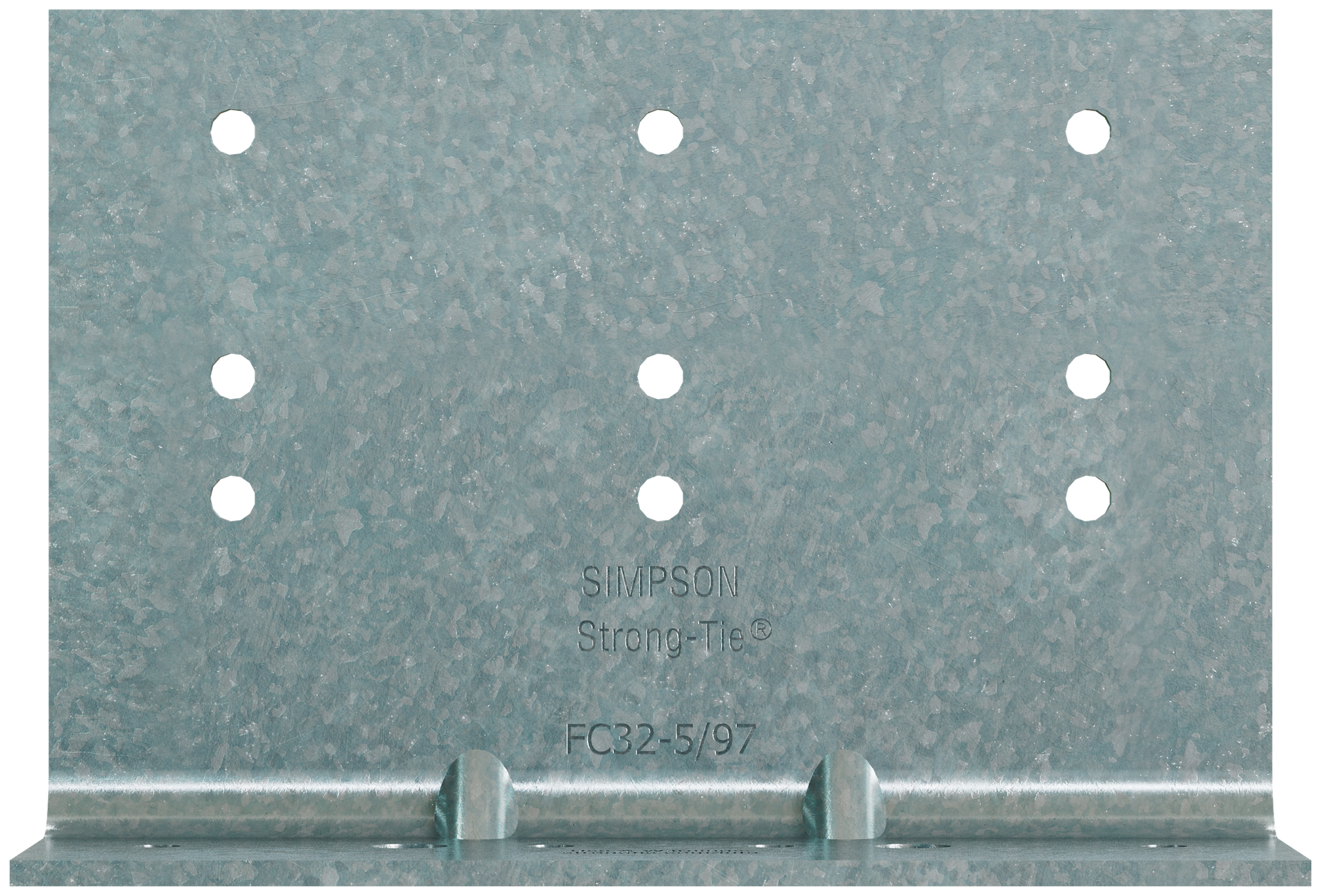

Simpson Strong-Tie FC32-5/97-R25 FC 2 in. x 3-1/2 in. x 5 in. 12-Gauge Bypass Framing Fixed-Clip Connector (Qty-25)

Ideal for high-seismic areas, Simpson Strong-Tie® FC connectors are the optimal solution for fixed-clip bypass framing. FC clips are often welded to the structure in high-seismic zones, but they also feature anchorage holes so that concrete screws or powder-actuated fasteners can be used to attach the clip to the structure. In addition to its anchorage versatility, the FC clip features prepunched screw holes for the framing attachment, eliminating the need for predrilling holes or worrying that fastener placement doesn’t match the designer specifications. FC connectors are manufactured using heavy-duty 10- or 12-gauge steel to provide exceptional resistance to in-plane seismic load.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Intended to be used with 3-5/8 in. studs
• The maximum standoff distance is 1 in. for 3-5/8 in. studs

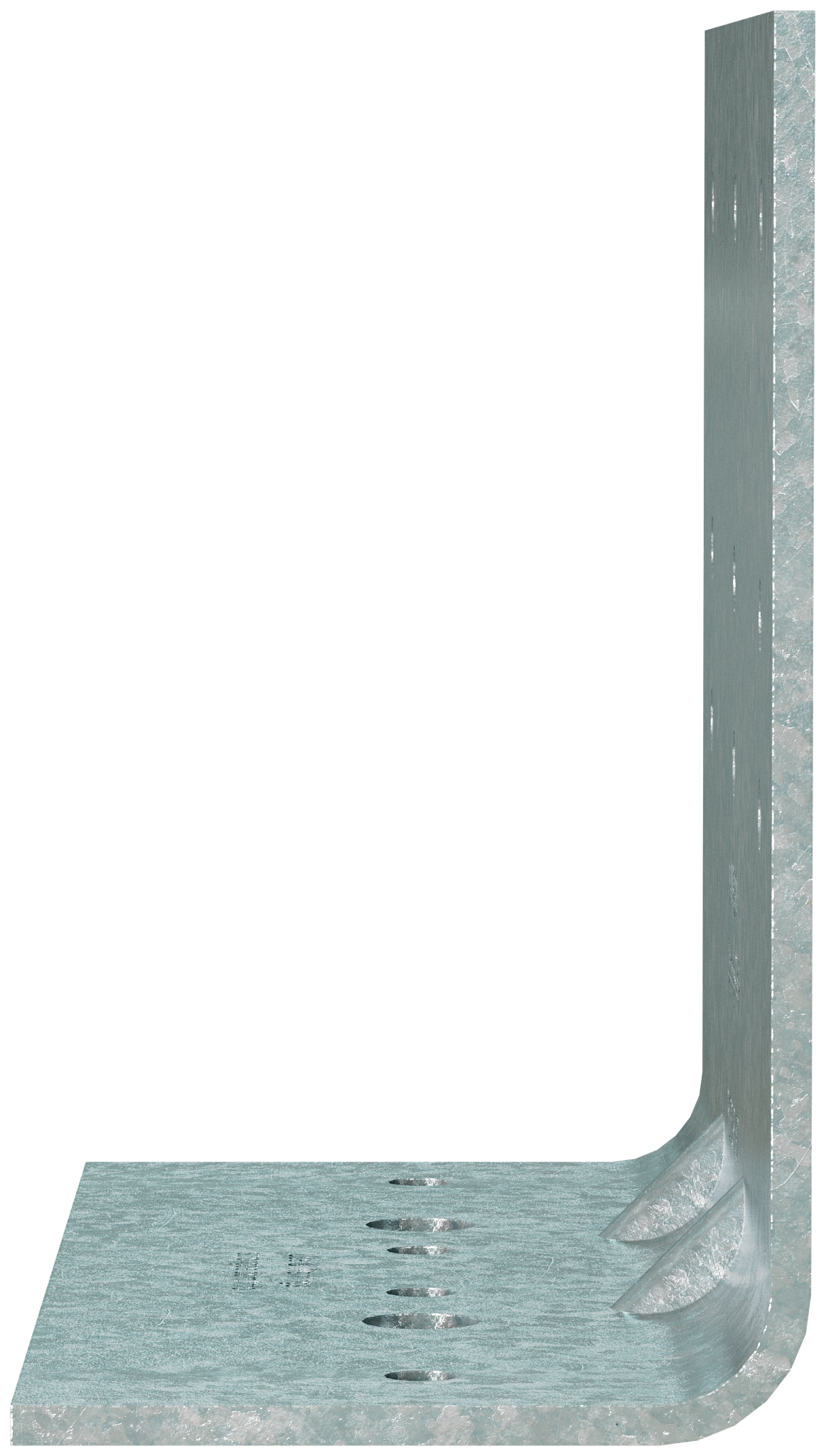

• Embossments in the bend line provide increased strength and stiffness in the F1 and F2 load directions, but are positioned towards the center of the clip so that 1-1/2 in. long welds can be applied at the top and bottom of the clip

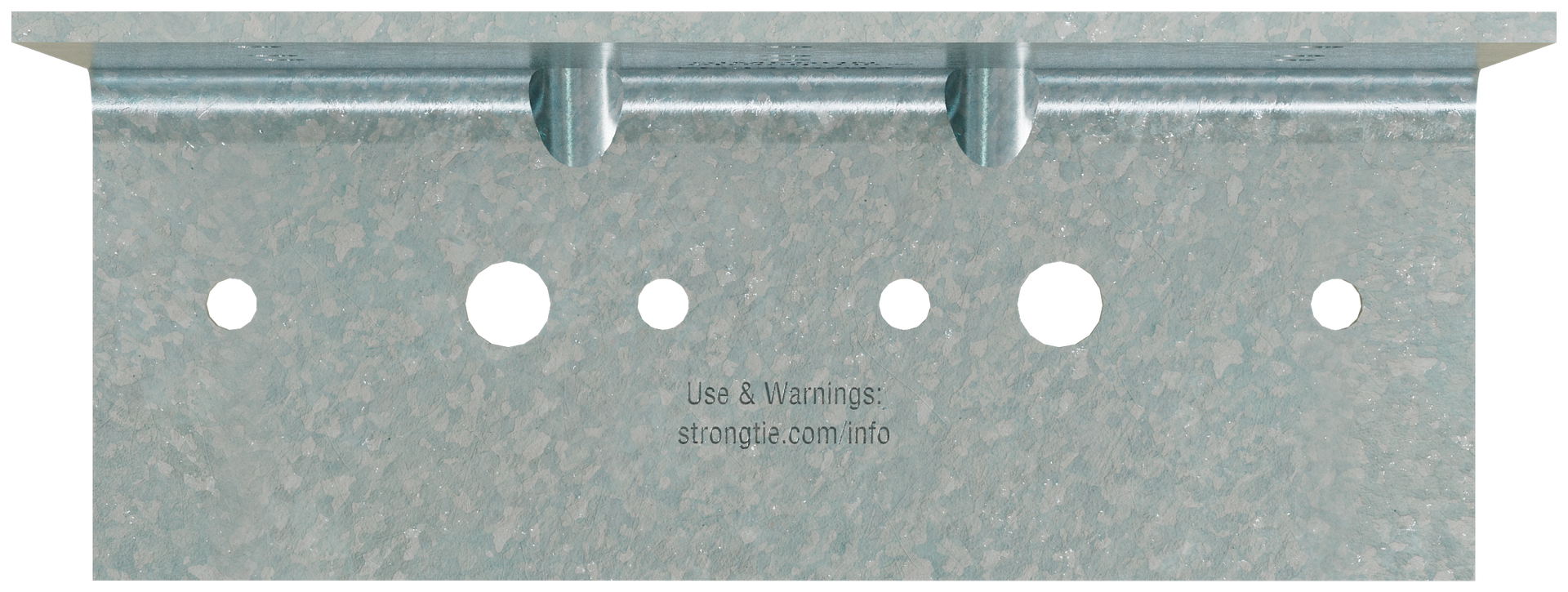

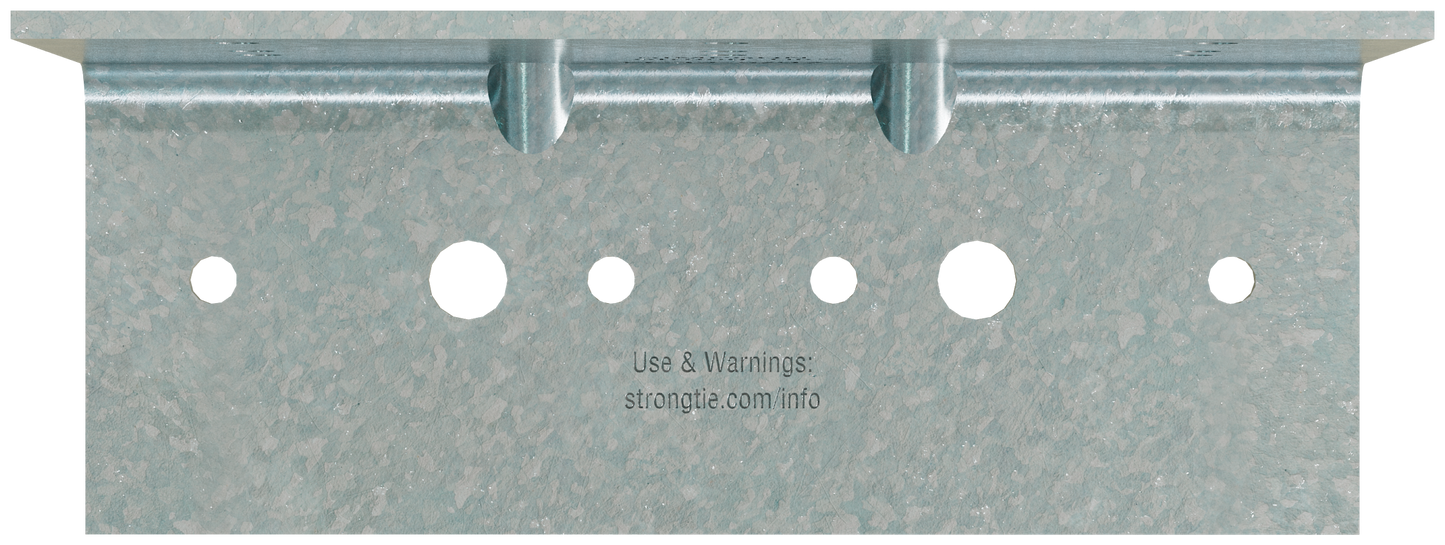

• Prepunched large-diameter anchor holes accommodate 1/4-in. diameter concrete screws like the Simpson Strong-Tie Titen HD® screw anchor
• Prepunched small-diameter anchor holes accommodate powder-actuated fasteners like the 0.157-in. diameter Simpson Strong-Tie PDPAT or #12 self-drilling Simpson Strong-Tie Strong-Drive® XL Large-Head Metal screw
• Made from 12-gauge (97-mil) steel
• Galvanized (G90) for extra corrosion resistance
• Length: 3-1/2 in.
• Quantity: 25

Specifications

• ERP Part Number: FC32-5/97-R25
• UPC: 707392474838
• GTIN: 707392474838
• Feature 01: Intended to be used with 3-5/8 in. studs
• Feature 02: The maximum standoff distance is 1 in. for 3-5/8 in. studs
• Feature 03: Embossments in the bend line provide increased strength and stiffness in the F1 and F2 load directions, but are positioned towards the center of the clip so that 1-1/2 in. long welds can be applied at the top and bottom of the clip
• Feature 04: Prepunched large-diameter anchor holes accommodate 1/4-in. diameter concrete screws like the Simpson Strong-Tie Titen HD® screw anchor
• Feature 05: Prepunched small-diameter anchor holes accommodate powder-actuated fasteners like the 0.157-in. diameter Simpson Strong-Tie PDPAT or #12 self-drilling Simpson Strong-Tie Strong-Drive® XL Large-Head Metal screw
• Feature 06: Made from 12-gauge (97-mil) steel
• Feature 07: Galvanized (G90) for extra corrosion resistance
• Feature 08: Length: 3-1/2 in.
• Feature 09: Quantity: 25
• Install With: #10 self-drilling screws to stud per designer, and anchorage to structure by designer
• Assembled Depth - Imperial: 1.94275
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 3.474
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 5
• Assembled Width UOM - Imperial: in.
• Base Product ID: FC_FClip
• Base Product Name: FC
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Cold-Formed Steel Connectors > Rigid Connectors > Clip
• Coating: Zinc Galvanized, G90
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: PAC
• EAN category: UC
• Finish: Zinc Galvanized, G90
• Gauge: 12
• GUID: 210712061023447511621197474412290395014
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: Pack
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 10.31
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 7.81
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 4.38
• Package Width UOM - Imperial: in.
• Packaging Quantity: 25
• Packaging Type: Box
• Product Class: Clip
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 19.1
• Short Product Name: CFS RIGID CLIP 2 X 3.5 X 5 12GA 25 PAK
• Strongtie.com URL: https://www.strongtie.com/rigidconnectors_coldformedsteelconstruction/fc_fclip/p/fc
• Subcategory: Cold-Formed Steel Connectors
• Subcategory 2: Rigid Connectors
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• PAL Reference: 50707392474833
