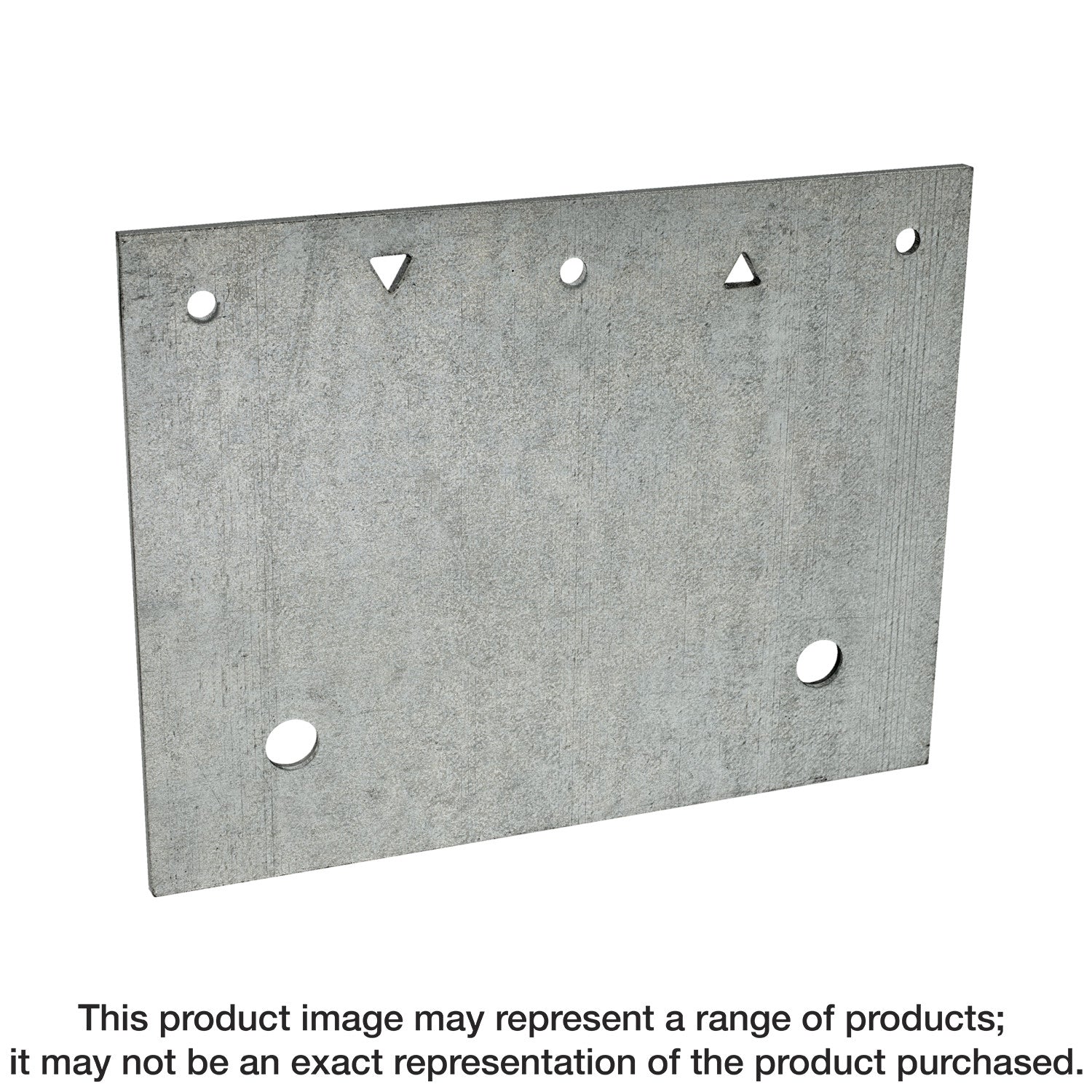

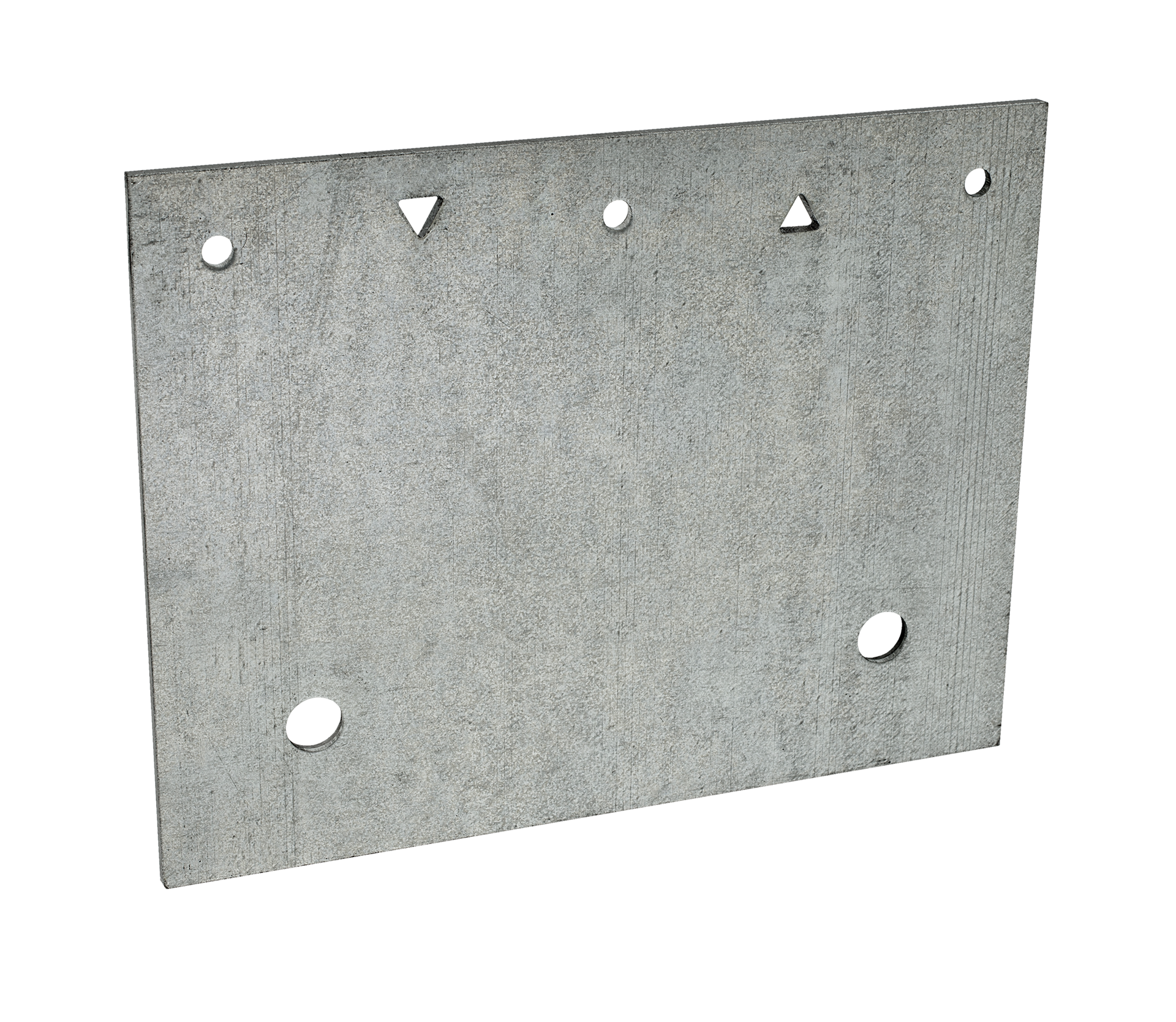

Simpson Strong-Tie FRFPHDG FRFP® 7 in. x 9 in. HDG Retrofit Foundation Plate (Pack of 5)

Help protect your foundation from earthquakes and high winds with the FRFP® retrofit foundation plate. The next generation FRFP flat retrofit foundation plate connects the mudsill to the foundation and provides lateral load resistance. This design allows the Designer to maintain the same prescriptive requirements when filling the original three holes, or as an alternate, fill the newly added two optional triangle holes and utilize increased loads and greater allowable spacing.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Ideal where the mudsill is flush to the inside of the foundation (or up to 1-1/2 in. set back)
• When the two optional holes are filled, the plate offers increased loads and can be spaced farther apart
• When all five holes are filled, the FRFP is a one-for-one replacement for 5/8-in. anchor bolts
• Width: 9 in.
• Height: 7 in.
• Made from 7-gauge steel
• Hot-dip galvanization (HDG) offers extra corrosion resistance for exterior and treated-wood applications

Specifications

• ERP Part Number: FRFPHDG
• UPC: 10707392320569
• GTIN: 10707392320569
• Feature 01: Ideal where the mudsill is flush to the inside of the foundation (or up to 1-1/2 in. set back)
• Feature 02: When the two optional holes are filled, the plate offers increased loads and can be spaced farther apart
• Feature 03: When all five holes are filled, the FRFP is a one-for-one replacement for 5/8-in. anchor bolts
• Feature 04: Width: 9 in.
• Feature 05: Height: 7 in.
• Feature 06: Made from 7-gauge steel
• Feature 07: Hot-dip galvanization (HDG) offers extra corrosion resistance for exterior and treated-wood applications
• Assembled Depth - Imperial: 0.186
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 7
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 9
• Assembled Width UOM - Imperial: in.
• Base Product ID: FRFP_Plate
• Base Product Name: FRFP®
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Concrete Connectors and Anchors > Foundation Anchors > Foundation Plate
• Country of Origin: US
• Customer Unit: No
• Display Unit/Measure: CAR
• EAN category: IC
• GUID: 75543793116176717356354551851727488455
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: Carton
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Product Class: Foundation Plate
• Prop 65 Warning: No
• Quantity: 5
• Shipping Weight: 16.5
• Short Product Name: 7 X 9 FLAT RETROFIT FOUNDATION PLATE HDG
• Strongtie.com URL: https://www.strongtie.com/foundationanchors_concreteconnectorsandanchors/frfp_plate/p/frfp
• Subcategory: Concrete Connectors and Anchors
• Subcategory 2: Foundation Anchors
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• EA Reference: 707392320562
• PAL Reference: 50707392320567
