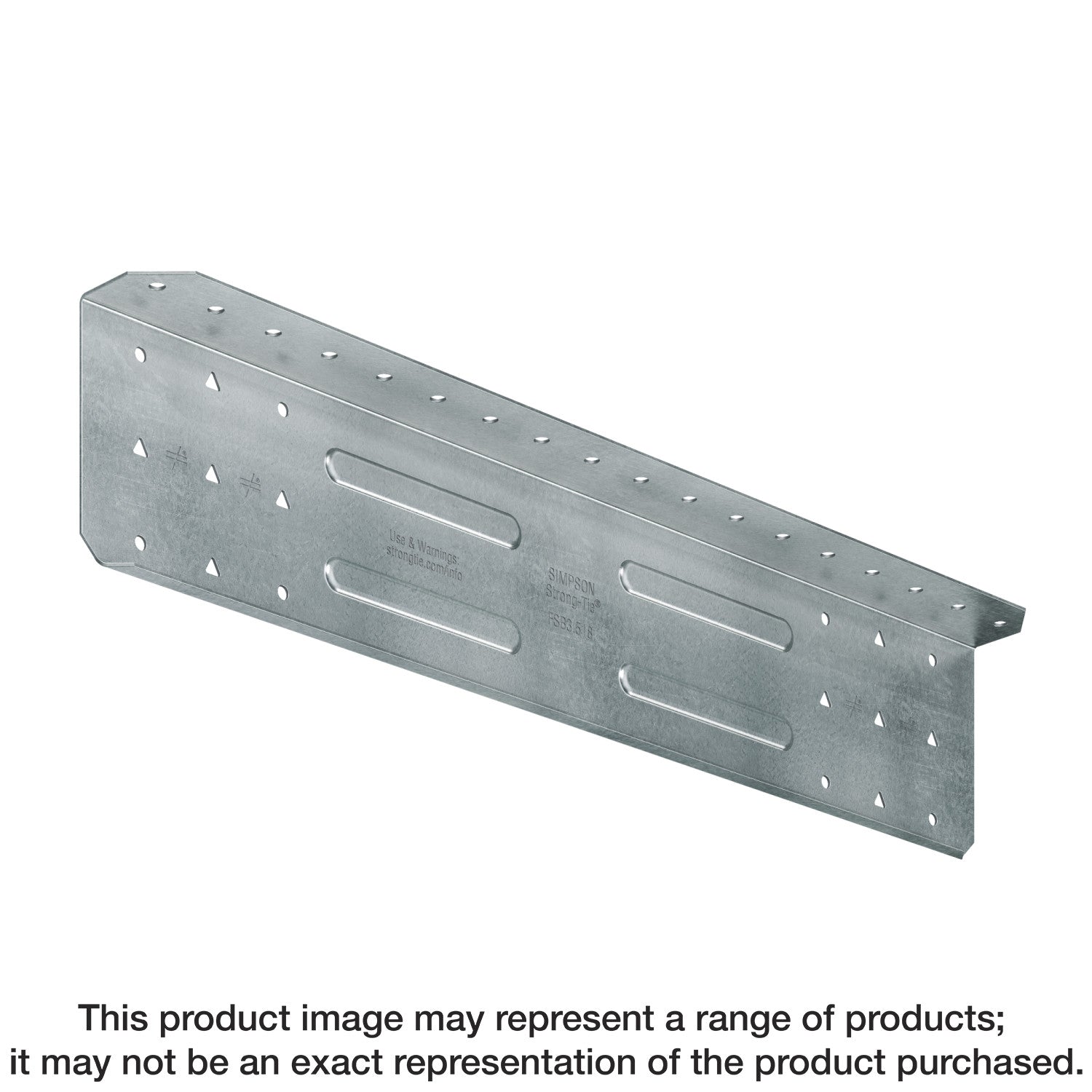

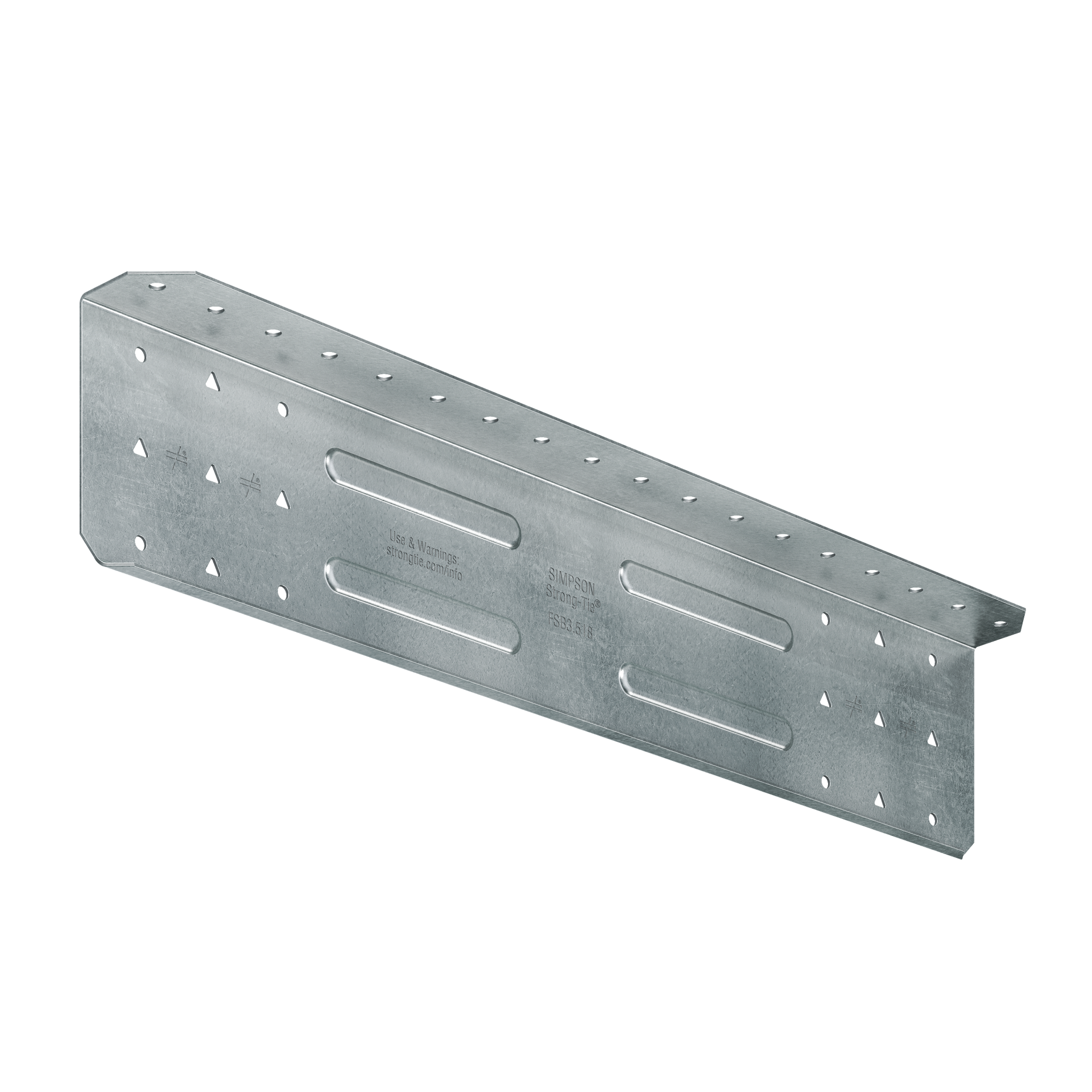

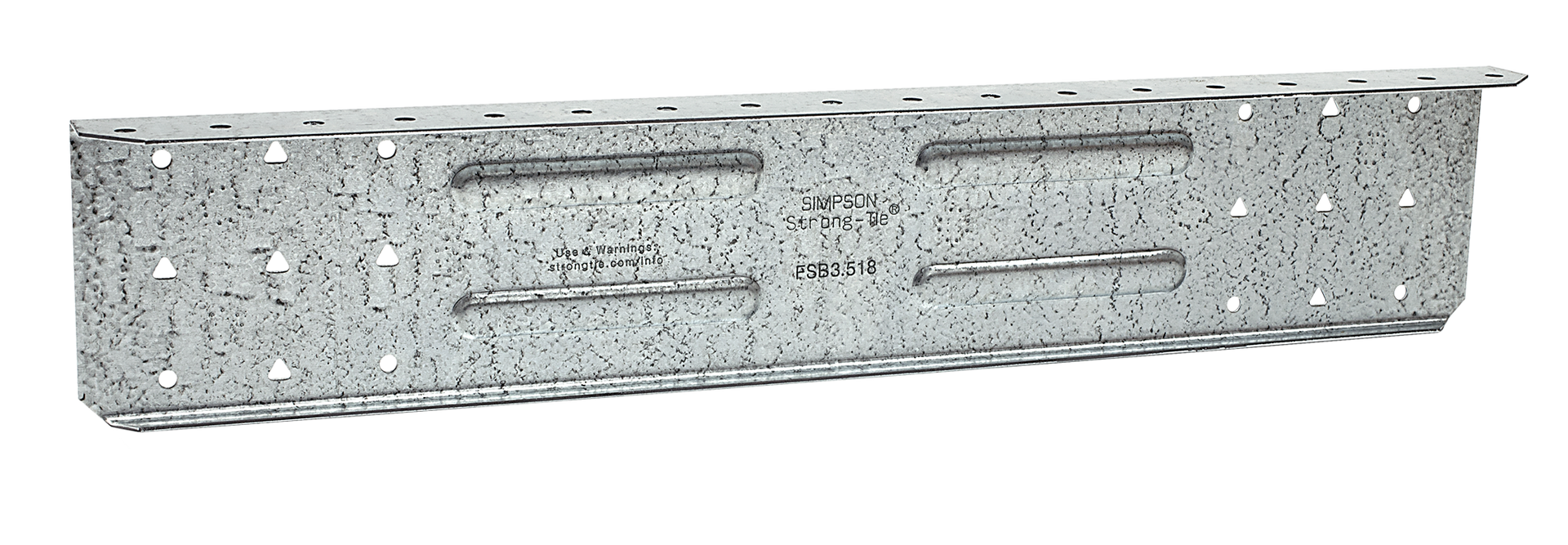

Simpson Strong-Tie FSB3.518-R25 FSB Bypass Framing Fixed-Clip Strut Connector (Qty-25)

Simpson Strong-Tie® rigid connectors for cold-formed steel construction deliver the increased load capacity needed for steel applications. These steel connectors are ideal to use in all projects to support load-bearing walls. The FSB connector is the fixed-clip version of the popular Simpson Strong-Tie SSB slide-clip strut connector. The FSB is commonly used at the bottom flange of a steel beam to accommodate large standoff distances for bypass curtain-wall studs.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• If the FSB intrudes on interior space, it can be trimmed; the trimmed part shall allow an edge distance of 1/2 in. or greater from the center of the nearest anchor to the end of the trimmed part
• 18 in. length x 3-1/2 in. high
• Made from 54 mil (16 ga.) steel
• Galvanized (G90) for corrosion resistance
• Quantity: 25 per package

Application

• Curtain-Wall Construction
• Bypass
• Cold-Formed Steel

Specifications

• ERP Part Number: FSB3.518-R25
• UPC: 707392844860
• GTIN: 707392844860
• Feature 01: If the FSB intrudes on interior space, it can be trimmed; the trimmed part shall allow an edge distance of 1/2 in. or greater from the center of the nearest anchor to the end of the trimmed part
• Feature 02: 18 in. length x 3-1/2 in. high
• Feature 03: Made from 54 mil (16 ga.) steel
• Feature 04: Galvanized (G90) for corrosion resistance
• Feature 05: Quantity: 25 per package
• Install With: Fasteners may vary by application; refer to Simpson Strong-Tie® catalog or strongtie.com
• Applications List: Curtain-Wall Construction
• Applications List.1: Bypass
• Applications List.2: Cold-Formed Steel
• Assembled Depth - Imperial: 1.625
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 3.50
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 18
• Assembled Width UOM - Imperial: in.
• Base Product ID: FSB_Connect
• Base Product Name: FSB
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Cold-Formed Steel Connectors > Rigid Connectors > Connector
• Coating: Zinc Galvanized, G90
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• Finish: Zinc Galvanized, G90
• Gauge: 16
• GUID: 142901677788425637481919774073445943818
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 1.63
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 3.50
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 18
• Package Width UOM - Imperial: in.
• Packaging Quantity: 25
• Product Class: Connector
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 42
• Short Product Name: BY-PASS FIXED STRUT 3.5 X 18 25PAK
• Strongtie.com URL: https://www.strongtie.com/rigidconnectors_coldformedsteelconstruction/fsb_connect/p/fsb
• Subcategory: Cold-Formed Steel Connectors
• Subcategory 2: Rigid Connectors
• US Patents: 8,555,592
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• PAL Reference: 50707392844865
