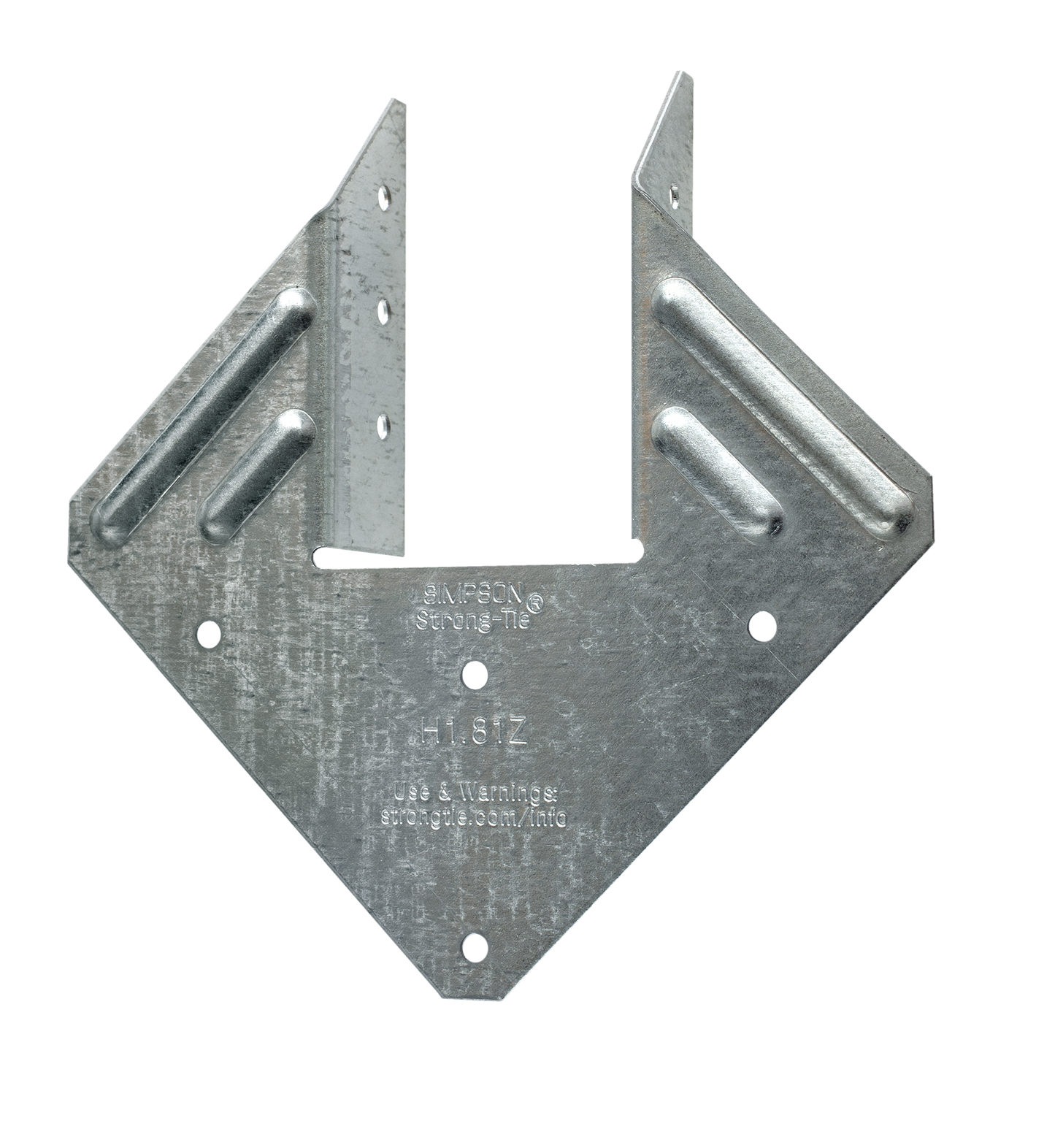

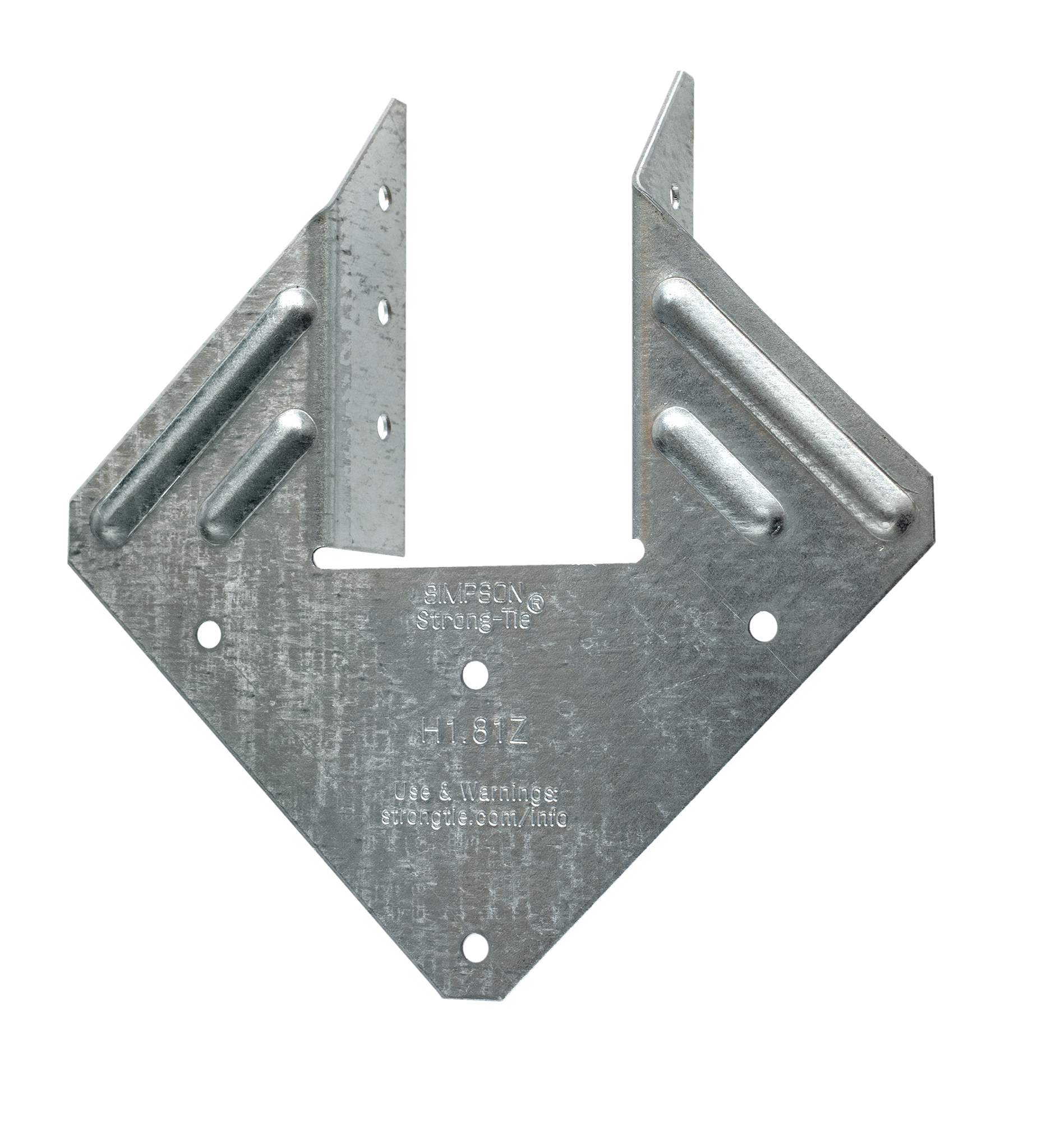

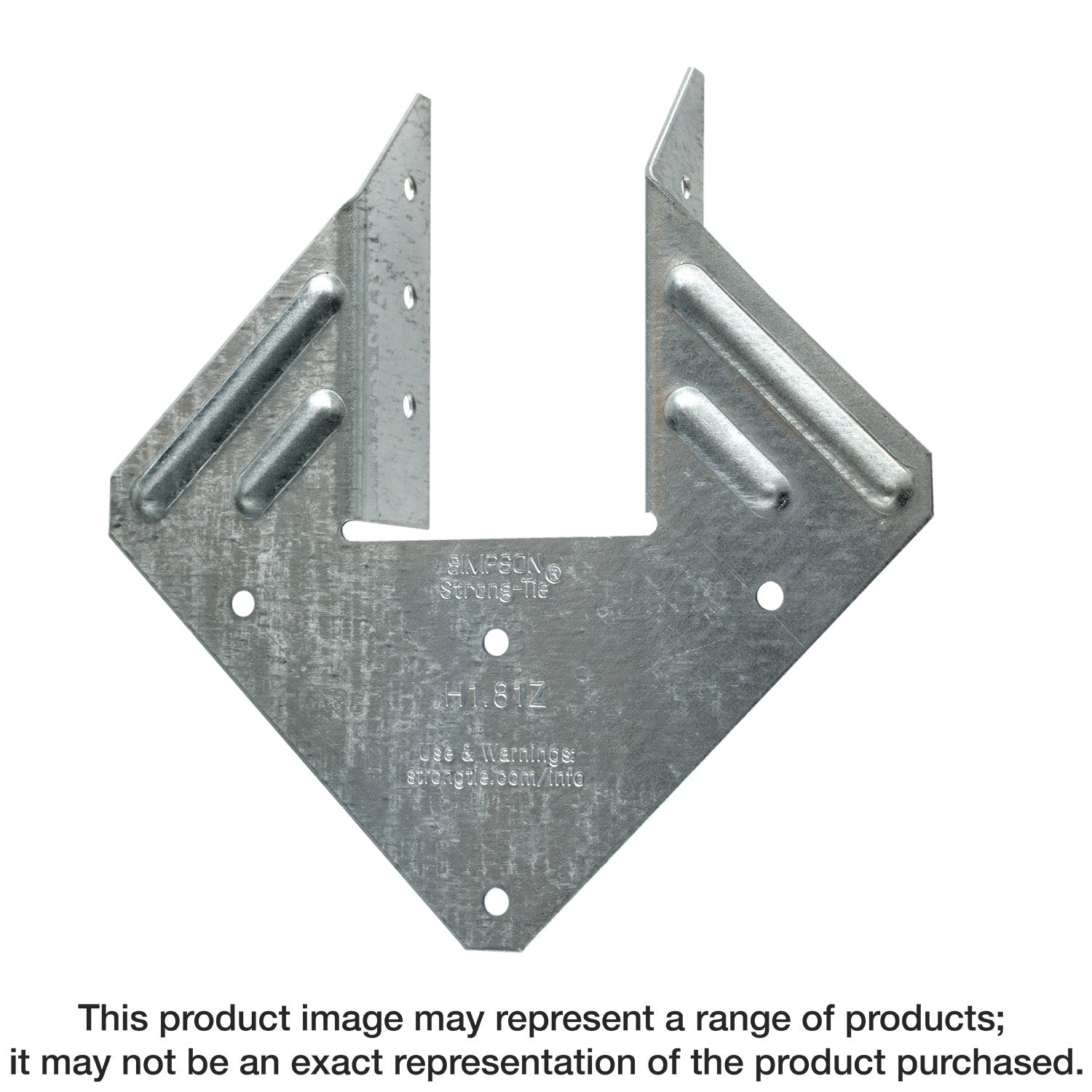

Simpson Strong-Tie H1.81Z H1.81 18-Gauge ZMAX® Galvanized Hurricane Tie

The Simpson Strong-Tie® H1.81Z hurricane tie is designed for use with 1-3/4 in. LVL roof rafters to provide a stronger connection to the top plate of the wall. It’s ideal for connections when there are higher-load demands on the structure, like a heavy snow load, and provides lateral resistance in a seismic event. The 1-3/4 in. wide H1.81Z connector is the first hurricane tie to be specifically sized for engineered wood. The H1.81Z installs with half the nails that are needed for two single-sided twist straps and offers a higher lateral allowable load, making it a cost-effective and higher-performing solution to tie down an LVL roof.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Wider seat to fit 1-3/4 in. LVL rafters
• Both side faces connect to the joist for better support
• Can be installed on inside or outside of wall, or both sides
• Connector embossments add stiffness in crucial areas for improved performance
• Fits popular 0.148 in. x 1-1/2 in. connector nails
• Made from 18-gauge steel
• ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications

Specifications

• ERP Part Number: H1.81Z
• UPC: 707392000433
• GTIN: 707392000433
• Feature 01: Wider seat to fit 1-3/4 in. LVL rafters
• Feature 02: Both side faces connect to the joist for better support
• Feature 03: Can be installed on inside or outside of wall, or both sides
• Feature 04: Connector embossments add stiffness in crucial areas for improved performance
• Feature 05: Fits popular 0.148 in. x 1-1/2 in. connector nails
• Feature 06: Made from 18-gauge steel
• Feature 07: ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
• Install With: Installs with 0.148 in. x 1-1/2 in. connector nails or #9 x 1-1/2 in. Simpson Strong-Tie® Strong-Drive® SD Connector screws
• Assembled Depth - Imperial: 0.8125
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 5.3125
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 5.3125
• Assembled Width UOM - Imperial: in.
• Base Product ID: H181_Tie
• Base Product Name: H1.81Z
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Straps and Ties > Tie
• Coating: ZMAX®
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Finish: ZMAX®
• Gauge: 18
• GUID: 19918227515988907681328312567595105775
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• Member Size: 1-3/4 in. width LVL
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Tie
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 0.23
• Short Product Name: HURRICANE TIE ZMAX 1.75 INCH
• Strongtie.com URL: https://www.strongtie.com/seismicandhurricaneties_strapsandties/h181_tie/p/h181z
• Subcategory: Wood Construction Connectors
• Subcategory 2: Straps and Ties
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 20707392000437
• PAL Reference: 60707392000435
