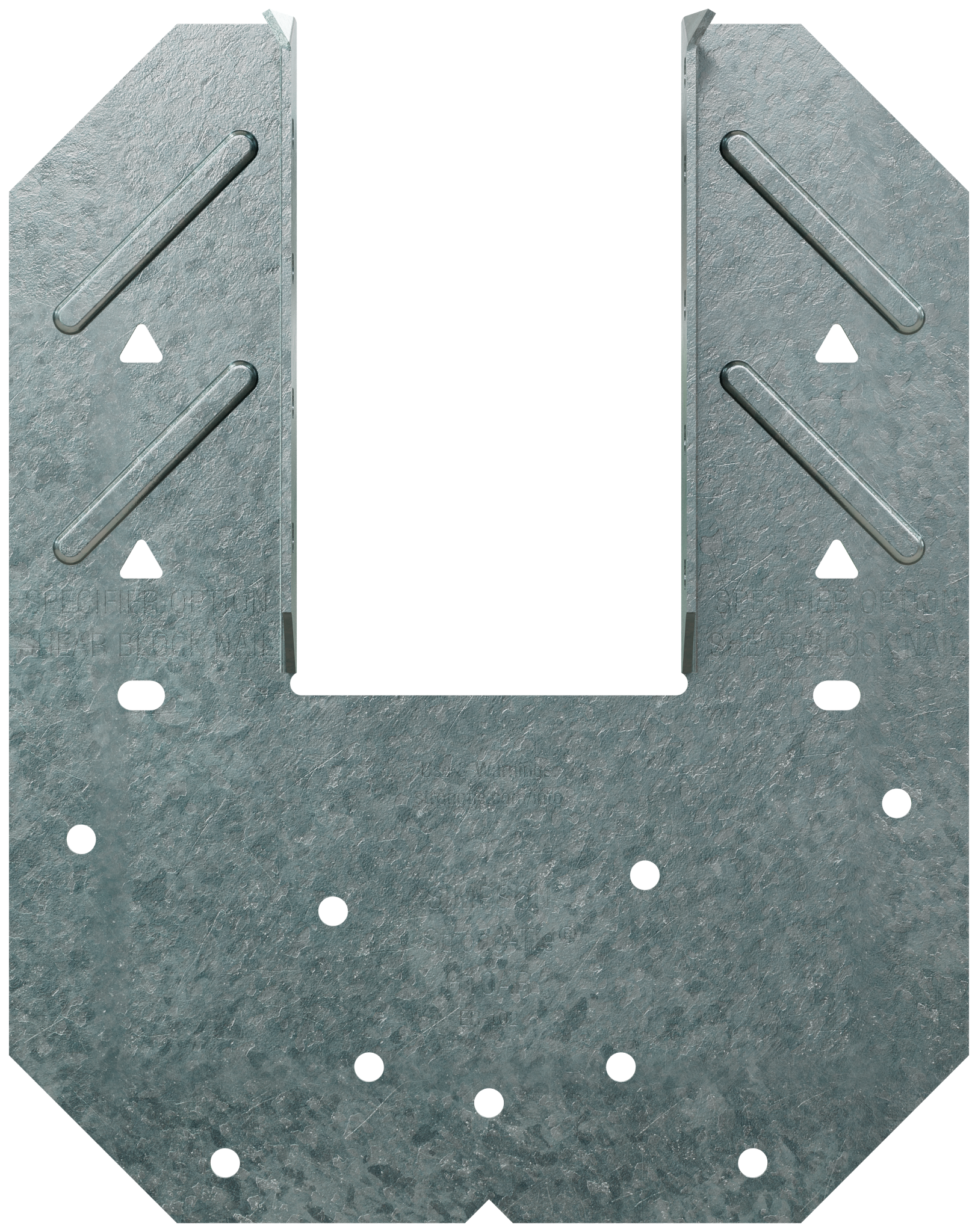

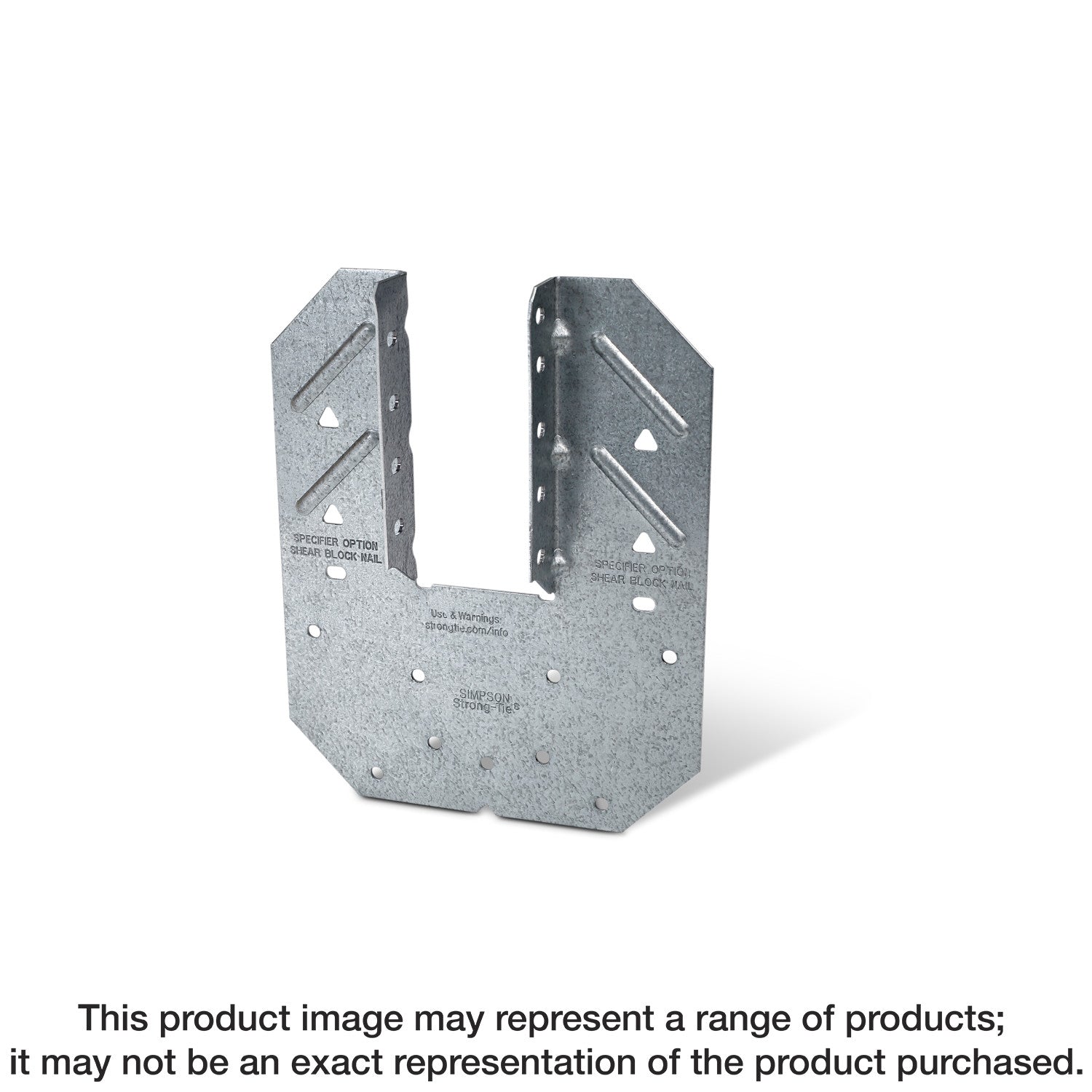

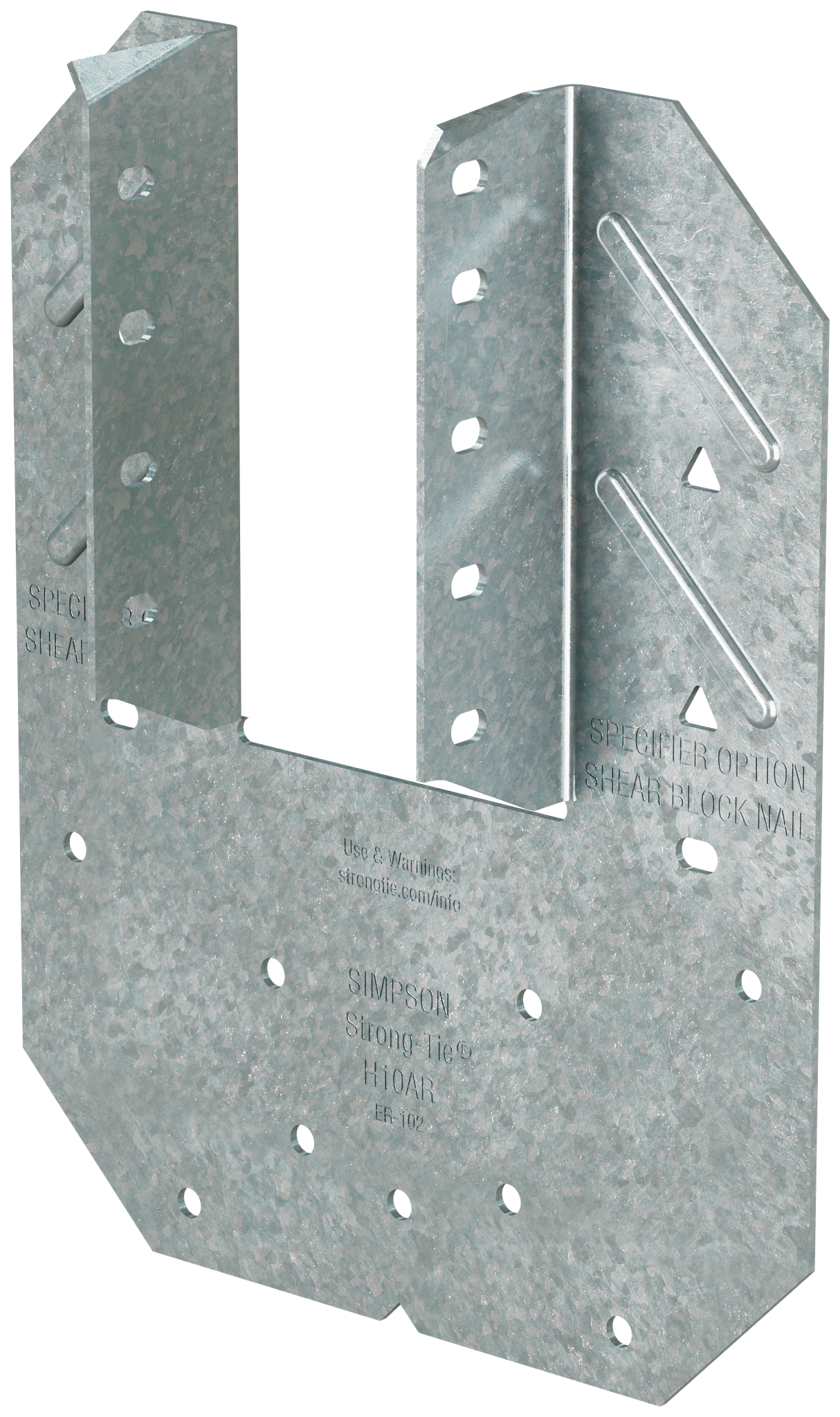

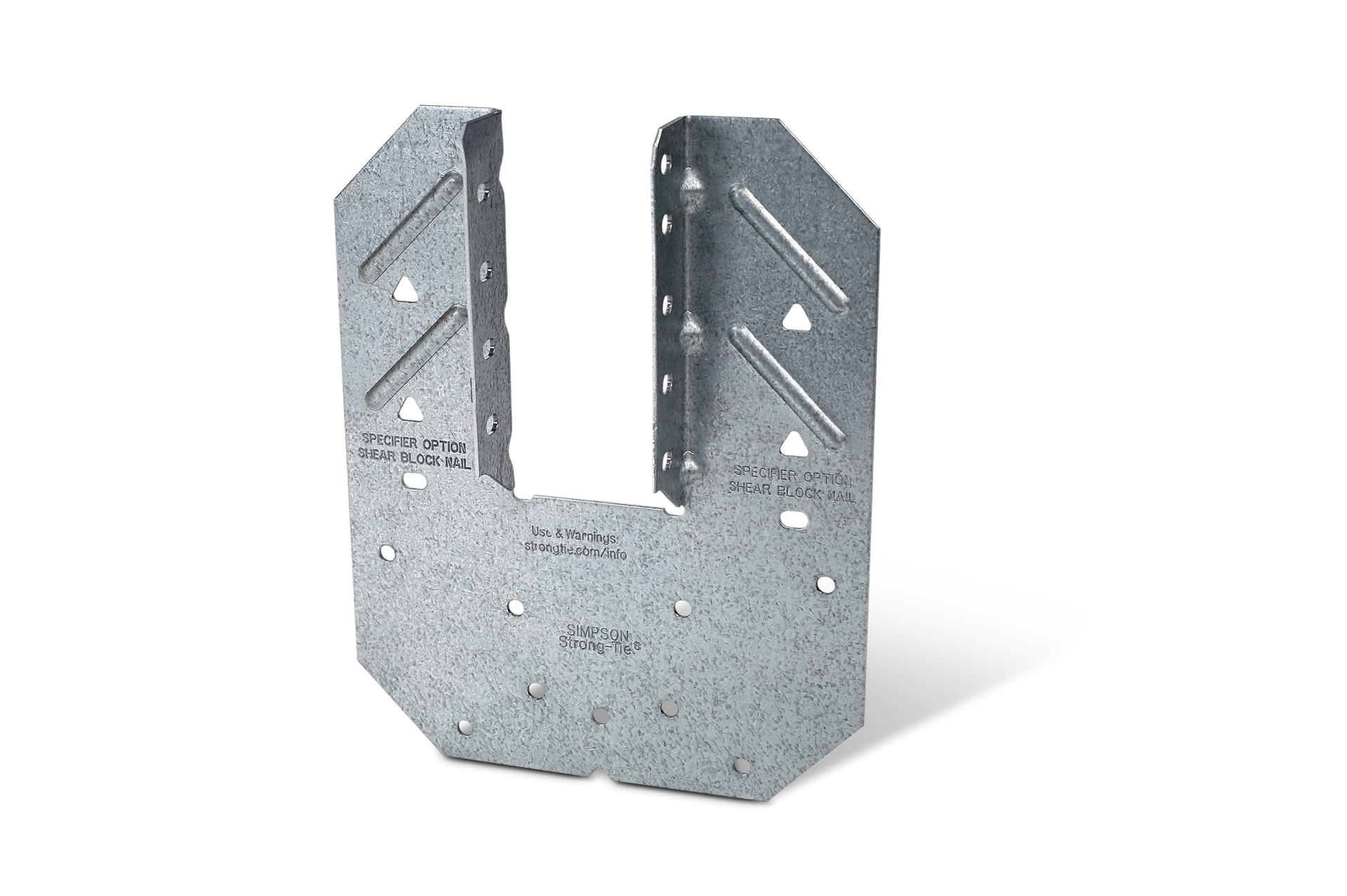

Simpson Strong-Tie H10AR H10AR 18-Gauge Galvanized Hurricane Tie

The H10A series holds the rafter or truss on both sides for higher uplift applications with embossments that add stiffness in crucial areas for improved performance. These U-shaped hurricane ties provide faster installation than using two single-sided ties. H10A models come with optional fastener holes to connect roof blocking to the top plate. Slots allow field bending up to a maximum pitch of 6:12 to accommodate angled blocking.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Forms part of a continuous load path to resist wind and seismic forces
• The H10AR model is designed for rough lumber
• Seat width: 2 in.
• Made from 18-gauge steel
• Galvanized (G90) for extra corrosion resistance

Specifications

• ERP Part Number: H10AR
• UPC: 707392430605
• GTIN: 707392430605
• Feature 01: Forms part of a continuous load path to resist wind and seismic forces
• Feature 02: The H10AR model is designed for rough lumber
• Feature 03: Seat width: 2 in.
• Feature 04: Made from 18-gauge steel
• Feature 05: Galvanized (G90) for extra corrosion resistance
• Install With: Install with (18) 0.148 in. x 1-1/2 in. nails
• Assembled Depth - Imperial: 1.07725
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 6.25
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 5
• Assembled Width UOM - Imperial: in.
• Base Product ID: H10A_HTie
• Base Product Name: H10A
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Straps and Ties > Tie
• Coating: Zinc Galvanized, G90
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Finish: Zinc Galvanized, G90
• Gauge: 18
• GUID: 141457464730683704168276982951754474038
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Tie
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 0.42
• Short Product Name: HURRICANE TIE
• Strongtie.com URL: https://www.strongtie.com/seismicandhurricaneties_strapsandties/h10a_htie/p/h10a
• Subcategory: Wood Construction Connectors
• Subcategory 2: Straps and Ties
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10707392430602
• PAL Reference: 50707392430600
