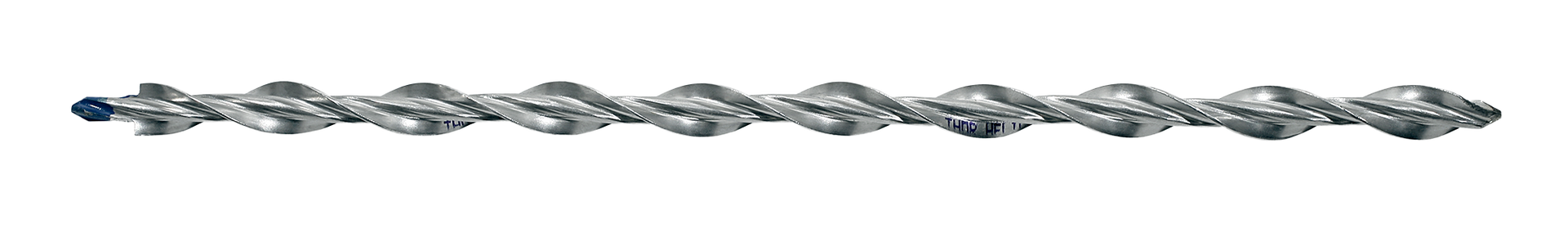

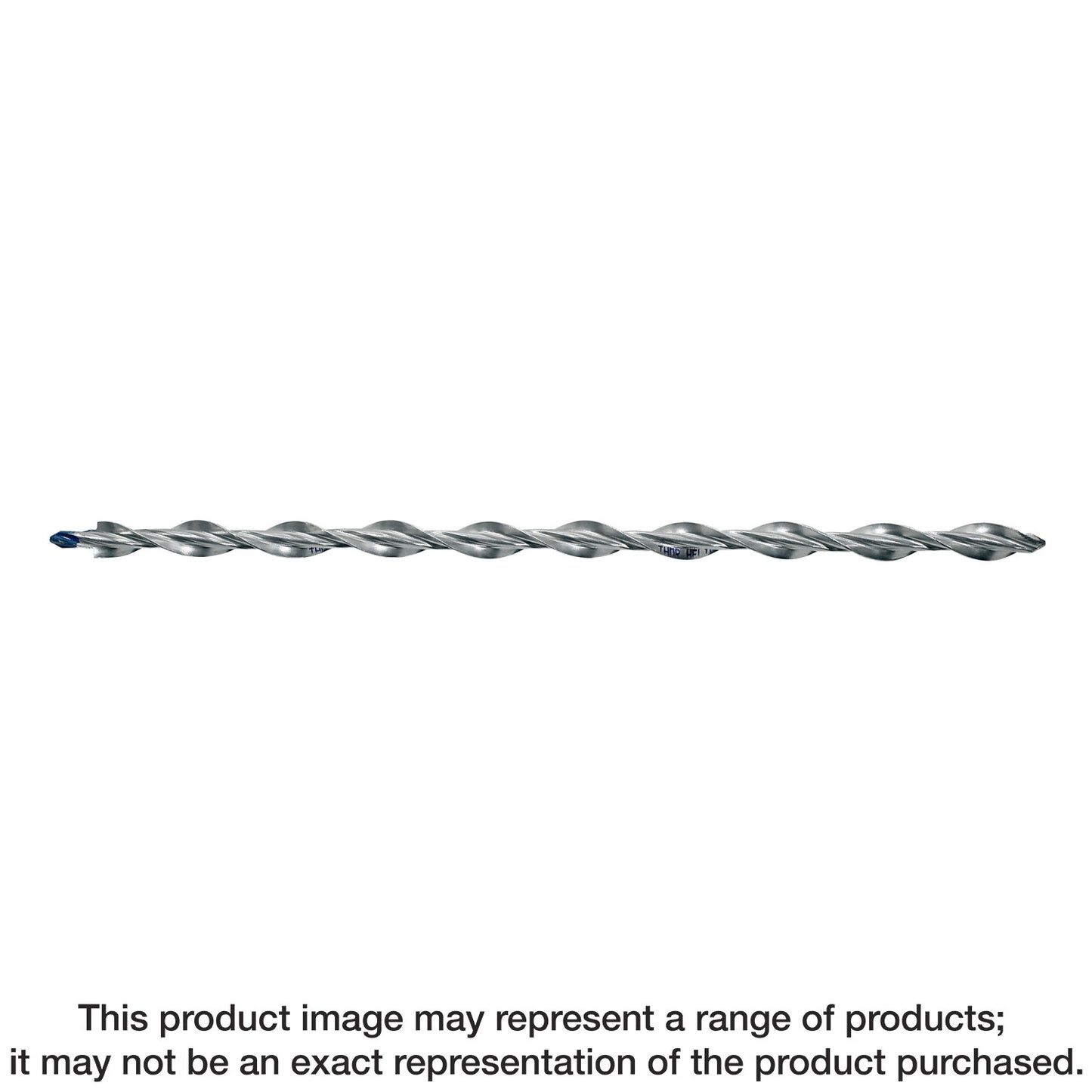

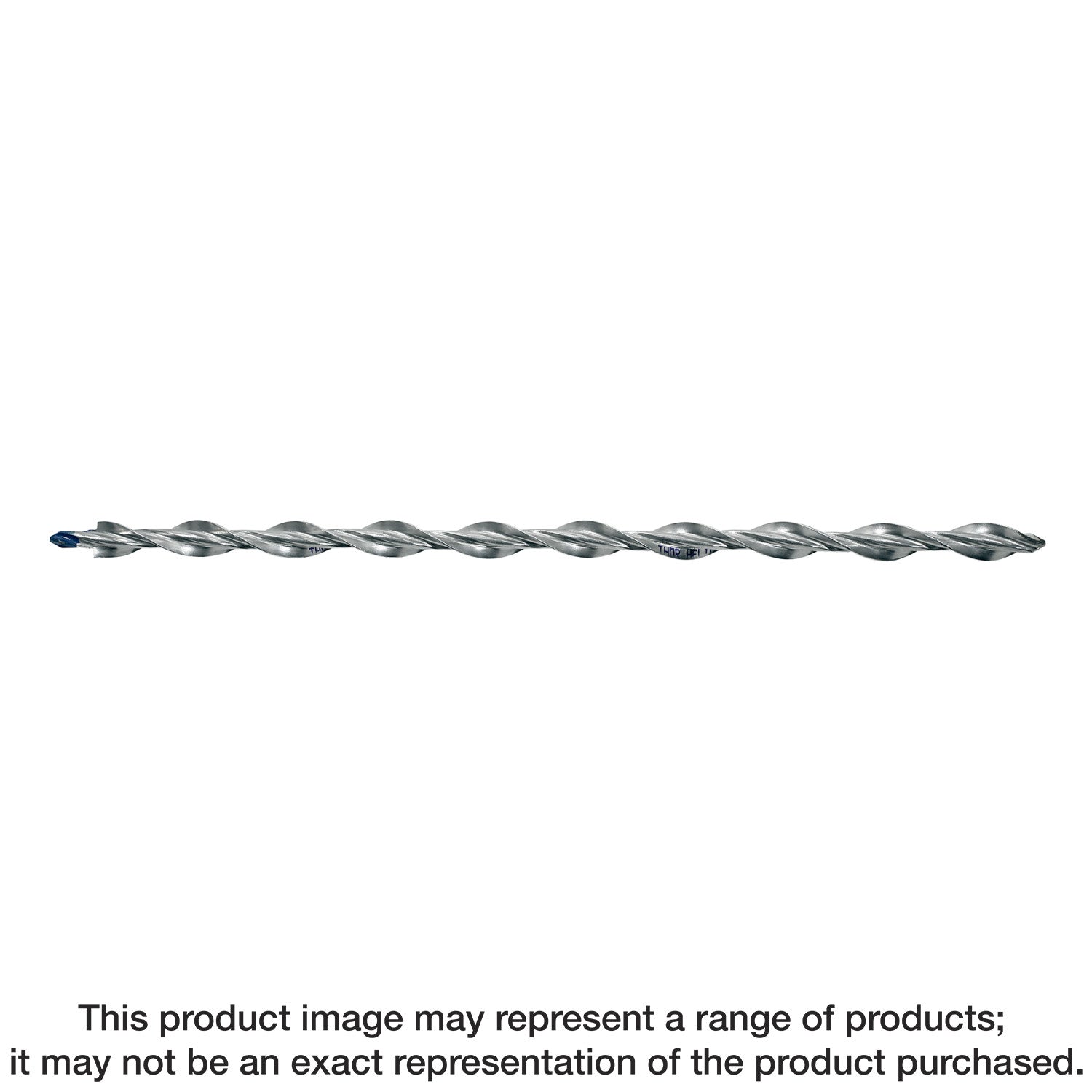

Simpson Strong-Tie HELI371400A Heli-Tie™ 3/8 in. x 14 in. Helical Wall Tie (50-Qty)

The Heli-Tie helical wall tie is a stainless-steel tie used to anchor building façades to structural members or to stabilize brick walls. The helical design allows the tie to be driven quickly and easily into a predrilled pilot hole (or embedded into mortar joints in new construction) to provide a mechanical connection between a masonry façade and its backup material. As it is driven, the fins of the tie undercut the masonry to provide an expansion-free anchorage that will withstand tension and compression loads. The Heli-Tie wall tie is installed into a predrilled hole using a proprietary setting tool with an SDS-plus® shank rotohammer to drive and countersink the tie. Heli-Tie wall ties perform in concrete and masonry as well as wood and steel studs.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Installs quickly and easily — with the rotohammer in hammer mode, the tie installs faster than competitive products
• Provides an inconspicuous repair that preserves the appearance of the building; after installation, the tie is countersunk up to 1/2" in. below the surface, allowing the tie location to be patched
• Larger core diameter provides higher torsional capacity, resulting in less deflection due to “uncoiling” under load
• Fractionally sized anchor — no metric drill bits required
• Length: 14 in.
• Required drill bit diameter: 7/32 in. or 1/4 in.
• Corrosion-resistant stainless steel
• Quantity: 50

Specifications

• ERP Part Number: HELI371400A
• UPC: 30707392850480
• GTIN: 30707392850480
• Feature 01: Installs quickly and easily — with the rotohammer in hammer mode, the tie installs faster than competitive products
• Feature 02: Provides an inconspicuous repair that preserves the appearance of the building; after installation, the tie is countersunk up to 1/2" in. below the surface, allowing the tie location to be patched
• Feature 03: Larger core diameter provides higher torsional capacity, resulting in less deflection due to “uncoiling” under load
• Feature 04: Fractionally sized anchor — no metric drill bits required
• Feature 05: Length: 14 in.
• Feature 06: Required drill bit diameter: 7/32 in. or 1/4 in.
• Feature 07: Corrosion-resistant stainless steel
• Feature 08: Quantity: 50
• Install With: Install with HELITOOL37A Heli-Tie fastener installation tool
• Assembled Depth - Imperial: 0.354
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 0.354
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 13.976
• Assembled Width UOM - Imperial: in.
• Base Product ID: HELI_Tie
• Base Product Name: Heli-Tie™ Helical Wall Tie
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Restoration Solutions > Helical Ties > Helical Tie
• Country of Origin: GB
• Customer Unit: Yes
• Diameter (in.): 3/8
• Display Unit/Measure: PAC
• Drill Bit Diameter (in.): 7/32 or 1/4
• Finish: Type 304 Stainless Steel
• GUID: 72085190322948701972683995177132414871
• Length (in.): 14
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Material: Type 304 Stainless Steel
• Measurement Unit Text: Pack
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Package Depth - Imperial: 17.125
• Package Depth UOM - Imperial: in.
• Package Height - Imperial: 2
• Package Height UOM - Imperial: in.
• Package Width - Imperial: 4.125
• Package Width UOM - Imperial: in.
• Packaging Quantity: 50
• Packaging Type: Box
• Product Class: Helical Tie
• Prop 65 - Cancer: Crystalline Silica
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Shipping Weight: 4.6
• Short Product Name: 3/8 X 14 304SS HELI-TIE HELICAL TIE
• Strongtie.com URL: https://www.strongtie.com/accessories_restorationsolutions/heli_tie/p/heli-tie
• Subcategory: Restoration Solutions
• Subcategory 2: Helical Ties
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 40707392850487
