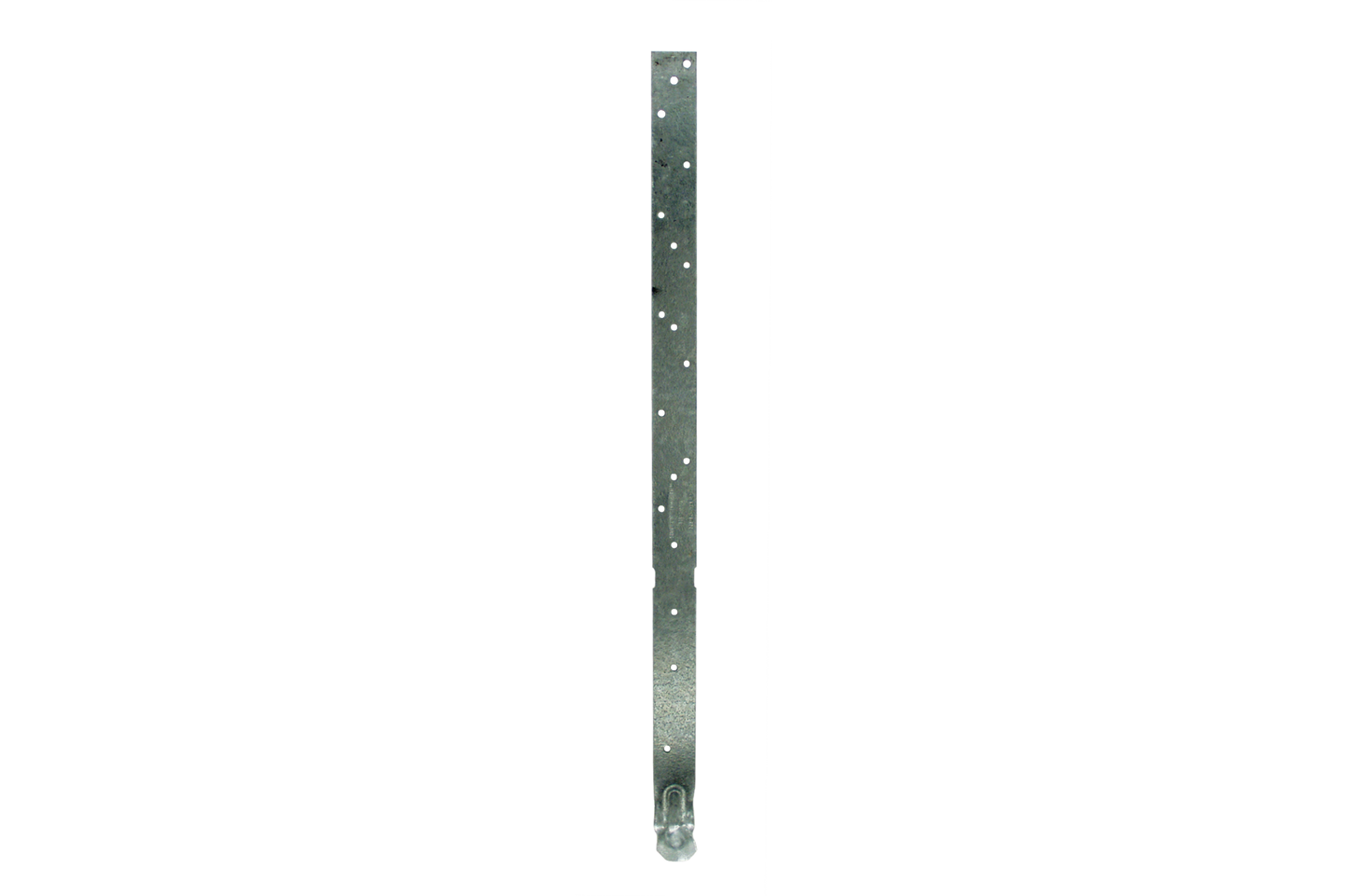

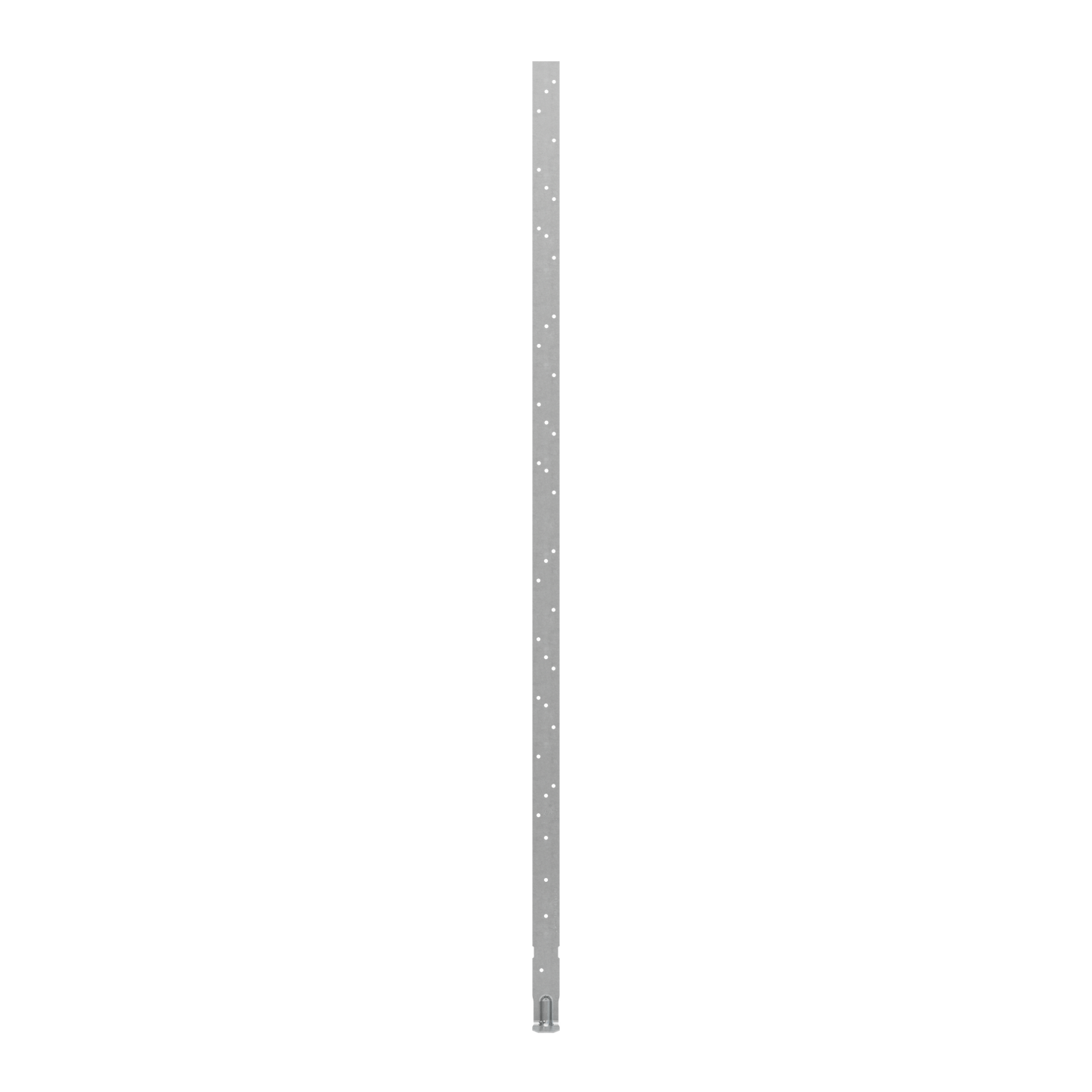

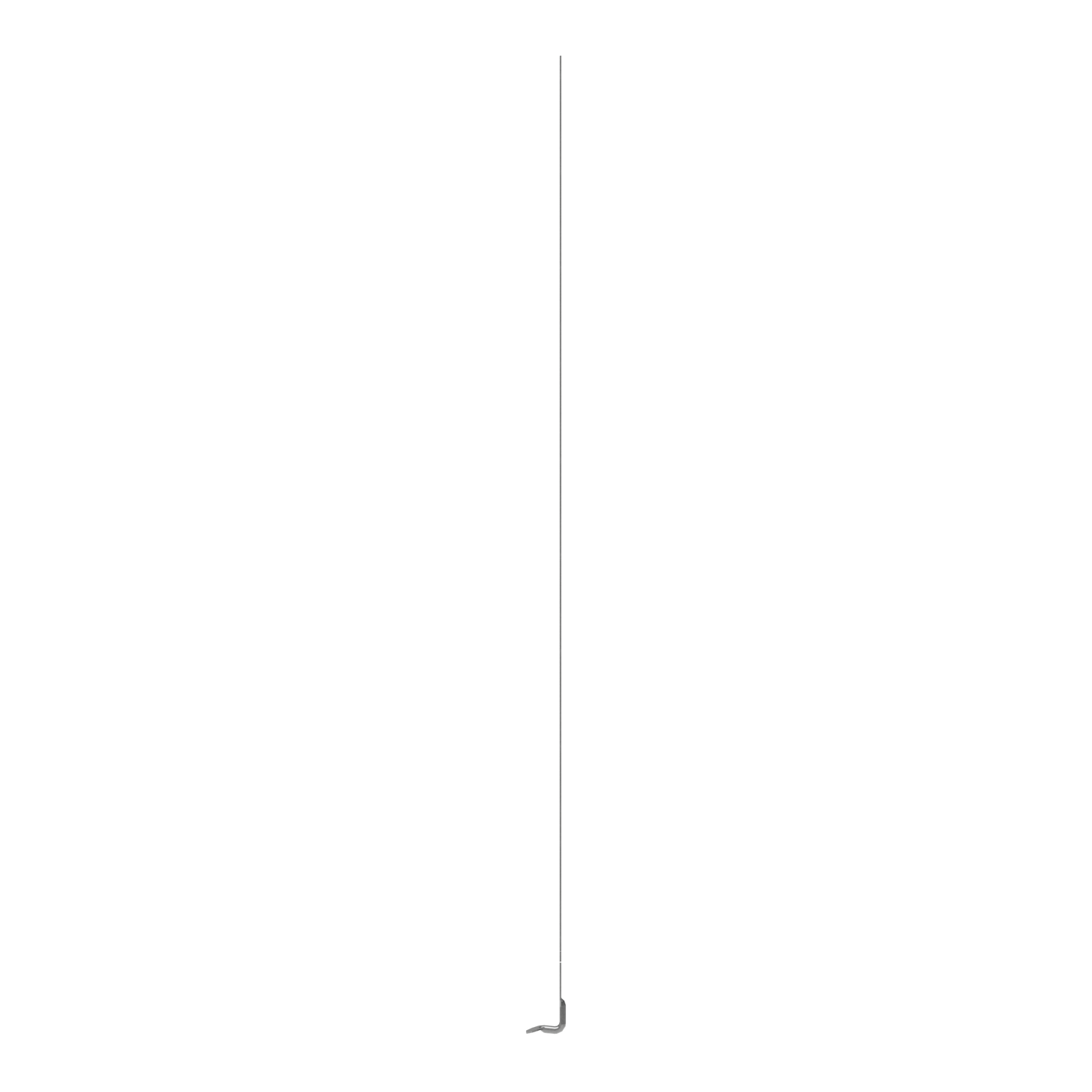

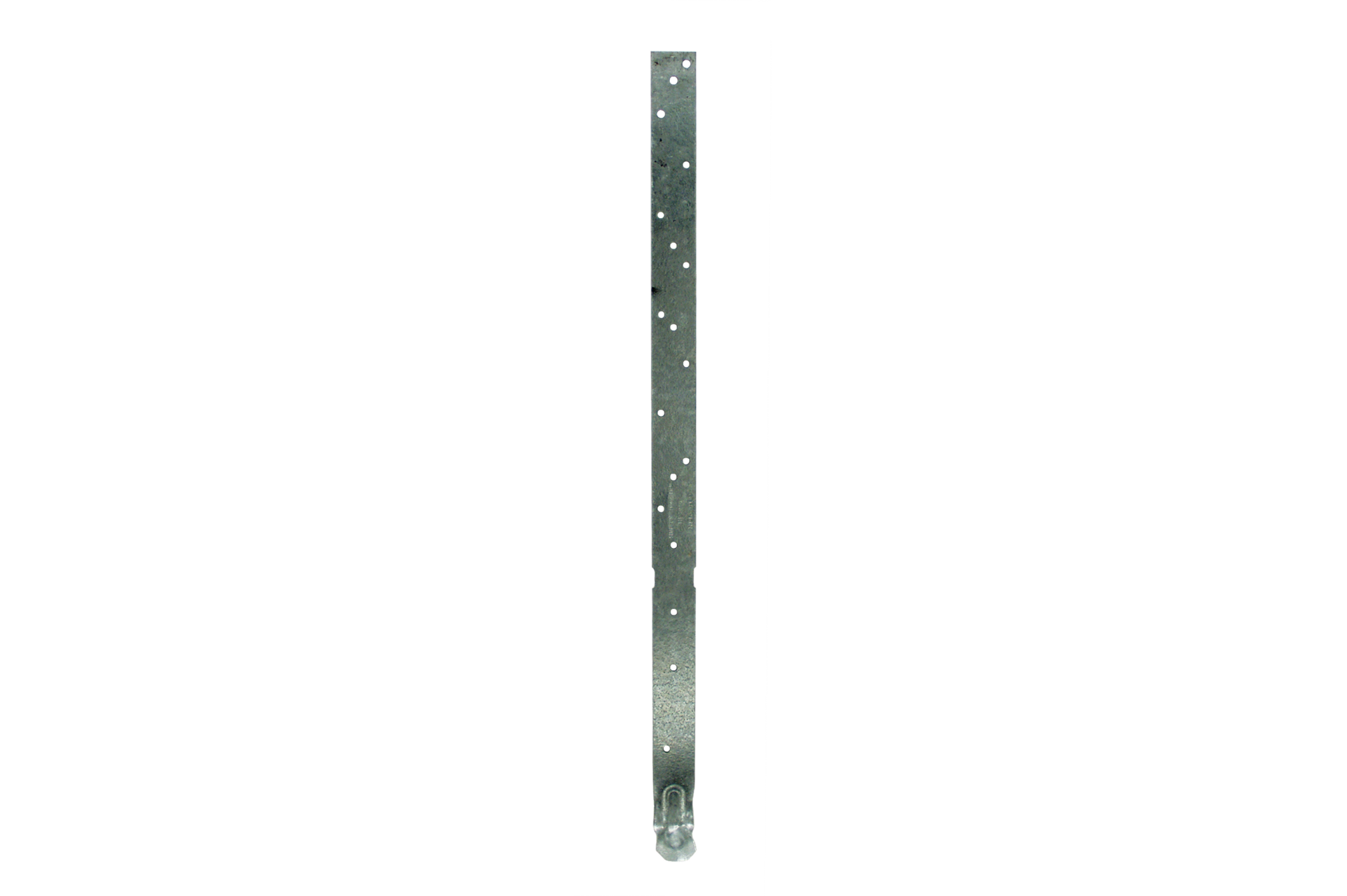

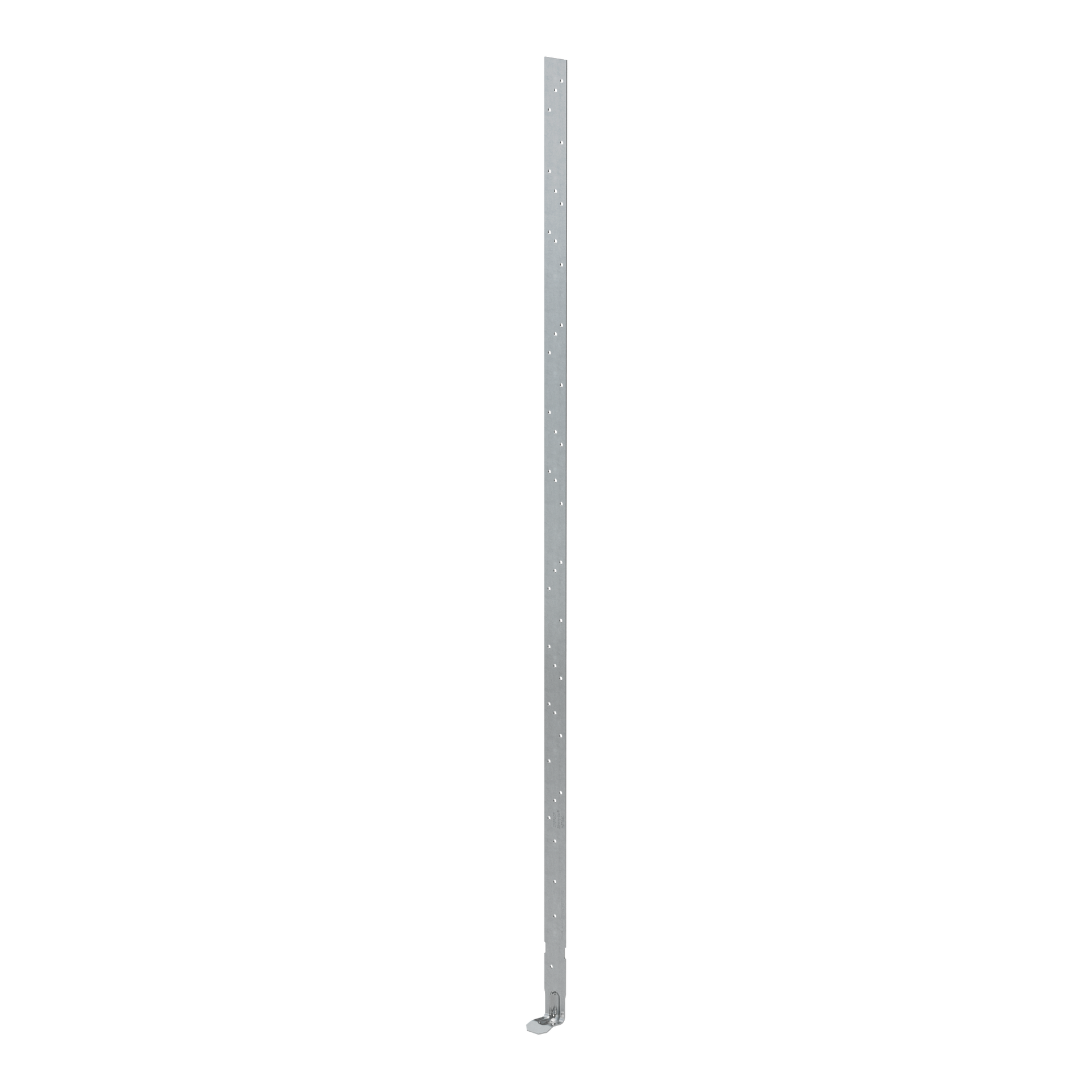

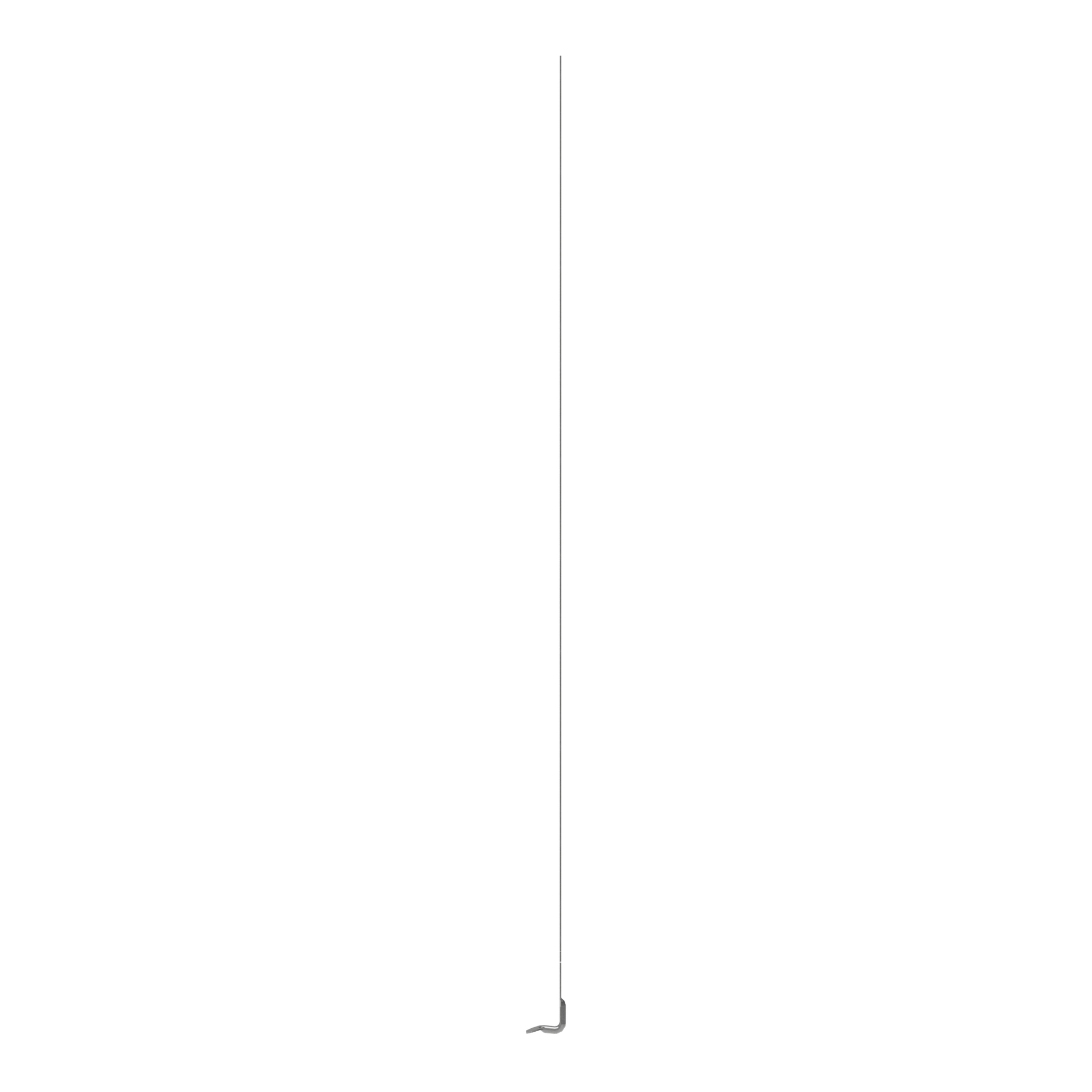

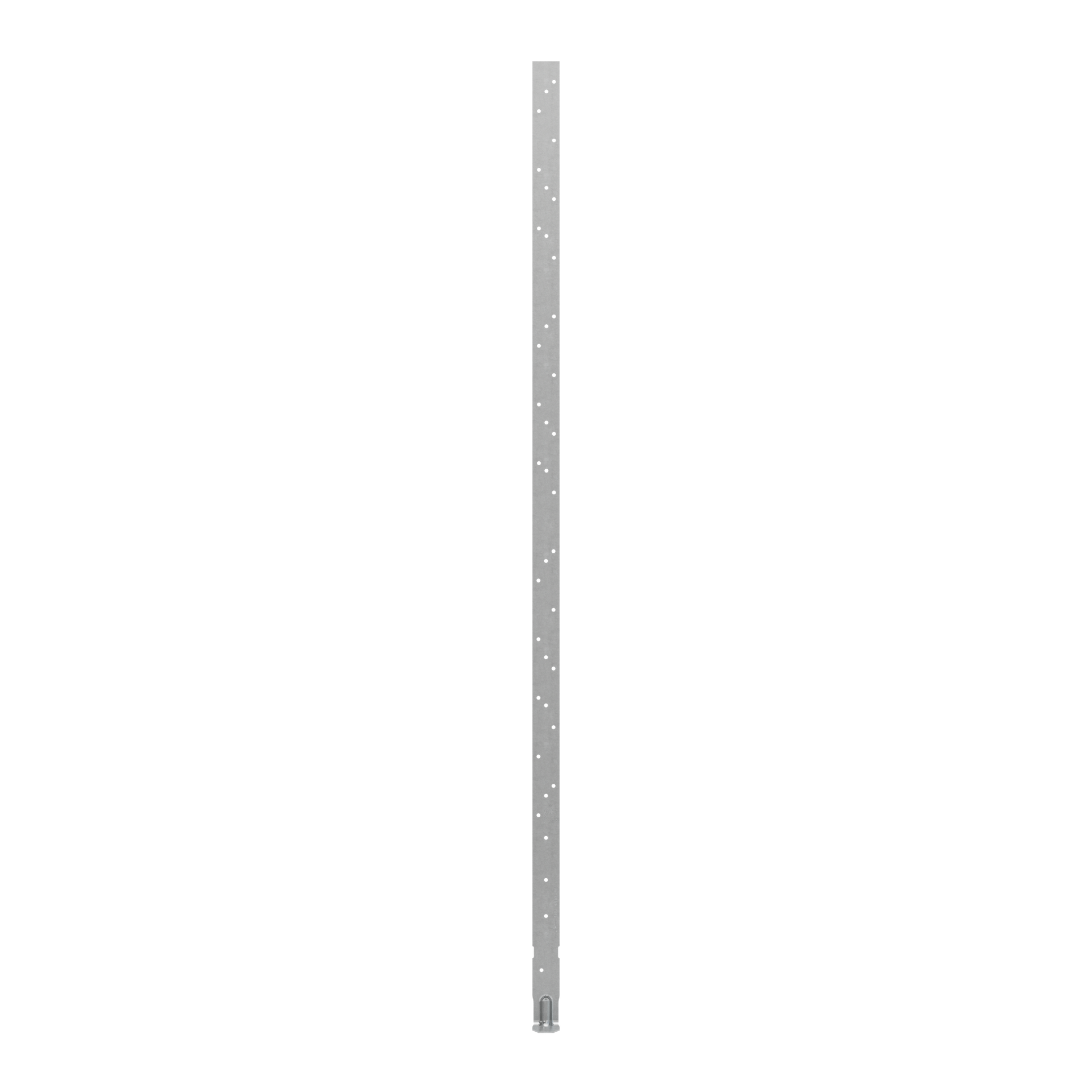

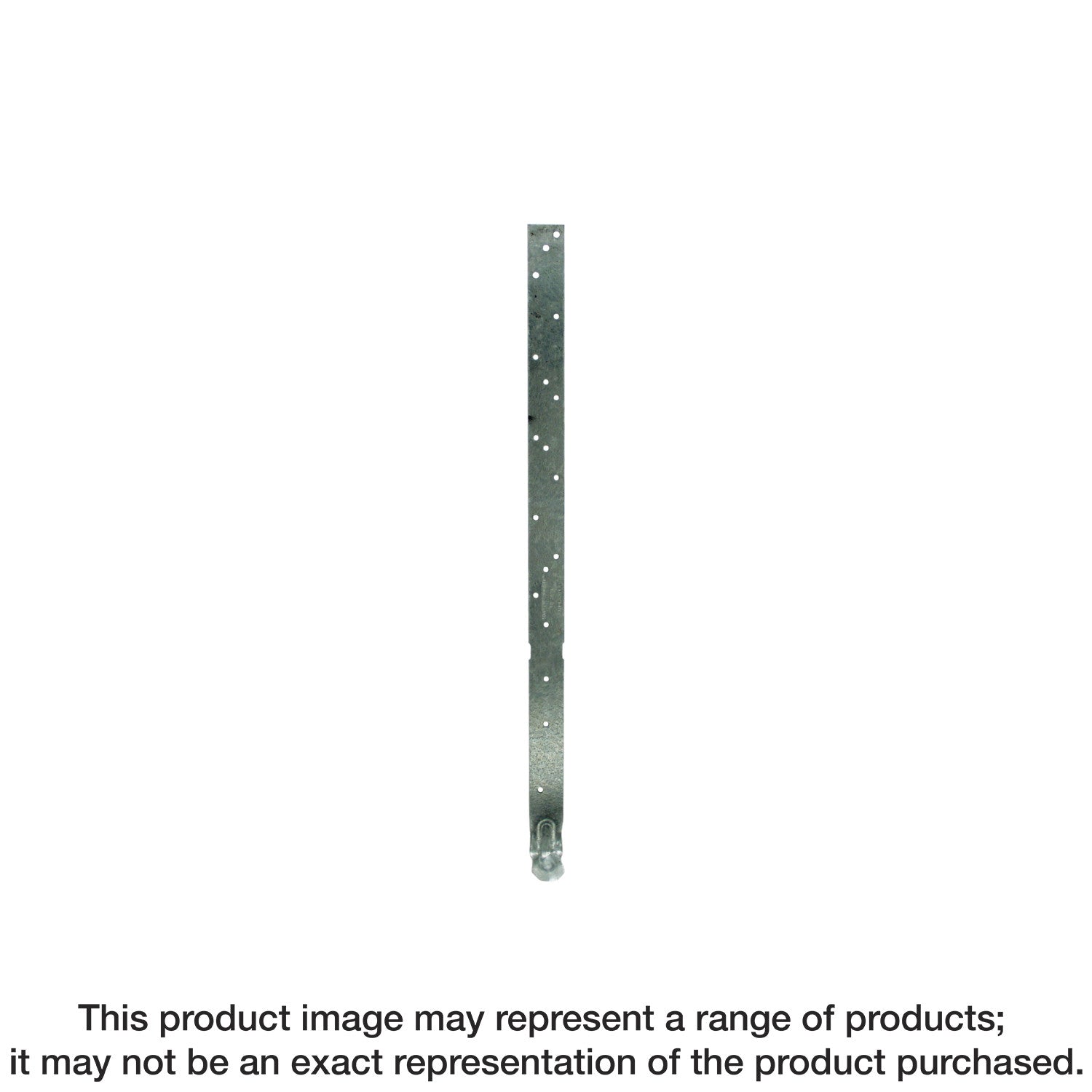

Simpson Strong-Tie HETA20SS HETA 20 in. Stainless-Steel Heavy Embedded Truss Anchor

The HETA provides an engineered method to attach roof trusses securely to concrete and masonry walls. This heavy embedded truss anchor features staggered nail patterns to strengthen uplift resistance and can be used in pairs on single- and multi-ply trusses. The versatile HETA can be installed straight or field-bent around truss or rafter members.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• An indented embedment line ensures accurate embedment depth
• Compatible with the Simpson Strong-Tie preassembled TSS snap-in seat
• Load rated for wind and seismic forces
• 16-in. exposed length
• Embed 4 in. into a poured concrete bond beam or grouted block wall
• Made from 16-gauge steel
• Stainless steel offers extra corrosion resistance for exterior and treated-wood applications

Specifications

• ERP Part Number: HETA20SS
• UPC: 707392650300
• GTIN: 707392650300
• Feature 01: An indented embedment line ensures accurate embedment depth
• Feature 02: Compatible with the Simpson Strong-Tie preassembled TSS snap-in seat
• Feature 03: Load rated for wind and seismic forces
• Feature 04: 16-in. exposed length
• Feature 05: Embed 4 in. into a poured concrete bond beam or grouted block wall
• Feature 06: Made from 16-gauge steel
• Feature 07: Stainless steel offers extra corrosion resistance for exterior and treated-wood applications
• Install With: Install with stainless-steel 10d x 1-1/2 in. nails or stainless-steel 16d common nails
• Assembled Depth - Imperial: 1.682
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 20.307
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 1.125
• Assembled Width UOM - Imperial: in.
• Base Product ID: HETA_Anchor
• Base Product Name: HETA
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Truss Tiedowns for Masonry > Truss Anchor
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Finish: Stainless Steel
• Gauge: 16
• GUID: 4090216858558674878425713712442266949
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Material: Stainless Steel
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Truss Anchor
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 0.4
• Short Product Name: 16IN W/4 IN EMBEDD TRUSS ANCHOR SS
• Strongtie.com URL: https://www.strongtie.com/girdertiedownsformasonry_trusstiedownsformasonry/heta_anchor/p/heta
• Subcategory: Wood Construction Connectors
• Subcategory 2: Truss Tiedowns for Masonry
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10707392650307
• PAL Reference: 50707392650305
