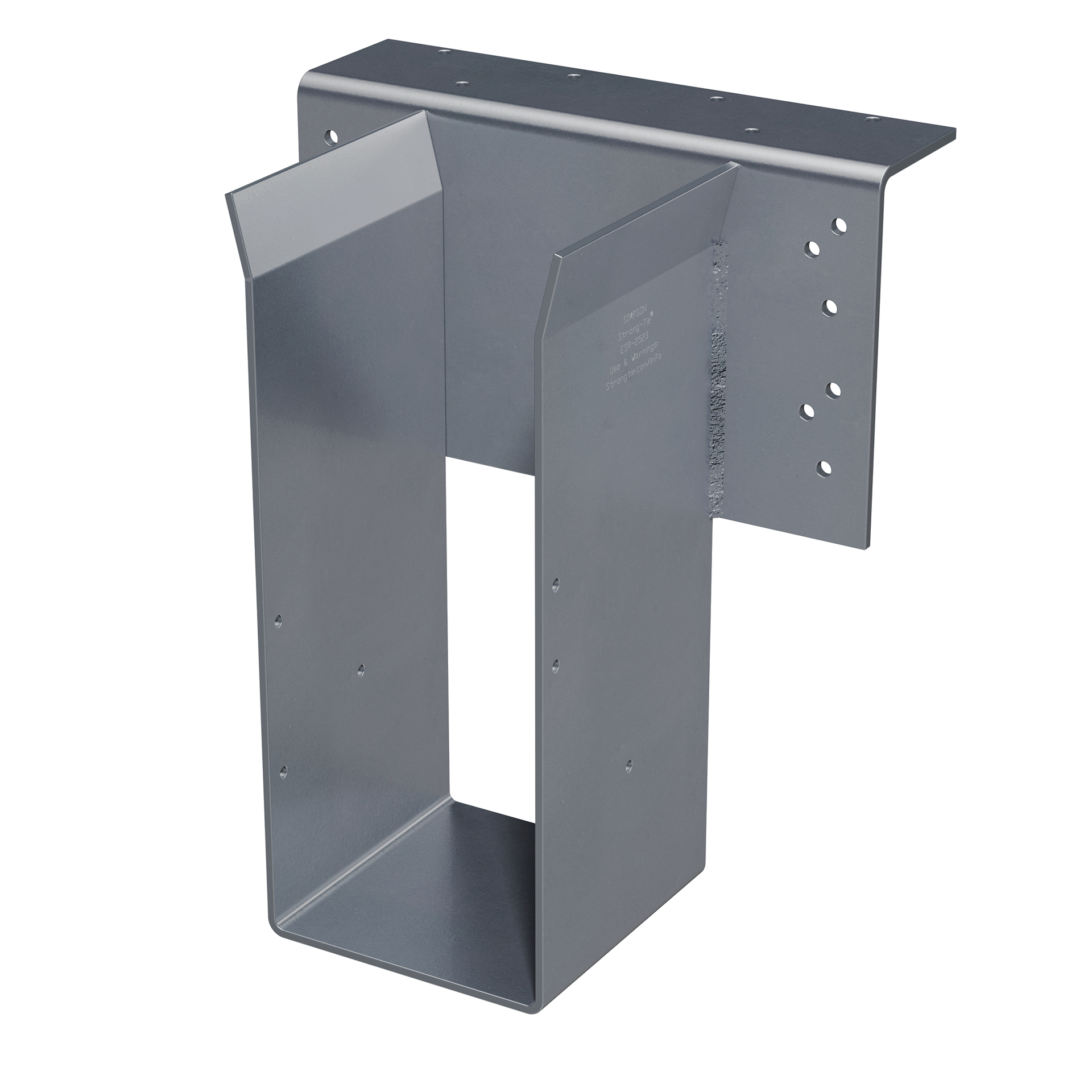

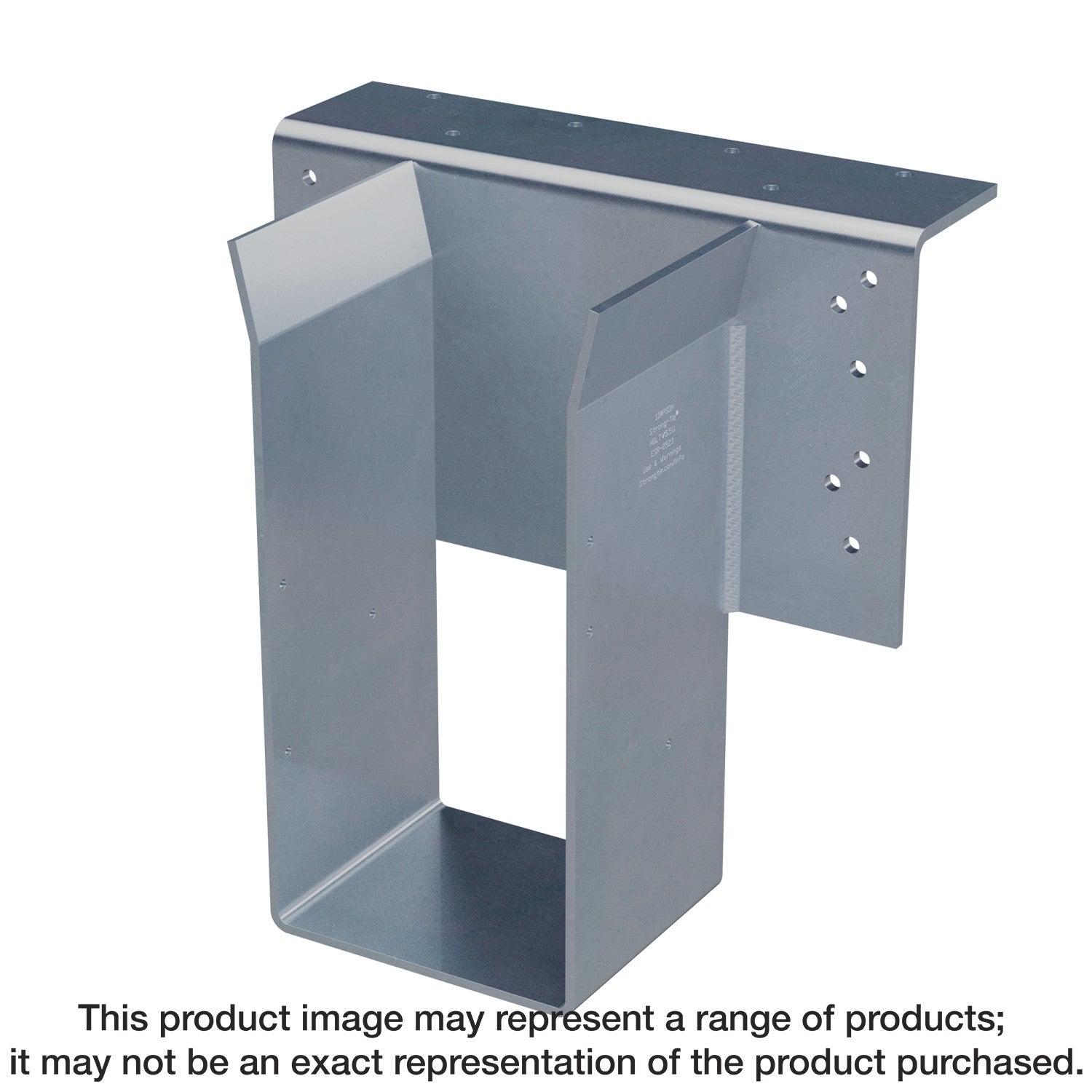

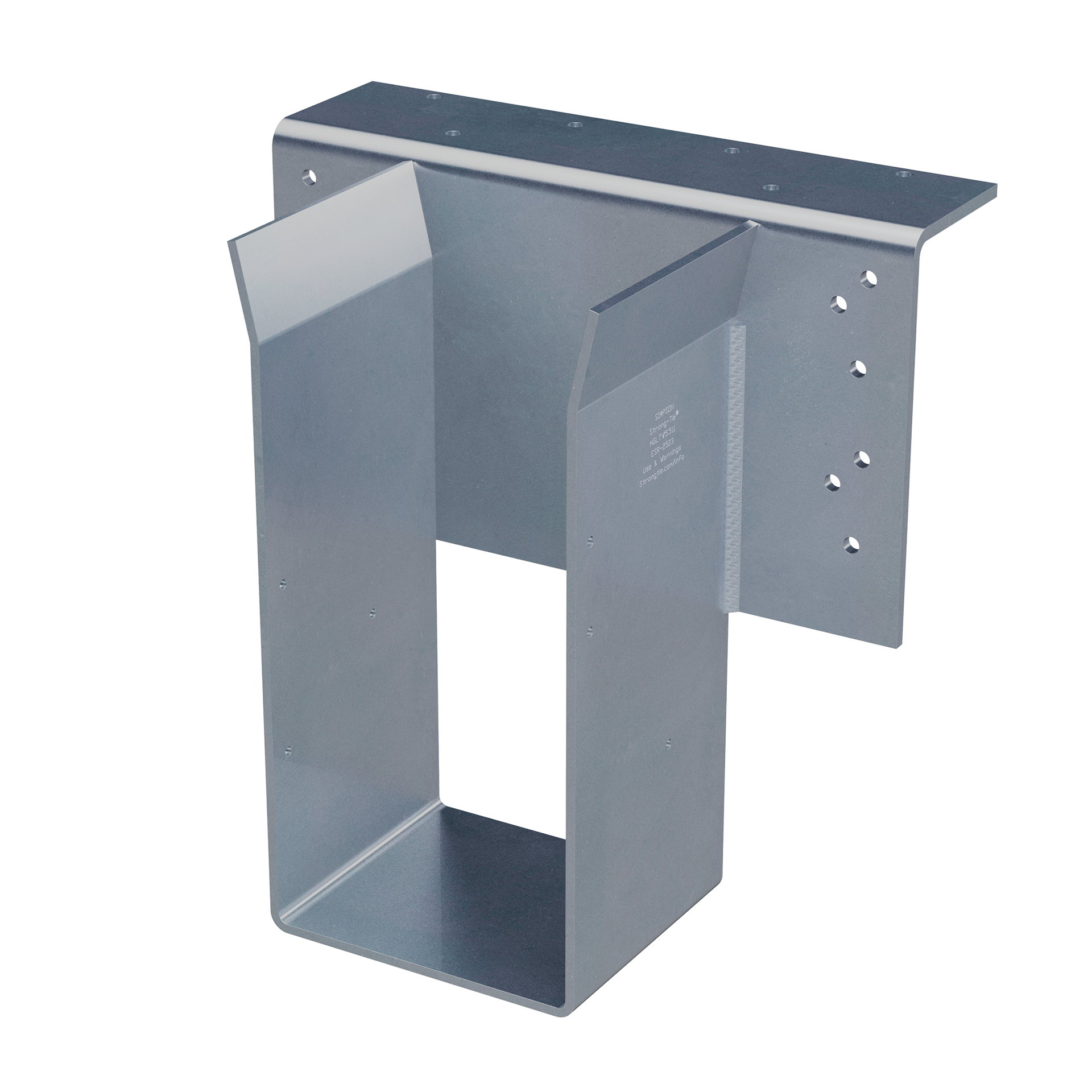

Simpson Strong-Tie HGLTV5.514 HGLTV Top-Flange Joist Hanger for 5-1/4 in. x 14 in. Engineered Wood

Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. HGLTV hangers are designed for use with structural composite lumber header applications that require high loads. The top-flange nails are sized and specifically located to prevent degradation of the header due to splitting of laminations. The Funnel Flange™ design allows for easy installation of beams.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• This series may be used for weld-on applications
• Web stiffeners are required with I-joists using this hanger style
• Actual joist size: 5-1/4 in. x 14 in.
• Top flange made from 3-gauge steel
• Stirrup made from 7-gauge steel
• Simpson Strong-Tie gray paint finish

Specifications

• ERP Part Number: HGLTV5.514
• UPC: 44315101403
• GTIN: 44315101403
• Feature 01: This series may be used for weld-on applications
• Feature 02: Web stiffeners are required with I-joists using this hanger style
• Feature 03: Actual joist size: 5-1/4 in. x 14 in.
• Feature 04: Top flange made from 3-gauge steel
• Feature 05: Stirrup made from 7-gauge steel
• Feature 06: Simpson Strong-Tie gray paint finish
• Install With: Install with (24) 0.162 in. x 3-1/2 in. Strong-Drive® SCN Smooth-Shank Connector nails (Model: 16DHDG)
• Assembled Depth - Imperial: 9.229
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 14.4
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 12
• Assembled Width UOM - Imperial: in.
• Base Product ID: HGLTV_Hanger
• Base Product Name: HGLTV
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Joist Hangers for Engineered Wood > Hanger
• Coating: Simpson Strong-Tie Gray Paint
• Color: Gray
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Fasteners Included: No
• Finish: Simpson Strong-Tie Gray Paint
• Gauge: Top flange — 3 gauge; stirrup — 7 gauge
• GUID: 285099530745118988934126837331887973000
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• Member Size: 5-1/4 in. x 14 in.
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Hanger
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 19.54
• Short Product Name: 5-1/4 X 14 TOP FLANGE I-JOIST HANGER
• Strongtie.com URL: https://www.strongtie.com/topflangehangers_engineeredwoodconnectors/hgltv_hanger/p/hgltv
• Subcategory: Wood Construction Connectors
• Subcategory 2: Joist Hangers for Engineered Wood
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• Lumber Size Infographic: https://images.salsify.com/image/upload/s--4j6m7m95--/of77l1vzb2adrmtseor4.png
