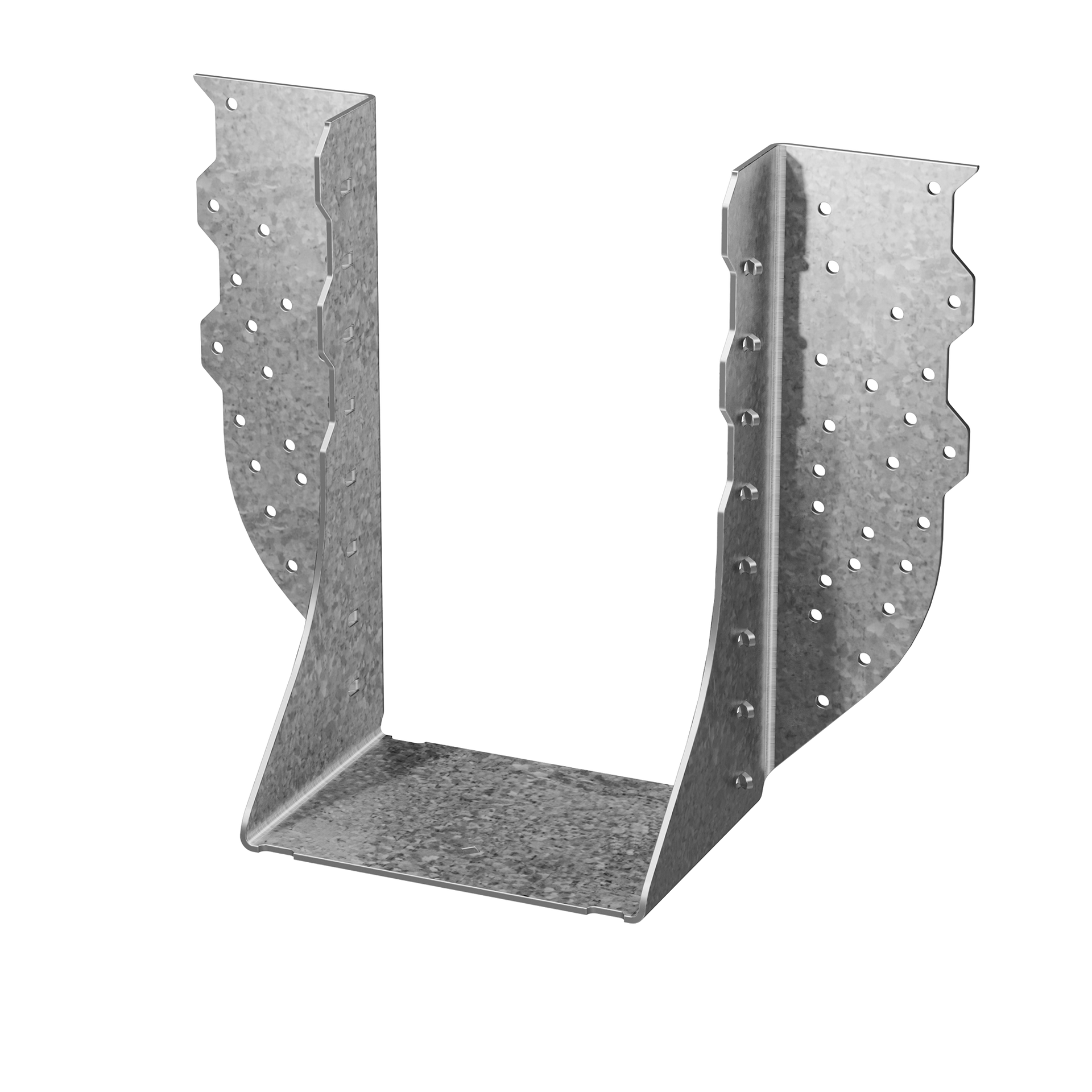

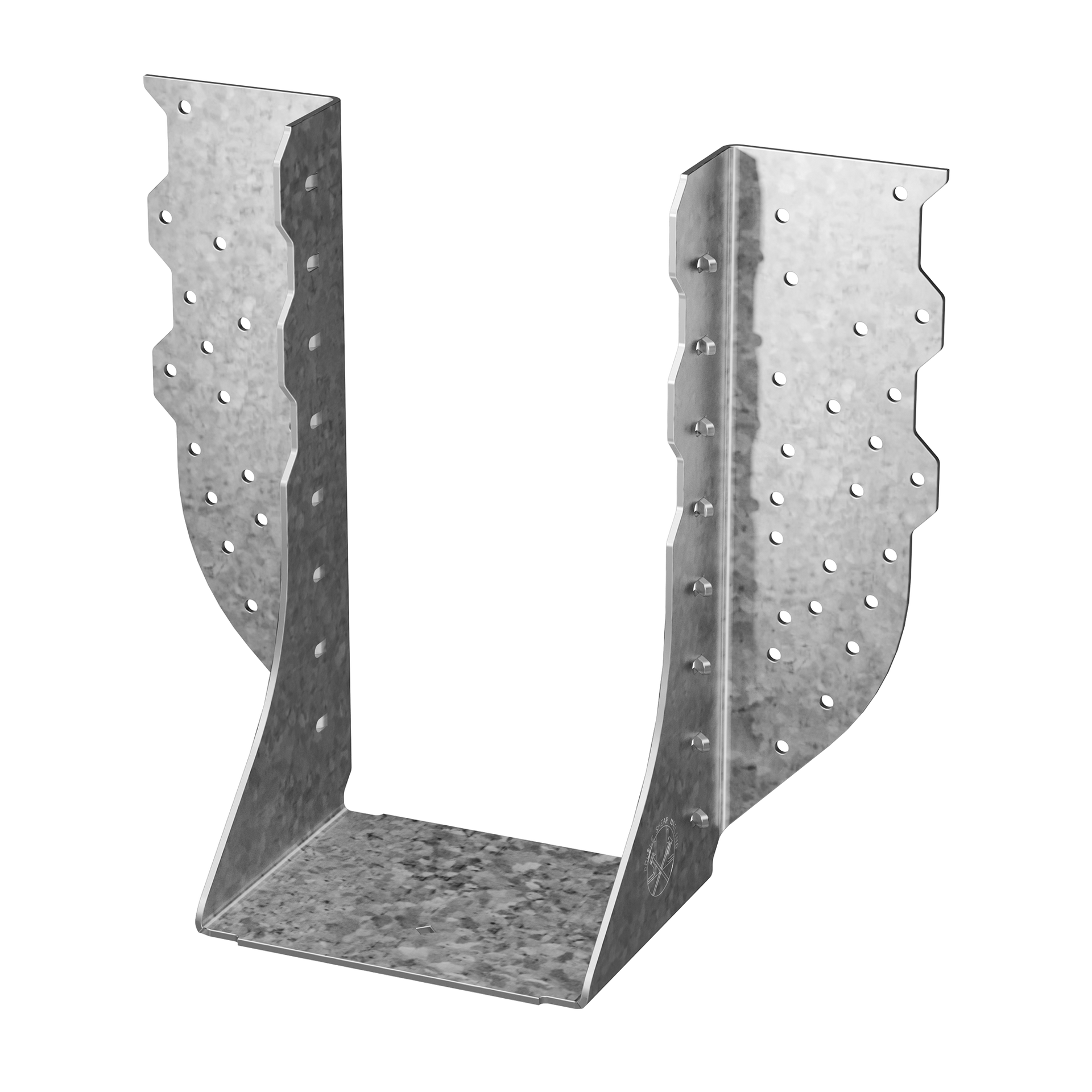

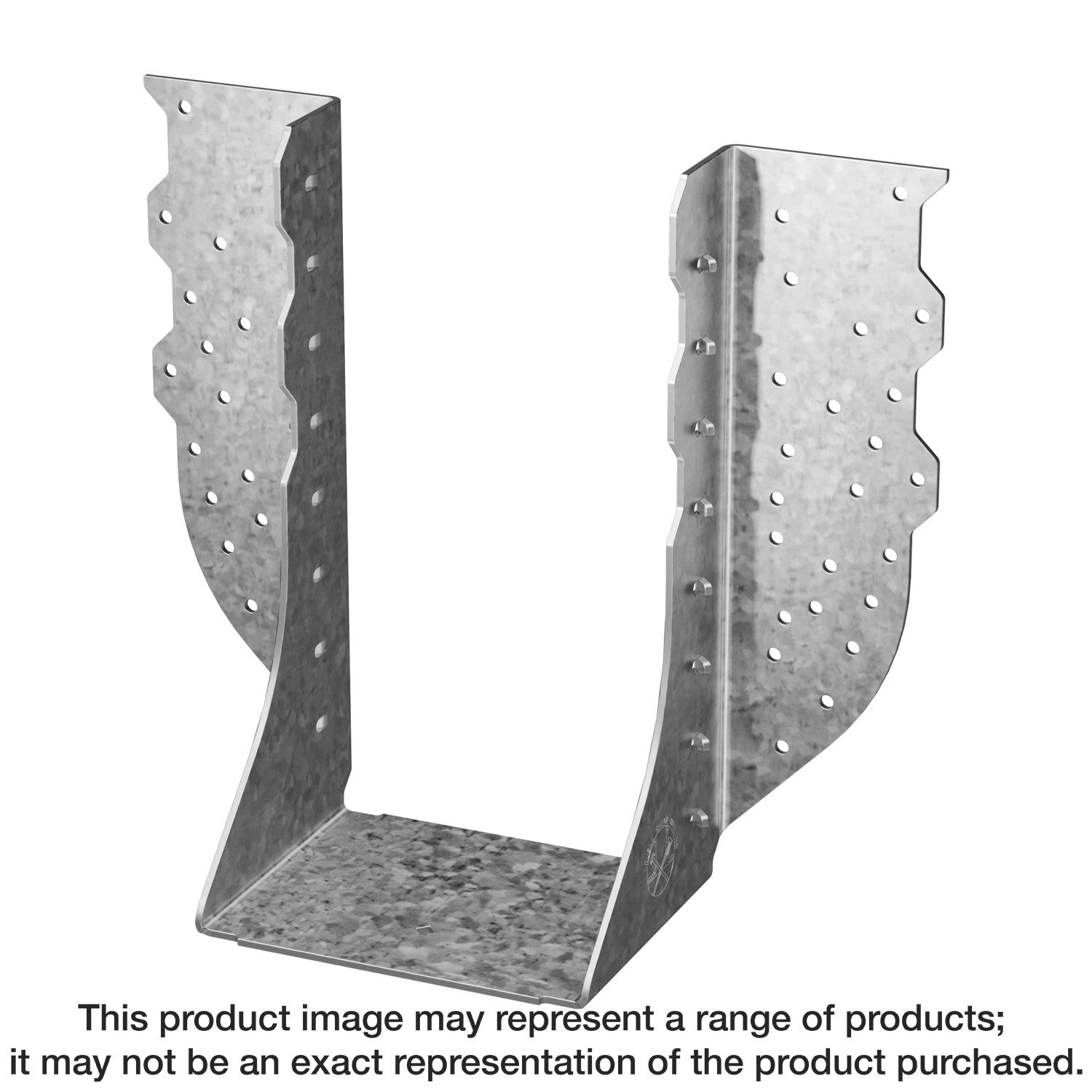

Simpson Strong-Tie HGUS5.50/10 HGUS® Galvanized Face-Mount Joist Hanger for 5-1/4 in. x 9-1/2 in. Engineered Wood

The HGUS® is an extra-heavy-capacity hanger for applications requiring girder support. This girder hanger features double-shear nailing that distributes the load through two points on each joist nail for greater strength. Value-engineered, the HGUS is designed to carry high loads for an economical price.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Can be installed after the beam is secured in place
• HGUS-series hangers are tested, load rated and code compliant
• Do not bend or remove tabs
• Joist size: 5-1/4 in. x 9-1/4 in. to 9-1/2 in., nominal 6x10, 5-1/4 in. SCL, 5-1/2 in. glulam
• Seat width: 5-1/2 in.
• Height: 8-15/16 in.
• Made from 12-gauge steel
• Galvanized (G90) for extra corrosion resistance

Specifications

• ERP Part Number: HGUS5.50/10
• UPC: 44315396502
• GTIN: 44315396502
• Feature 01: Can be installed after the beam is secured in place
• Feature 02: HGUS-series hangers are tested, load rated and code compliant
• Feature 03: Do not bend or remove tabs
• Feature 04: Joist size: 5-1/4 in. x 9-1/4 in. to 9-1/2 in., nominal 6x10, 5-1/4 in. SCL, 5-1/2 in. glulam
• Feature 05: Seat width: 5-1/2 in.
• Feature 06: Height: 8-15/16 in.
• Feature 07: Made from 12-gauge steel
• Feature 08: Galvanized (G90) for extra corrosion resistance
• Install With: Install with 16d common nails
• Assembled Depth - Imperial: 4.2865
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 9.0365
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 10.948
• Assembled Width UOM - Imperial: in.
• Base Product ID: HGUS_Hanger
• Base Product Name: HGUS®
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Joist Hangers for Engineered Wood > Hanger
• Coating: Zinc Galvanized, G90
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Fasteners Included: No
• Finish: Zinc Galvanized, G90
• Gauge: 12
• GUID: 76907845459826987444078346554221697528
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• Member Size: 5-1/4 in. x 9-1/4 in. to 9-1/2 in., 6x10 , 5-1/4 in. SCL, 5-1/2 in. glulam
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Hanger
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 2.87
• Short Product Name: FACE MOUNT HANGER
• Strongtie.com URL: https://www.strongtie.com/facemounthangers_engineeredwoodconnectors/hgus_hanger/p/hgus
• Subcategory: Wood Construction Connectors
• Subcategory 2: Joist Hangers for Engineered Wood
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10044315396509
• PAL Reference: 50044315396507
• Lumber Size Infographic: https://images.salsify.com/image/upload/s--4j6m7m95--/of77l1vzb2adrmtseor4.png
