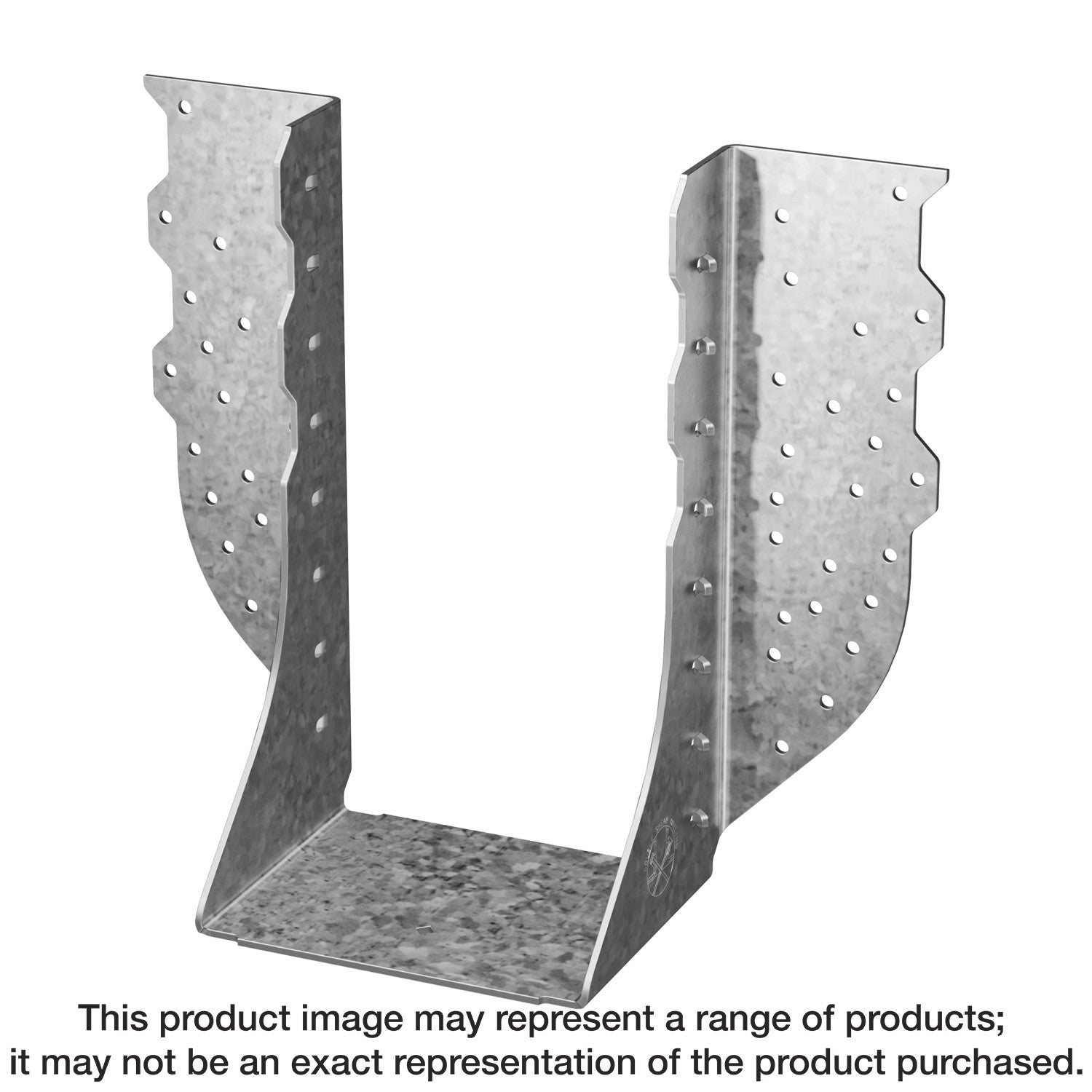

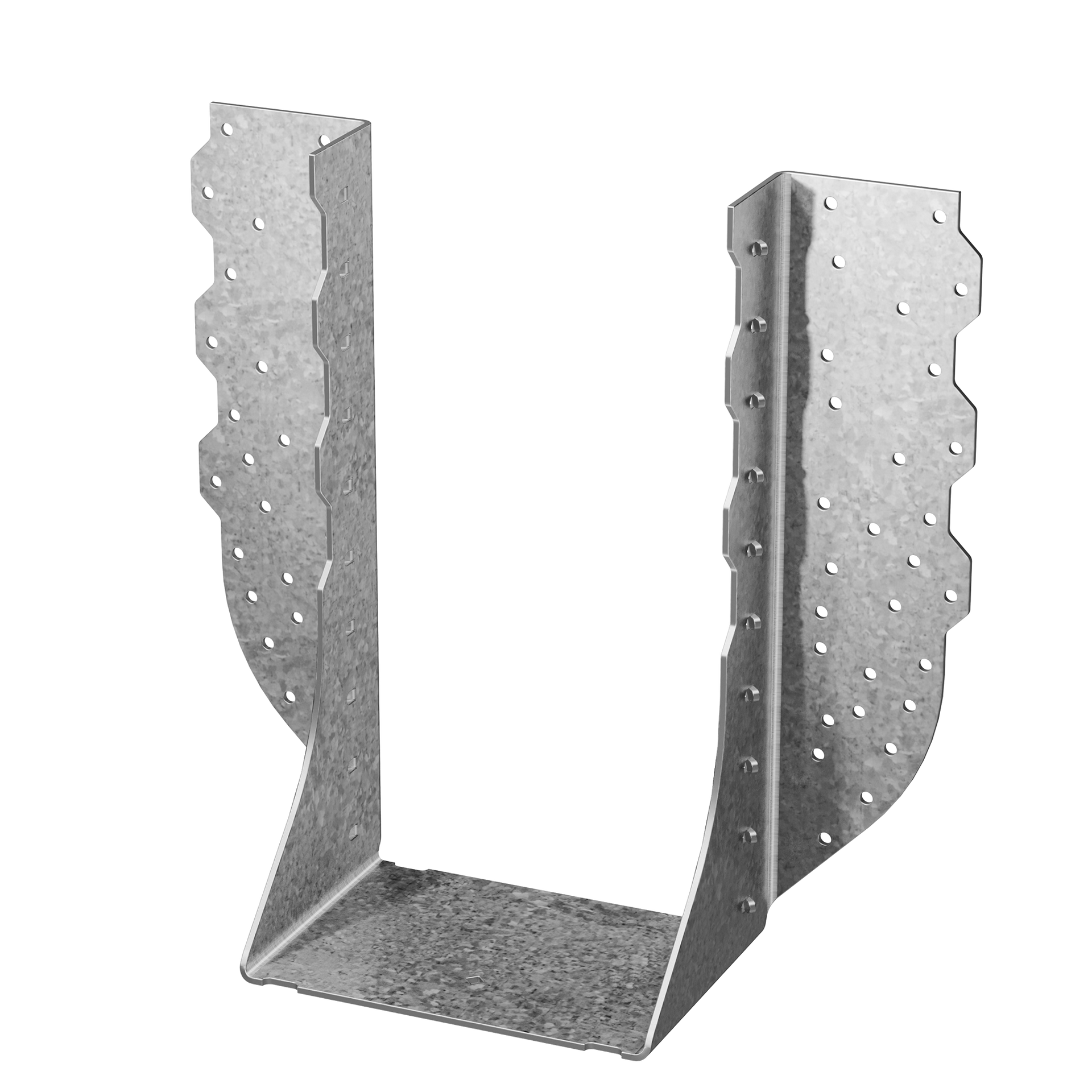

Simpson Strong-Tie HGUS5.62/12 HGUS® Galvanized Face-Mount Joist Hanger for 6x12

Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. HGUS® hangers are designed for applications where higher load values are needed.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Features double-shear nailing which distributes the load through two points on each joist nail for greater strength
• Allows for the use of fewer nails, faster installation, and the use of standard nails for all connections
• Do not bend or remove tabs
• Joist size: nominal 6x12, nominal 6x14, 5-1/2 in. x 12 to 18 in. tall glulam
• Seat width: 5-5/8 in.
• Hanger height: 10-7/16 in.
• Made from 12-gauge steel
• Galvanized (G90) for extra corrosion resistance

Specifications

• ERP Part Number: HGUS5.62/12
• UPC: 44315402500
• GTIN: 44315402500
• Feature 01: Features double-shear nailing which distributes the load through two points on each joist nail for greater strength
• Feature 02: Allows for the use of fewer nails, faster installation, and the use of standard nails for all connections
• Feature 03: Do not bend or remove tabs
• Feature 04: Joist size: nominal 6x12, nominal 6x14, 5-1/2 in. x 12 to 18 in. tall glulam
• Feature 05: Seat width: 5-5/8 in.
• Feature 06: Hanger height: 10-7/16 in.
• Feature 07: Made from 12-gauge steel
• Feature 08: Galvanized (G90) for extra corrosion resistance
• Install With: Install with 16d common nails
• Assembled Depth - Imperial: 4.224
• Assembled Height - Imperial: 10.5365
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 11.073
• Assembled Width UOM - Imperial: in.
• Base Product ID: HGUS_Hanger
• Base Product Name: HGUS®
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Joist Hangers for Engineered Wood > Hanger
• Coating: Zinc Galvanized, G90
• Country of Origin: ZZ
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Finish: Zinc Galvanized, G90
• Gauge: 12
• GUID: 281180596431360311043594112578733763778
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• Member Size: 6x12, 6x14, 5-1/2 in. x 12 to 18 in. tall glulam
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Hanger
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 3.25
• Short Product Name: FACE MOUNT HANGER
• Strongtie.com URL: https://www.strongtie.com/facemounthangers_engineeredwoodconnectors/hgus_hanger/p/hgus
• Subcategory: Wood Construction Connectors
• Subcategory 2: Joist Hangers for Engineered Wood
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10044315402507
• Lumber Size Infographic: https://images.salsify.com/image/upload/s--4j6m7m95--/of77l1vzb2adrmtseor4.png
