Simpson Strong-Tie HHRC42 HHRC® Galvanized Hip-Ridge Connector for 4x Ridge, 2x Hip

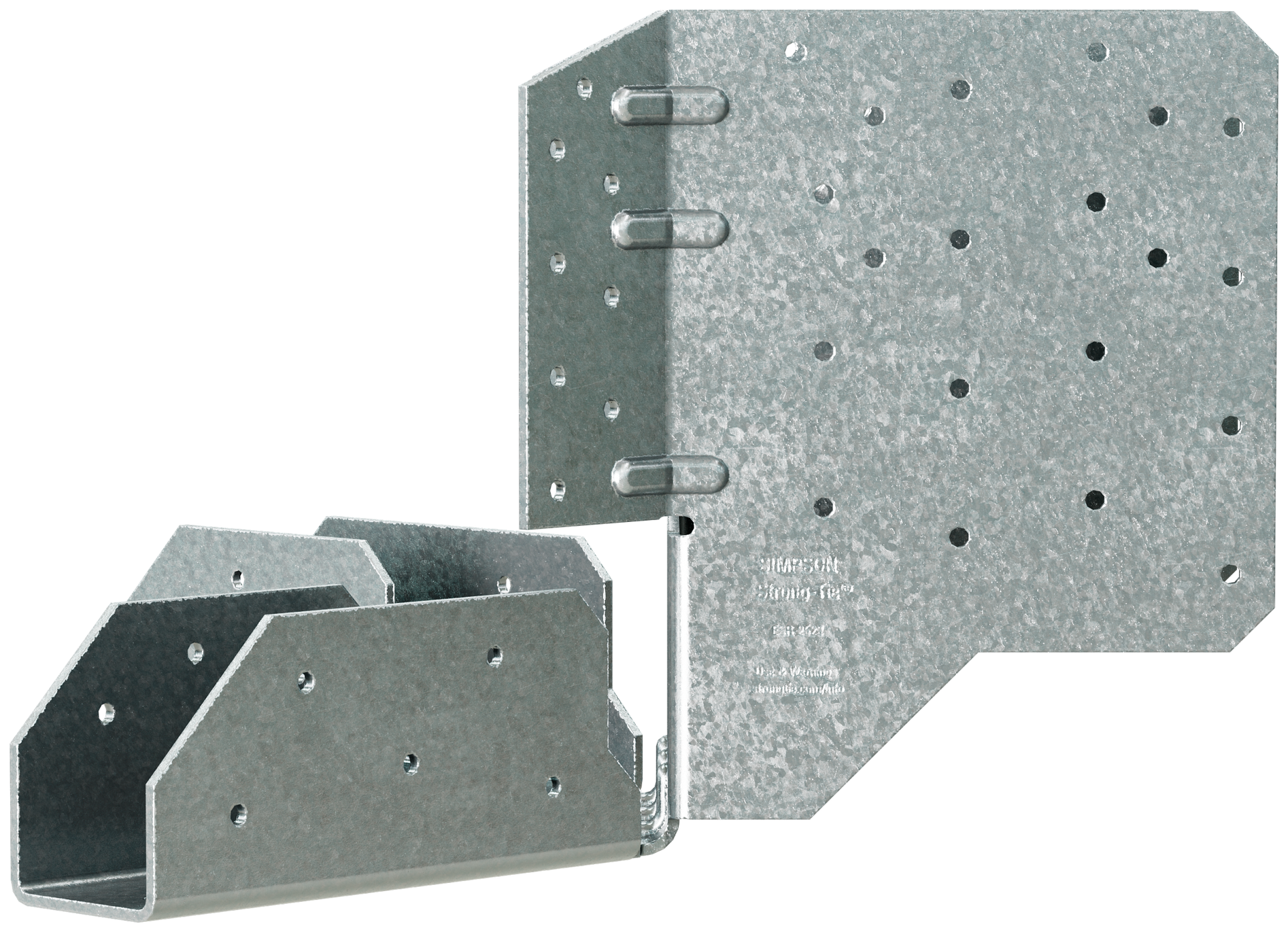

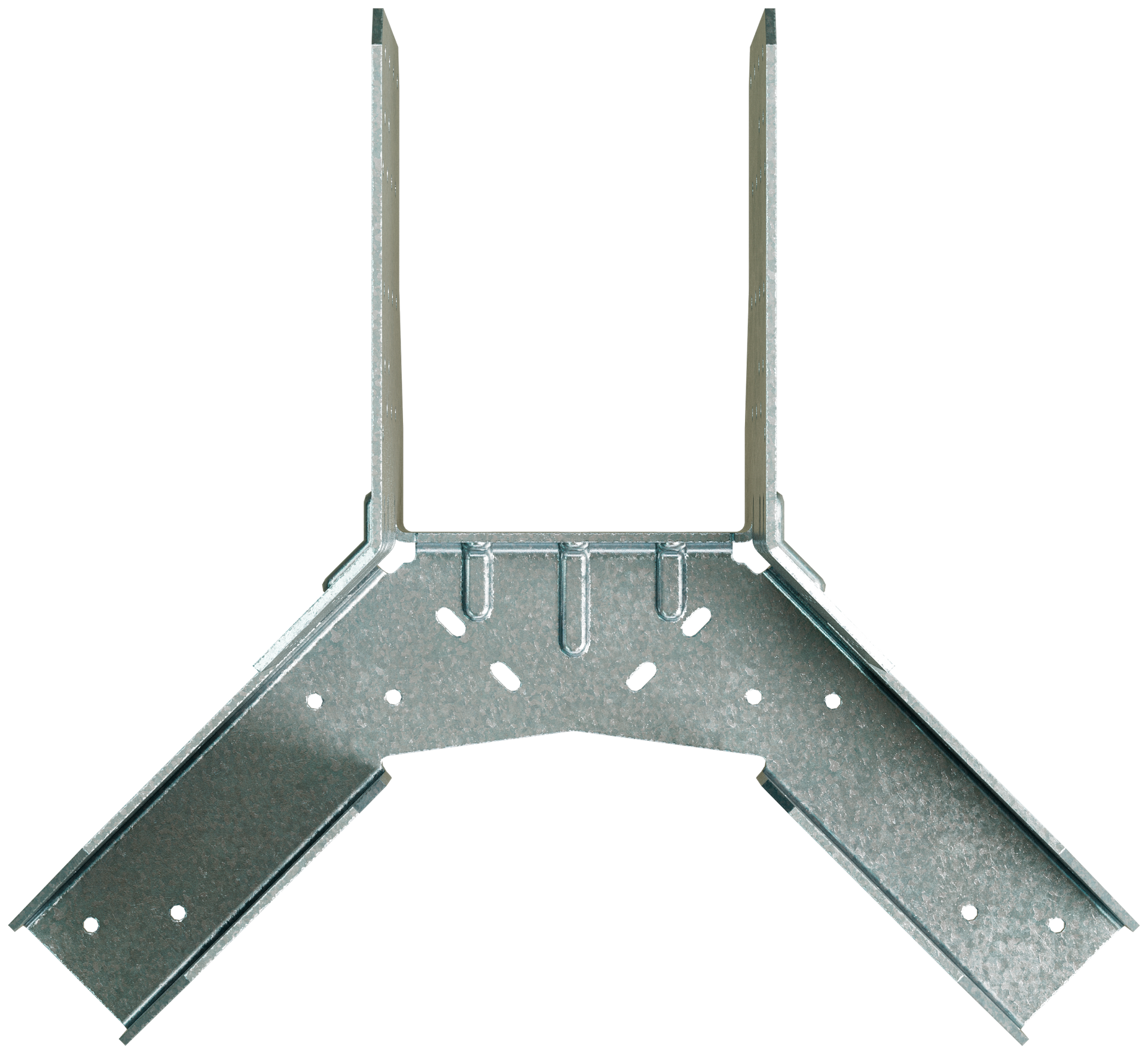

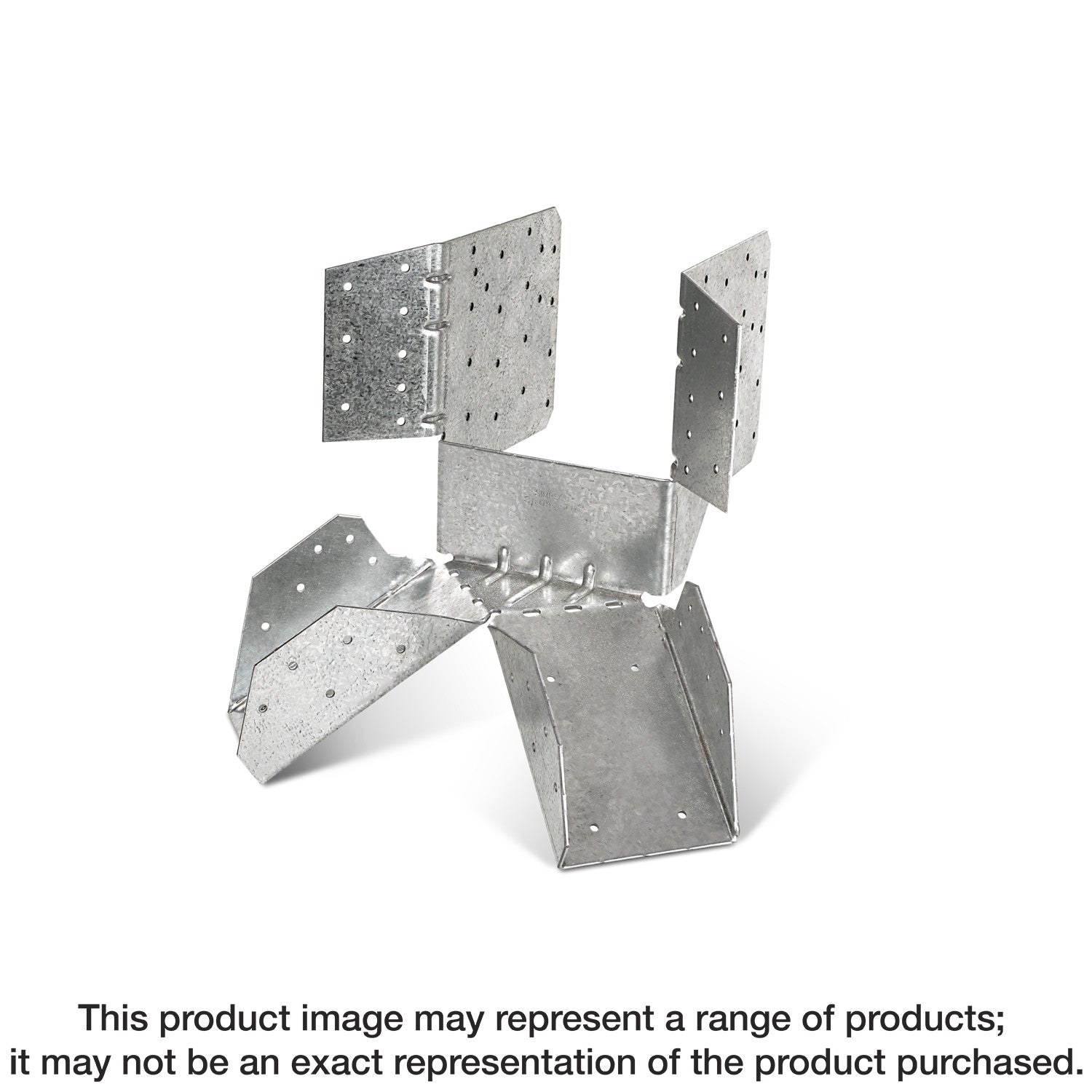

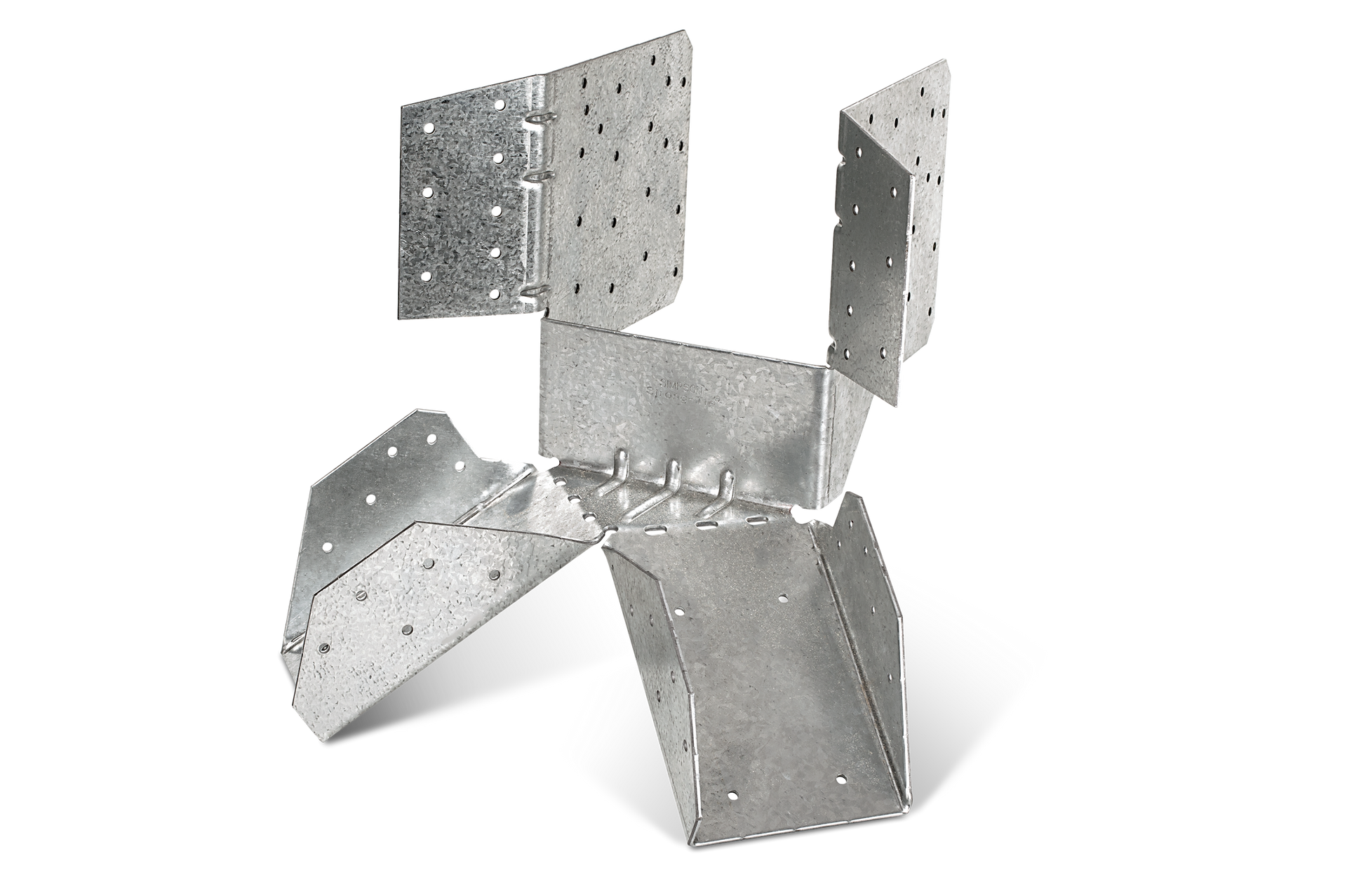

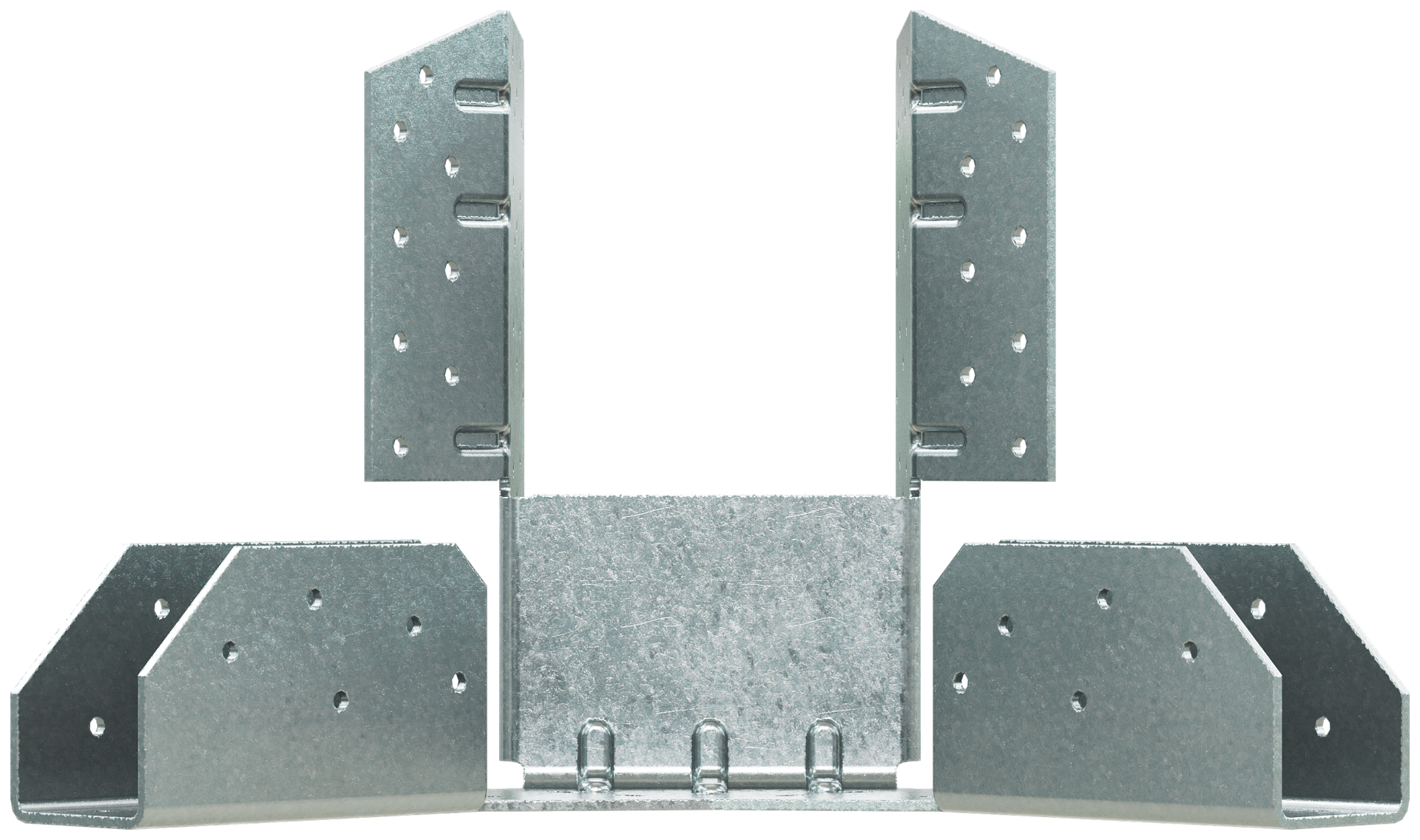

The HHRC® attaches hip beams to the end of a ridge beam. It takes the inconsistency out of this common detail and assigns a standard load capacity. The HHRC can be placed higher or lower on the ridge beam so the hips are flush at the top.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Nominal solid sawn member size: Ridge 4x, Hip 2x
• Connector seat width: Ridge 3-5/8 in., hip 1-9/16 in.
• Made from 12-gauge steel
• Galvanized (G90) for extra corrosion resistance
• Strong-Drive® SD Connector screws included

Application

• Solid Sawn Lumber

Specifications

• ERP Part Number: HHRC42
• UPC: 707392391944
• GTIN: 707392391944
• Feature 01: Nominal solid sawn member size: Ridge 4x, Hip 2x
• Feature 02: Connector seat width: Ridge 3-5/8 in., hip 1-9/16 in.
• Feature 03: Made from 12-gauge steel
• Feature 04: Galvanized (G90) for extra corrosion resistance
• Feature 05: Strong-Drive® SD Connector screws included
• Install With: Install with (40) #10 x 2-1/2 in. Strong-Drive SD Connector screws in the ridge and (22) #10 x 1-1/2 in. Strong-Drive® SD Connector screws in each hip
• Applications List: Solid Sawn Lumber
• Assembled Depth - Imperial: 10.3644
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 7.099
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 11.8561
• Assembled Width UOM - Imperial: in.
• Base Product ID: HHRC_Connect
• Base Product Name: HHRC®
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Hip Connectors > Hanger
• Coating: Zinc Galvanized, G90
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Finish: Zinc Galvanized, G90
• Gauge: 12
• GUID: 226984980625618588693170428155998030744
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• Member Size: Ridge 4x – Hip 2x
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Hanger
• Product Includes: Includes Strong-Drive SD Connector screws
• Prop 65 - Cancer: Wood Dust
• Prop 65 - Long Text: WARNING! This product can expose you to chemicals including wood dust which is known to the State of California to cause cancer. For more information go to www.P65Warnings.ca.gov
• Prop 65 - Short Text: WARNING! Cancer - www.P65Warnings.ca.gov
• Prop 65 Warning: Yes
• Quantity: 1
• Shipping Weight: 4.1
• Short Product Name: HIP RIDGE CONNECTOR
• Strongtie.com URL: https://www.strongtie.com/hipconnectors_solidsawnlumberconnectors/hhrc_connect/p/hhrc
• Subcategory: Wood Construction Connectors
• Subcategory 2: Hip Connectors
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• Lumber Size Infographic: https://images.salsify.com/image/upload/s--4j6m7m95--/of77l1vzb2adrmtseor4.png
