Description

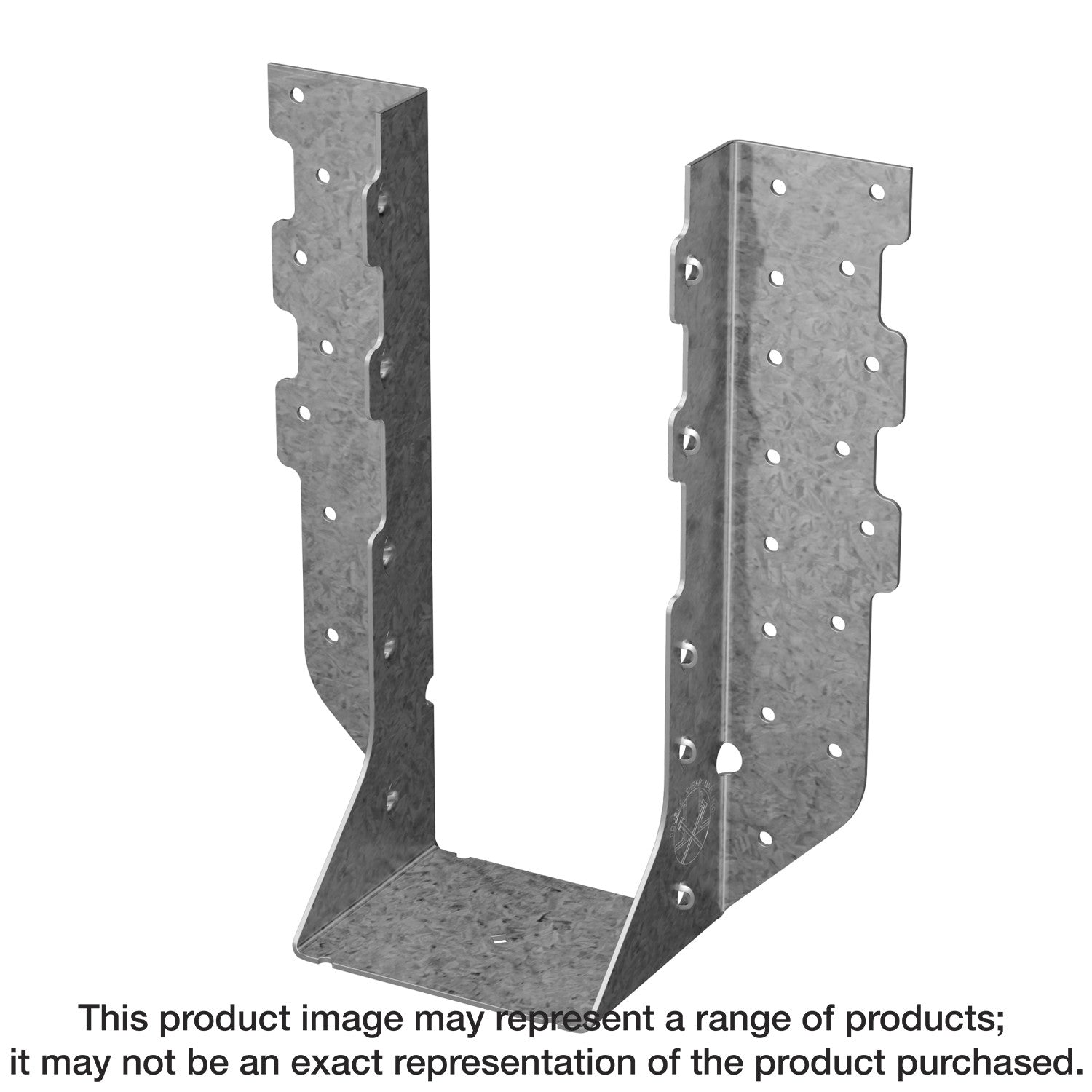

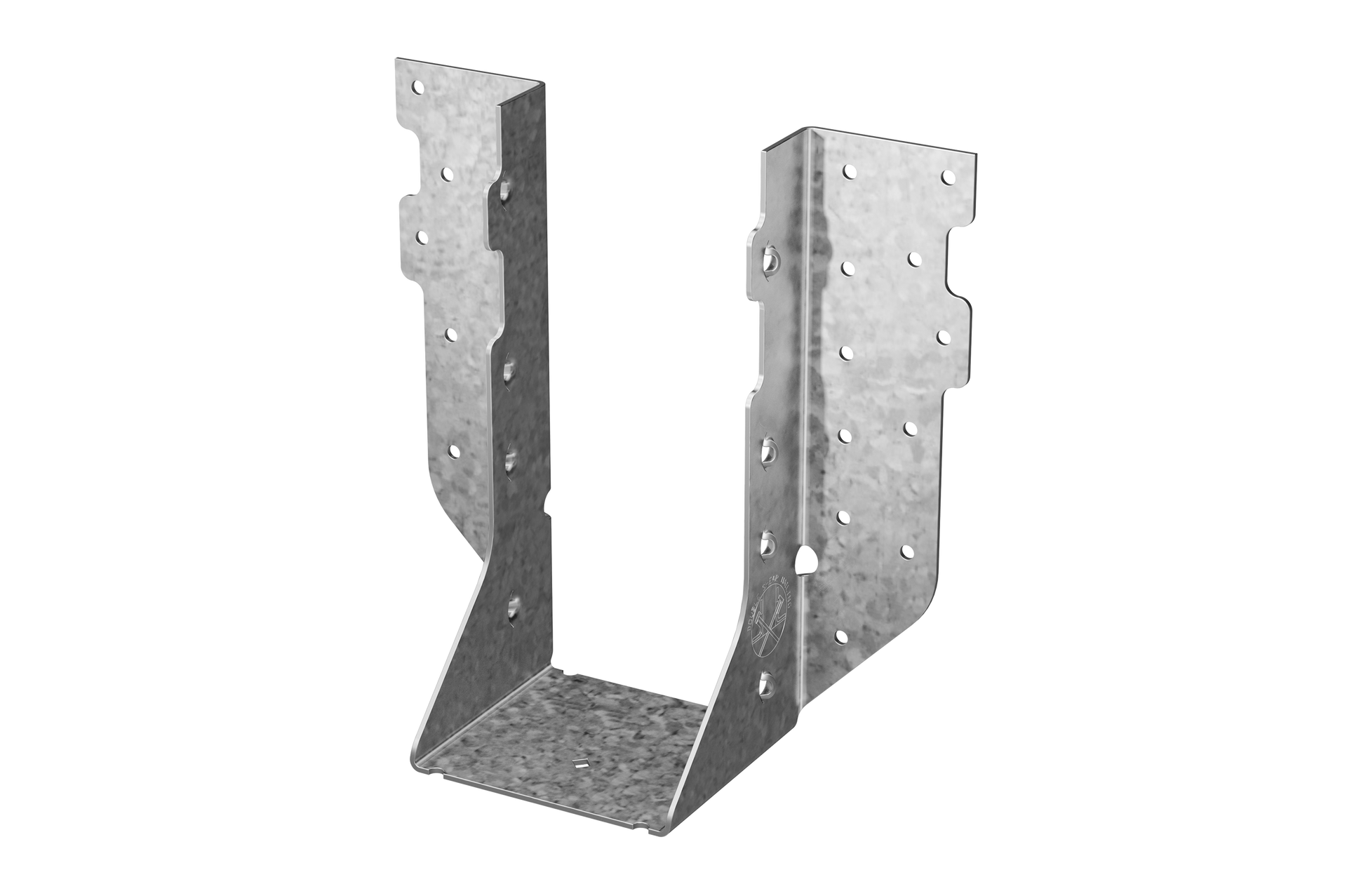

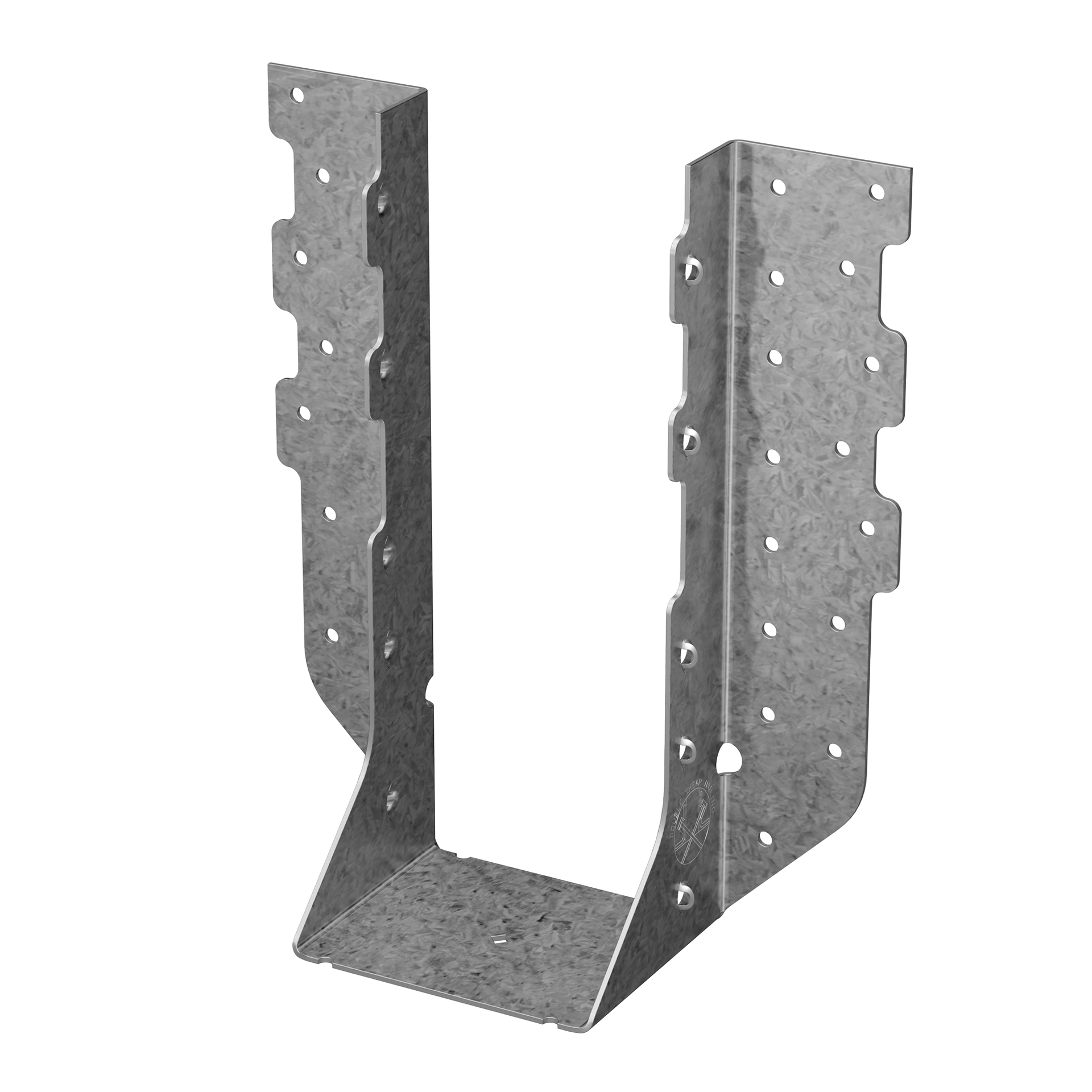

Simpson Strong-Tie HHUS28-2Z HHUS 7-1/4 in. ZMAX® Galvanized Face-Mount Joist Hanger for Double 2x Truss (Pack of 25)
Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. HHUS hangers are designed for applications where higher load values are needed.
This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.
Features
- Features double-shear nailing which distributes the load through two points on each joist nail for greater strength
- Allows for the use of fewer nails, faster installation, and the use of standard nails for all connections
- Do not bend or remove tabs
- Nominal joist size: Double 2x8
- Made from 14-gauge steel
- ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
Specifications
- ERP Part Number: HHUS28-2Z
- UPC: 10044315679107
- GTIN: 10044315679107
- Feature 01: Features double-shear nailing which distributes the load through two points on each joist nail for greater strength
- Feature 02: Allows for the use of fewer nails, faster installation, and the use of standard nails for all connections
- Feature 03: Do not bend or remove tabs
- Feature 04: Nominal joist size: Double 2x8
- Feature 05: Made from 14-gauge steel
- Feature 06: ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
- Assembled Depth - Imperial: 3.197
- Assembled Depth UOM - Imperial: in.
- Assembled Height - Imperial: 7.35325
- Assembled Height UOM - Imperial: in.
- Assembled Width - Imperial: 7.42525
- Assembled Width UOM - Imperial: in.
- Base Product ID: HHUS_Hanger
- Base Product Name: HHUS
- Brand Name: Simpson Strong-Tie®
- Category Tree (Computed): Wood Construction Connectors > Joist Hangers > Hanger
- Country of Origin: US
- Customer Unit: No
- Display Unit/Measure: CAR
- EAN category: IC
- GUID: 173005098502766485350616171340905662699
- Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
- Measurement Unit Text: Carton
- MFG Name: Simpson Strong-Tie®
- Number Category Description: UPC
- Package Depth - Imperial: 15
- Package Depth UOM - Imperial: in.
- Package Height - Imperial: 18
- Package Height UOM - Imperial: in.
- Package Width - Imperial: 12
- Package Width UOM - Imperial: in.
- Product Class: Hanger
- Prop 65 Warning: No
- Quantity: 25
- Shipping Weight: 27
- Short Product Name: 2 X 8 DBL FACE MOUNT HANGER ZMAX
- Strongtie.com URL: https://www.strongtie.com/facemounthangersforplatedtruss_hangersforplatedtruss/hhus_hanger/p/hhus
- Subcategory: Wood Construction Connectors
- Subcategory 2: Joist Hangers
- Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
- Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
- EA Reference: 44315679100
- PAL Reference: 50044315679105
- Lumber Size Infographic: https://images.salsify.com/image/upload/s--4j6m7m95--/of77l1vzb2adrmtseor4.png
