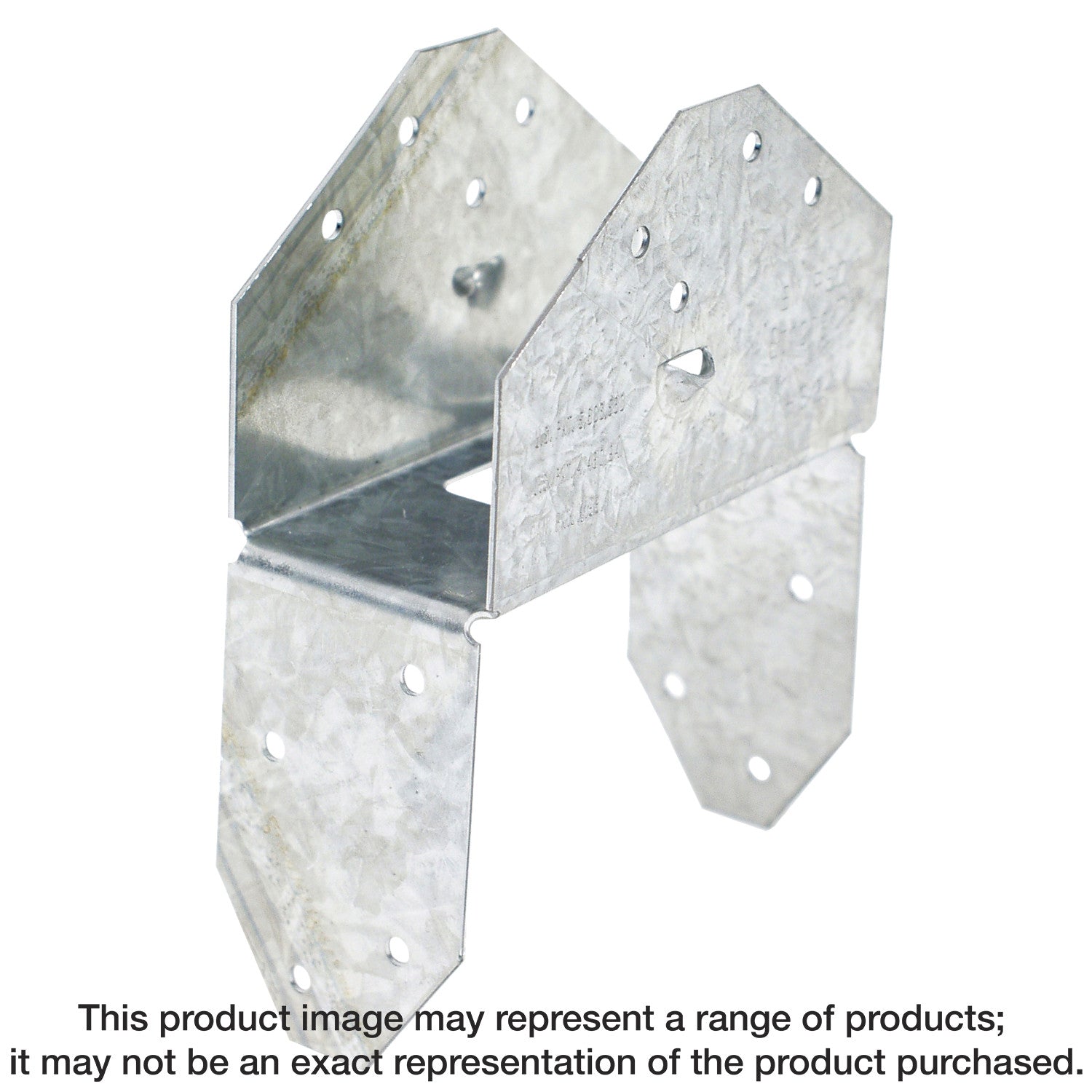

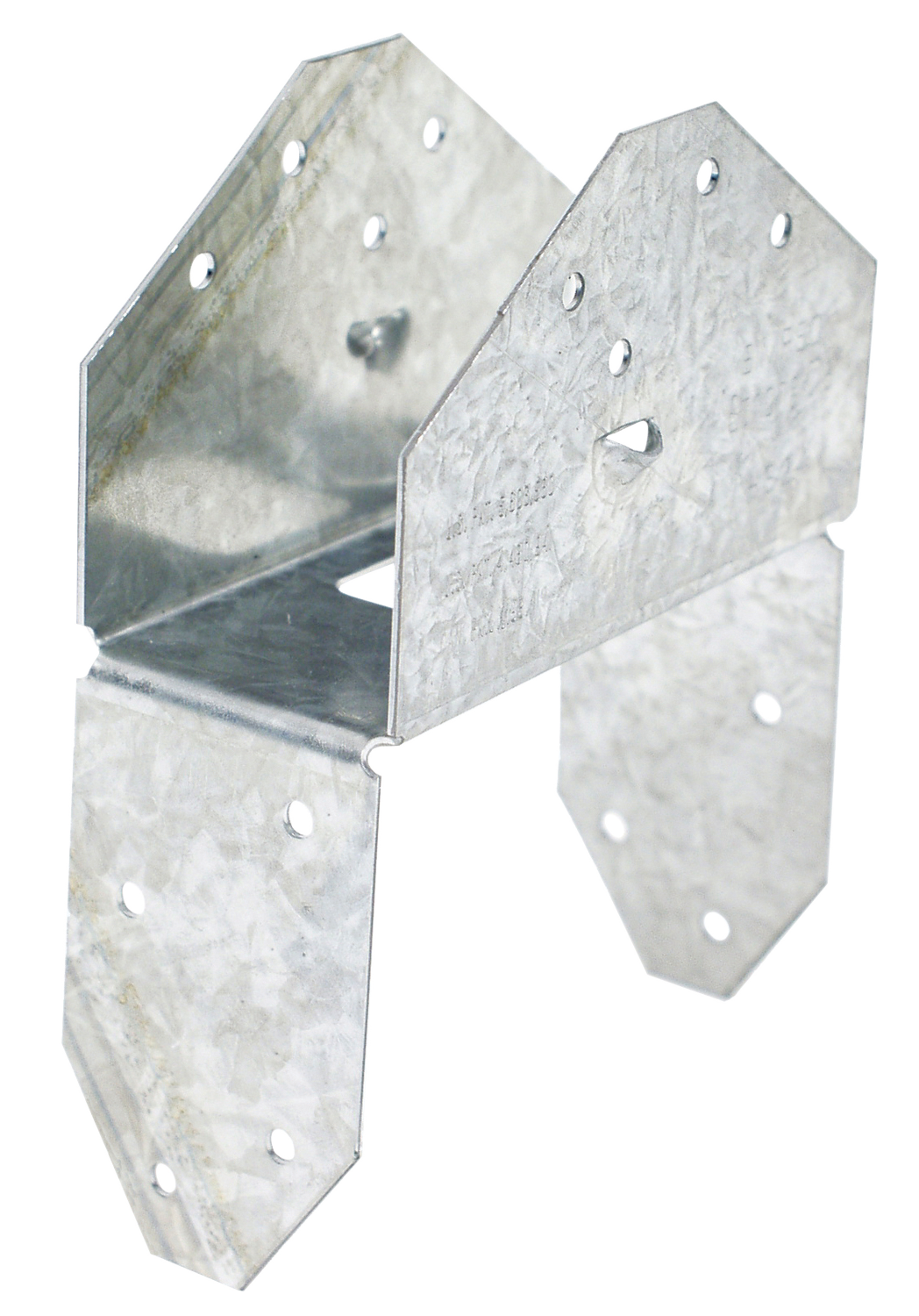

Simpson Strong-Tie HS24 HS24 18-Gauge Galvanized Saddle Rafter Tie

Simpson Strong-Tie connectors make projects easier to build while making them stronger and safer. They are engineered and tested to perform and are manufactured to the highest quality standards. Whether working on a home project or building a structure to comply with building codes, go with the choice of engineers and contractors, go with genuine Simpson Strong-Tie connectors. The HS24 saddle rafter tie is a wind and seismic tie for trusses and rafters. It is designed to help resist uplift forces.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Attaches the bottom chord of a truss or rafter at pitches from 0:12 to 4:12 to double 2 x 4 top plates
• Double-shear nailing allows for higher lateral resistance
• Made from 18-gauge steel
• Galvanized (G90) for extra corrosion resistance

Specifications

• ERP Part Number: HS24
• UPC: 44315694202
• GTIN: 44315694202
• Feature 01: Attaches the bottom chord of a truss or rafter at pitches from 0:12 to 4:12 to double 2 x 4 top plates
• Feature 02: Double-shear nailing allows for higher lateral resistance
• Feature 03: Made from 18-gauge steel
• Feature 04: Galvanized (G90) for extra corrosion resistance
• Install With: Install with 8d x 1-1/2 in. and 8d common nails
• Assembled Depth - Imperial: 1.999842
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 4.95225
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 3.6545
• Assembled Width UOM - Imperial: in.
• Base Product ID: HS24_HTie
• Base Product Name: HS24
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Straps and Ties > Tie
• Coating: Zinc Galvanized, G90
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Finish: Zinc Galvanized, G90
• Gauge: 18
• GUID: 45543303001421848752845197321406810686
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Tie
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 0.356
• Short Product Name: HURRICANE TIE
• Strongtie.com URL: https://www.strongtie.com/seismicandhurricaneties_strapsandties/hs24_htie/p/hs24
• Subcategory: Wood Construction Connectors
• Subcategory 2: Straps and Ties
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10044315694209
• PAL Reference: 50044315694207
