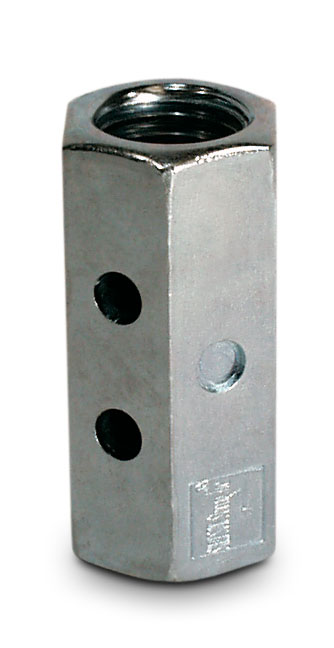

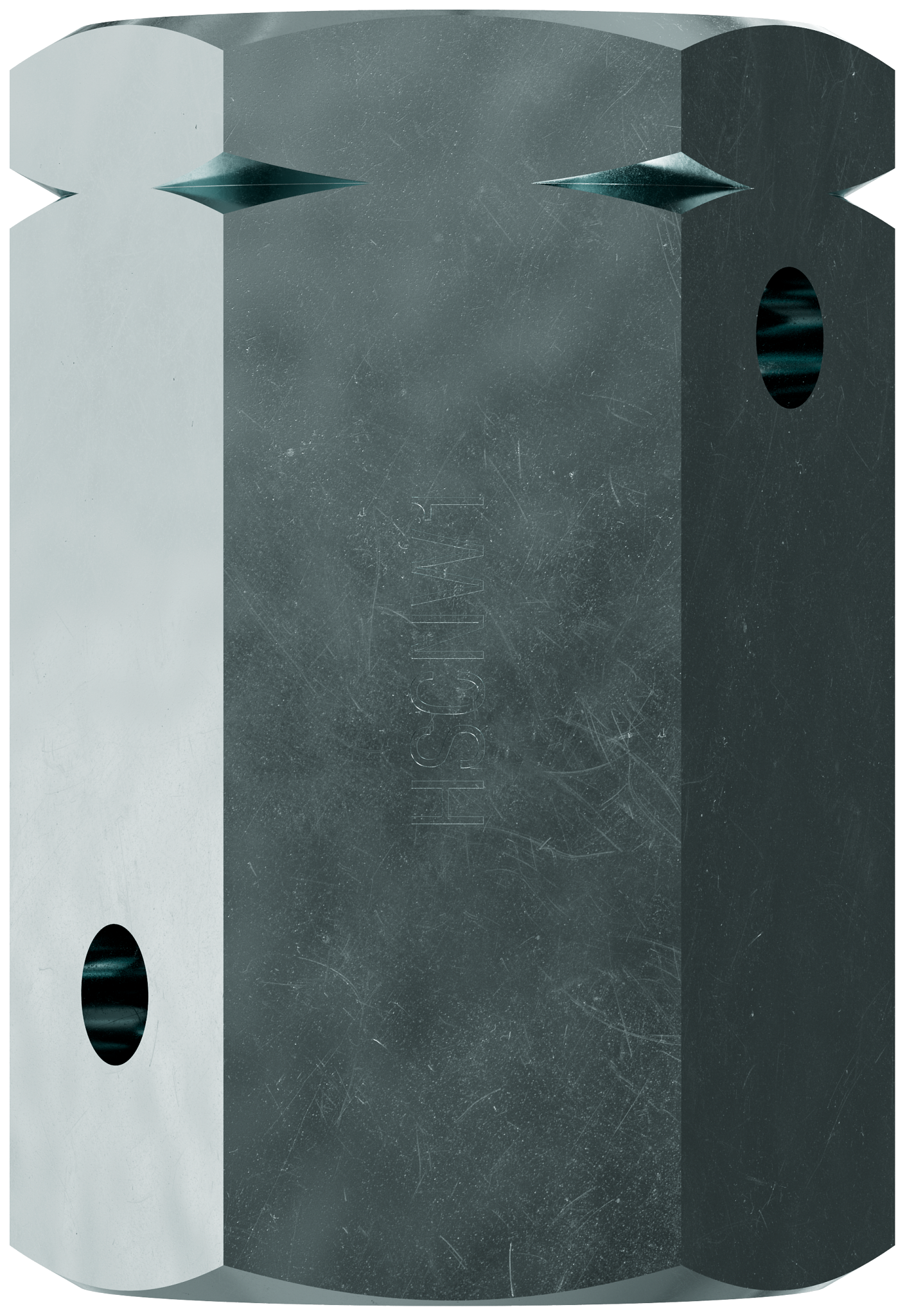

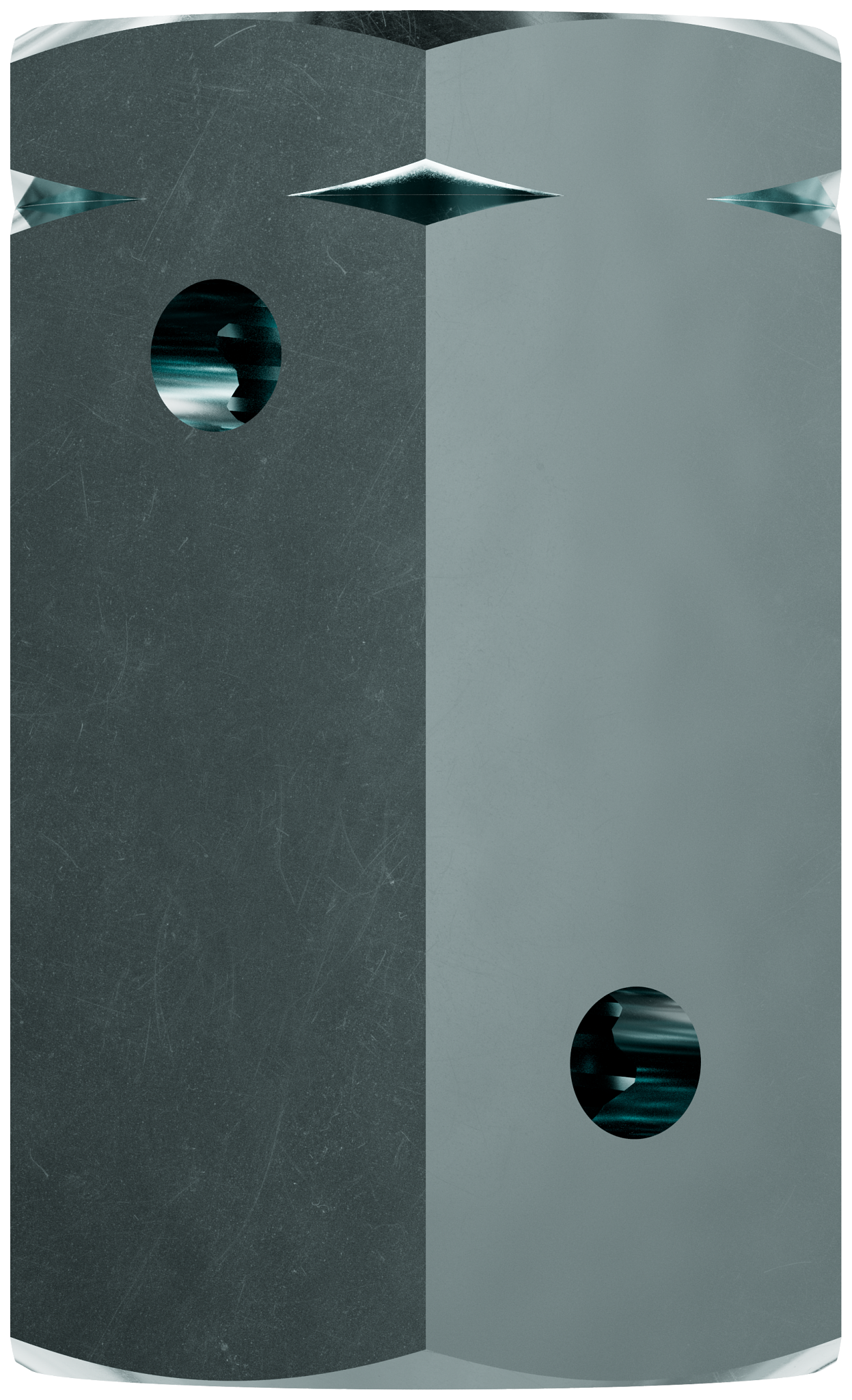

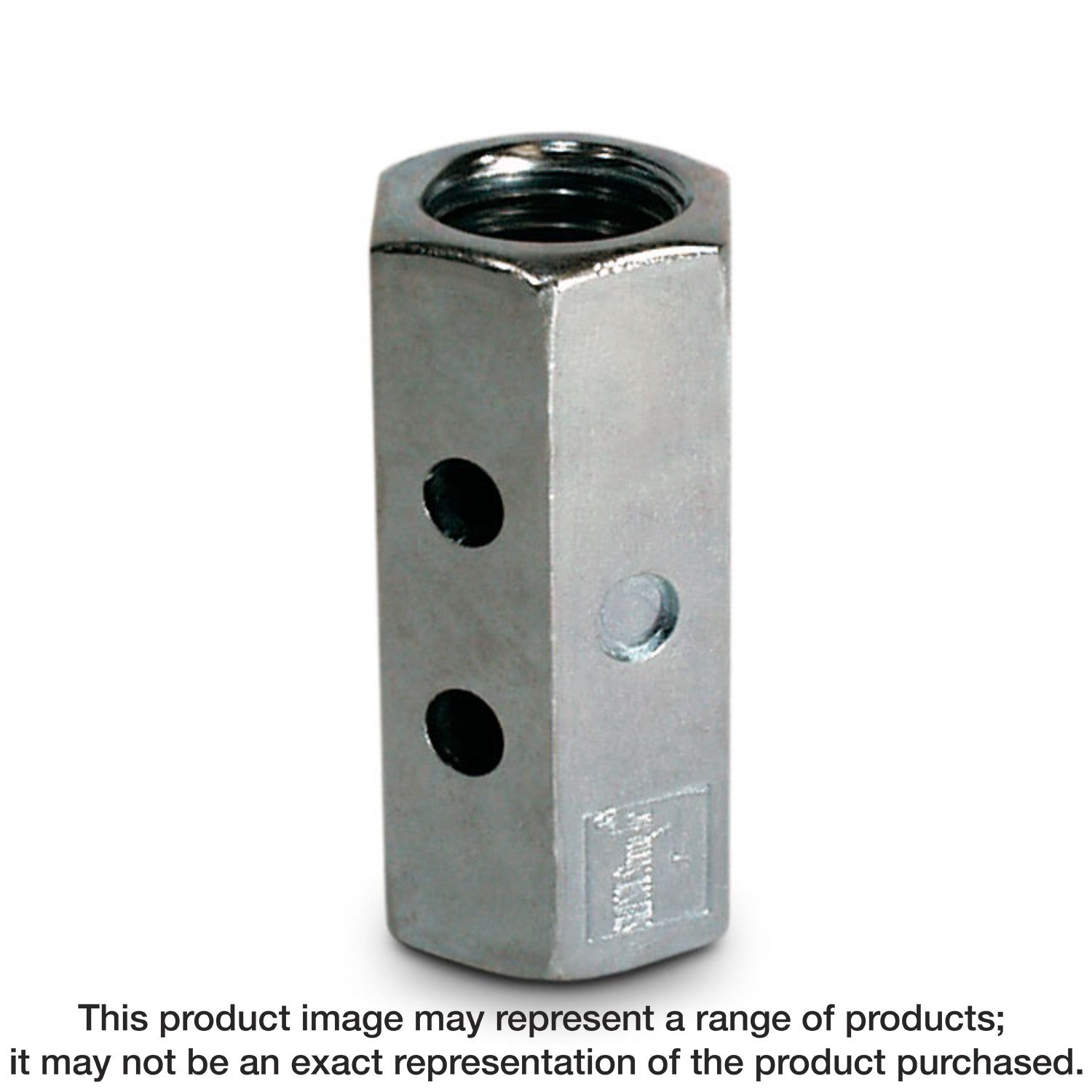

Simpson Strong-Tie HSCNW1 HSCNW 1 in. High-Strength Coupler Nut with Witness® Hole

The Simpson Strong-Tie® HSCNW coupler nut is designed to connect threaded rods to one another and to anchor bolts. These nuts are designed to exceed the specified minimum tensile capacity of the corresponding bolts and threaded rod. All HSCNW coupler nuts feature a positive stop to help ensure even threading into each end of the nut and a Witness® hole as a means to verify when rods are properly installed.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Tighten the two rods until each all-thread rod is visible in the Witness hole
• Positive stop feature that helps ensure proper thread engagement into each end of the nut
• For non-hot-dip galvanized all-thread rod only
• Rod diameter: 1 in.
• Height (min.): 2-1/2 in.

Specifications

• ERP Part Number: HSCNW1
• UPC: 707392312000
• GTIN: 707392312000
• Feature 01: Tighten the two rods until each all-thread rod is visible in the Witness hole
• Feature 02: Positive stop feature that helps ensure proper thread engagement into each end of the nut
• Feature 03: For non-hot-dip galvanized all-thread rod only
• Feature 04: Rod diameter: 1 in.
• Feature 05: Height (min.): 2-1/2 in.
• Assembled Depth - Imperial: 1.25 min.
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 2.5 min
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 1.44338 min.
• Assembled Width UOM - Imperial: in.
• Base Product ID: CNW_Nut
• Base Product Name: CNW/HSCNW/MCW
• Bolt/Rod Diameter (in.): 1
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Nuts and Couplers > Nut
• Coating: Zinc Plated or Uncoated
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• Finish: Zinc Plated or Uncoated
• GUID: 30243321481751419231388626154716034814
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Nut
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 1.2
• Short Product Name: 1IN HI STRENGTH COUPLER NUT W/ WITNESS
• Strongtie.com URL: https://www.strongtie.com/nutsandcouplers_anchorbolts/cnw_nut/p/cnw.hscnw
• Subcategory: Wood Construction Connectors
• Subcategory 2: Nuts and Couplers
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
