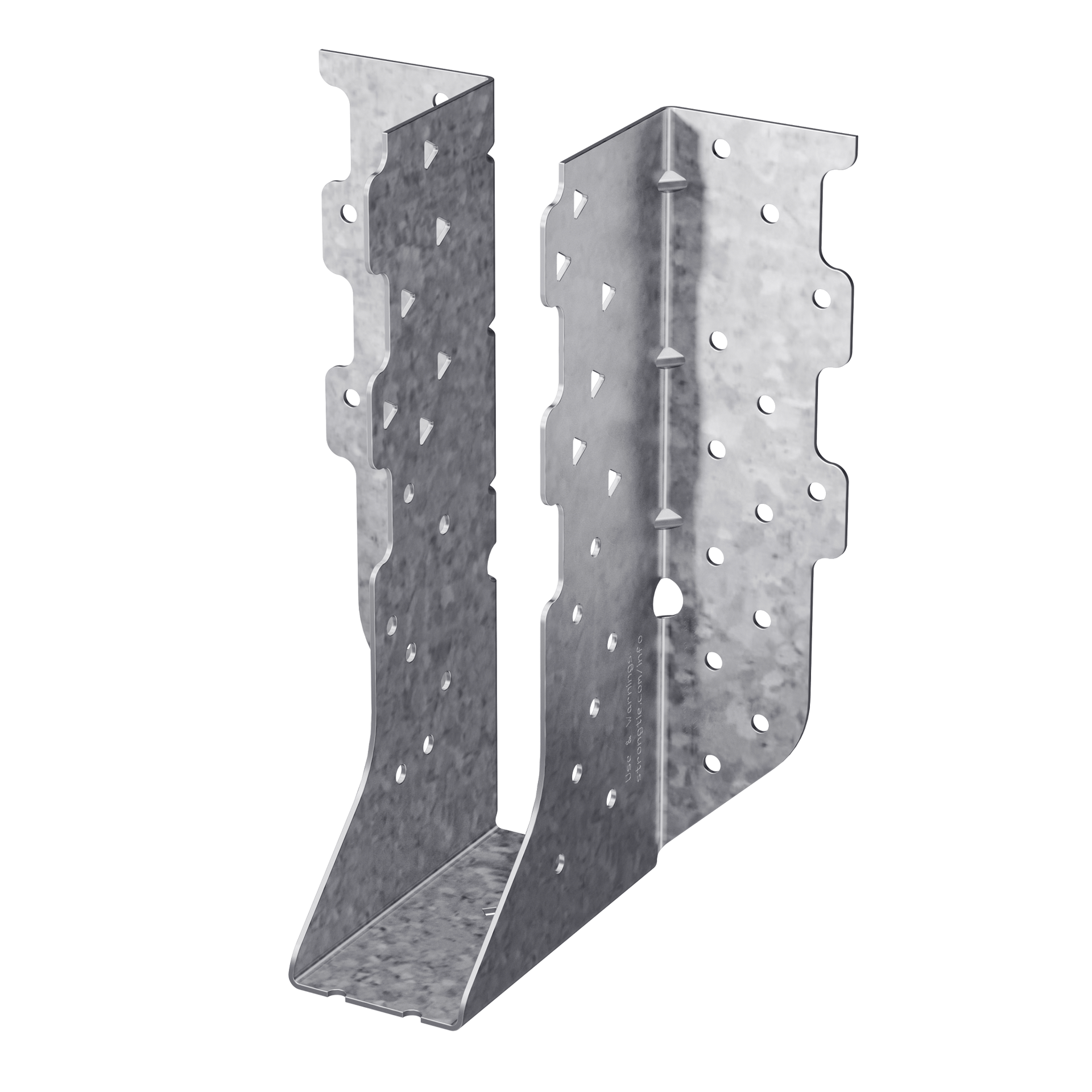

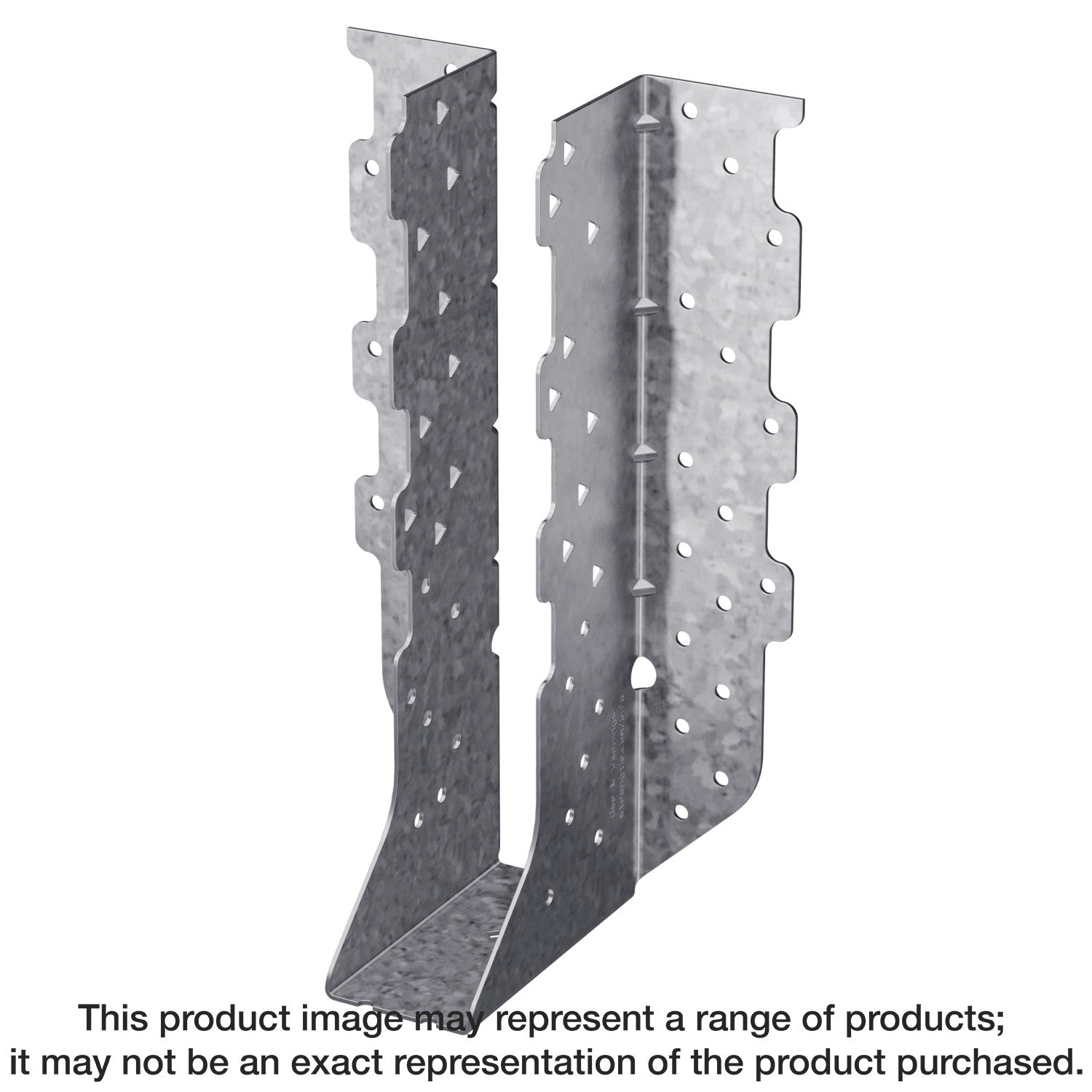

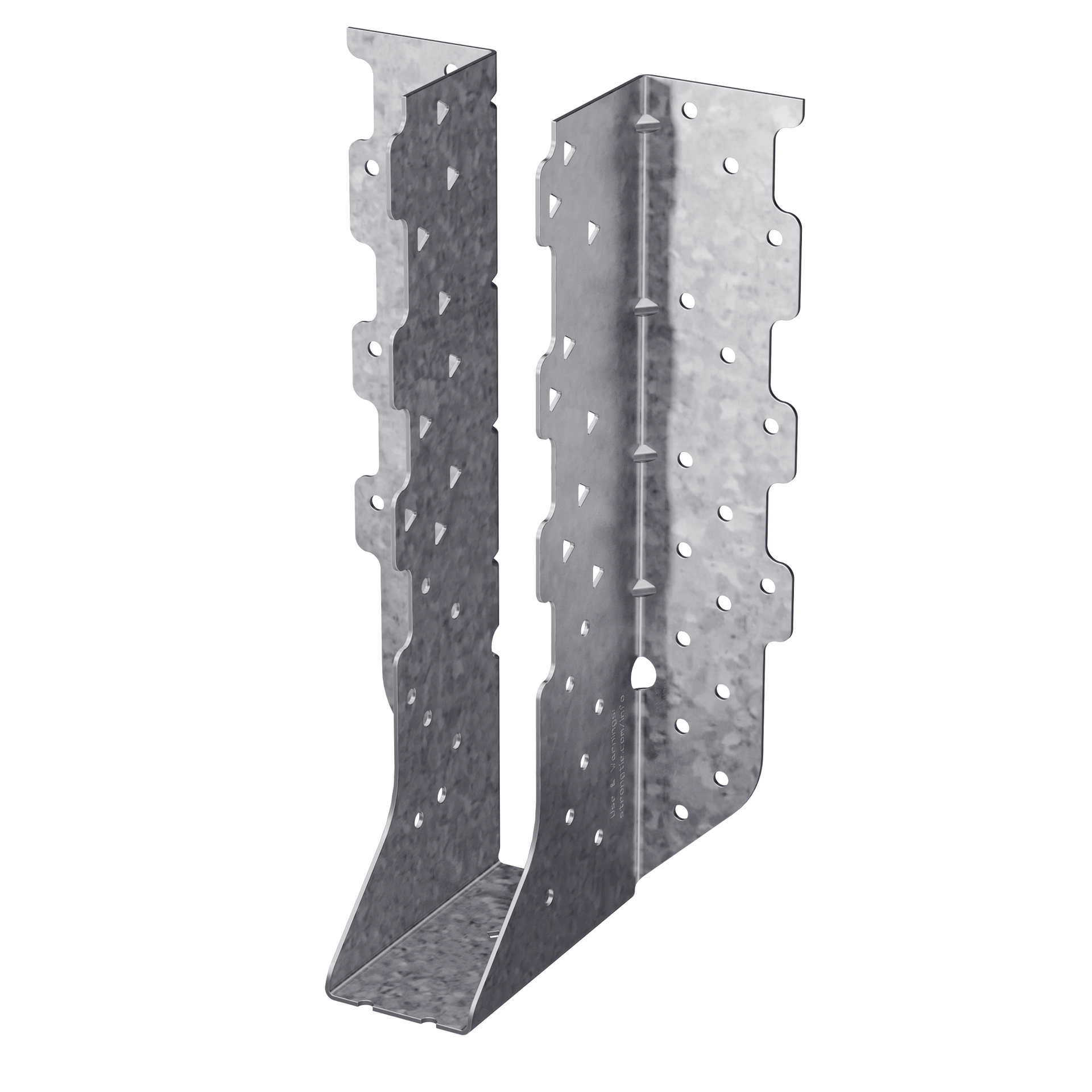

Simpson Strong-Tie HTU28 HTU Galvanized Heavy Face-Mount Truss Hanger for 2x8

Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. The HTU face-mount truss hangers have nail patterns designed specifically for shallow heel heights. The full allowable loads (with minimum nailing) apply to heel heights as low as 3-7/8 in. Minimum and maximum nailing options provide solutions for varying heel heights and end conditions.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Can be installed filling round holes only, or filling round and triangle holes for maximum values
• Nominal joist size: 2x8
• Made from 16-gauge steel
• Galvanized (G90) for extra corrosion resistance

Specifications

• ERP Part Number: HTU28
• UPC: 707392448907
• GTIN: 707392448907
• Feature 01: Can be installed filling round holes only, or filling round and triangle holes for maximum values
• Feature 02: Nominal joist size: 2x8
• Feature 03: Made from 16-gauge steel
• Feature 04: Galvanized (G90) for extra corrosion resistance
• Install With: Install with 16d common nails and 10d x 1-1/2 in. nails, #9 x 1-1/2 in. Strong-Drive® SD Connector screws
• Assembled Depth - Imperial: 3.84375
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 7.15075
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 5.239
• Assembled Width UOM - Imperial: in.
• Base Product ID: HTU_Hanger
• Base Product Name: HTU
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Truss Hangers > Hanger
• Coating: Zinc Galvanized, G90
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Finish: Zinc Galvanized, G90
• Gauge: 16
