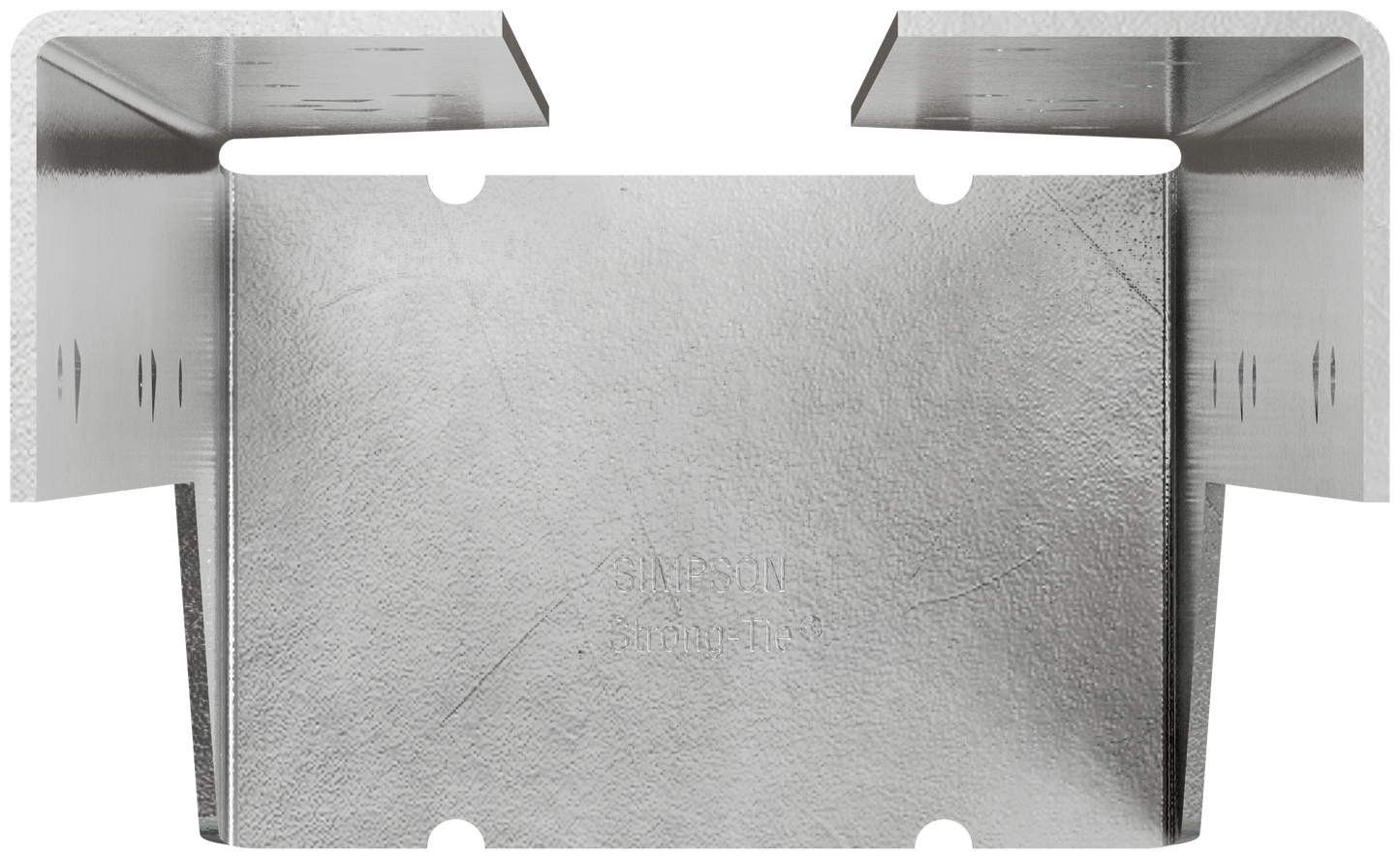

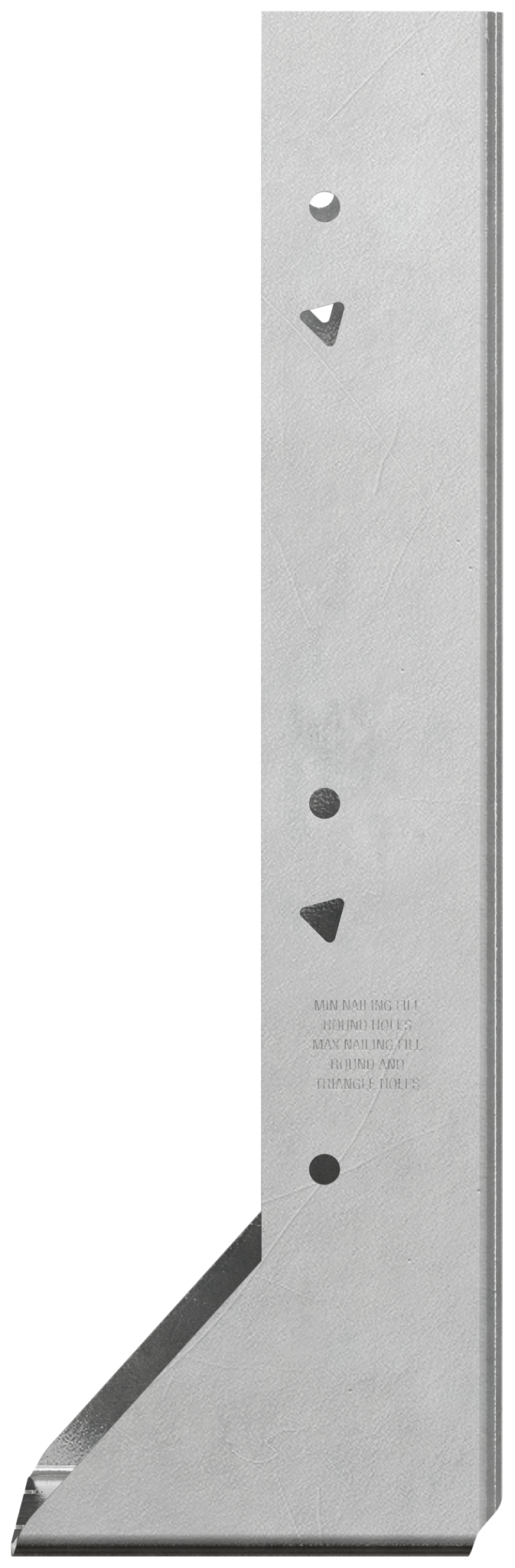

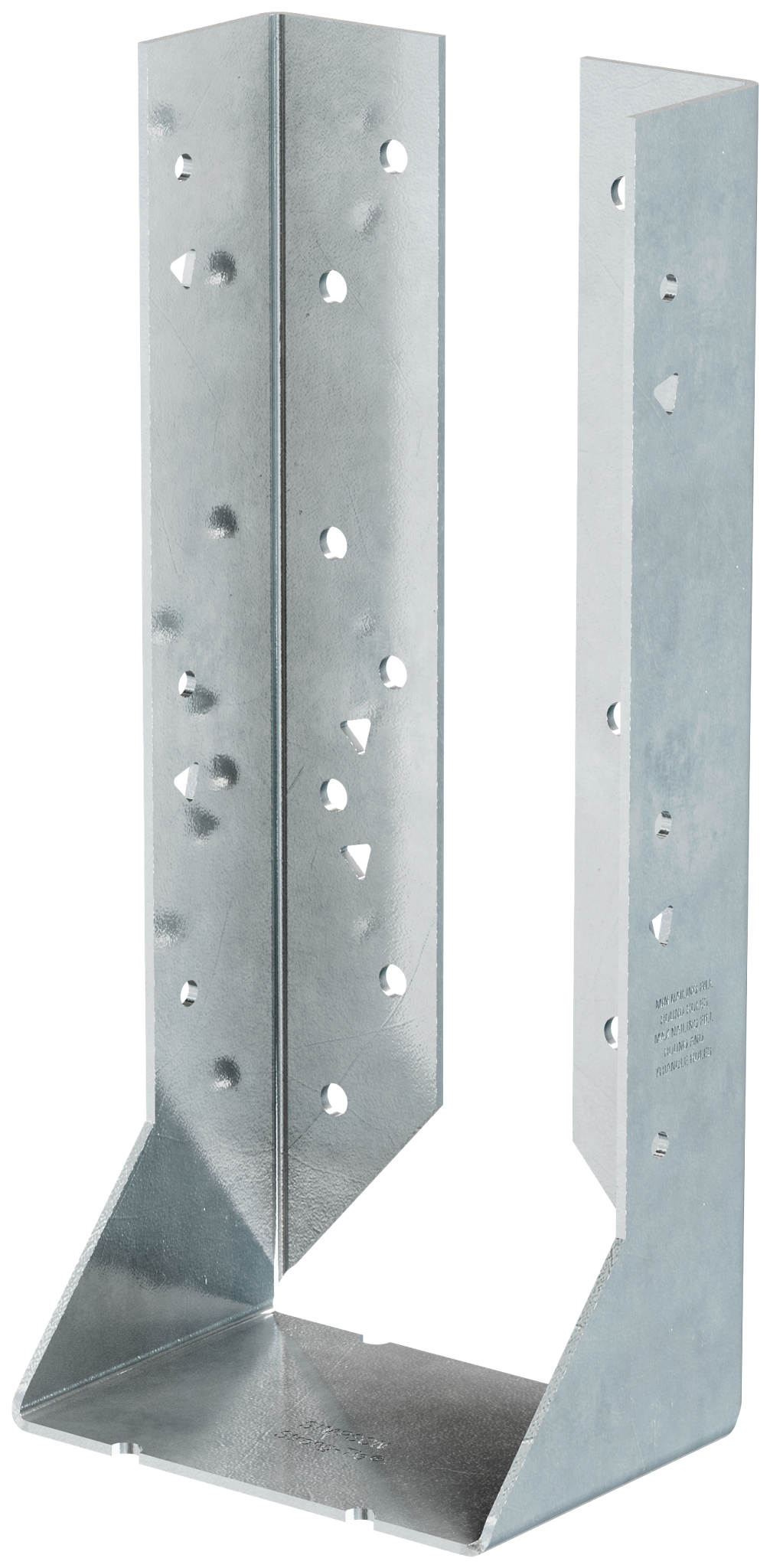

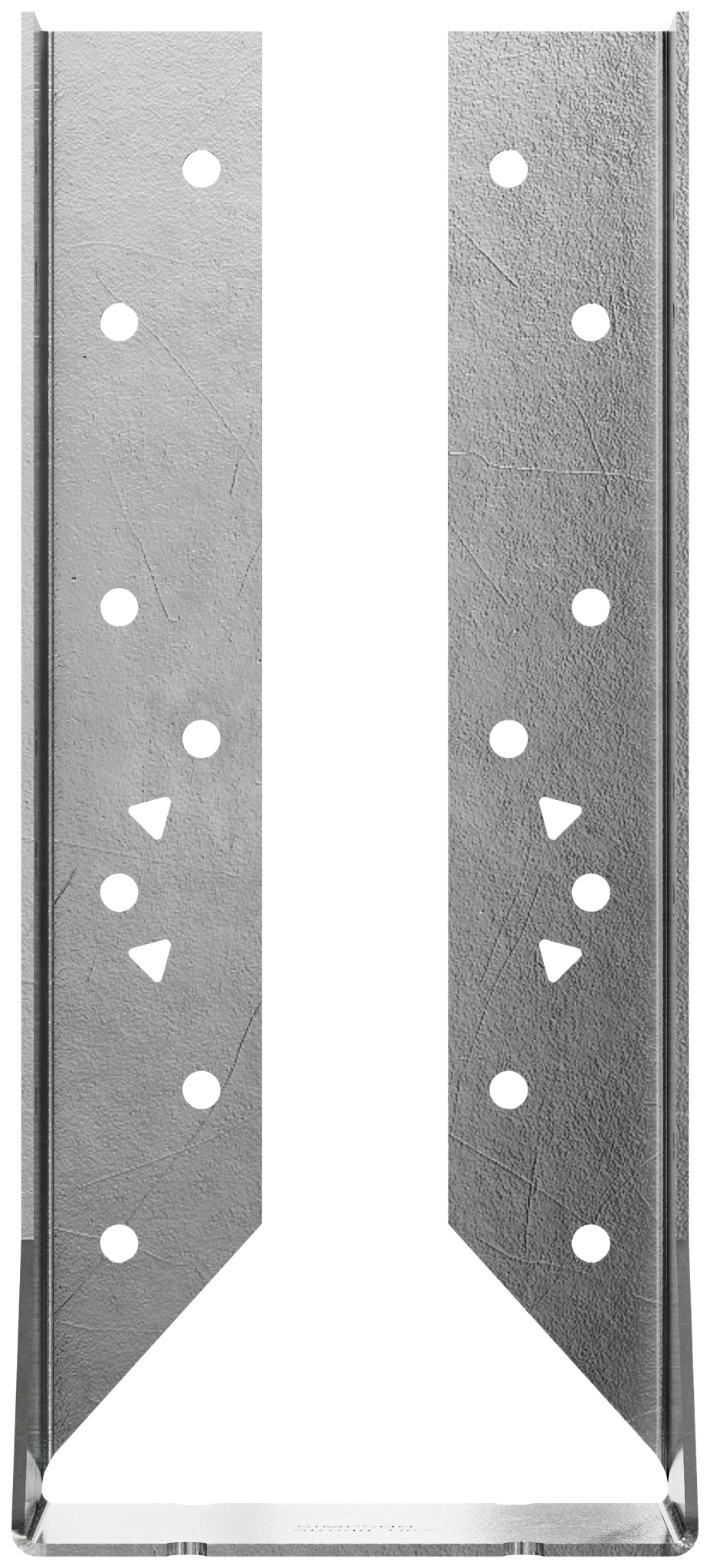

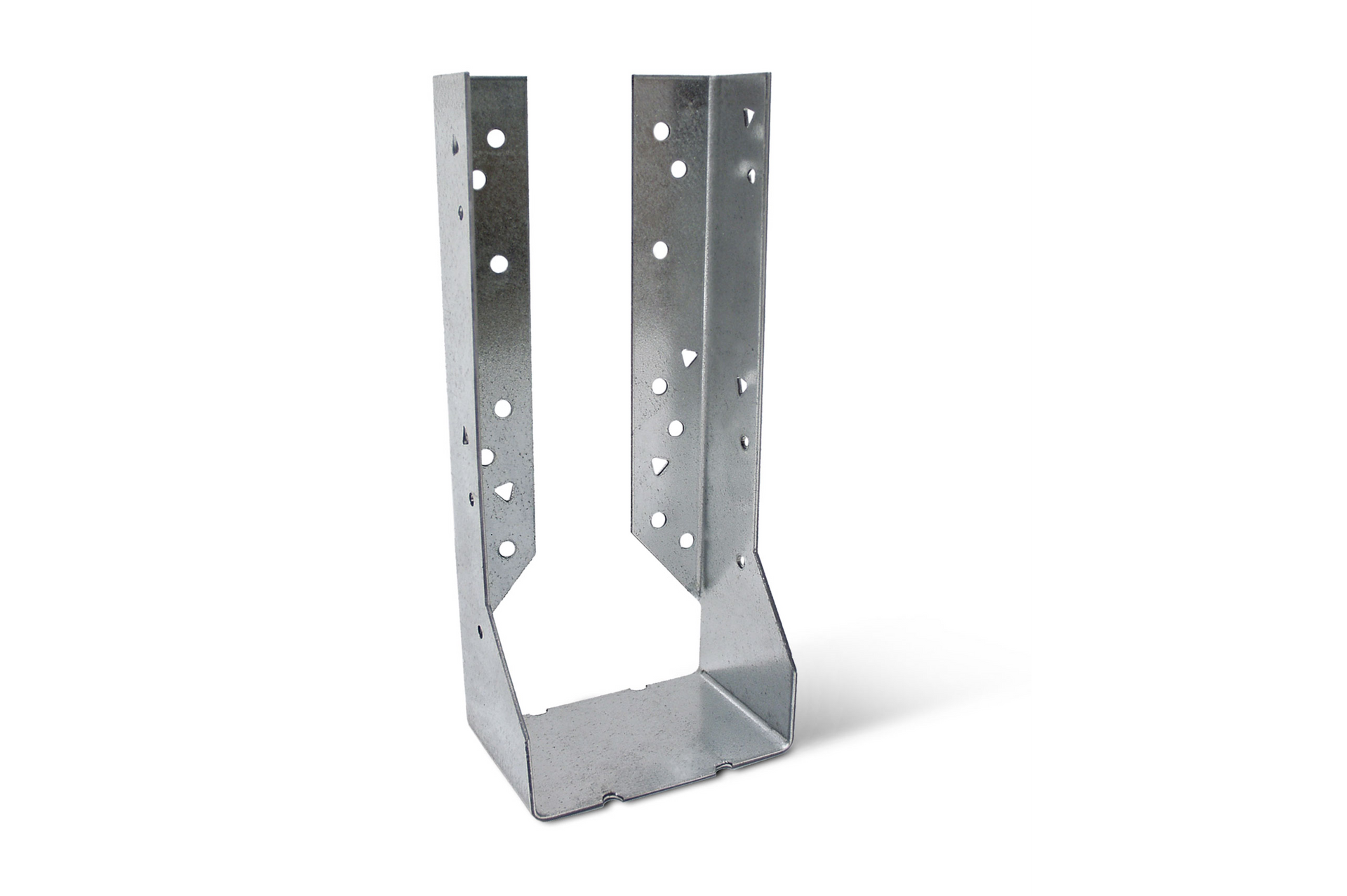

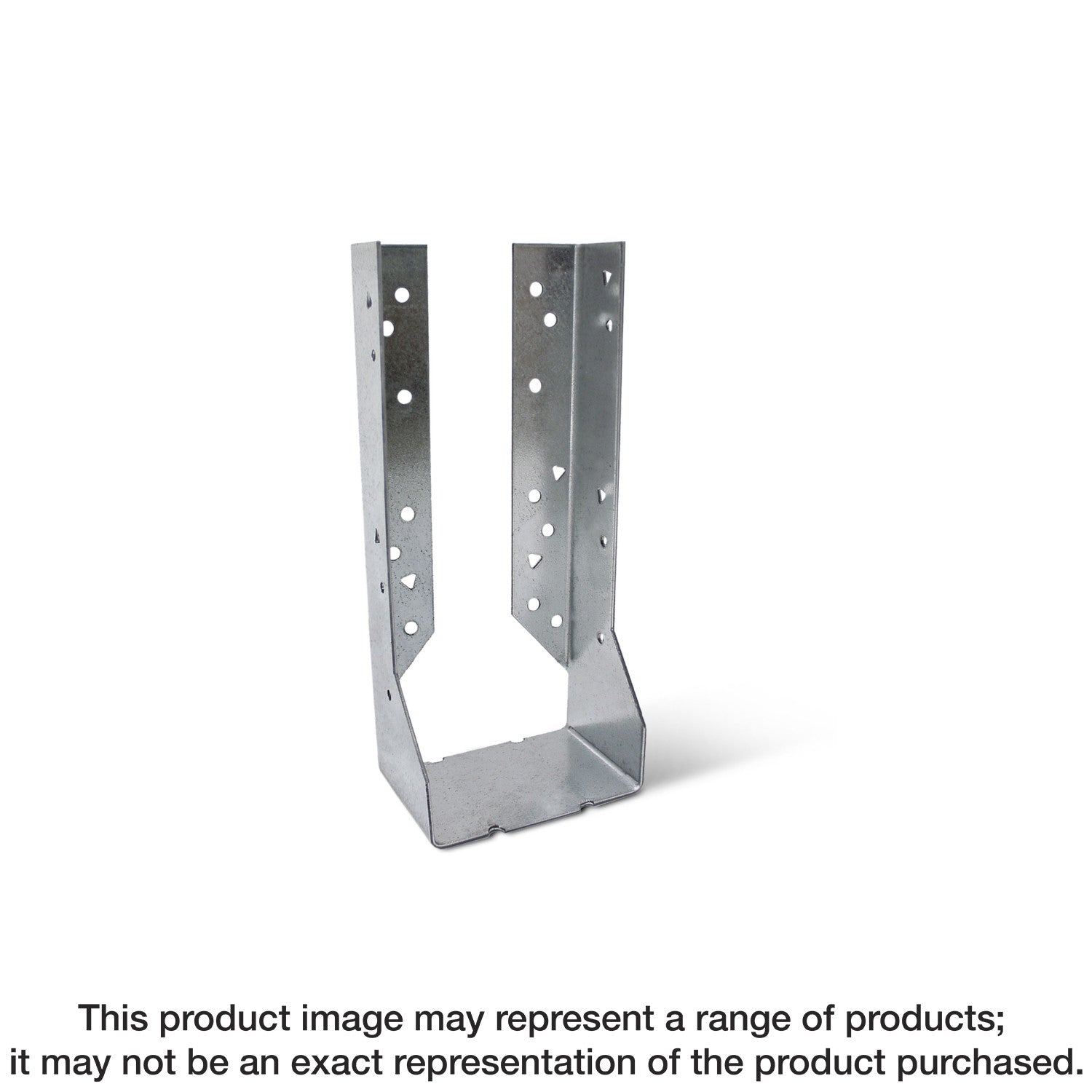

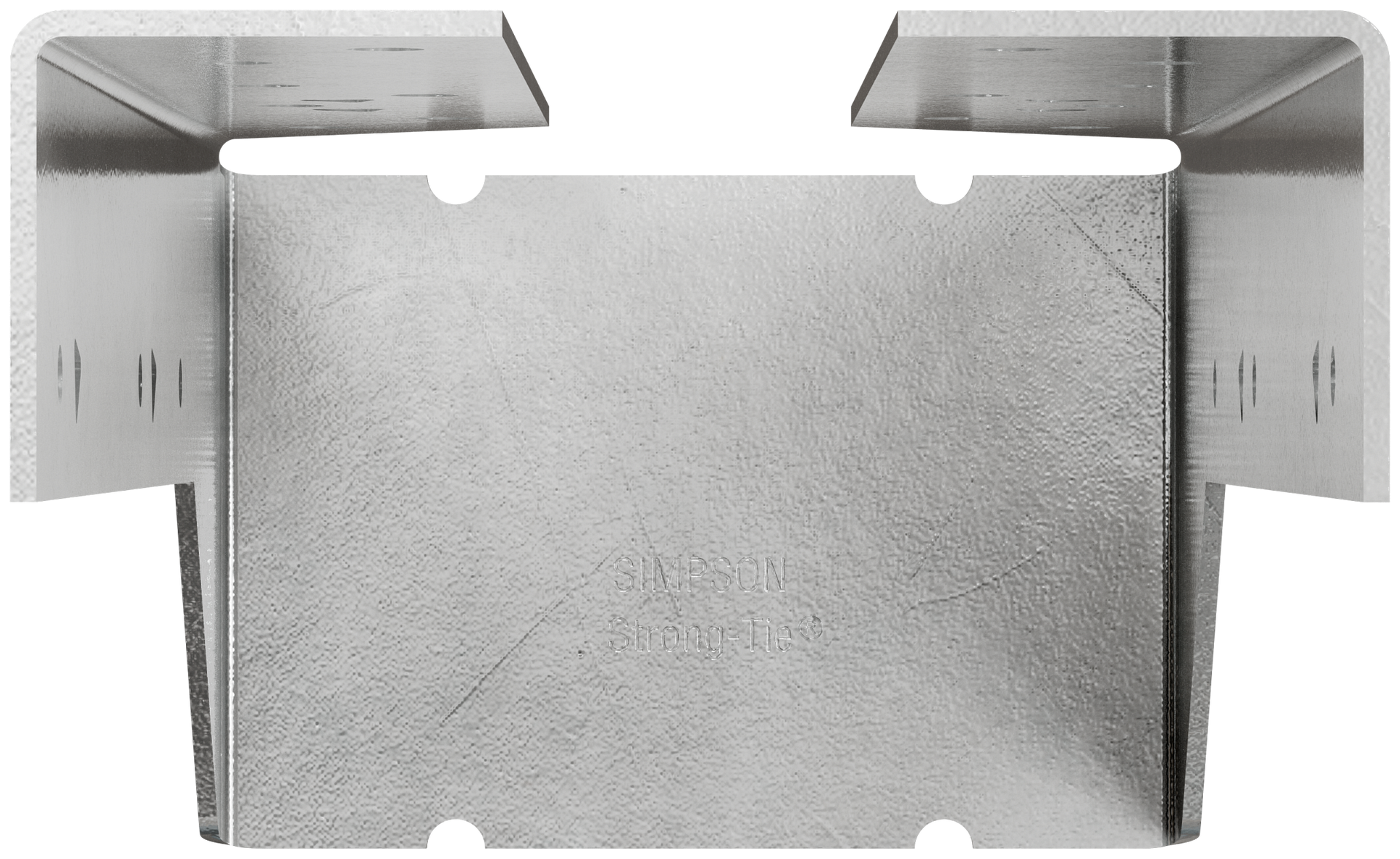

Simpson Strong-Tie HUC410SS HUC Stainless-Steel Face-Mount Concealed-Flange Joist Hanger for 4x10

The HUC is designed for structures requiring additional strength and safety factors. These face-mount joist hangers have concealed header flanges providing cleaner visible lines in exposed conditions. Some models of this heavy-duty hanger can be special ordered with a skewable seat and a seat that slopes as far as up to 45°.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Extra optional triangle holes for additional load
• HUC-series hangers are tested, load rated and code compliant
• Install wood joists to wood, masonry and concrete
• Seat width: 3-9/16 in.
• Nominal joist size: 4x10
• Made from 14-gauge steel
• Stainless steel offers extra corrosion resistance for exterior and treated-wood applications

Specifications

• ERP Part Number: HUC410SS
• UPC: 707392008354
• GTIN: 707392008354
• Feature 01: Extra optional triangle holes for additional load
• Feature 02: HUC-series hangers are tested, load rated and code compliant
• Feature 03: Install wood joists to wood, masonry and concrete
• Feature 04: Seat width: 3-9/16 in.
• Feature 05: Nominal joist size: 4x10
• Feature 06: Made from 14-gauge steel
• Feature 07: Stainless steel offers extra corrosion resistance for exterior and treated-wood applications
• Install With: (14-18) 0.162 in. x 3-1/2 in. ring-shank nails in the header and (6-10) 0.148 in. x 3 in. ring-shank nails in the joist OR (28) #10 x 1-1/2 in. Strong-Drive® SD Connector screws; stainless-steel fasteners required
• Assembled Depth - Imperial: 2.57
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 8.695
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 3.7025
• Assembled Width UOM - Imperial: in.
• Base Product ID: HUC_Hanger
• Base Product Name: HUC
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Joist Hangers > Hanger
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Finish: Stainless Steel
• Gauge: 14
• GUID: 318811681266845955390952999261144903075
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Material: Stainless Steel
• Measurement Unit Text: each
• Member Size: 4x10
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Hanger
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 1.1
• Short Product Name: 4X10 SS FACE MOUNT HANGER
• Strongtie.com URL: https://www.strongtie.com/facemounthangersssl_solidsawnlumberconnector/huc_hanger/p/huc
• Subcategory: Wood Construction Connectors
• Subcategory 2: Joist Hangers
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10707392008351
• PAL Reference: 50707392008359
• Lumber Size Infographic: https://images.salsify.com/image/upload/s--4j6m7m95--/of77l1vzb2adrmtseor4.png
