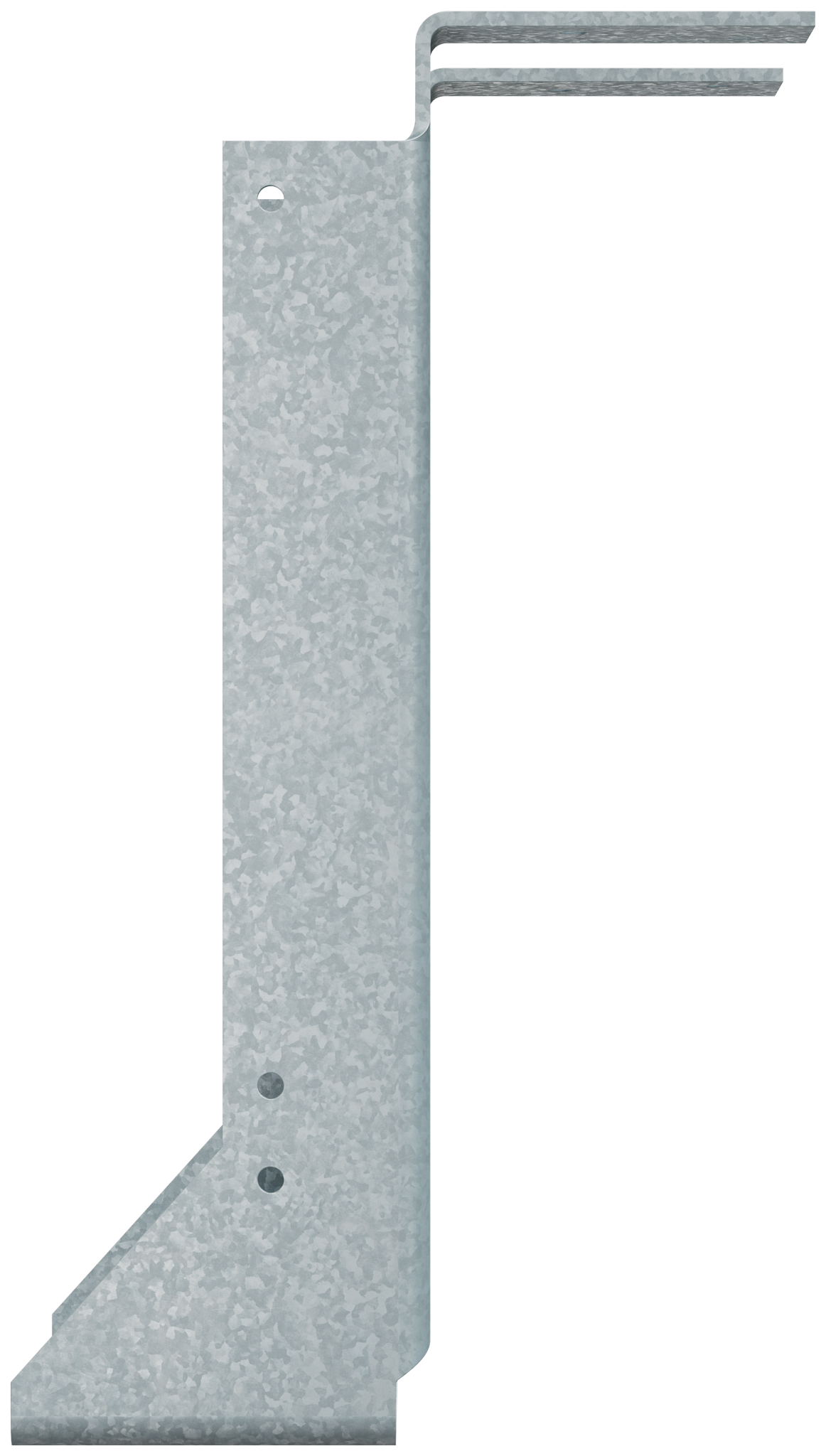

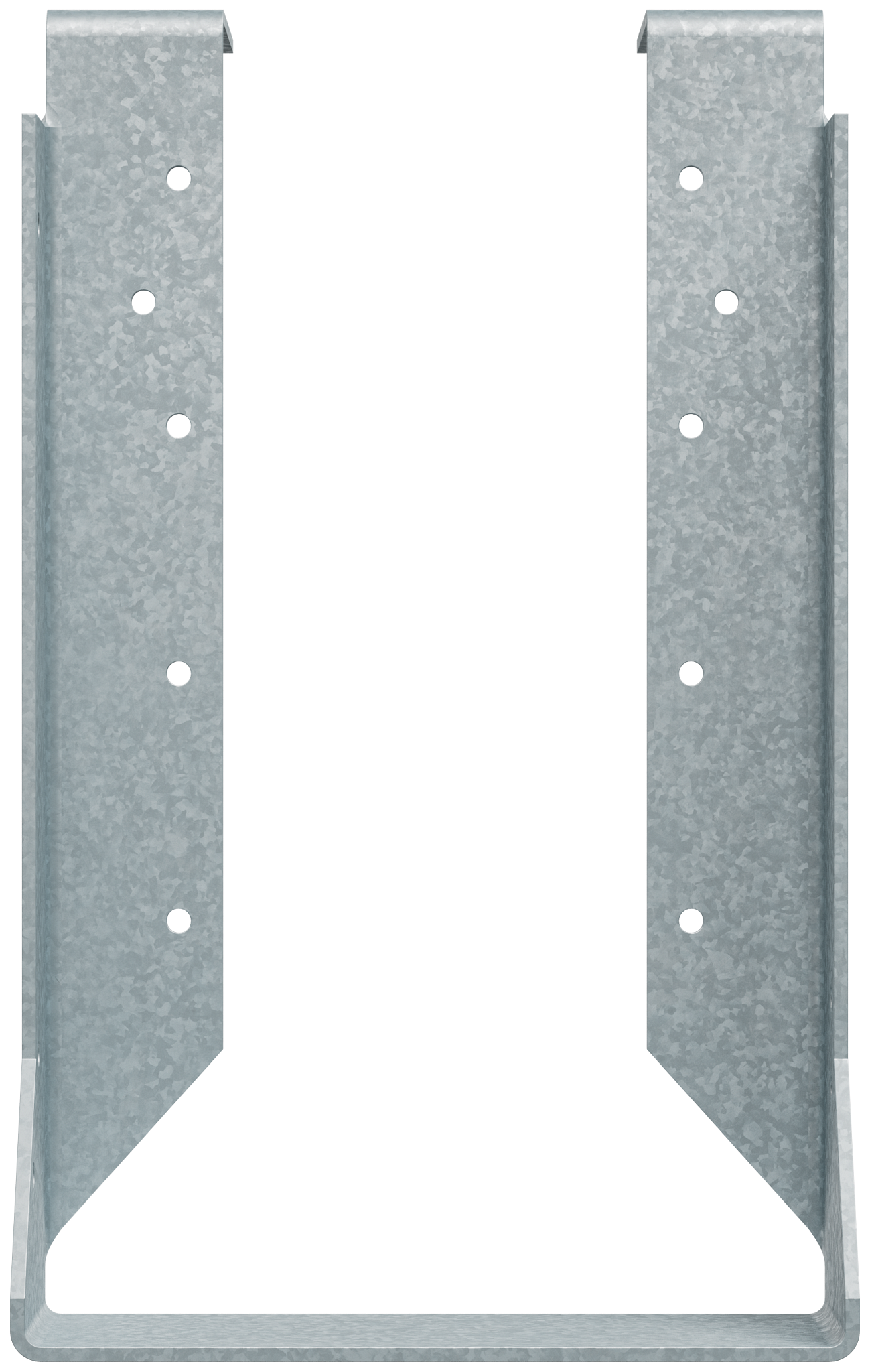

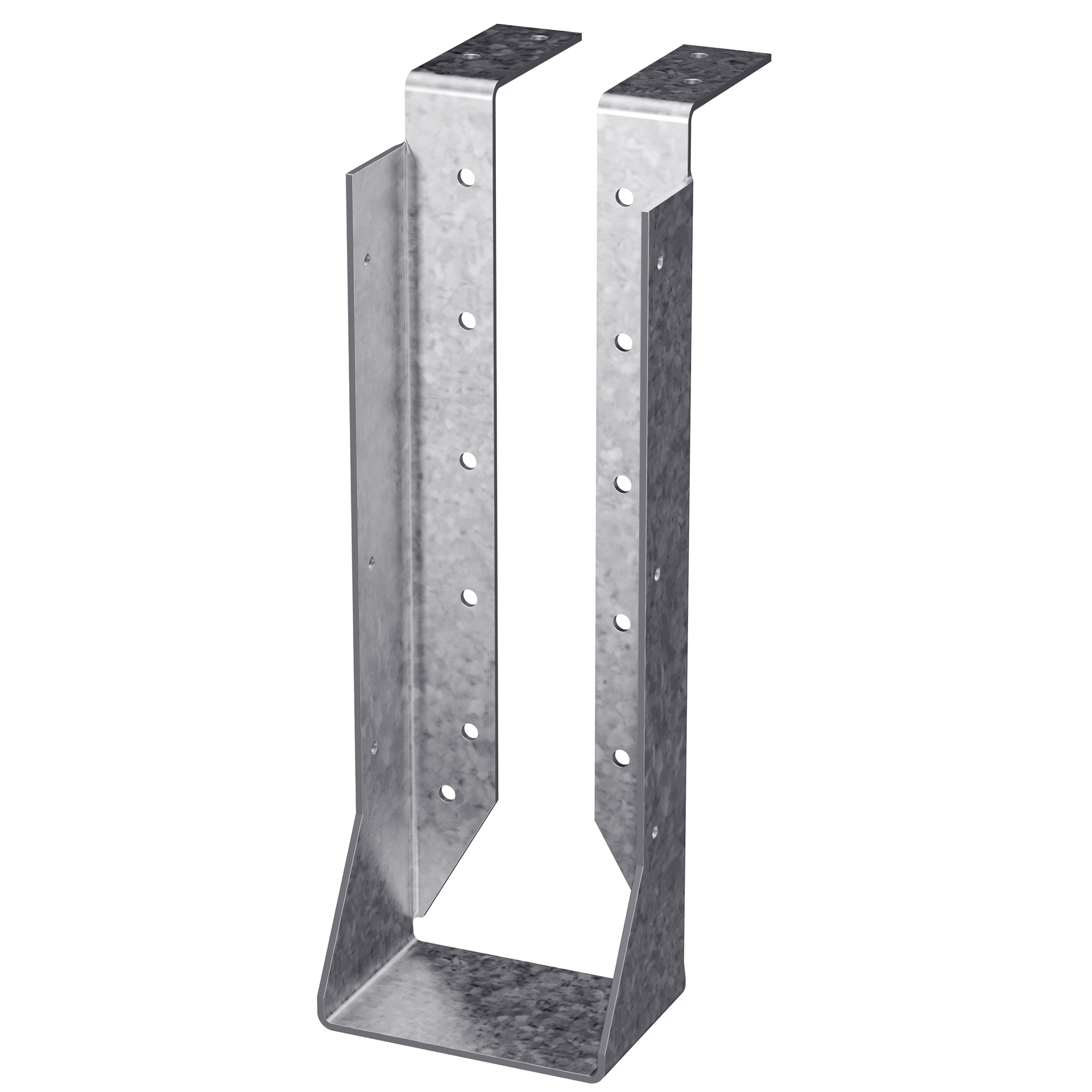

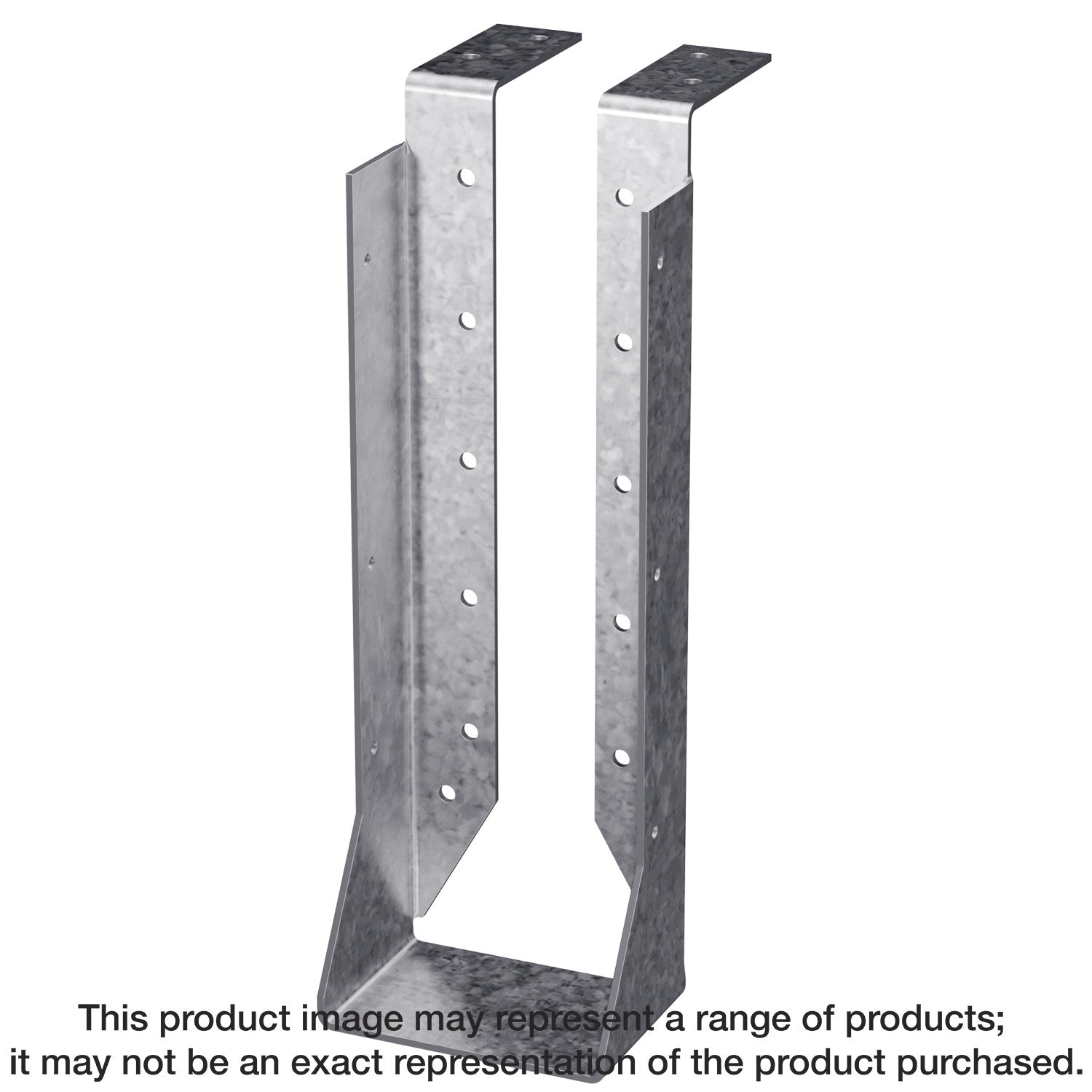

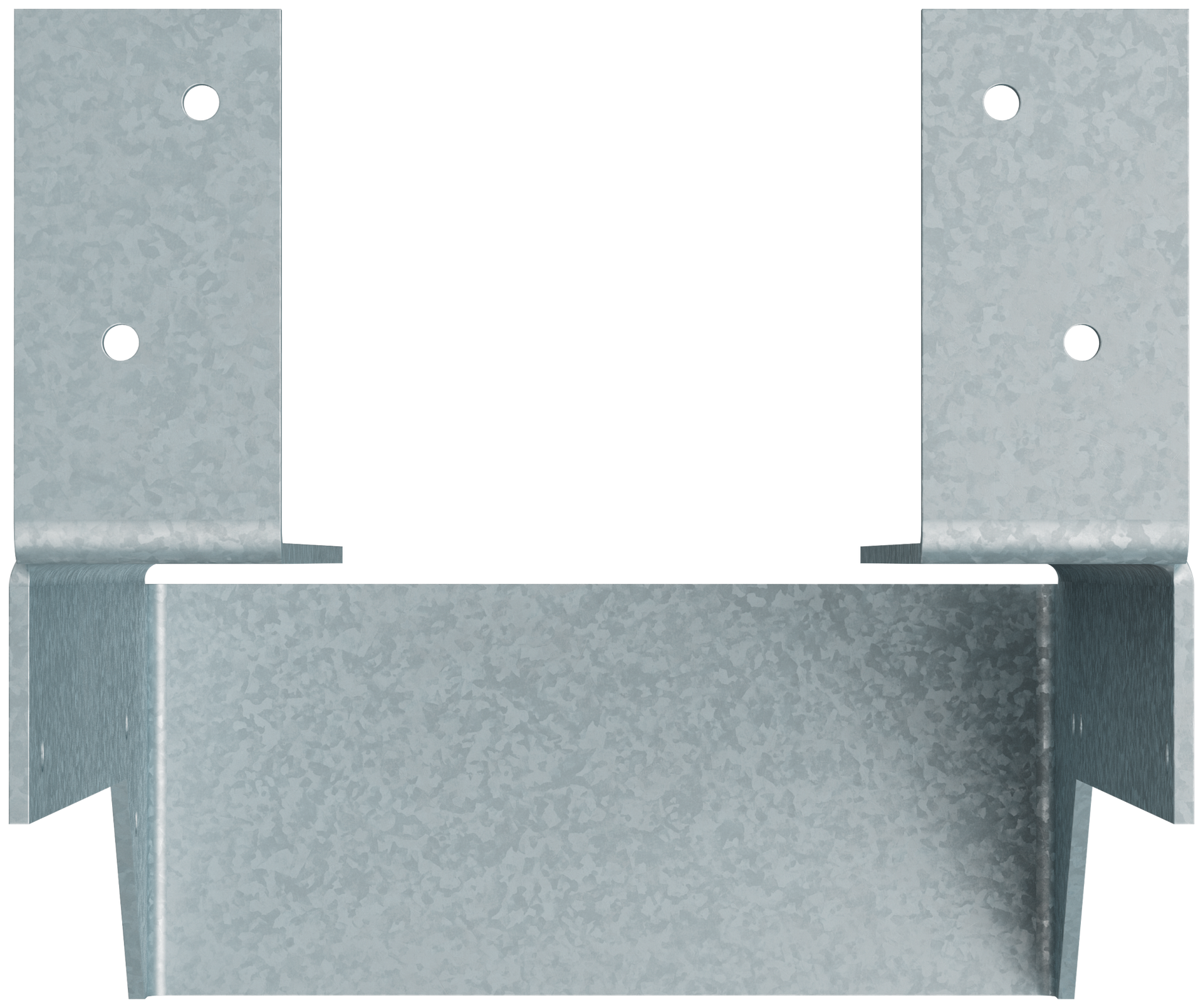

Simpson Strong-Tie HUC610TF HUCTF Galvanized Top-Flange Concealed-Flange Joist Hanger for 6x10

The Simpson Strong-Tie® HUCTF is a hybrid hanger that incorporates the advantages of both face-mount and top-mount hangers. This heavy-duty joist hanger is designed with two concealed flanges for end-of-wall or corner installation. The HUCTF features face-nailing that allows the hanger to be securely attached to the member.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Rough beam sizes are available by special order
• The hanger can be sloped a maximum of 45°, with no skew options available
• HUCTF-series hangers are tested, load rated and code compliant
• Nominal joist size: 6x10
• Made from 12-gauge steel
• Galvanized (G90) for corrosion resistance

Specifications

• ERP Part Number: HUC610TF
• UPC: 44315071300
• GTIN: 44315071300
• Feature 01: Rough beam sizes are available by special order
• Feature 02: The hanger can be sloped a maximum of 45°, with no skew options available
• Feature 03: HUCTF-series hangers are tested, load rated and code compliant
• Feature 04: Nominal joist size: 6x10
• Feature 05: Made from 12-gauge steel
• Feature 06: Galvanized (G90) for corrosion resistance
• Install With: Installs with (14) 0.162 in. x 3-1/2 in. nails in the header and (6) 0.162 in. x 3-1/2 in. nails in the joist
• Assembled Depth - Imperial: 5.099
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 9.323
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 5.698
• Assembled Width UOM - Imperial: in.
• Base Product ID: HUCTF_Hanger
• Base Product Name: HUCTF
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Joist Hangers > Hanger
• Coating: Zinc Galvanized, G90
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• Finish: Zinc Galvanized, G90
• Gauge: 12
• GUID: 256283789742233734197627582814830165606
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• Member Size: 6x10
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Hanger
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 1.88
• Short Product Name: 6 X 10 TOP FLANGE FACE MOUNT HANGER
