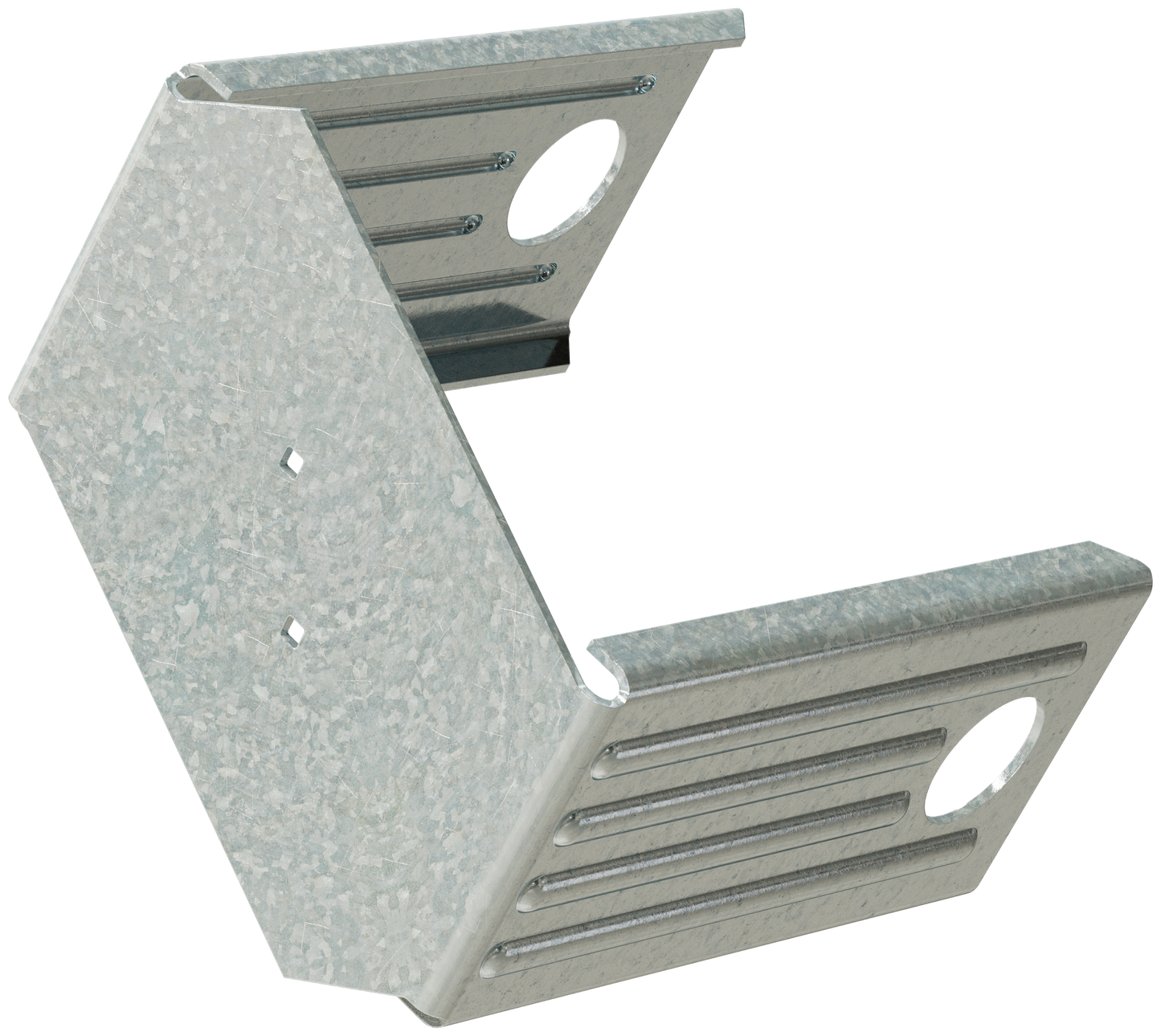

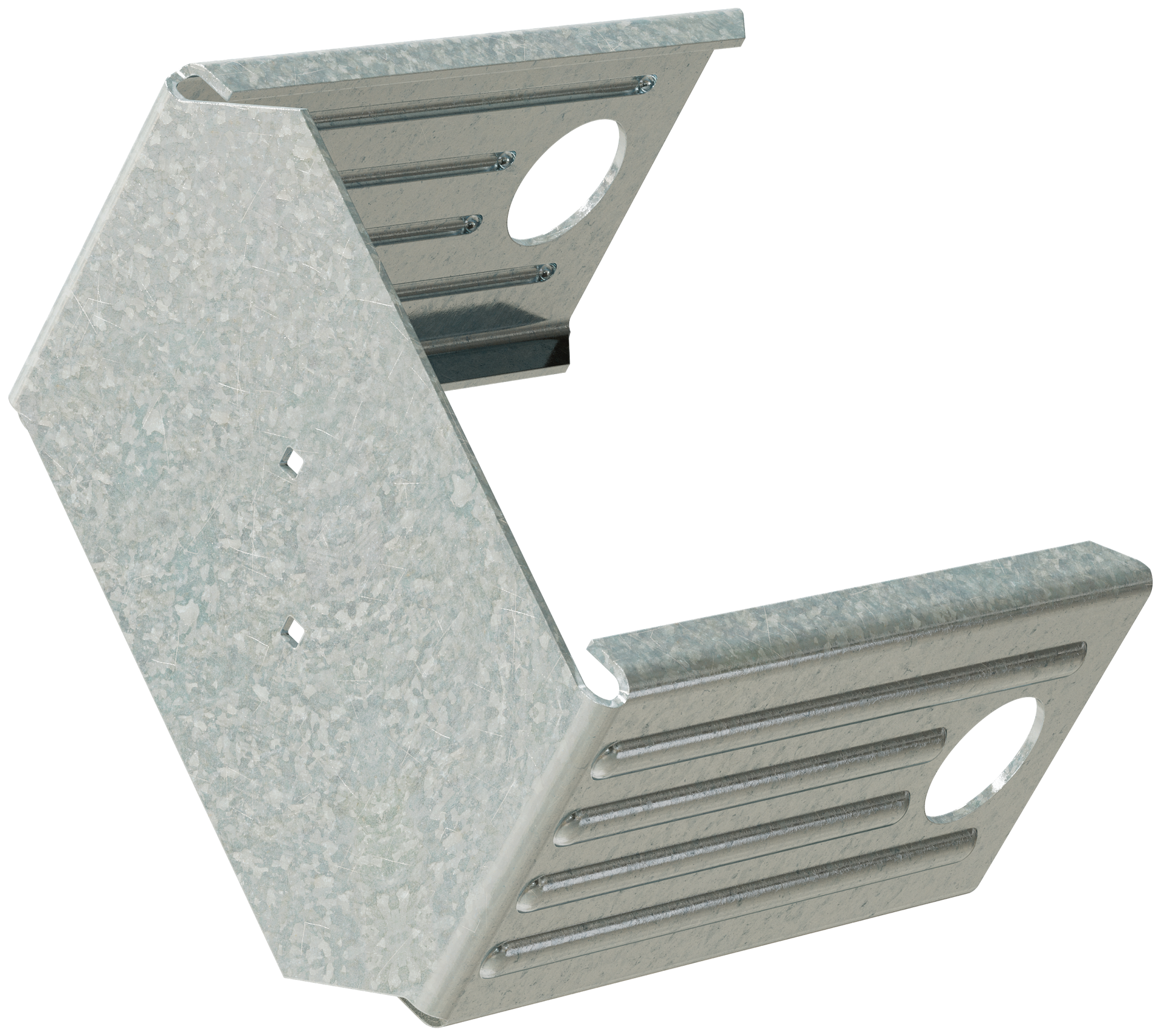

Simpson Strong-Tie ICFVL8 ICFVL® Ledger Connector with 8-in. Legs

The ICFVL ledger connector system is engineered to meet the challenges of mounting wood or steel ledgers to insulated concrete form (ICF) walls. The ICFVL is designed to provide both vertical and lateral in-plane performance. The system offers many benefits over traditional anchor bolting, including better on-center spacing in most cases, faster installation and no protrusions. The embedded legs of the ICFVL are embossed for additional stiffness, and the hole enables concrete to flow through and around the connector. The exposed flange on the face of the ICF provides a structural surface for mounting a wood ledger. Note: For wood ledger applications, the ICFVL-W or ICFVL-CW is required (sold separately).

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Model ICFVL8 accommodates up to 4 1/2-in. thick ICF wall forms
• Embossments on the 8-in. embedded legs for additional stiffness
• Two diamond-shaped holes located in the center of the connector allow screw installation to hold it in place during concrete pour and to aid in proper alignment during installation; remove center screws prior to ledger installation
• Made from 14-gauge steel
• Galvanized (G90) for corrosion resistance

Specifications

• ERP Part Number: ICFVL8
• UPC: 707392018346
• GTIN: 707392018346
• Feature 01: Model ICFVL8 accommodates up to 4 1/2-in. thick ICF wall forms
• Feature 02: Embossments on the 8-in. embedded legs for additional stiffness
• Feature 03: Two diamond-shaped holes located in the center of the connector allow screw installation to hold it in place during concrete pour and to aid in proper alignment during installation; remove center screws prior to ledger installation
• Feature 04: Made from 14-gauge steel
• Feature 05: Galvanized (G90) for corrosion resistance
• Install With: Use with ICFVL-W for single 2x ledger sizes or ICFVL-CW for single LVL ledger sizes
• Assembled Depth - Imperial: 8
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 6.78
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 3.5
• Assembled Width UOM - Imperial: in.
• Base Product ID: ICFVL6-8_System
• Base Product Name: ICFVL®
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Masonry and Concrete Connectors > Ledger Plate
• Coating: Zinc Galvanized, G90
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• Finish: Zinc Galvanized, G90
• Gauge: 14
• GUID: 27973365365834101939774941016328017749
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Product Class: Ledger Plate
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 2.12
• Short Product Name: Steel Ledger Connector ICF Form 8" Legs
• Strongtie.com URL: https://www.strongtie.com/concrete_miscellaneousconnectors/icfvl6-8_system/p/icfvl6.icfvl8
• Subcategory: Wood Construction Connectors
• Subcategory 2: Masonry and Concrete Connectors
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 20707392018340
• PAL Reference: 60707392018348
