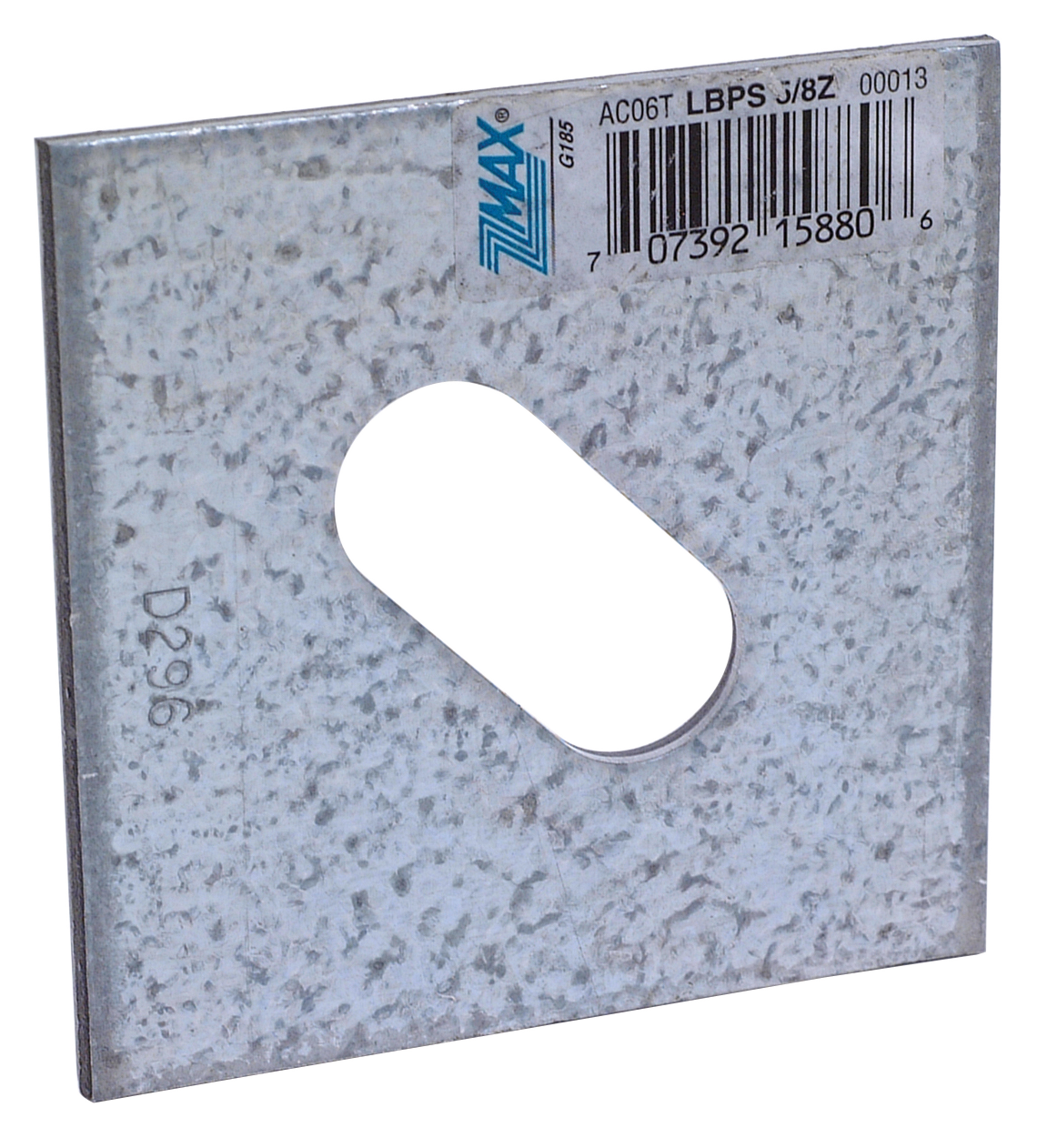

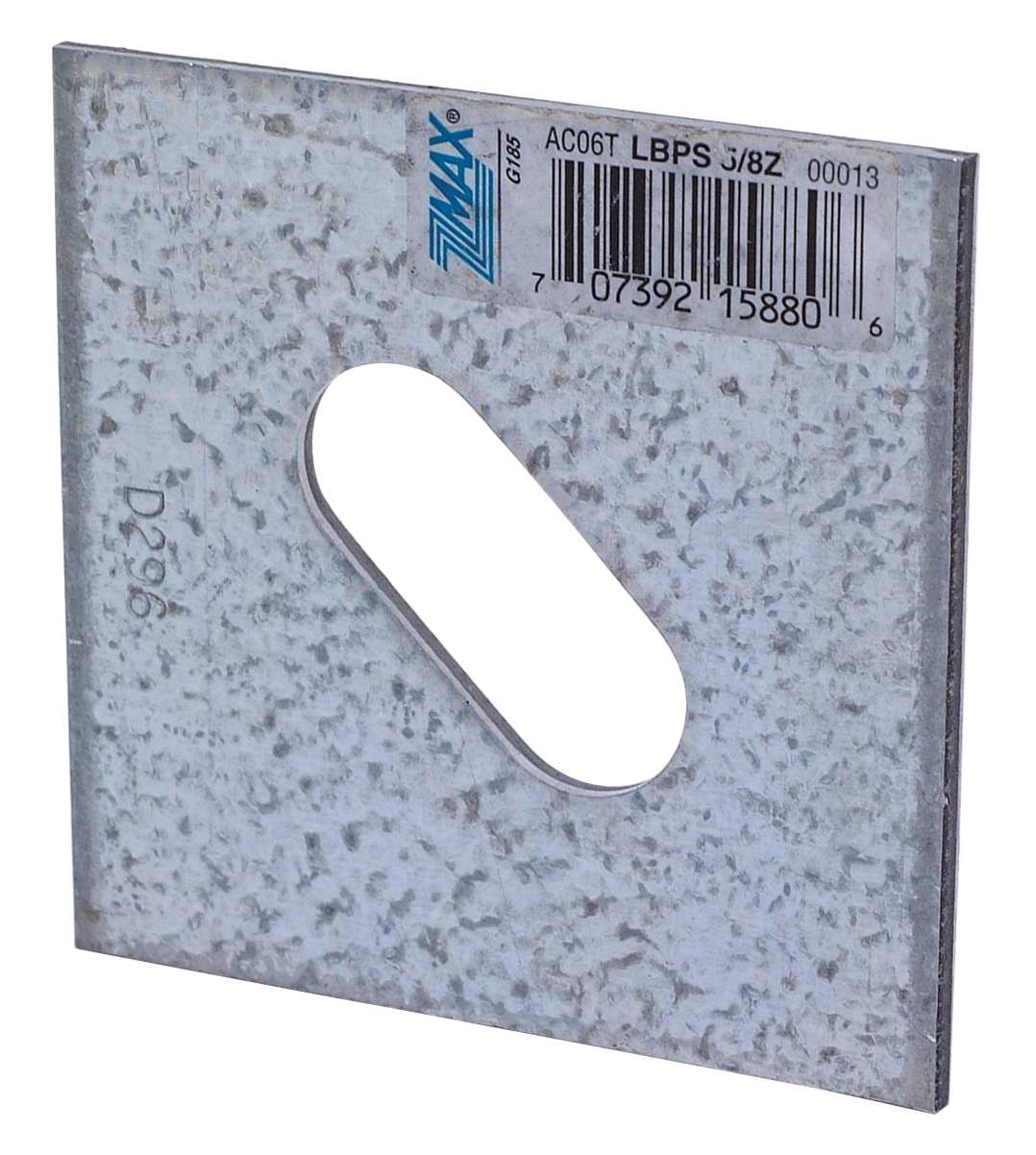

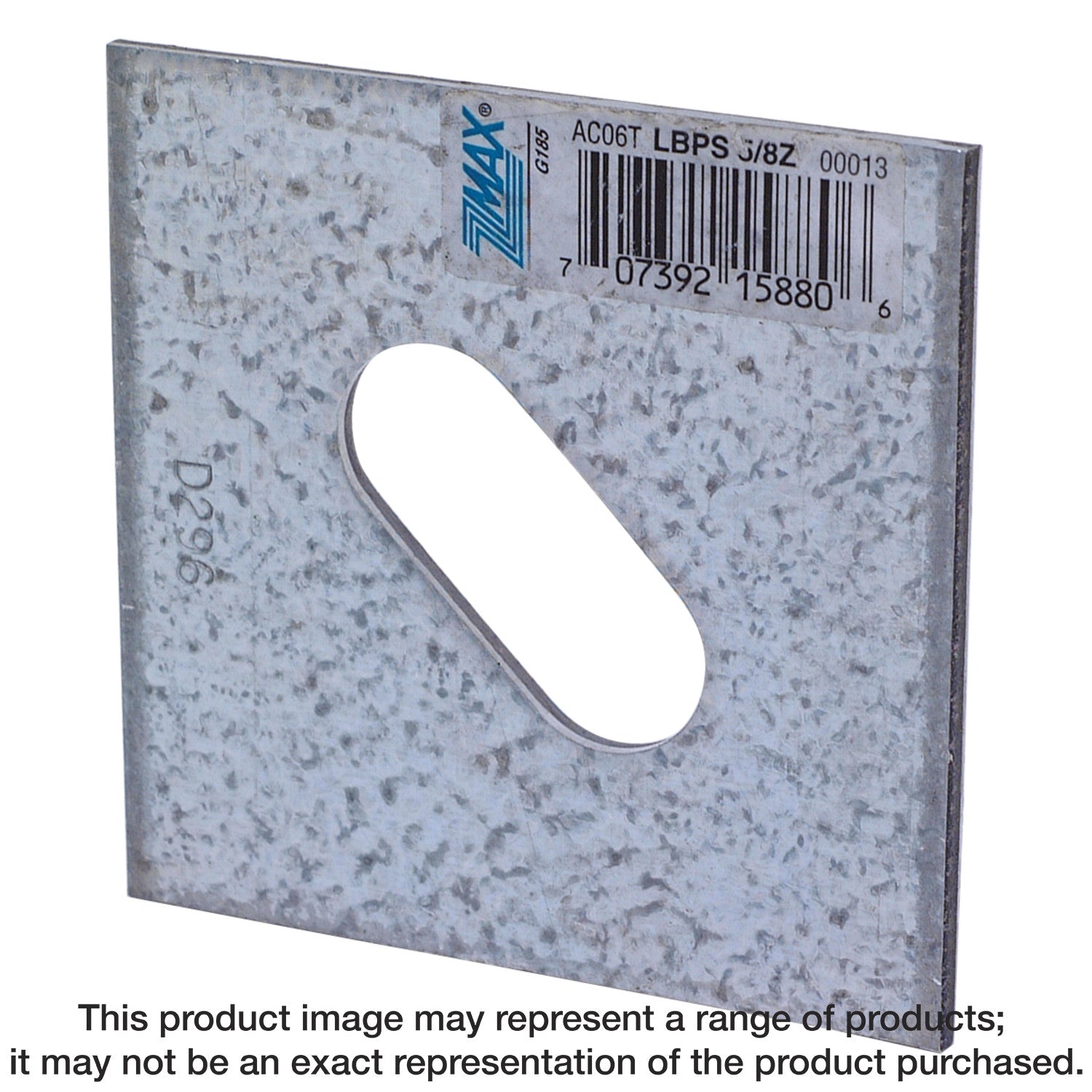

Simpson Strong-Tie LBPS 5/8Z LBPS 3 in. x 3 in. ZMAX® Galvanized Slotted Bearing Plate with 5/8 in. Bolt Dia.

Bearing plates give greater bearing surface than standard cut washers. They are designed to help strengthen and distribute the load at these critical connections. Bearing plates are typically used on foundation anchor bolts in place of cut washers.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• Offers increased flexibility while meeting the latest requirements of the code for 2x4 and 2x6 walls
• The slotted hole allows for adjustability to account for bolts that are not in the middle of the sill plate
• Bolt diameter: 5/8 in.
• Width: 3 in.
• Length: 3 in.
• Thickness: 9/64 in.
• ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications

Specifications

• ERP Part Number: LBPS 5/8Z
• UPC: 707392158806
• GTIN: 707392158806
• Feature 01: Offers increased flexibility while meeting the latest requirements of the code for 2x4 and 2x6 walls
• Feature 02: The slotted hole allows for adjustability to account for bolts that are not in the middle of the sill plate
• Feature 03: Bolt diameter: 5/8 in.
• Feature 04: Width: 3 in.
• Feature 05: Length: 3 in.
• Feature 06: Thickness: 9/64 in.
• Feature 07: ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications
• Assembled Depth - Imperial: 0.131
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 3
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 3
• Assembled Width UOM - Imperial: in.
• Base Product ID: LBPS_Plate
• Base Product Name: LBPS
• Bolt/Rod Diameter (in.): 5/8
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Concrete Connectors and Anchors > Bearing Plates > Bearing Plate
• Coating: ZMAX®
• Country of Origin: US
• Customer Unit: Yes
• Display Unit/Measure: EA
• EAN category: UC
• Fasteners Included: No
• Finish: ZMAX®
• GUID: 198733705223163596965733318820529196068
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Bearing Plate
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 0.37
• Short Product Name: 5/8IN BOLT DIA 3 X 3 BEARING PLATE ZMAX
• Strongtie.com URL: https://www.strongtie.com/bearingplates_anchorbolts/lbps_plate/p/lbps
• Subcategory: Concrete Connectors and Anchors
• Subcategory 2: Bearing Plates
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10707392158803
• PAL Reference: 50707392158801
