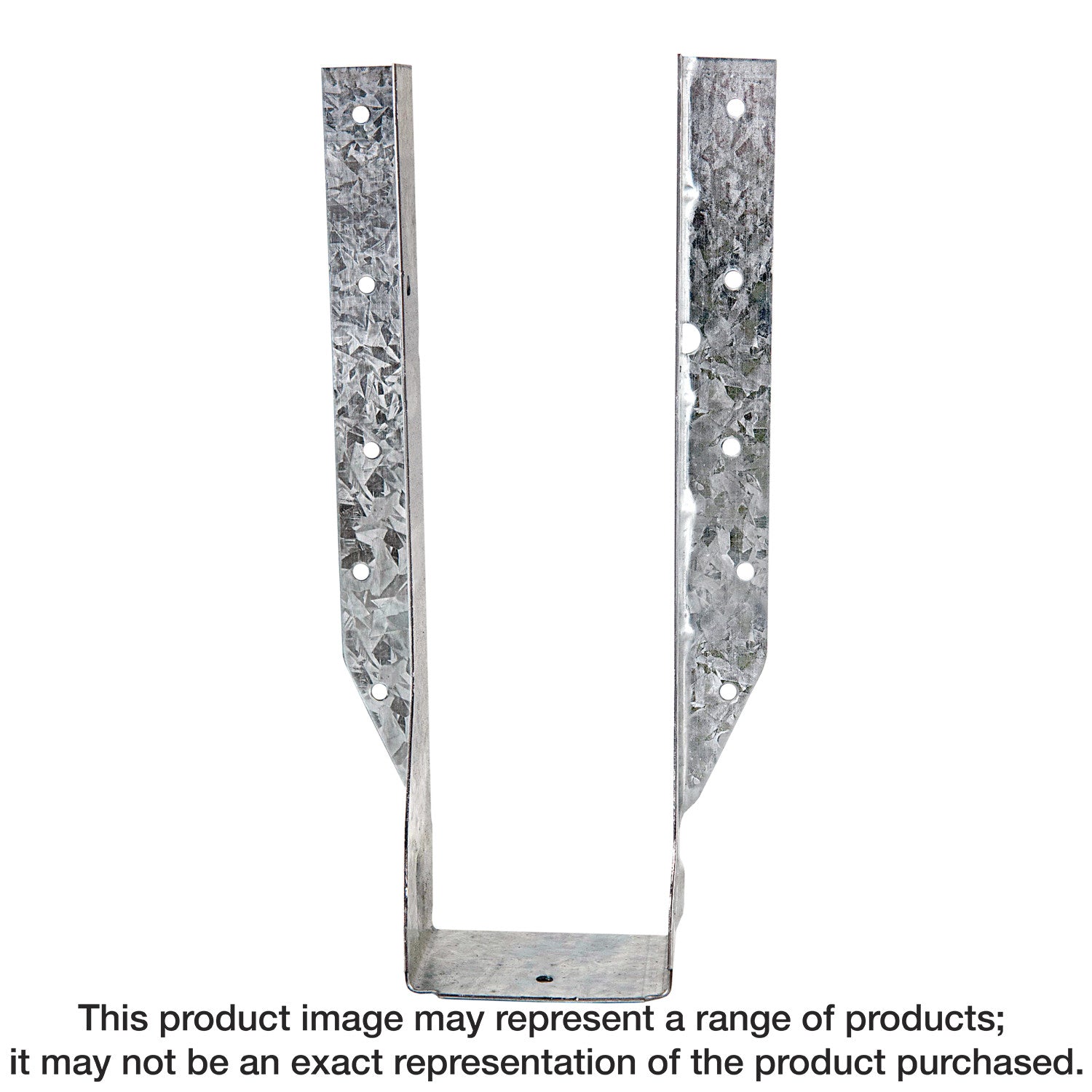

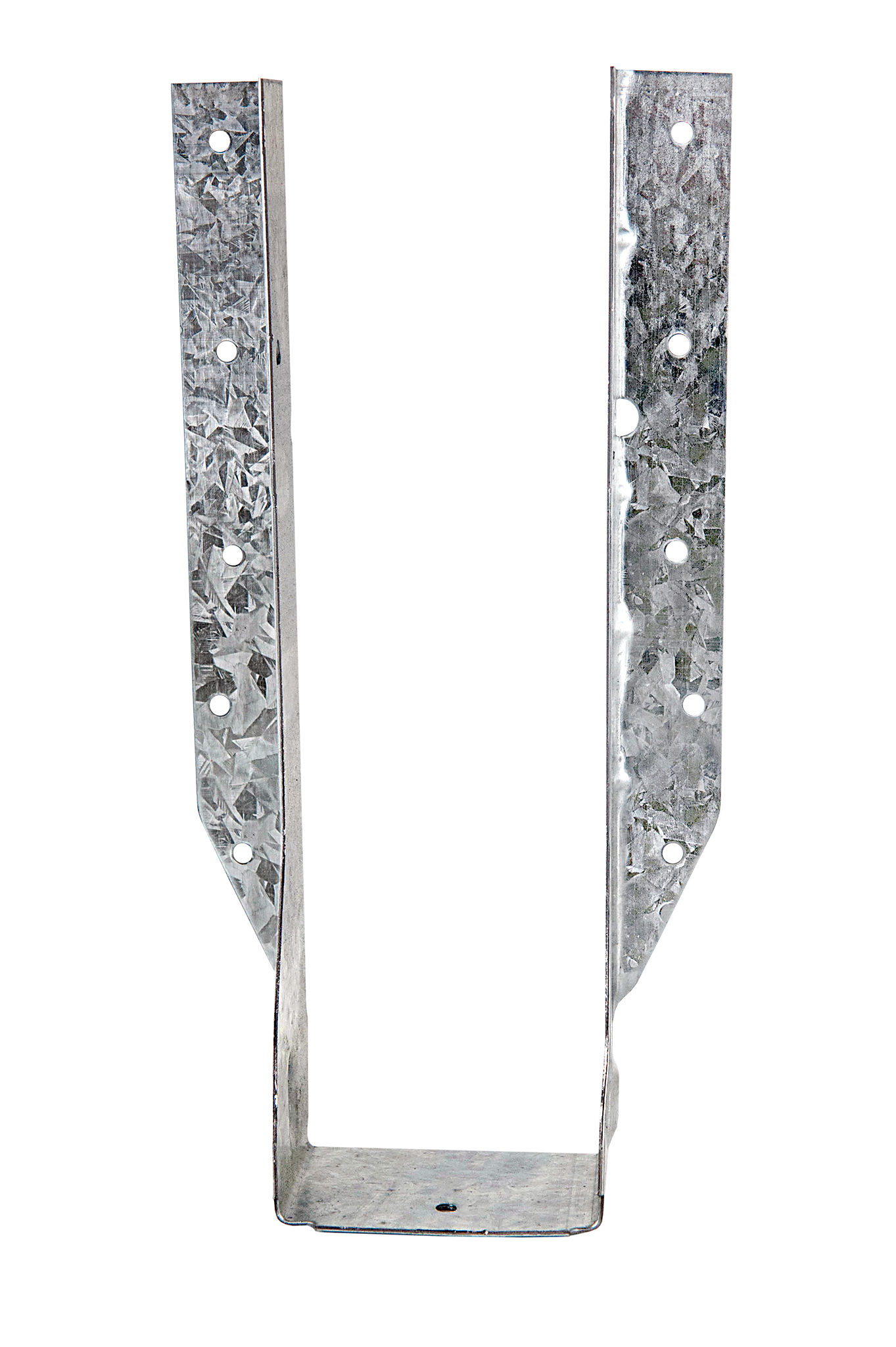

Simpson Strong-Tie LF1711 LF Face-Mount Joist Hanger for 1-3/4 in. x 11-7/8 in. Engineered Wood

The Simpson Strong-Tie® LF series comprises economical face-mount hangers ideal for applications not requiring web stiffeners. The height of the LF is designed to support the top flange of the I-joist. This feature not only reduces installation time, but also lowers material costs.

This Simpson product is designed for construction, connector, fastening, anchoring, and structural applications where dependable performance, durability, and jobsite-ready installation matter.

Features

• These face-mount hangers cannot be modified but will accommodate a skew of up to 5°
• Can be used with joists at slopes up to 1/2:12, with a 10% reduction in ultimate hanger strength
• Features optional triangle nail holes for increased uplift
• Joist size: 1-3/4 x 11-1/4 to 11-7/8
• Made from 18-gauge steel
• Galvanized (G90) for corrosion resistance

Specifications

• ERP Part Number: LF1711
• UPC: 707392820703
• GTIN: 707392820703
• Feature 01: These face-mount hangers cannot be modified but will accommodate a skew of up to 5°
• Feature 02: Can be used with joists at slopes up to 1/2:12, with a 10% reduction in ultimate hanger strength
• Feature 03: Features optional triangle nail holes for increased uplift
• Feature 04: Joist size: 1-3/4 x 11-1/4 to 11-7/8
• Feature 05: Made from 18-gauge steel
• Feature 06: Galvanized (G90) for corrosion resistance
• Install With: Install with (12) 0.148 in. x 3 in. nails in the header and  (1) #8 x 1-1/4 in. wood screws in the joist
• Assembled Depth - Imperial: 2.3585
• Assembled Depth UOM - Imperial: in.
• Assembled Height - Imperial: 11.45225
• Assembled Height UOM - Imperial: in.
• Assembled Width - Imperial: 3.6545
• Assembled Width UOM - Imperial: in.
• Base Product ID: LF_Hanger
• Base Product Name: LF
• Brand Name: Simpson Strong-Tie®
• Category Tree (Computed): Wood Construction Connectors > Joist Hangers for Engineered Wood > Hanger
• Coating: Zinc Galvanized, G90
• Country of Origin: CA
• Customer Unit: Yes
• Display Unit/Measure: EA
• Finish: Zinc Galvanized, G90
• Gauge: 18
• GUID: 158220872553689313211685555020548027343
• Logo Image: https://images.salsify.com/image/upload/s--Lkh4Jm6c--/vkrqlmpfxgflsa4yytuq.png
• Measurement Unit Text: each
• Member Size: 1 3/4 x 11 1/4 – 11 7/8
• MFG Name: Simpson Strong-Tie®
• Number Category Description: UPC
• Packaging Quantity: 1
• Packaging Type: Unpacked
• Product Class: Hanger
• Prop 65 Warning: No
• Quantity: 1
• Shipping Weight: 0.7
• Short Product Name: FACE MOUNT I-JOIST HANGER CANADA
• Strongtie.com URL: https://www.strongtie.com/facemounthangers_engineeredwoodconnectors/lf_hanger/p/lf
• Subcategory: Wood Construction Connectors
• Subcategory 2: Joist Hangers for Engineered Wood
• Warranty PDF: https://images.salsify.com/image/upload/s--K_9ww28_--/bgqxyqo1uhaqsqcvudu7.pdf
• Brand Video: https://images.salsify.com/video/upload/s--N-SMFYx9--/wpz3sdgci9c512ppr9df.mp4
• CAR Reference: 10707392820700
• PAL Reference: 50707392820708
• Lumber Size Infographic: https://images.salsify.com/image/upload/s--4j6m7m95--/of77l1vzb2adrmtseor4.png
